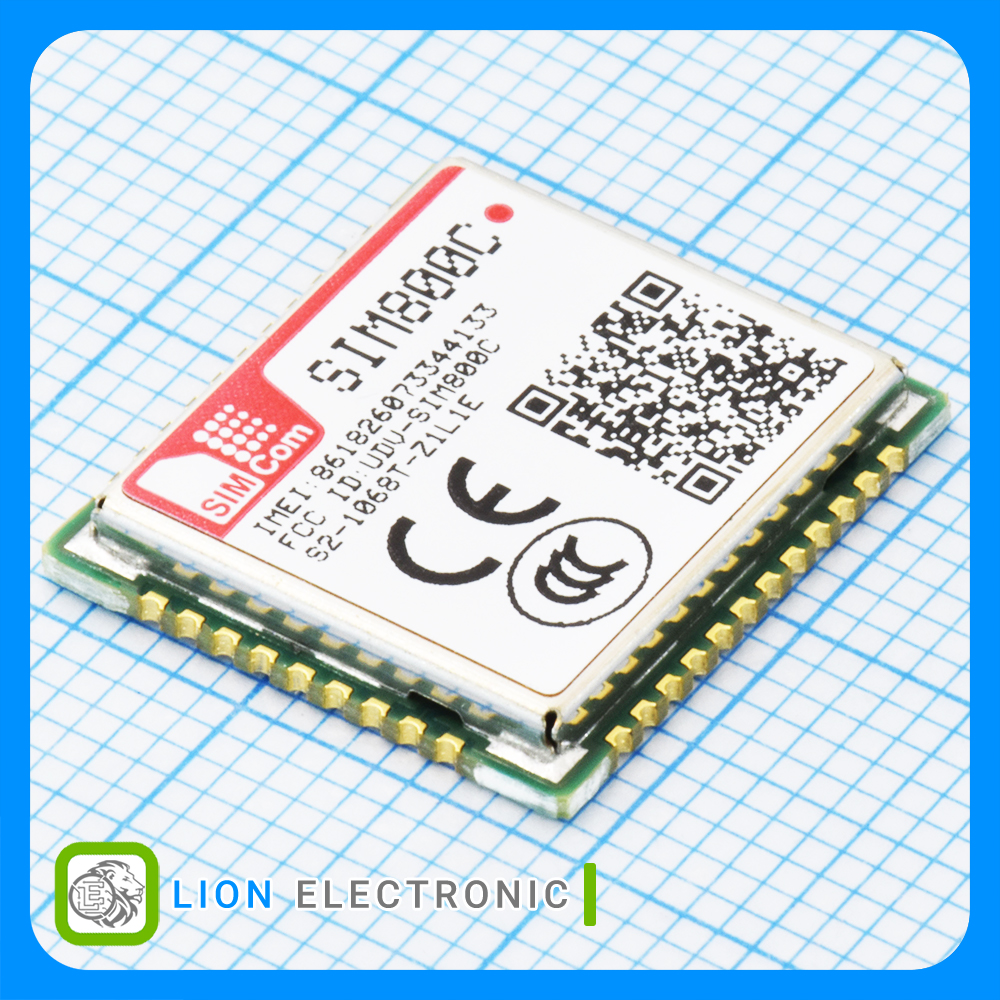

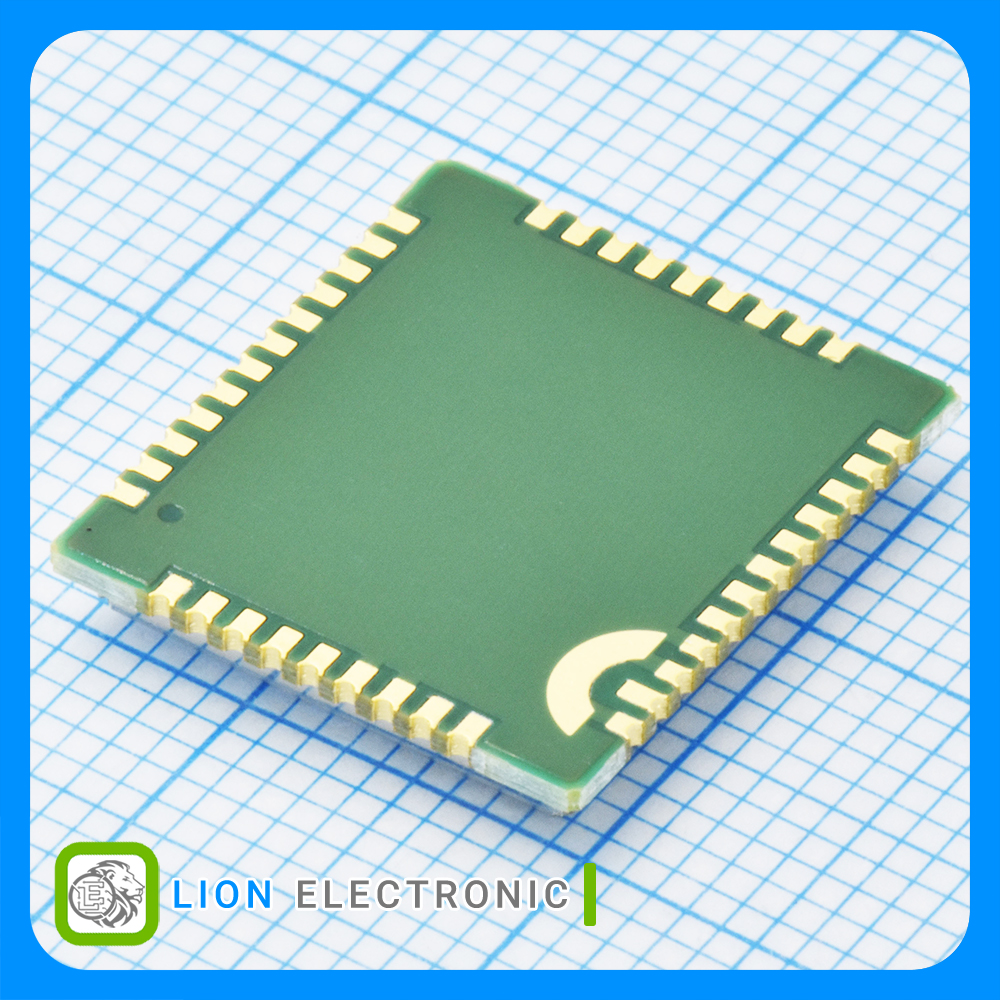

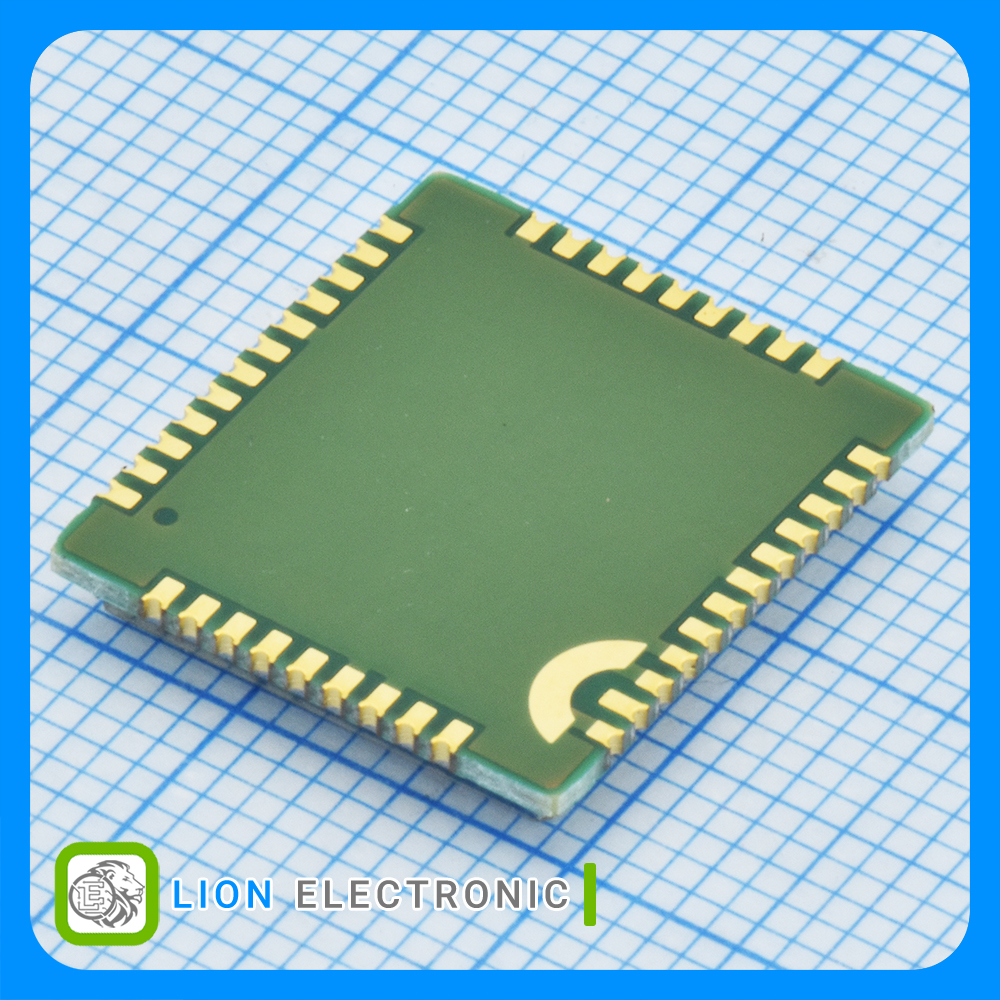

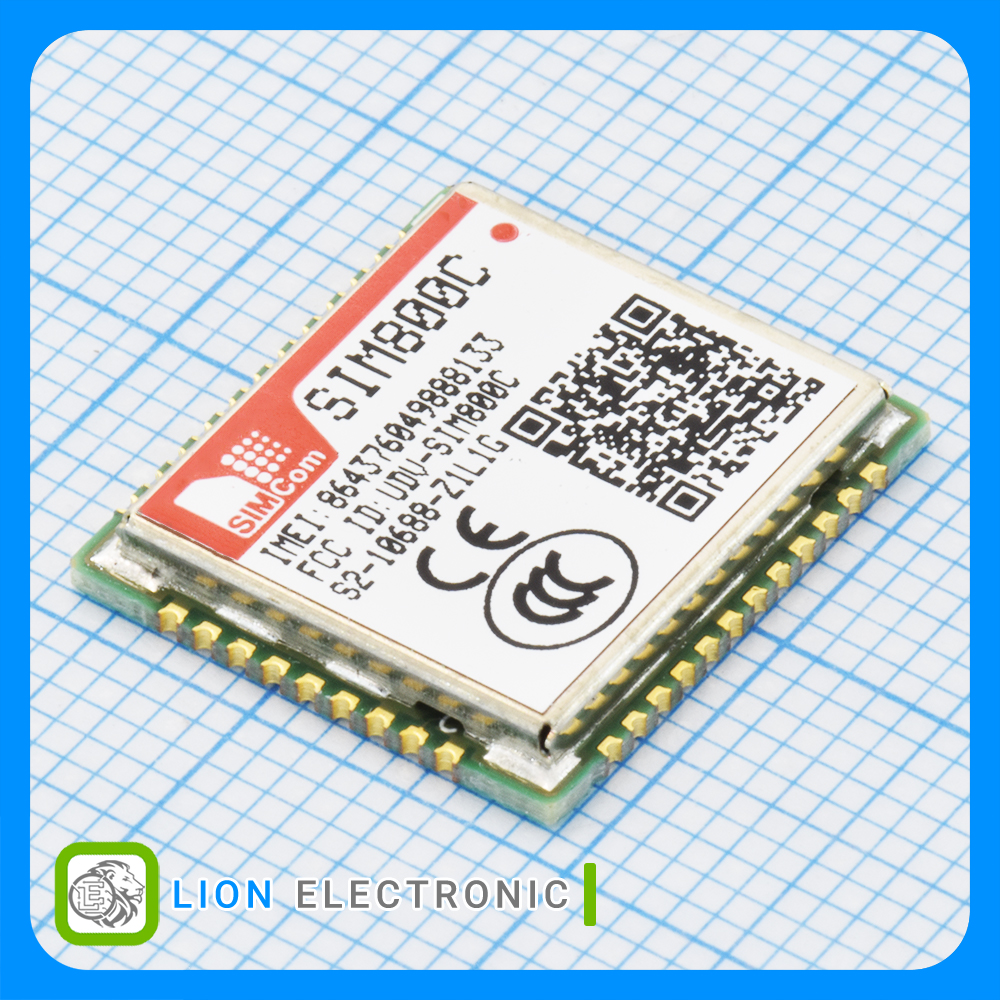

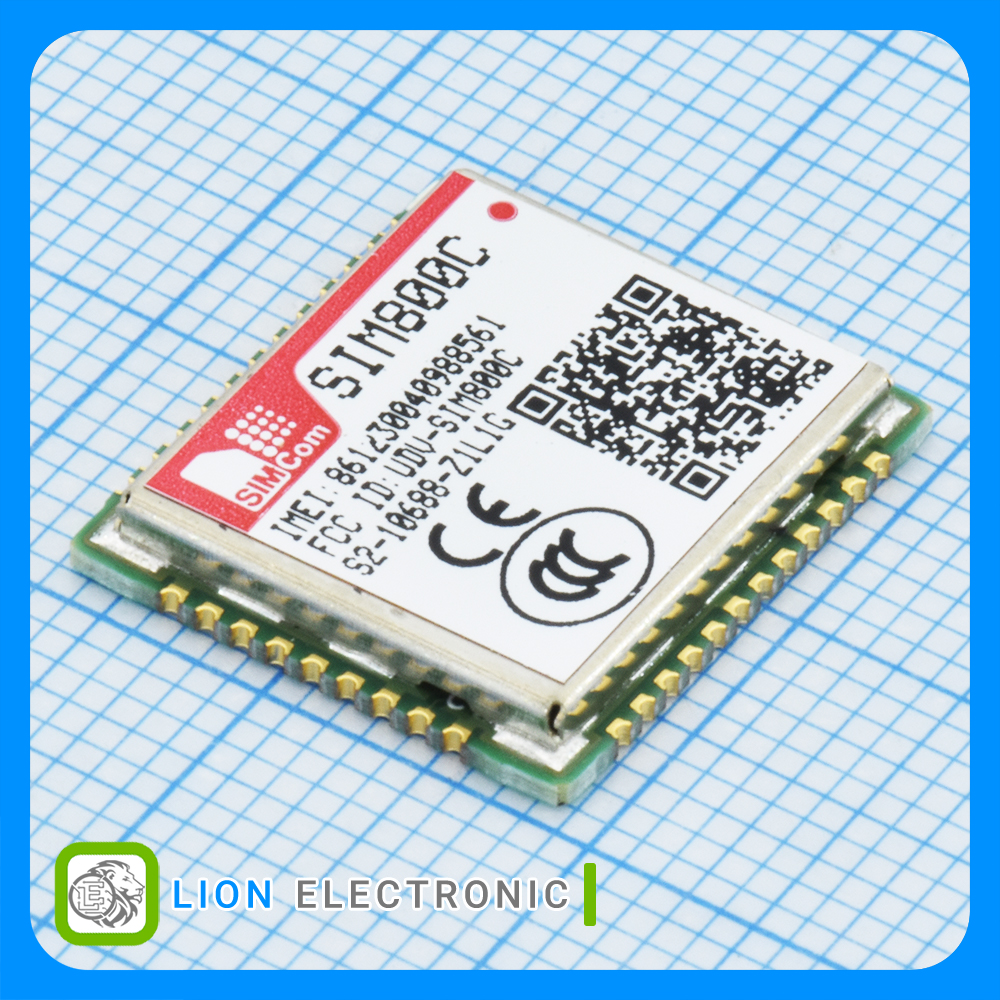

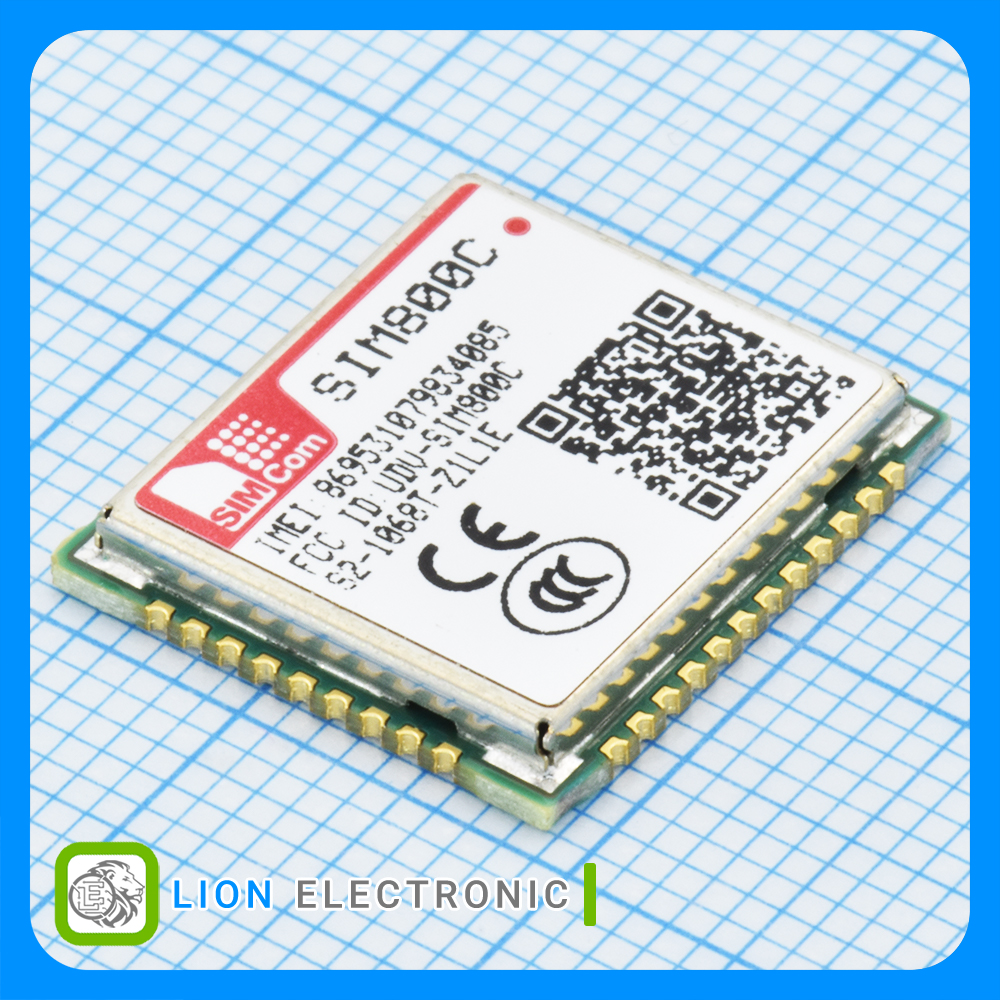

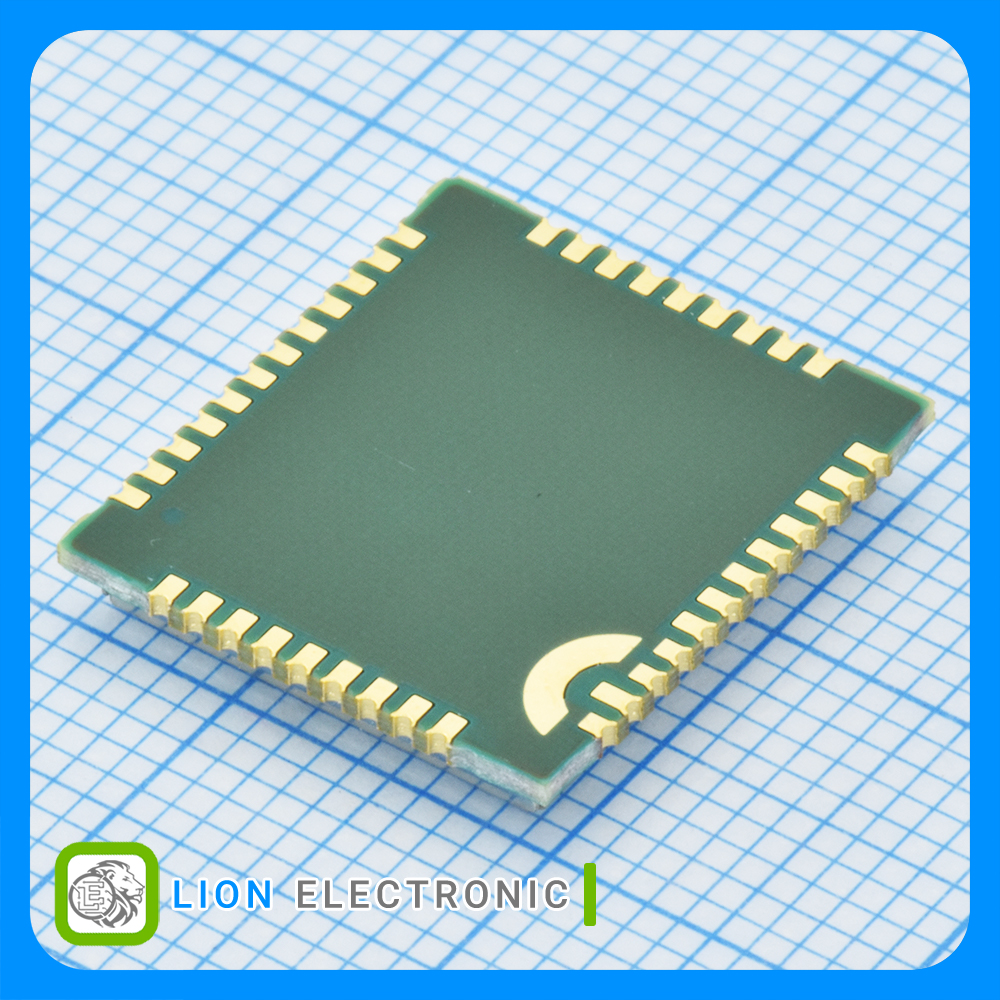

SIM800C 32Mbit
SIM800C 32Mbit
Part Number
969
Lion Part
Datasheet
SIMCom Manufacture
ماژول GSM/GPRS چهارباند با فرکانس 850/900/1800/1900 مگاهرتز و تغذیه 3.4 تا 4.4 ولت با رابط ADC، صدای آنالوگ، GPIO، UART، دارای حافظه فلش 32 مگابیت
Quad-Band GSM/GPRS Communication Module with 850/900/1800/1900MHz Frequency, 3.4 - 4.4V Supply with ADC, Analog Audio, GPIO, UART Interface, 32Mbit Flash Memory
معرفی
ماژول GSM/GPRS چهارباند با فرکانس 850/900/1800/1900 مگاهرتز و تغذیه 3.4 تا 4.4 ولت با رابط ADC، صدای آنالوگ، GPIO، UART، دارای حافظه فلش 32 مگابیت
Quad-Band GSM/GPRS Communication Module with 850/900/1800/1900MHz Frequency, 3.4 - 4.4V Supply with ADC, Analog Audio, GPIO, UART Interface, 32Mbit Flash Memory
Specifications
- Interface Type: ADC, Analog Audio, GPIO, UART
- Number of Channels: 4
- Frequency: 850/900/1800/1900MHz
- Acquisition Sensitivity: -109dBm
- Operating Supply Voltage: 3.4 - 4.4V
- Operating Supply Current: Max 2A
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
مشخصات ماژول SIM800C 32Mbit
ماژول SIM800C 32Mbit
Part Number
N/A
Horizontal Position Accuracy
-109dBm
Acquisition Sensitivity
N/A
Time To First Fix - Cold Start
4
Number of Channels
-40C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
ADC, Analog Audio, GPIO, UART
Interface Type
850/900/1800/1900MHz
Frequency
3.4 - 4.4V
Operating Supply Voltage
Max 2A
Operating Supply Current
