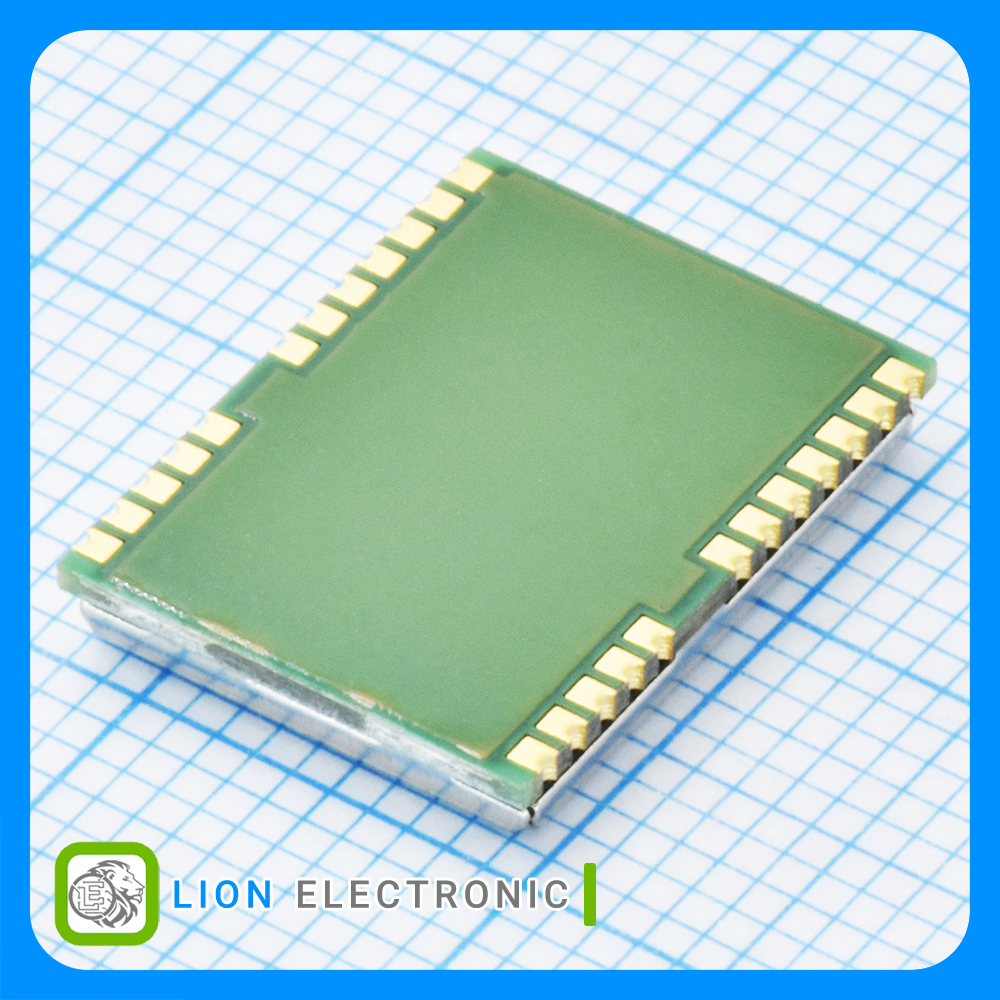

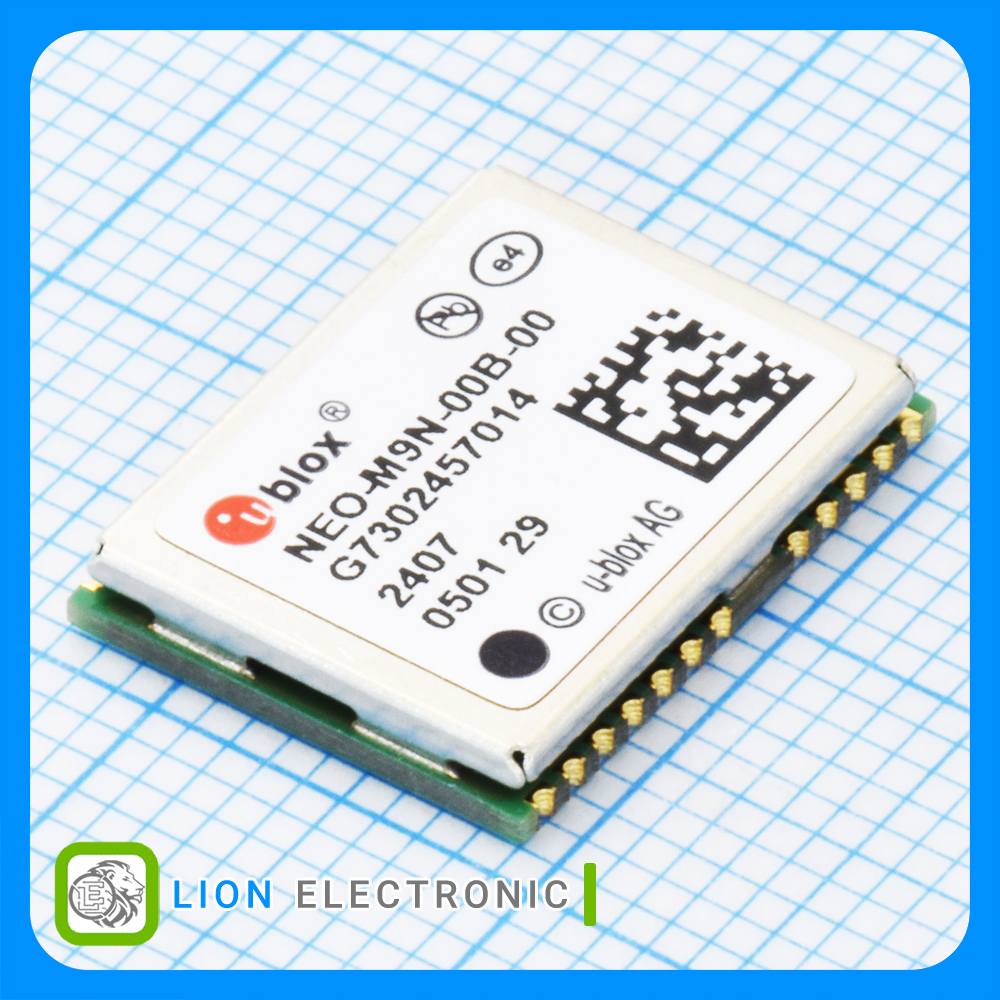

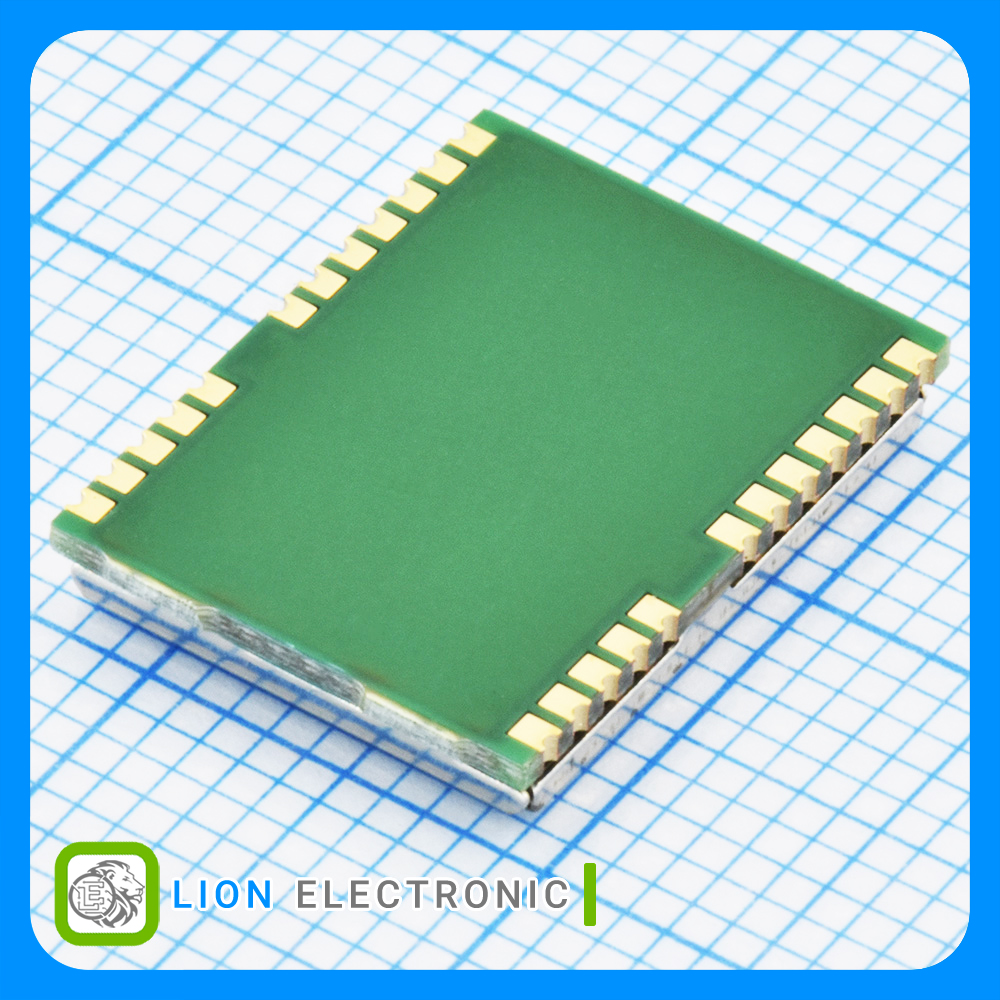

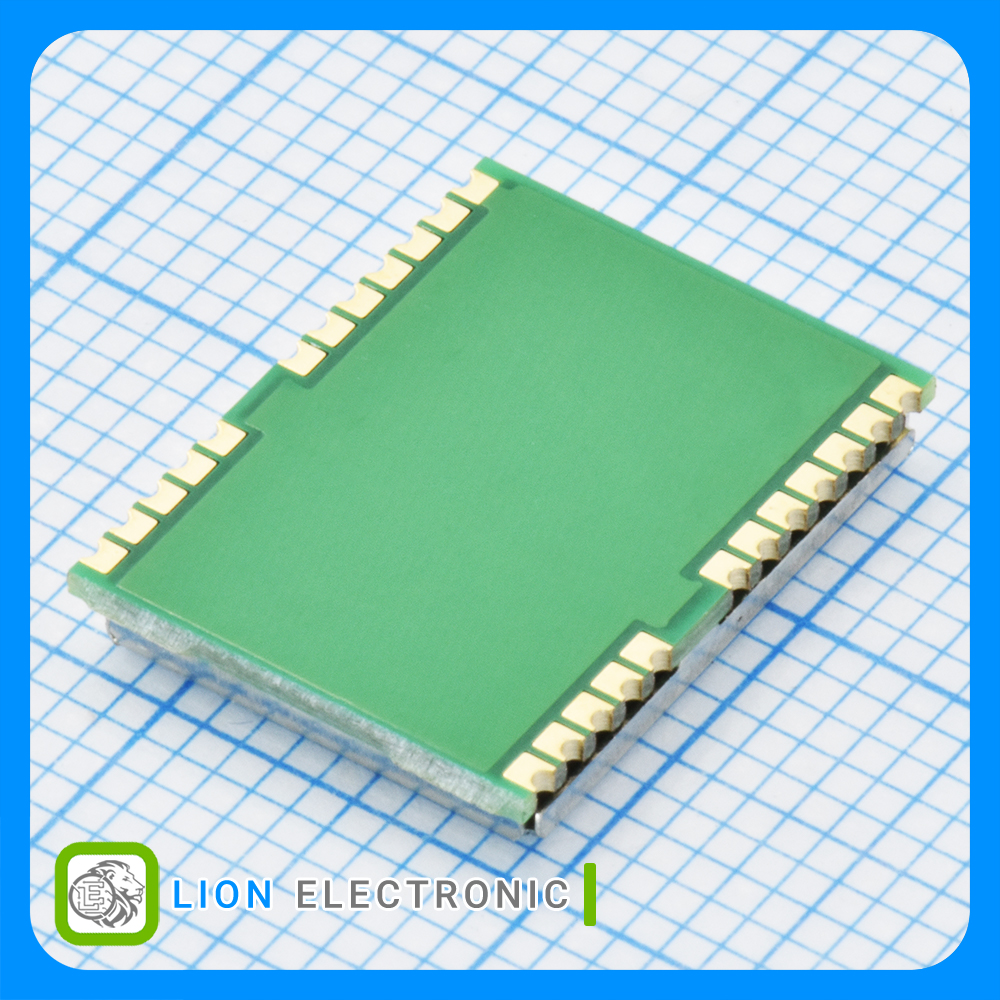

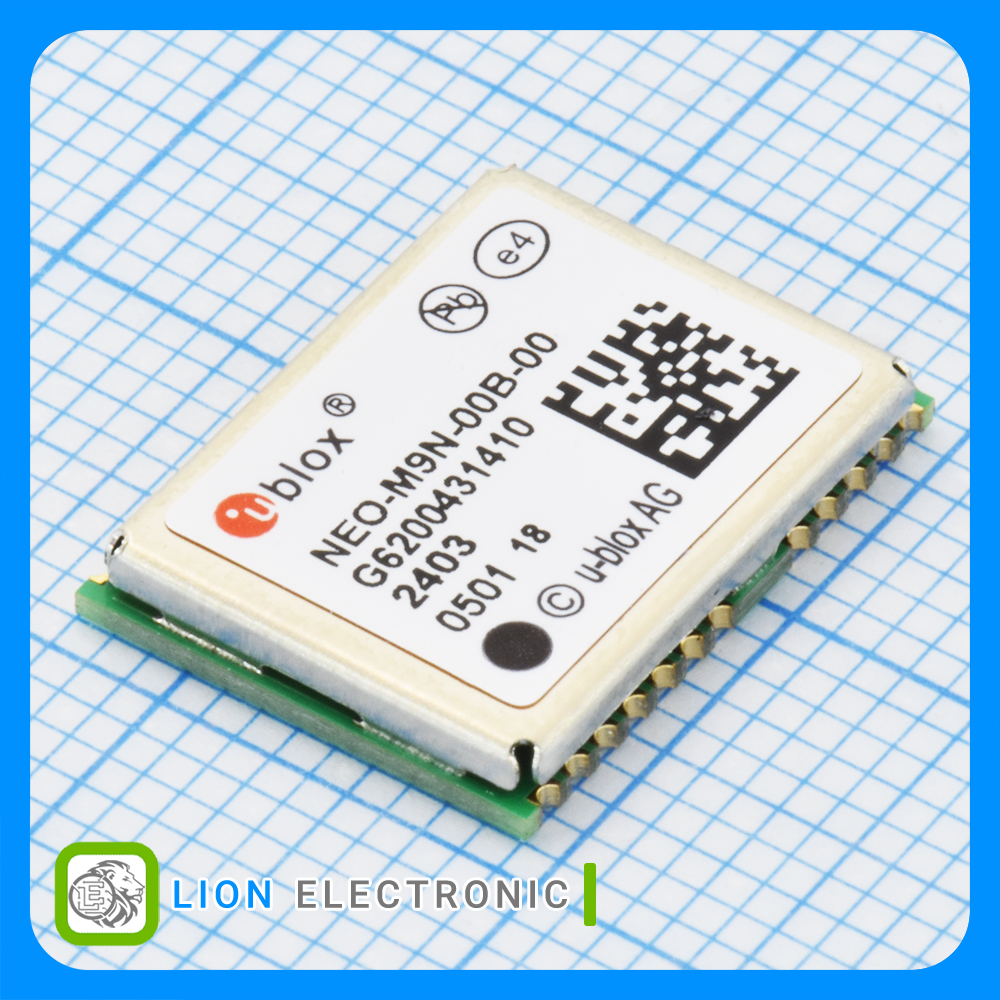

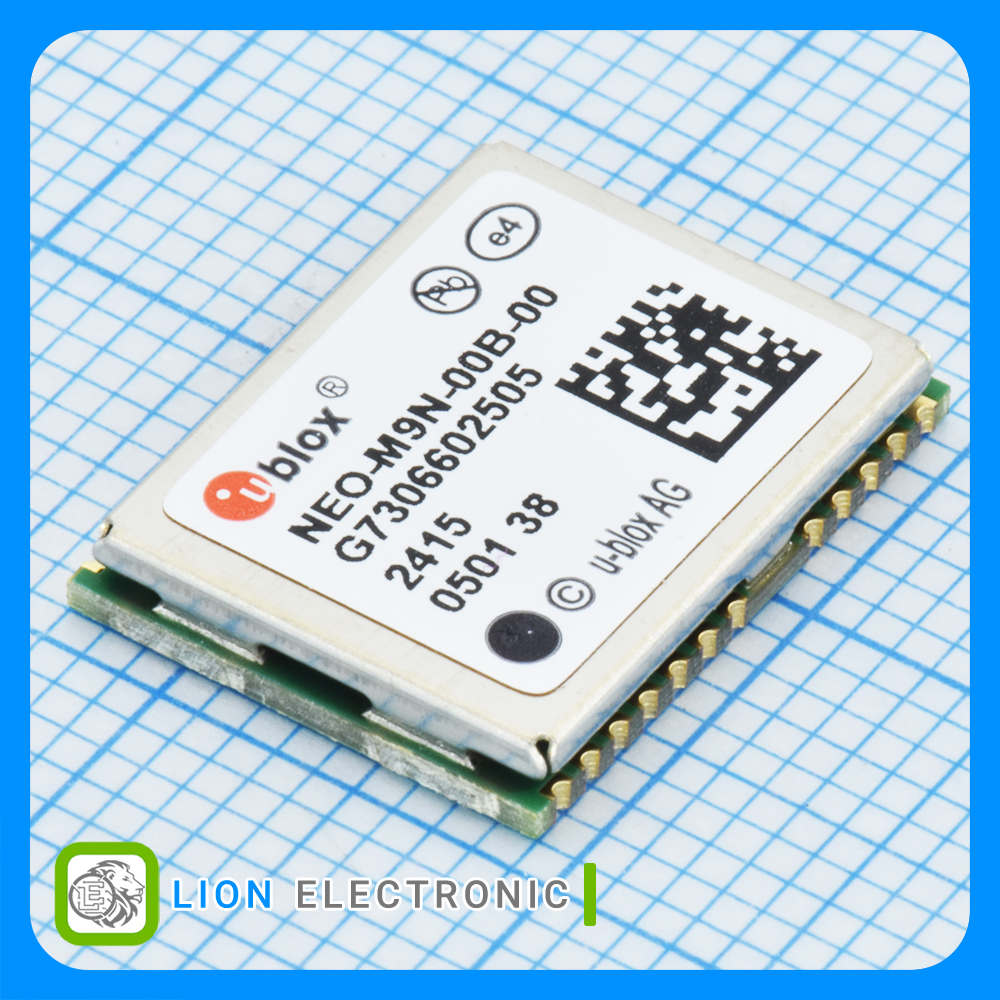

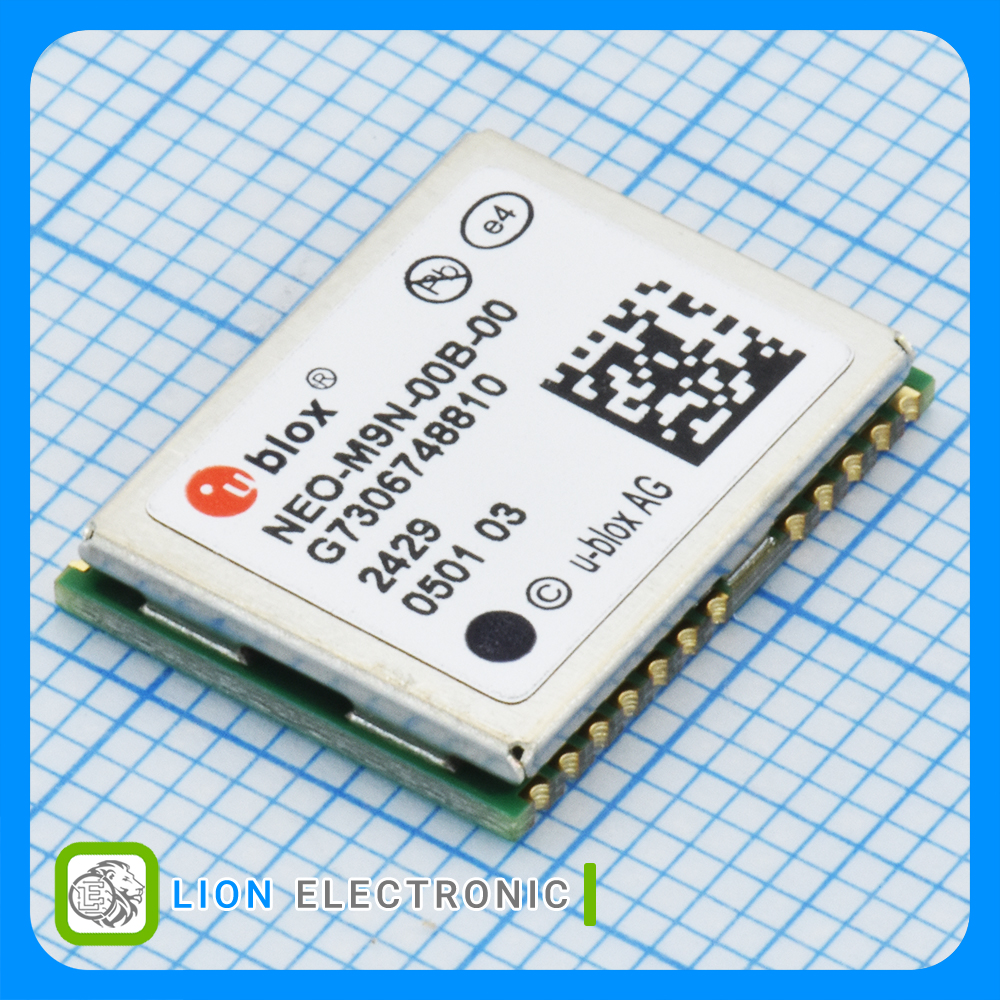

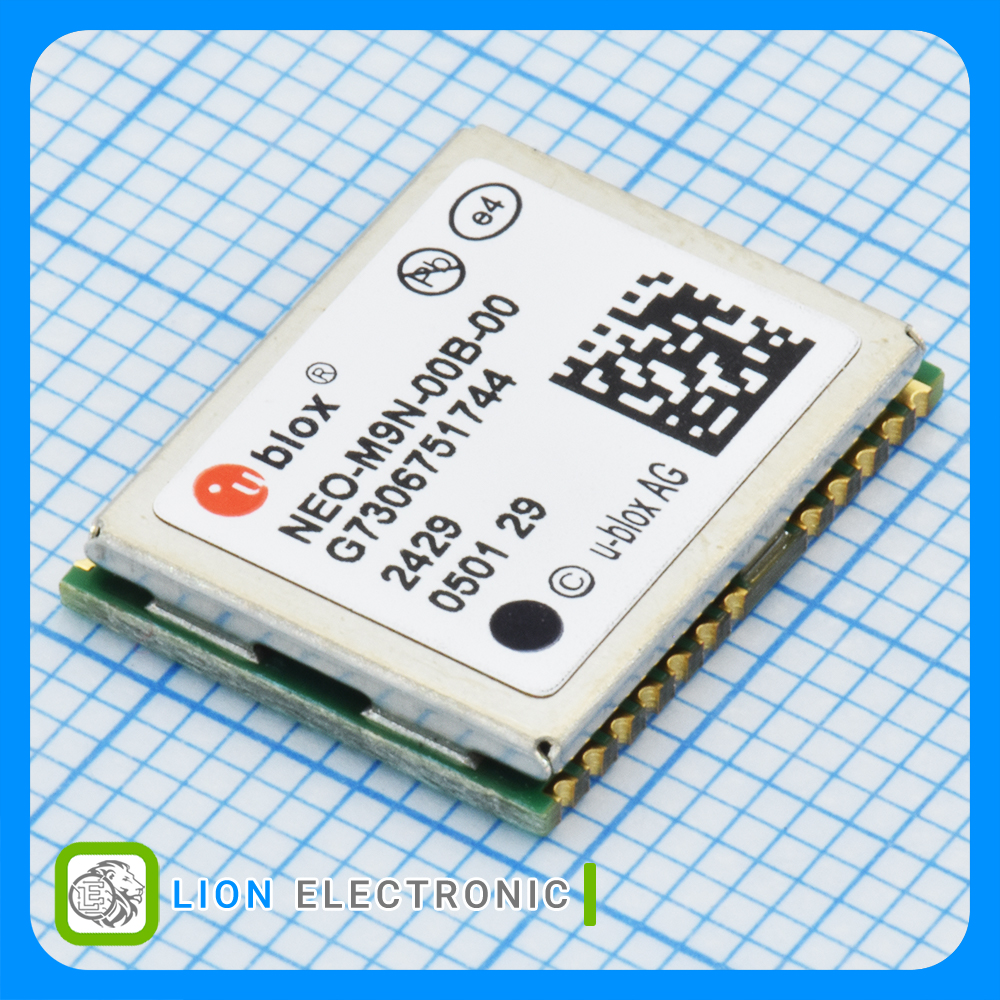

ماژول(GNSS) NEO-M9N-00B-00
NEO-M9N-00B-00
Part Number
4600
Lion Part
Datasheet
u-blox Manufacture
ماژول GNSS مبتنی بر چیپ U-Blox M9 با حساسیت بالا و زمان دریافت سریع برای همه سیستمهای GNSS سطح L1
NEO-M9N Module is Built on the Robust U-Blox M9 GNSS Chip, Which Provides Exceptional Sensitivity and Acquisition Times for All L1 GNSS Systems
معرفی
Standard precision GNSS module Professional grade
مشخصات ماژول(GNSS) NEO-M9N-00B-00
ماژول(GNSS) NEO-M9N-00B-00
Part Number
-166dBm
Acquisition Sensitivity
N/A
Horizontal Position Accuracy
29s
Time To First Fix - Cold Start
4
Number of Channels
-40C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
N/A
Frequency
2.7 - 3.6V
Operating Supply Voltage
I2C, SPI, UART, USB
Interface Type
50mA
Operating Supply Current
