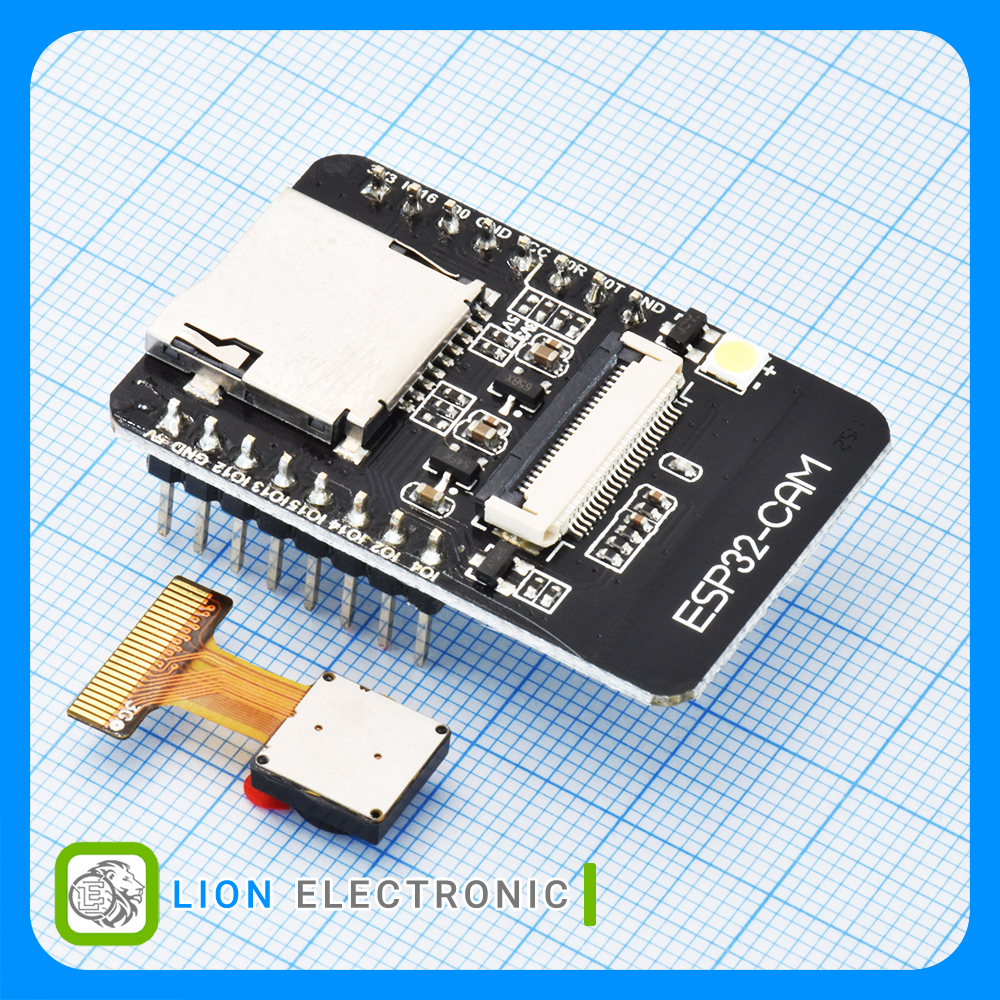

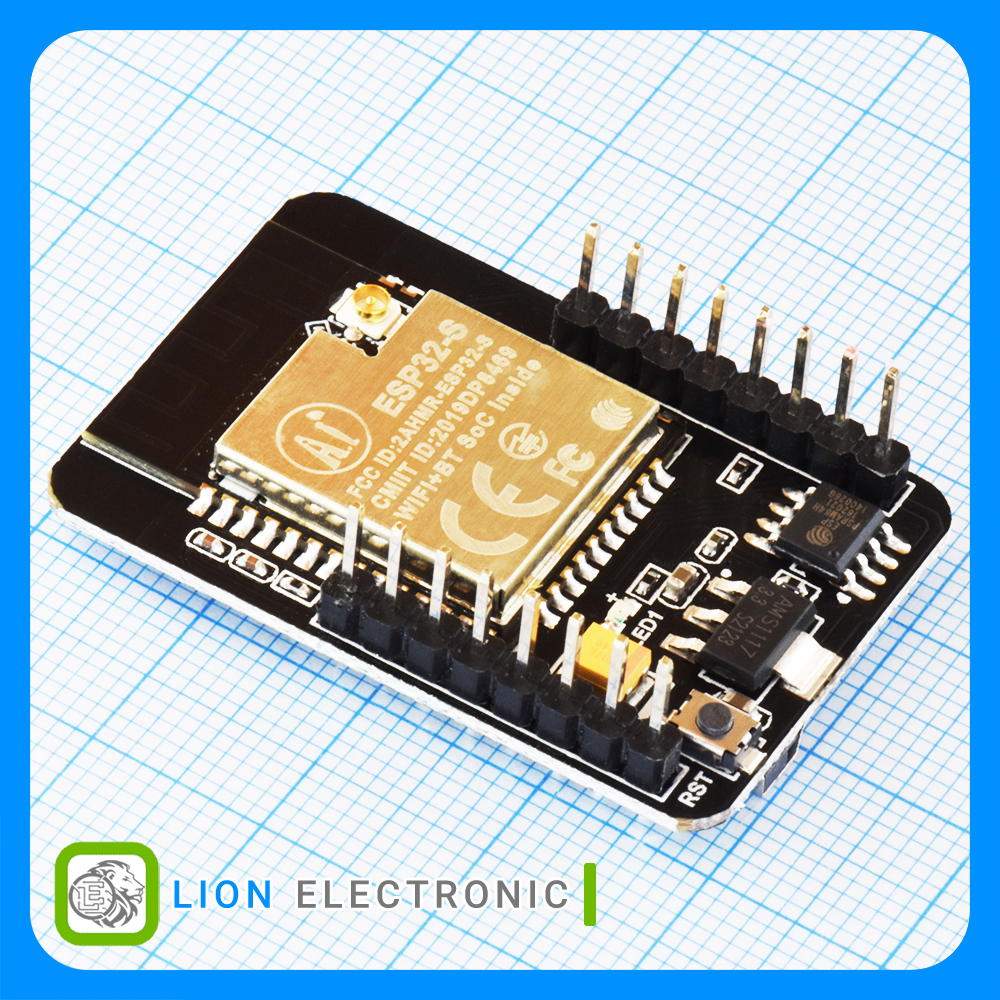

ماژول ESP32-CAM

Part Number

ESP32-CAM

Datasheet

Lion Part

5044

Manufacturer

Ai-Thinker

Description

802.11b/g/n Wi-Fi + BT/BLE SoC Module DIP-16
Support OV2640 and OV7670 Cameras

موجودی محصول

Full Bag: 1

در صورت کمبود موجودی محصول می توانید آنرا به لیست استعلام اضافه نمایید تا توسط کارشناسان واحد سفارشات خارجی بررسی شده و نتیجه به شما اطلاع داده شود

قیمت محصول

تعداد	قیمت
1	6,962,970 ریال
10	6,717,795 ریال

معرفی

Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module

Low-power dual-core 32-bit CPU, can be used as application processor

Main frequency up to 240MHz, computing power up to 600 DMIPS

Built-in 520 KB SRAM, external 4M PSRAM

Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces

Support OV2640 and OV7670 cameras, built-in flash

Support picture WiFI upload

Support TF card

Support multiple sleep modes

Embedded Lwip and FreeRTOS

Support STA/AP/STA+AP working mode

Support Smart Config/AirKiss one-key network configuration

Support serial port local upgrade and remote firmware upgrade (FOTA)

ESP32-CAM has a very competitive small-size camera module in the industry. This module can work independently as the smallest system. The size is only 27*40.5*4.5mm, and the deep sleep current is as low as 6mA.
ESP-32CAM can be widely used in various IoT occasions, suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.
ESP-32CAM adopts DIP packaging and can be used directly by plugging into the baseboard, realizing rapid production of products, providing customers with a highly reliable connection method, and conveniently applied to various IoT hardware terminal occasions.

مشخصات ماژول ESP32-CAM

Part Number

ماژول ESP32-CAM
Antenna Connector Type

PCB
Minimum Operating Temperature

-20C
Packaging

-
Maximum Operating Temperature

+85C
Frequency

240MHz
Supply Current Receiving

-
Supply Current Transmitting

-
Dimensions

27mm x 40.5mm × 4.5mm
Output Power

-
Interface Type

I2C, PWM, SPI, UART
Product

WiFi & Bluetooth Module
Operating Supply Voltage

5V
