Luckfox Core3506
Luckfox Core3506
Part Number
6565
Lion Part
Datasheet
luckfox Manufacture

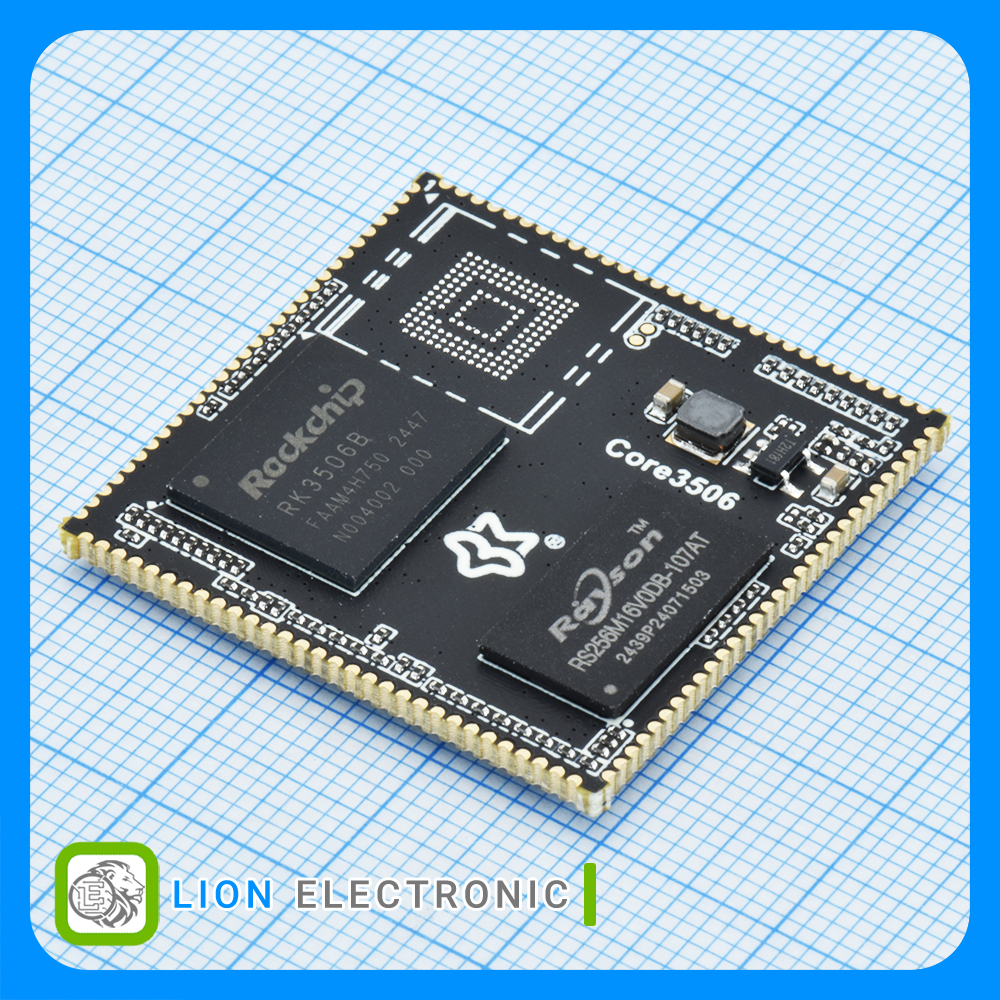

The Core3506 is a Core Board Based on the Rockchip RK3506B Chip with High Performance and High Expandability, Designed to Simplify Hardware Development.
معرفی
- Triple-core ARM Cortex-A7 32-bit core, with integrated VFP to support single- and double-precision floating-point operations
- Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configuration
- Supports DDR3L memory interface expansion, meeting various expansion needs
- The low-speed interfaces adopt Rockchip Matrix IO design, which allows rich function signals to share the limited chip pins, making peripheral circuit adaptation more flexible
- Supports multiple audio inputs and outputs, providing high-quality audio playback and recording functions
مشخصات Luckfox Core3506
Luckfox Core3506
Part Number
N/A
Maximum RAM Capacity
ARM
Processor Type
+60C
Maximum Operating Temperature
Rockchip
Processor Brand
N/A
Cache Memory
512MB
Installed RAM
-20C
Minimum Operating Temperature
Rockchip RK3506B
Chipsets
1.2GHz
Frequency
System-On-Modules - SOM
Product Type
32mm x 32mm
Dimensions
درج شده در توضیحات محصول
Interface Type
N/A
Operating Supply Voltage
