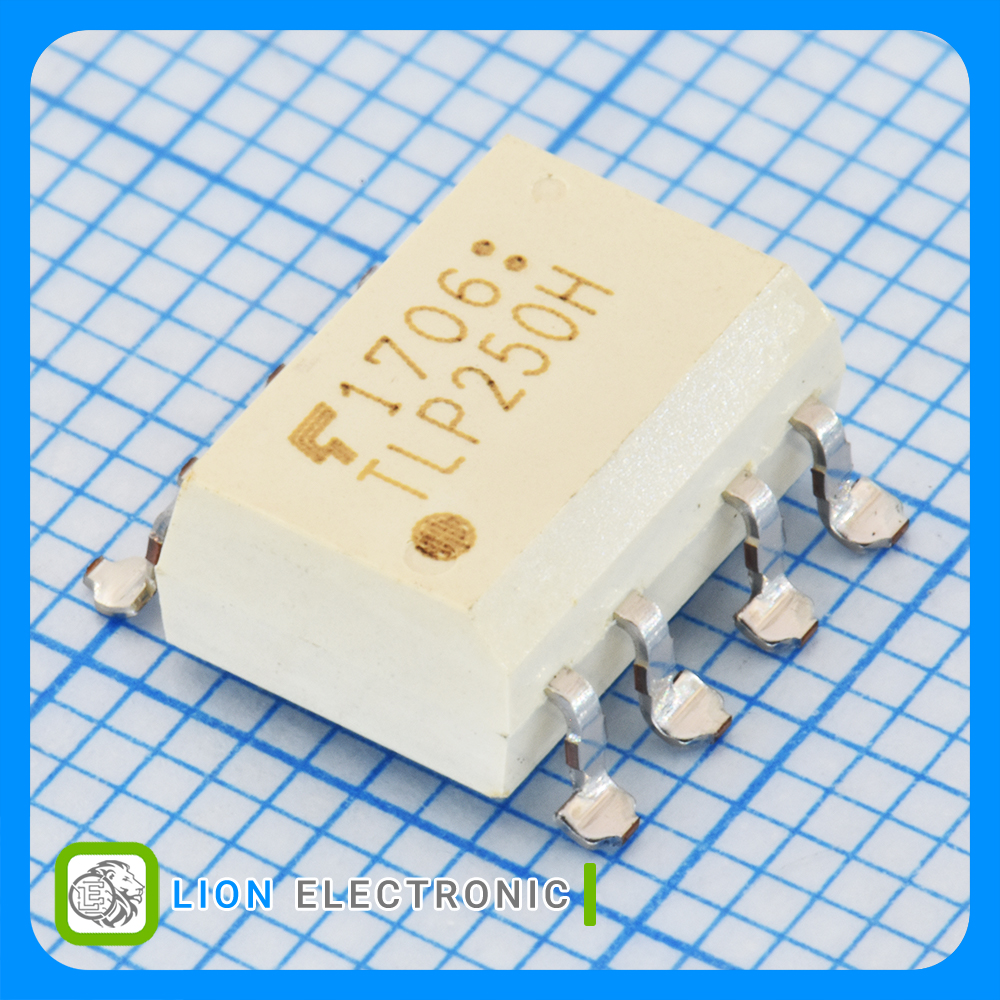

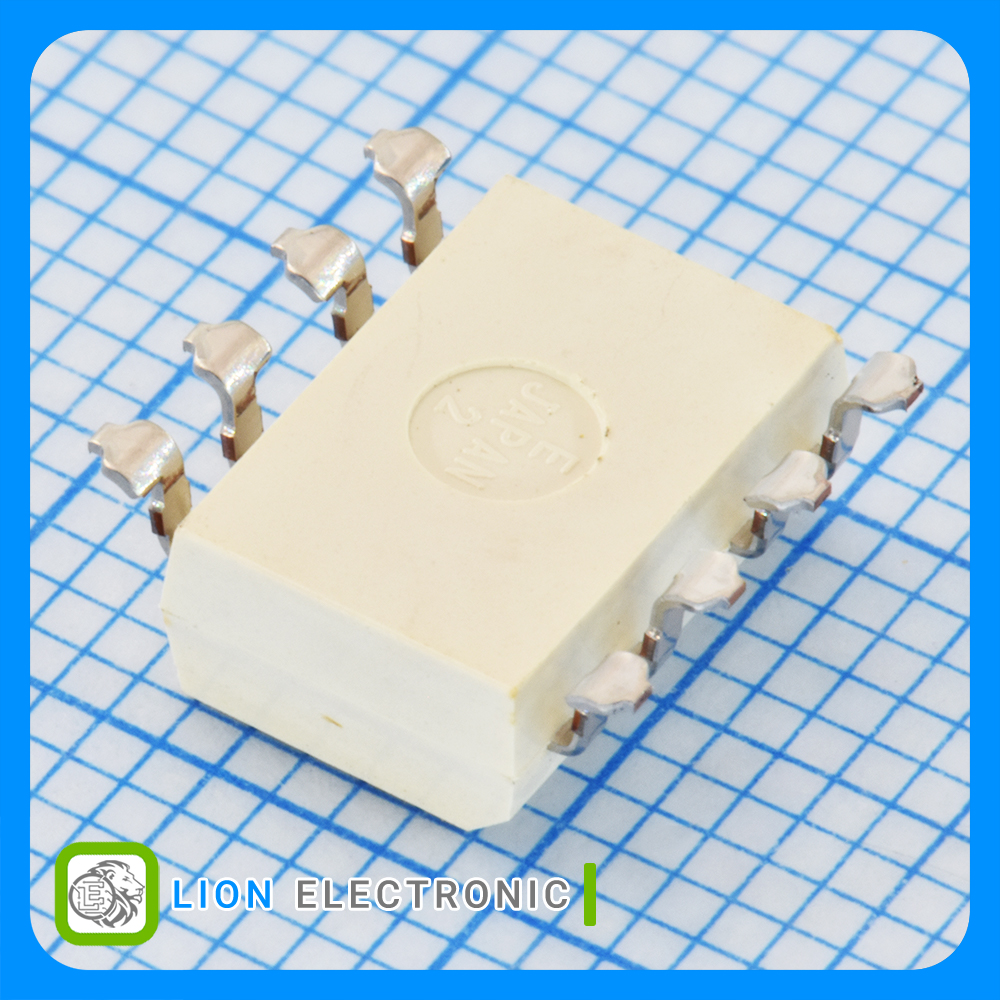

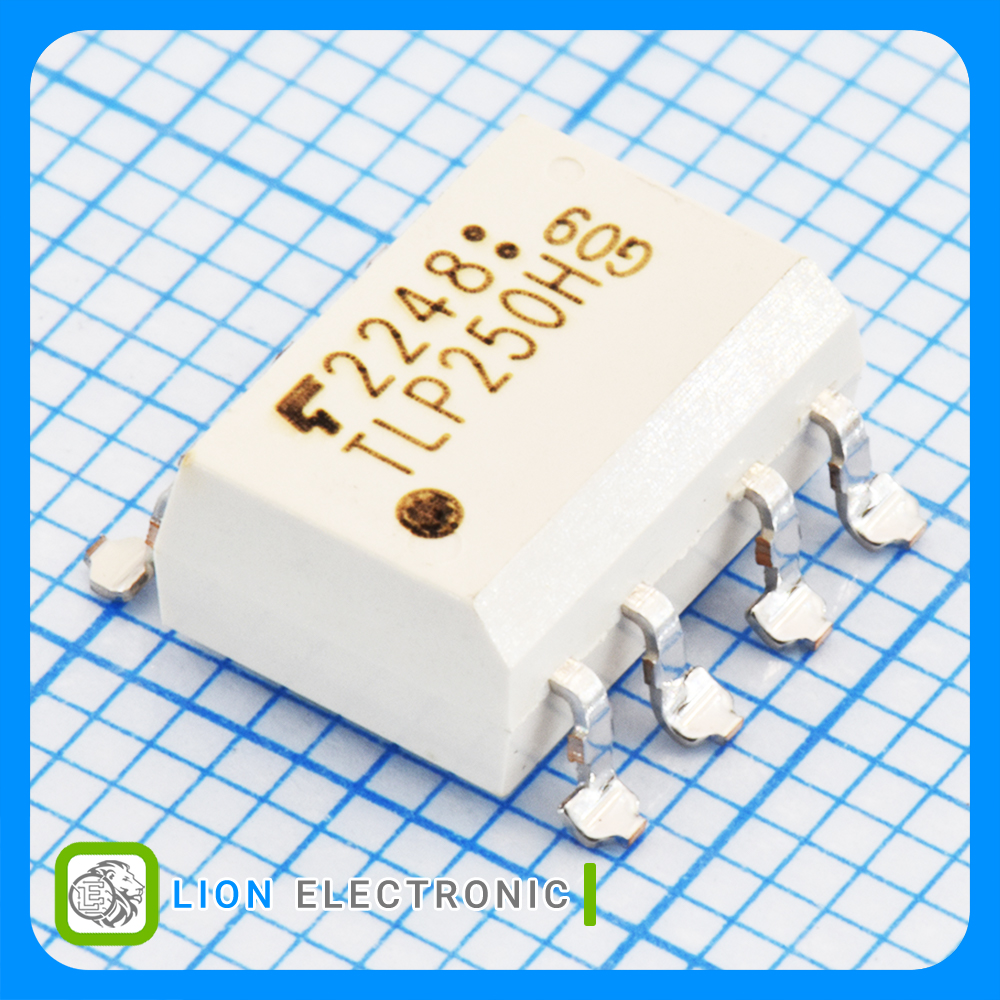

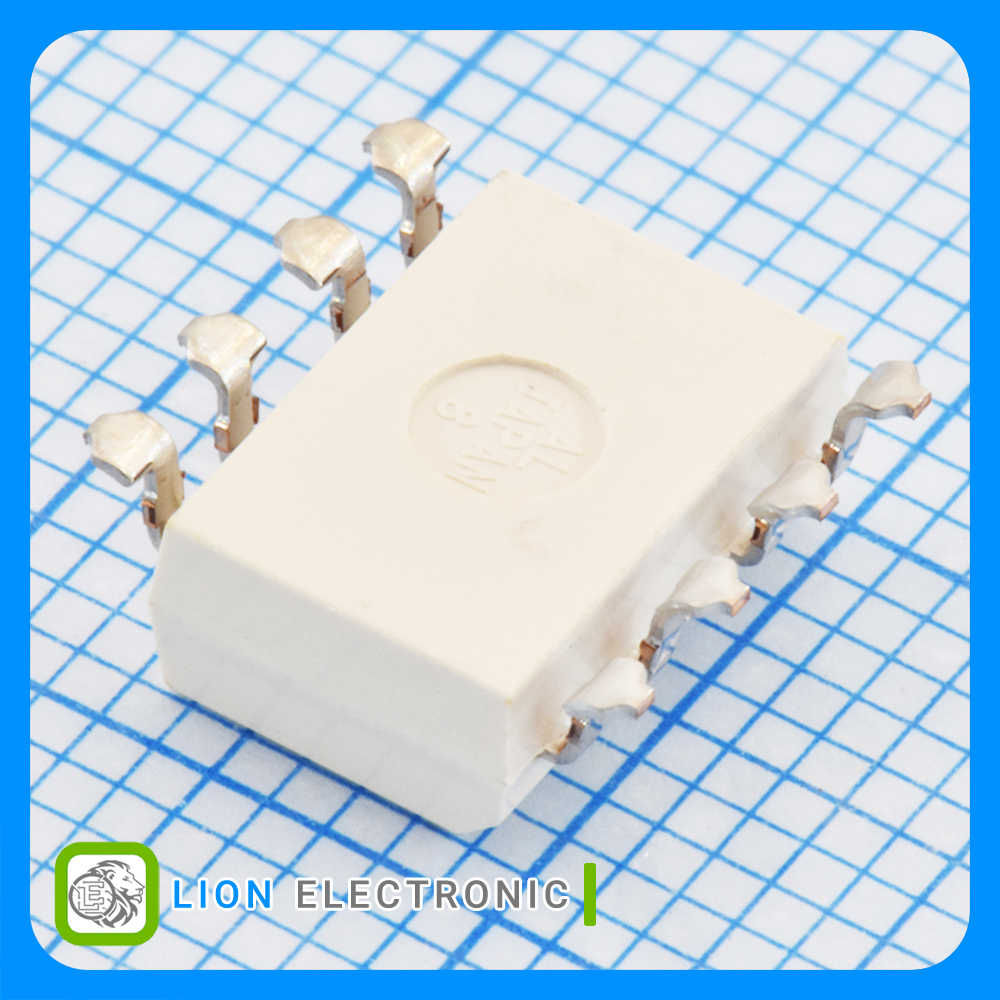

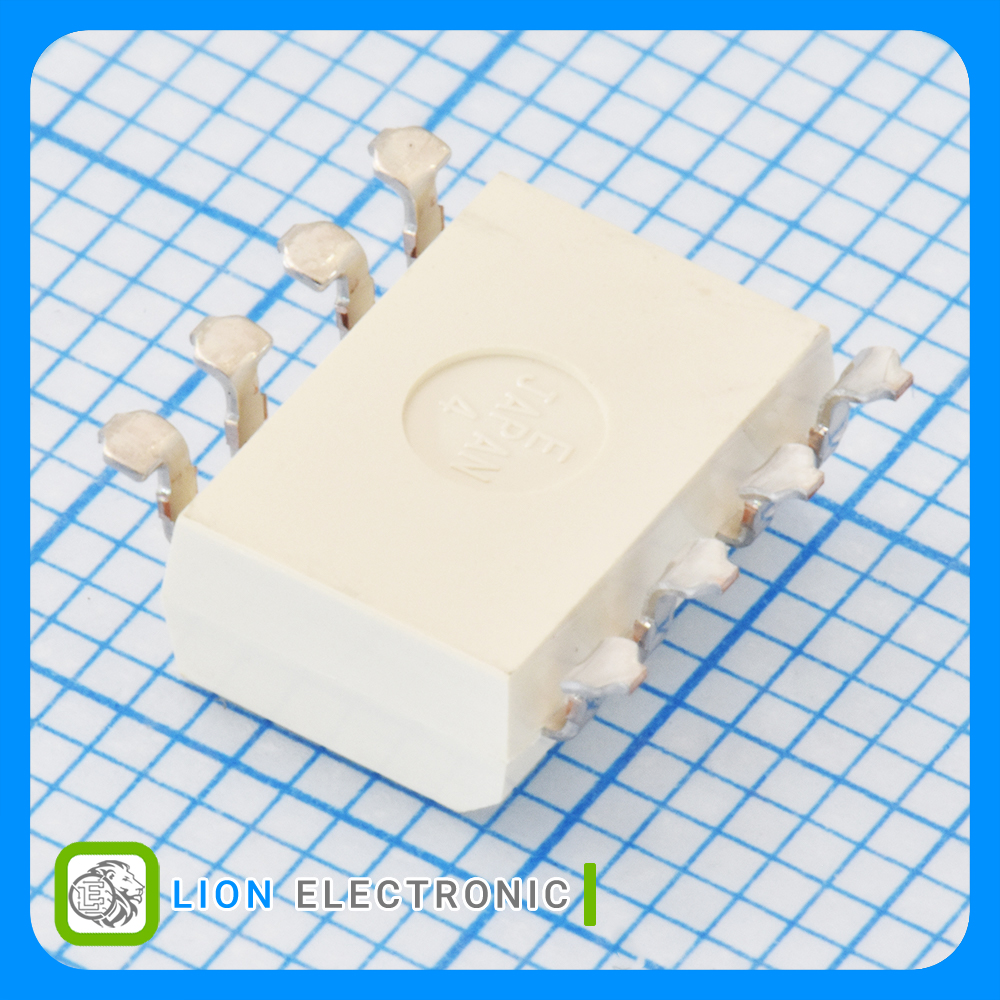

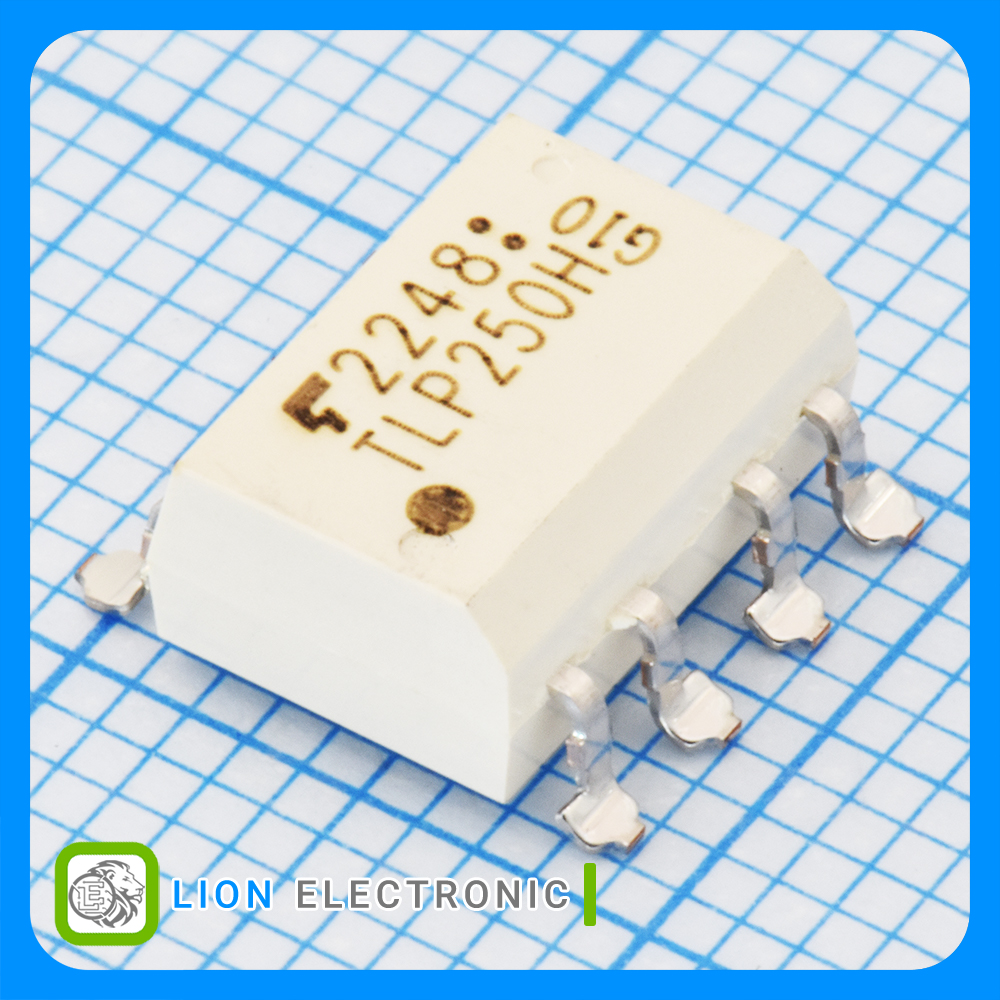

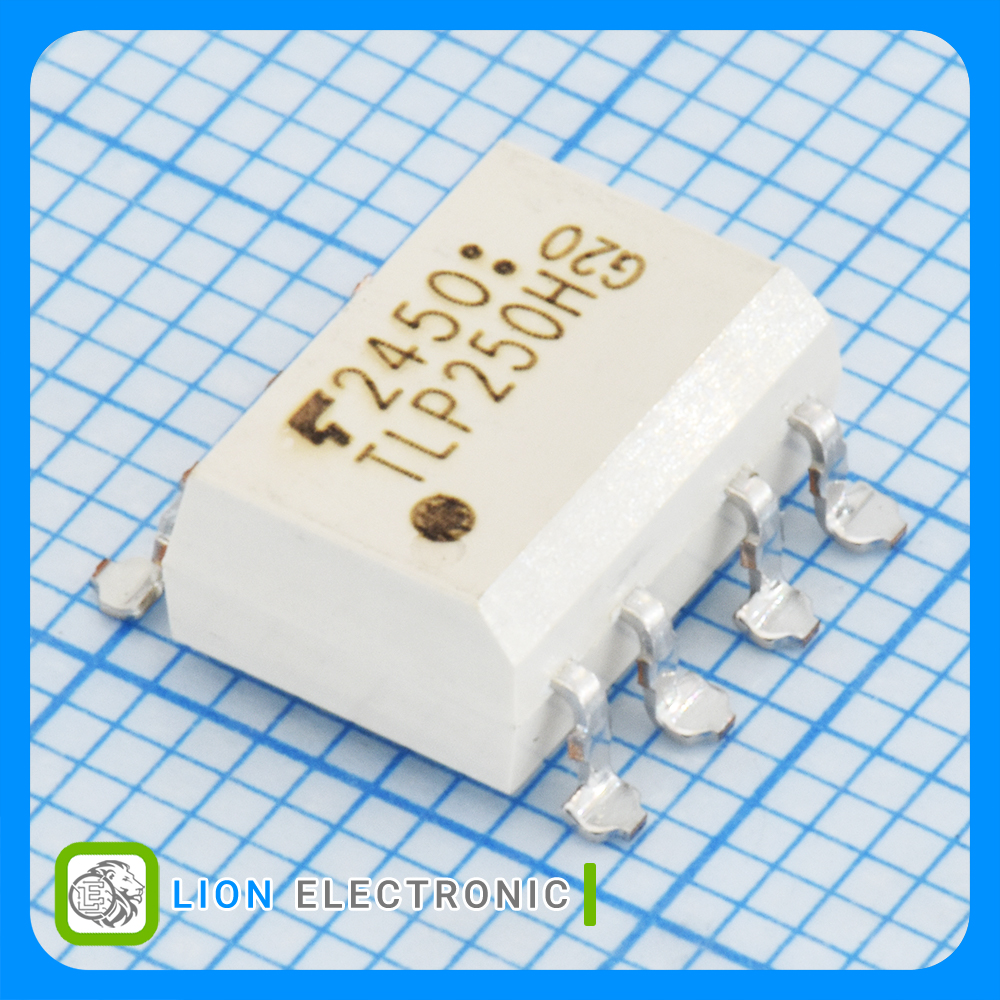

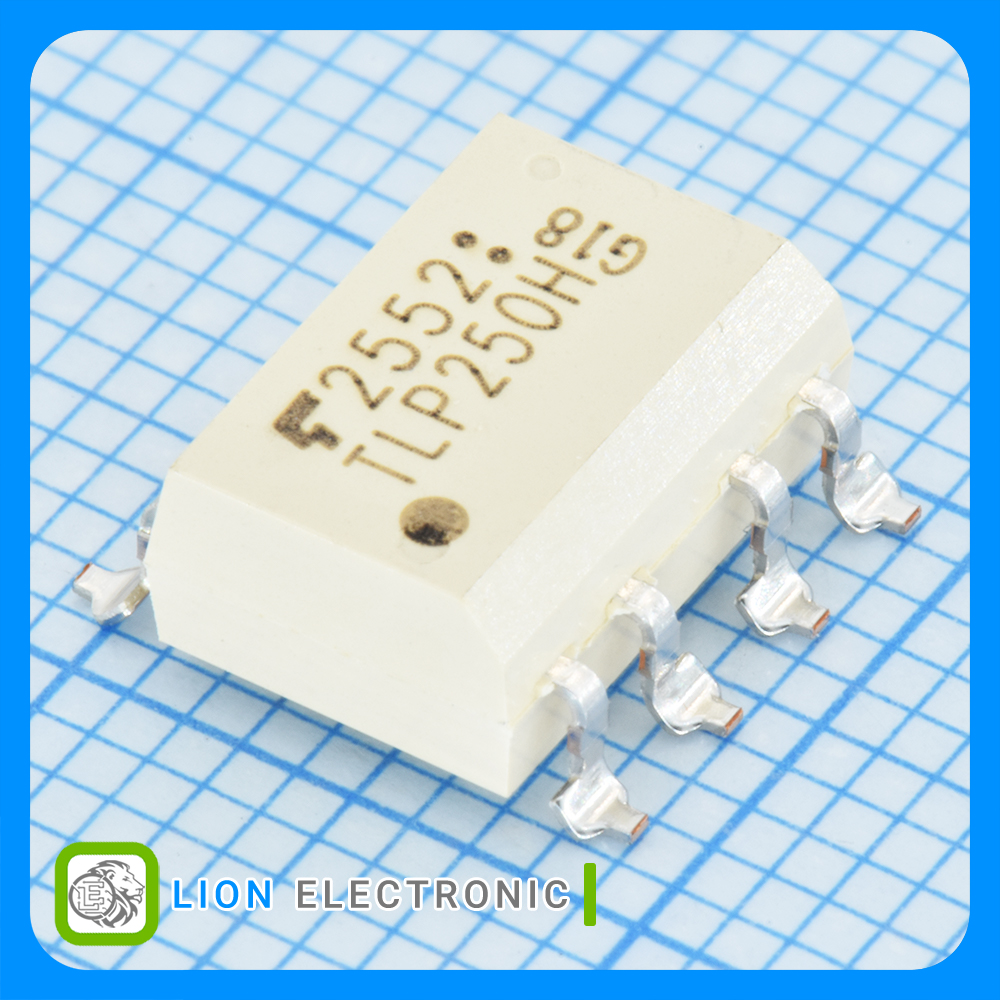

TLP250H(TP1,F)
TOSHIBA گیت درایور ایزوله ±2.5 آمپر تک کاناله 1.57 ولت 20 میلیآمپر 260 میلیوات ایزولاسیون 3.75 کیلوولت RMS با پکیج SMD-8
The TLP250H is a Photocoupler in a SMD Package That Consists of a GaAℓAs Infrared Light-Emitting Diode (LED) Optically Coupled to an Integrated High-Gain, High-Speed Photodetector IC Chip, Isolated Gate Driver ±2.5A, 1.57V, 20mA, 260mW, 3.75kVrms Isolation
گیت درایور ایزوله ±2.5 آمپر تک کاناله 1.57 ولت 20 میلیآمپر 260 میلیوات ایزولاسیون 3.75 کیلوولت RMS با پکیج SMD-8
The TLP250H is a Photocoupler in a SMD Package That Consists of a GaAℓAs Infrared Light-Emitting Diode (LED) Optically Coupled to an Integrated High-Gain, High-Speed Photodetector IC Chip, Isolated Gate Driver ±2.5A, 1.57V, 20mA, 260mW, 3.75kVrms Isolation
Specifications
- Type: Optically Isolated Gate Driver
- Number of Channels: 1
- Rise Time: 100ns
- Fall Time: 100ns
- Propagation Delay - Max: 500ns
- Peak Output Current: ±2.5A
- If - Forward Current: 20mA
- Isolation Voltage: 3.75kVrms
- Mounting Style: SMD/SMT
- Package/Case: SMD-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Bulk
