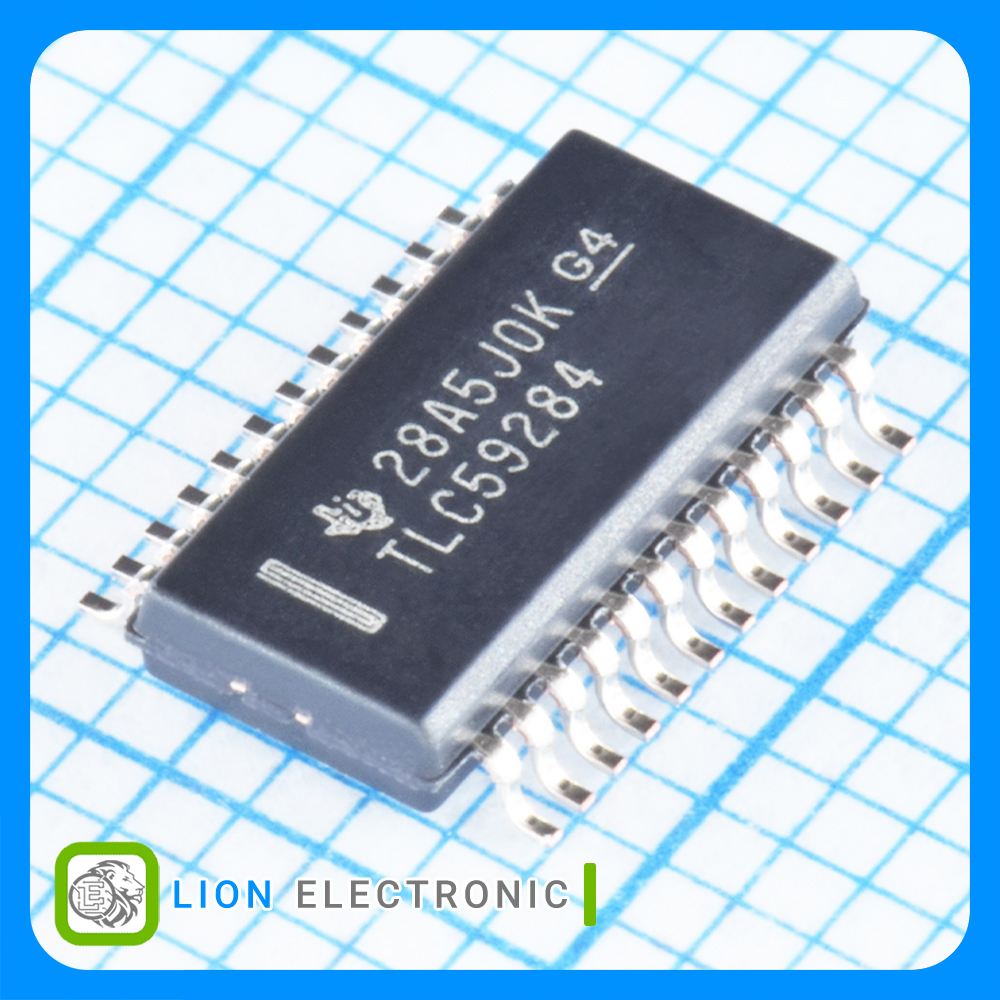

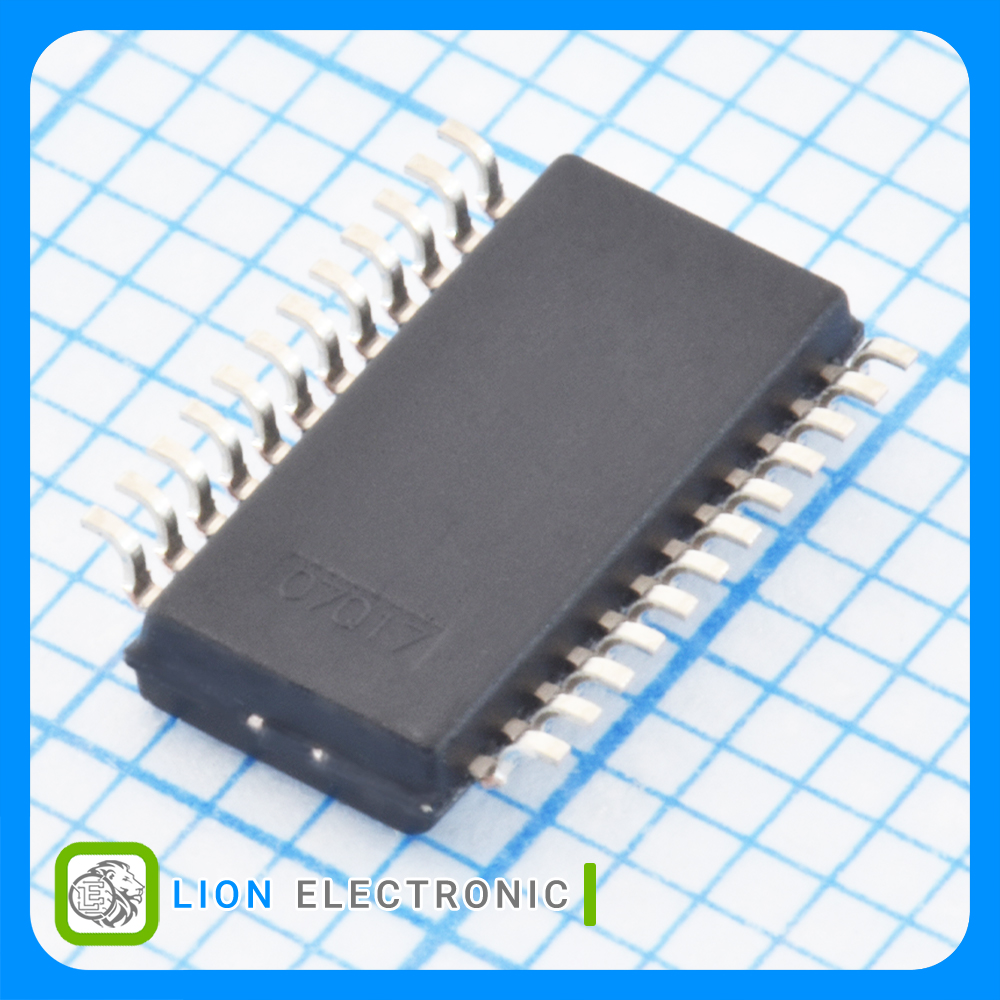

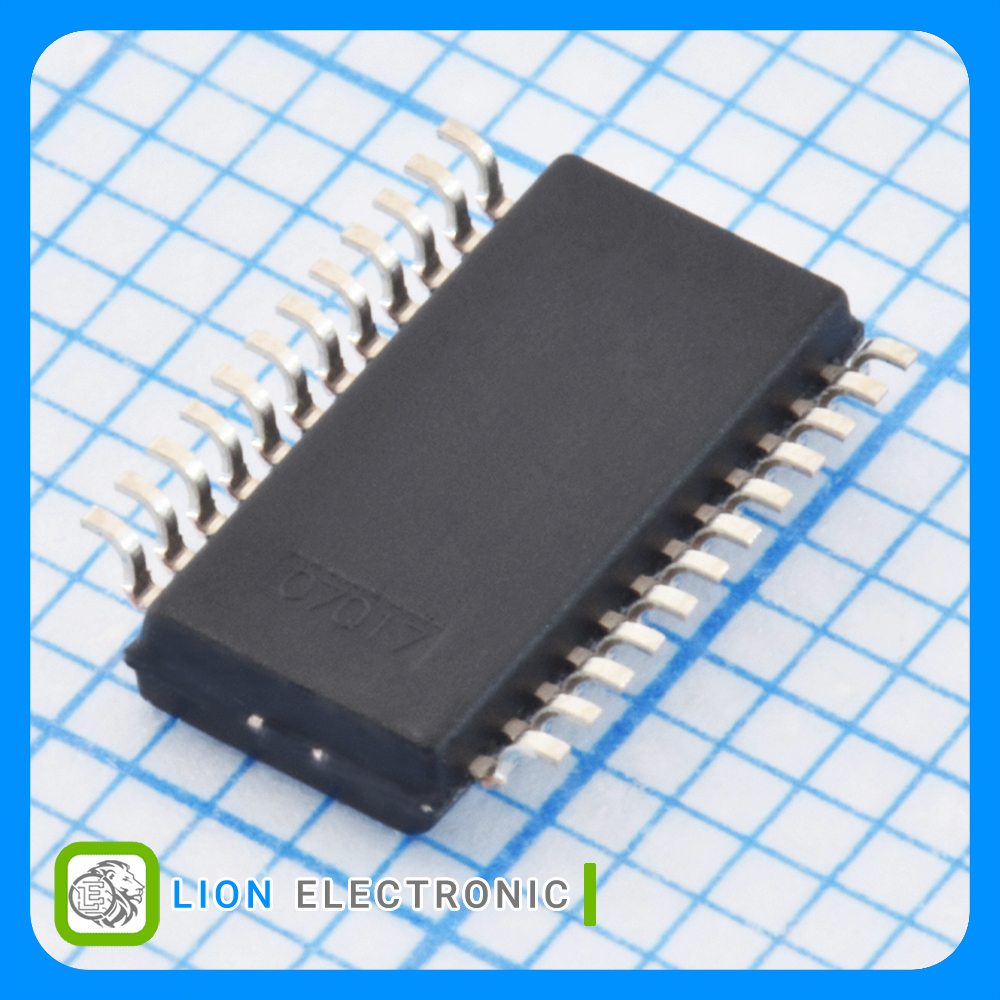

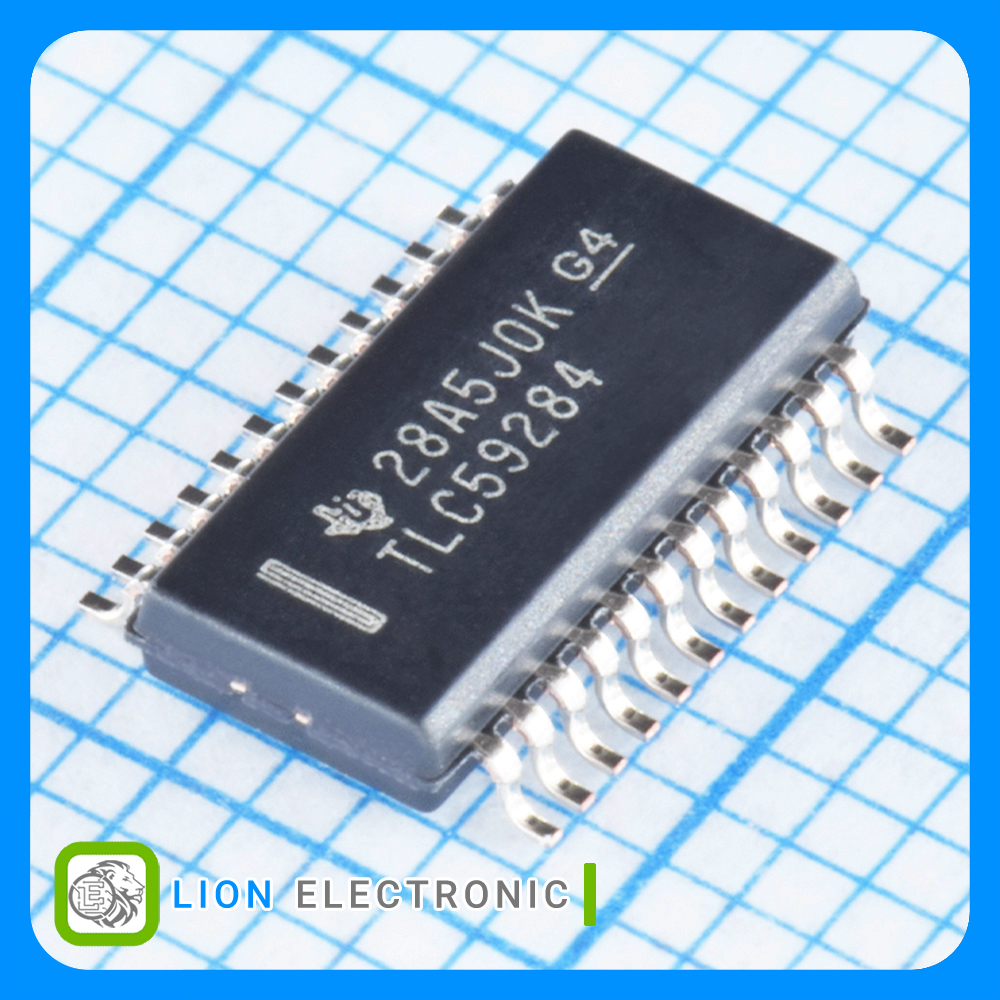

TLC59284DBQ
TLC59284DBQ
Part Number
5520
Lion Part
Datasheet
Texas Instruments Manufacture
درایور LED 16 کاناله جریان ثابت 45 میلیآمپر با قابلیت PWM با پکیج SSOP-24
Constant Current LED Driver 16-Channel, 45mA with PWM with SSOP-24 Package
معرفی
درایور LED 16 کاناله جریان ثابت 45 میلیآمپر با قابلیت PWM با پکیج SSOP-24
Constant Current LED Driver 16-Channel, 45mA with PWM with SSOP-24 Package
Specifications
- Features: Constant Current LED Driver
- Number of Channels: 16
- Output Current: 45mA
- Output Voltage: 10V
- PWM Capability: Yes
- Supply Current - Max: 11mA
- Package/Case: SSOP-24
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات TLC59284DBQ
TLC59284DBQ
Part Number
--- 11mA
Supply Current - Max
--- 45mA
Output Current
--- 10V
Output Voltage
--- SSOP-24
Package-Case
--- Tube
Packaging
Yes
PWM Capability
Constant Current LED Driver
Features
16
Number of Segments
-40C
Minimum Operating Temperature
16
Number of Outputs
5.5V
Input Voltage Max
N/A
Number of Digits
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
16
Number of Channels
35MHz
Operating Frequency
3V
Input Voltage Min
3 - 5.5V
Operating Supply Voltage
