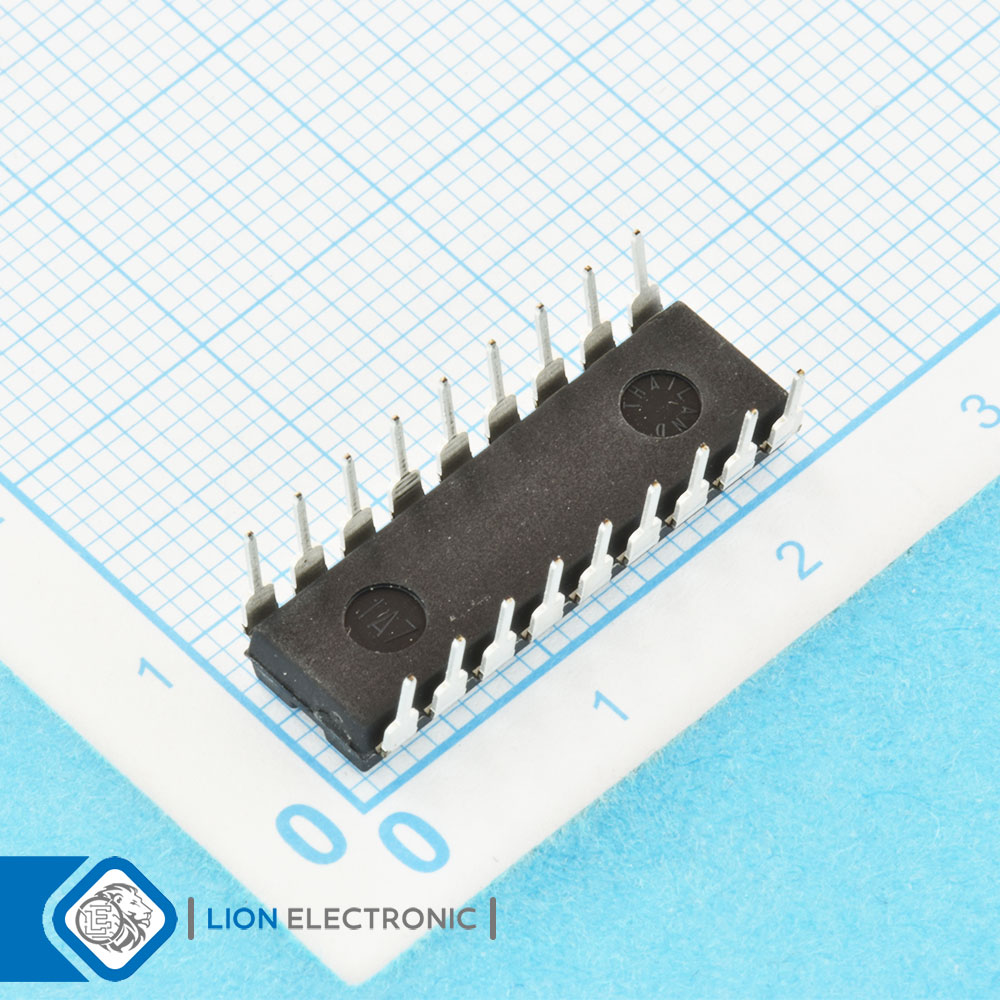

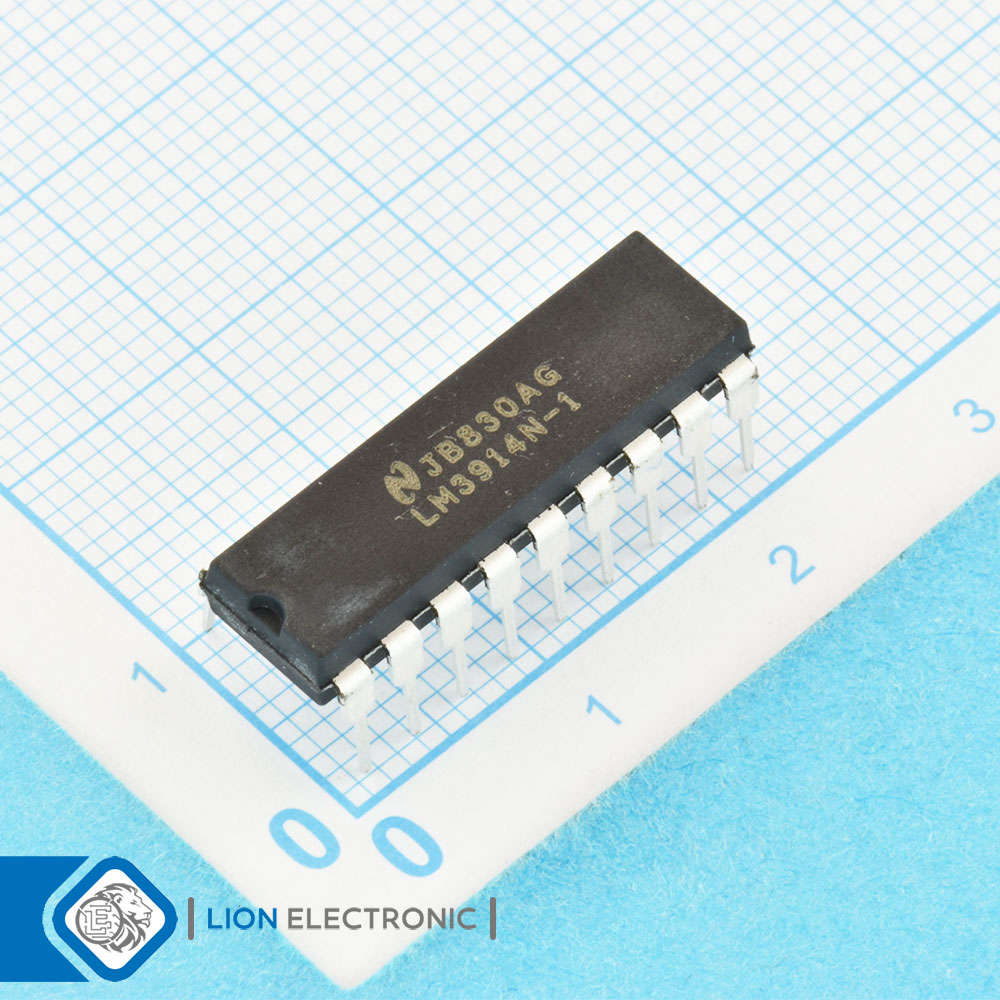

LM3914N-1
LM3914N-1
Part Number
788
Lion Part
Datasheet
National Semiconductor Manufacture
درایور نمایشگر نقطه/میله LED با 10 کانال جریان ثابت 30 میلیآمپر بدون PWM با پکیج DIP-18
Dot/Bar Display LED Driver 10-Channel, 30mA Constant Current, No PWM with DIP-18 Package
معرفی
درایور نمایشگر نقطه/میله LED با 10 کانال جریان ثابت 30 میلیآمپر بدون PWM با پکیج DIP-18
Dot/Bar Display LED Driver 10-Channel, 30mA Constant Current, No PWM with DIP-18 Package
Specifications
- Features: LED Bar Driver
- Number of Channels: 10
- Output Current: 30mA
- Output Voltage: 1.2 - 1.34V
- PWM Capability: No
- Supply Current - Max: 9.2mA
- Package/Case: DIP-18
- Mounting Style: Through Hole
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Tube
مشخصات LM3914N-1
LM3914N-1
Part Number
--- DIP-18
Package-Case
--- Tube
Packaging
No
PWM Capability
10
Number of Segments
LED Bar Driver
Features
+70C
Maximum Operating Temperature
N/A
Number of Digits
Through Hole
Mounting Style
0C
Minimum Operating Temperature
3 - 20V
Input Voltage
10
Number of Channels
9.2mA
Supply Current - Max
30mA
Output Current
1.2 - 1.34V
Output Voltage
3 - 20V
Operating Supply Voltage
