TM3100
TM3100
Part Number
6266
Lion Part
Datasheet
Titan Micro electronics Manufacture
آیسی درایور LED مخصوص پنلهای LED، TM3100، با 16 کانال جریان ثابت 30 میلیآمپر با قابلیت PWM با پکیج QSOP-24

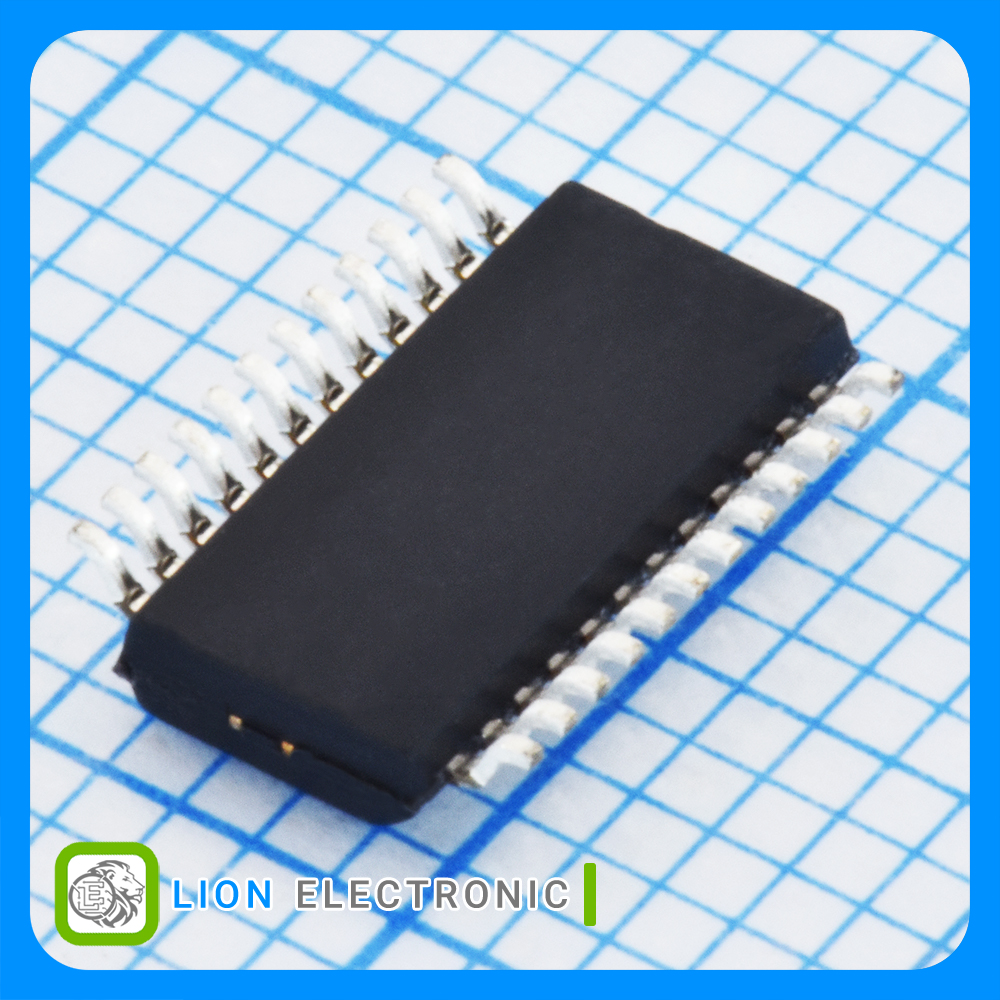

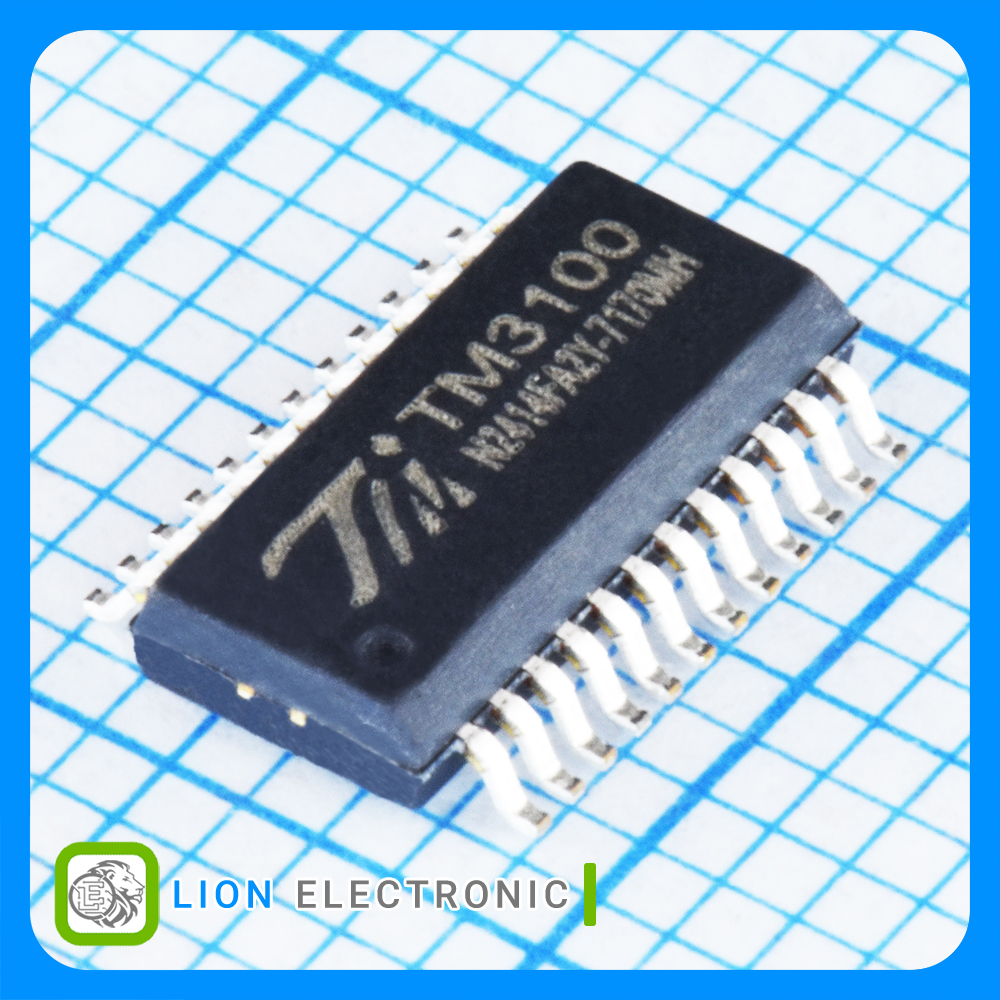

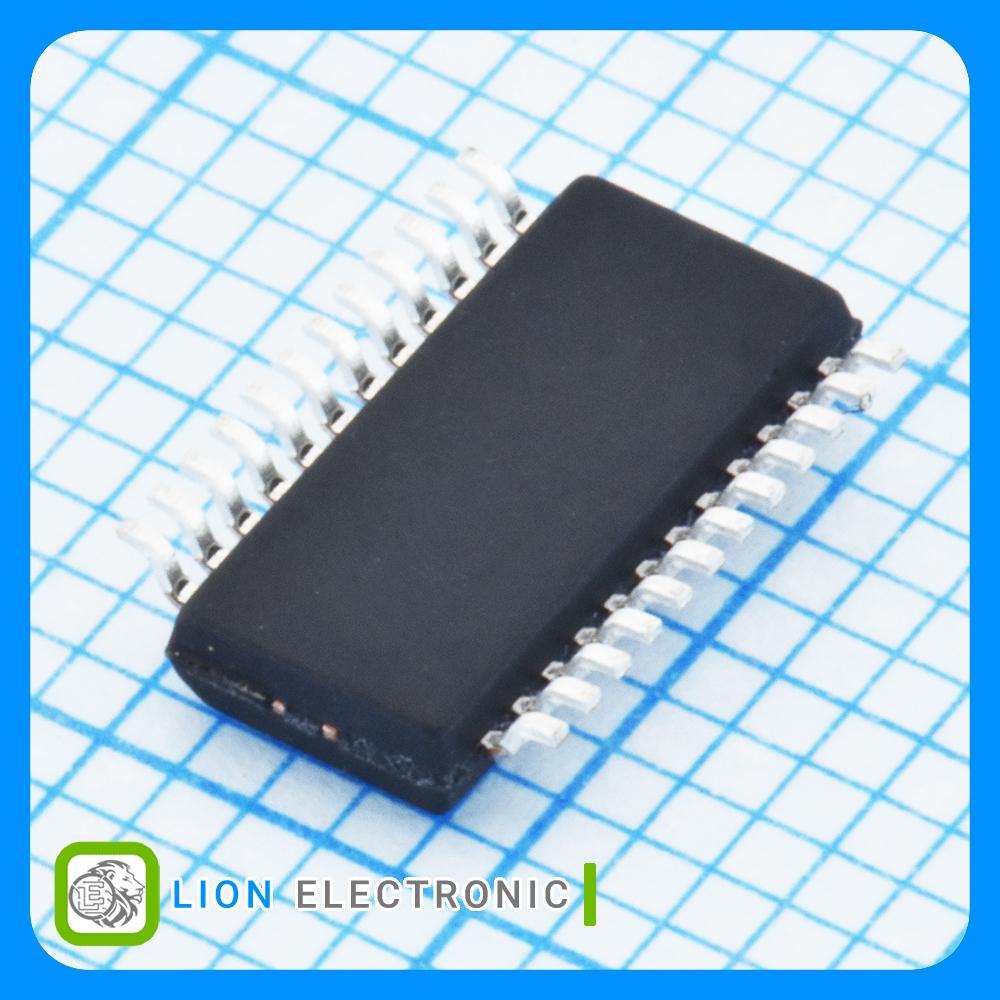

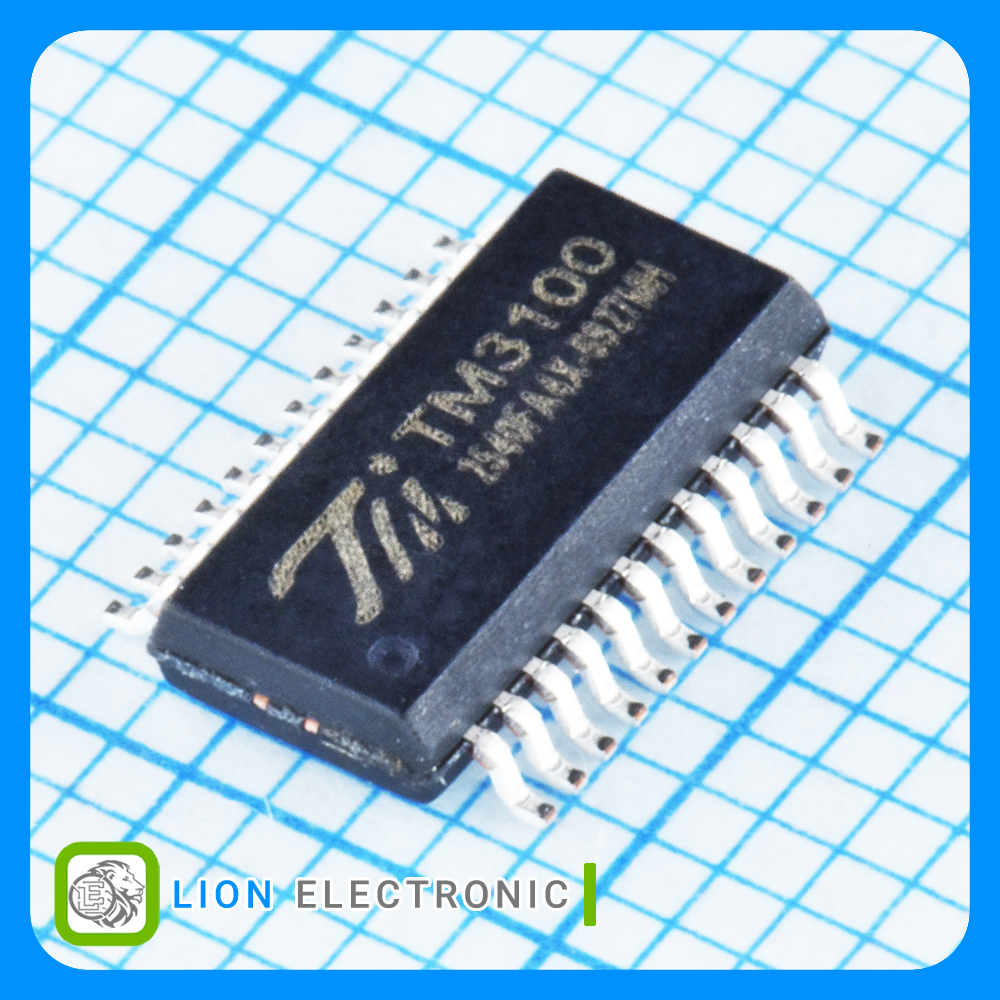

TM3100 Constant Current LED Driver IC 16-Channel, 30mA with PWM with QSOP-24 Package, Designed for LED Display Panel
معرفی
آیسی درایور LED مخصوص پنلهای LED، TM3100، با 16 کانال جریان ثابت 30 میلیآمپر با قابلیت PWM با پکیج QSOP-24
TM3100 Constant Current LED Driver IC 16-Channel, 30mA with PWM with QSOP-24 Package, Designed for LED Display Panel
Specifications
- Features: Constant Current
- Number of Channels: 16
- Output Current: 30mA
- Output Voltage: -0.4V ~ 6V
- PWM Capability: Yes
- Supply Current - Max: 12mA
- Package/Case: QSOP-24
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات TM3100
TM3100
Part Number
--- QSOP-24
Package-Case
--- Reel
Packaging
Constant Current
Features
Yes
PWM Capability
16
Number of Segments
-40C
Minimum Operating Temperature
16
Number of Outputs
SMD/SMT
Mounting Style
5.5V
Input Voltage Max
+85C
Maximum Operating Temperature
-0.4V ~ 6V
Output Voltage
16
Number of Channels
30mA
Output Current
25MHz
Operating Frequency
12mA
Supply Current - Max
Linear
Topology
4.5V
Input Voltage Min
