برد توسعه Lichee Zero Expansion Board
Sipeed برد توسعه Lichee Pi Zero Expansion Board ،قابلیتهای Lichee Pi Zero را با افزودن یک میکروفون، یک پورت اترنت RJ45، جک صدا و یک کانکتور دوم برای کارت SD گسترش میدهد.

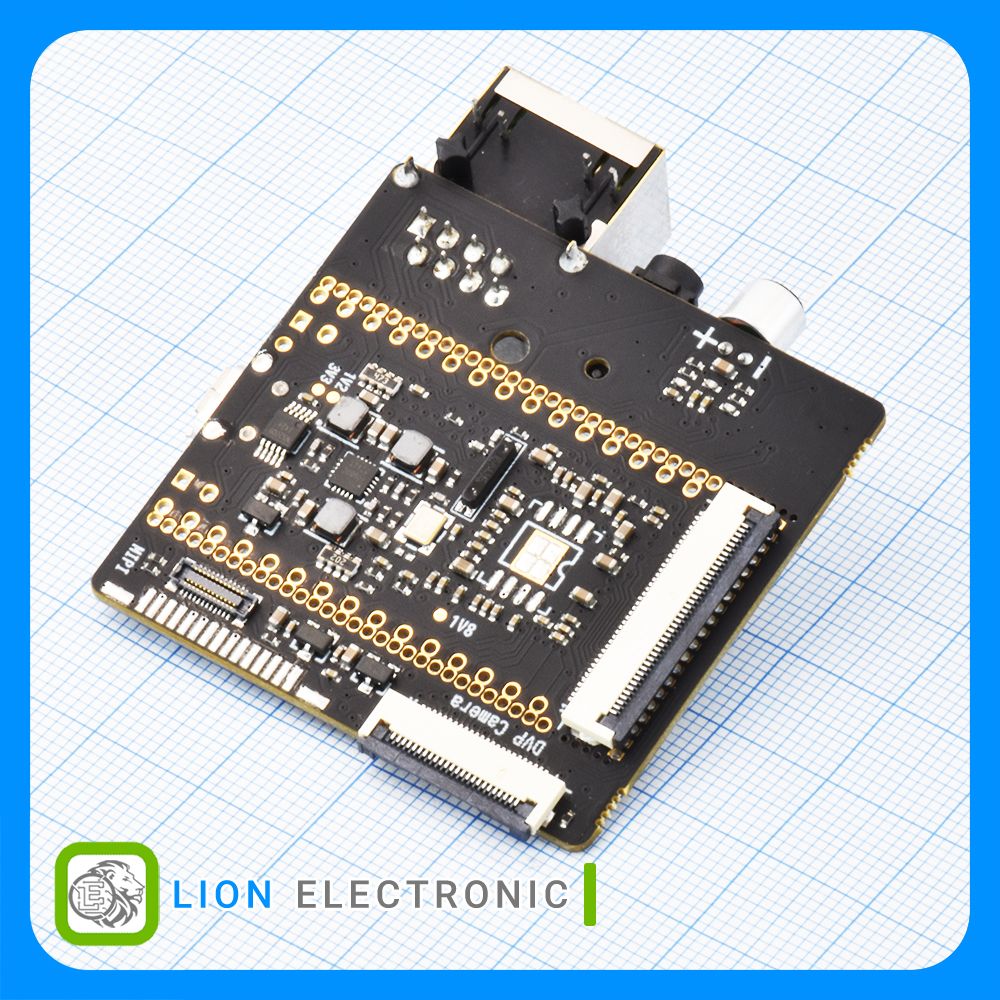

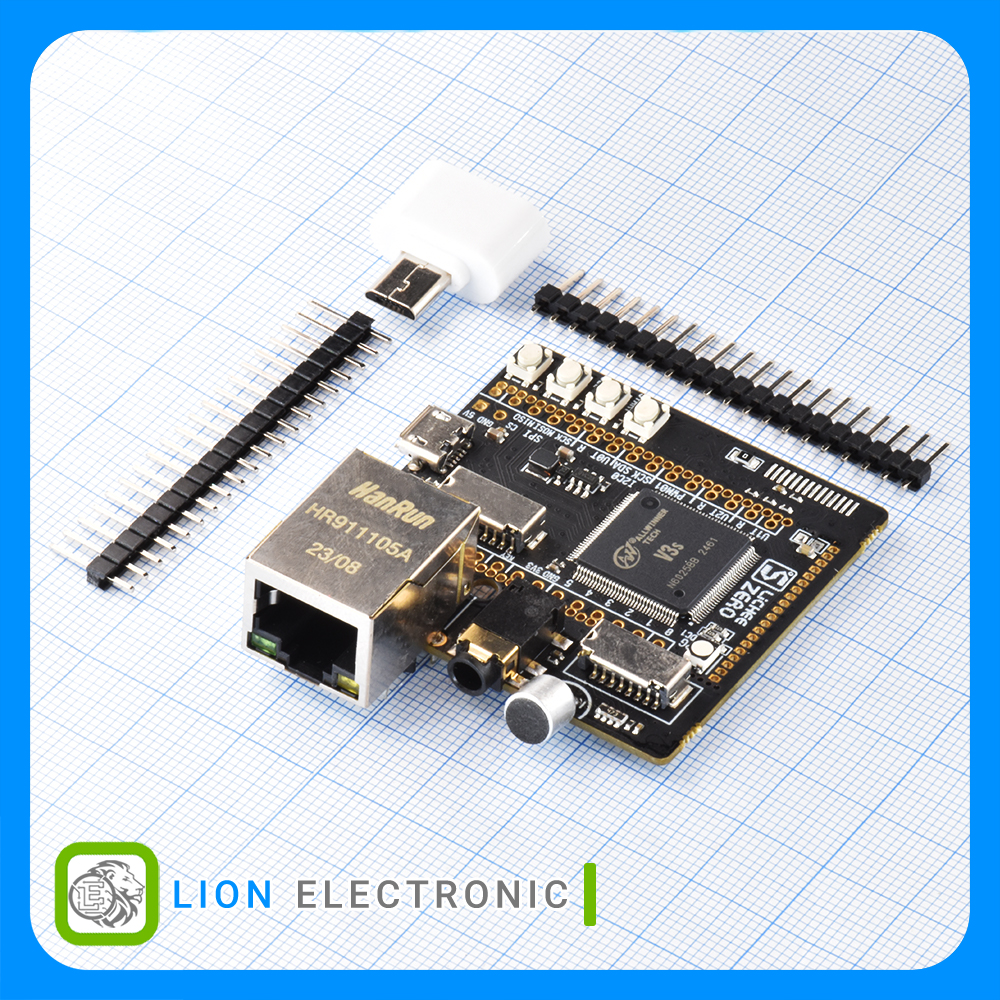

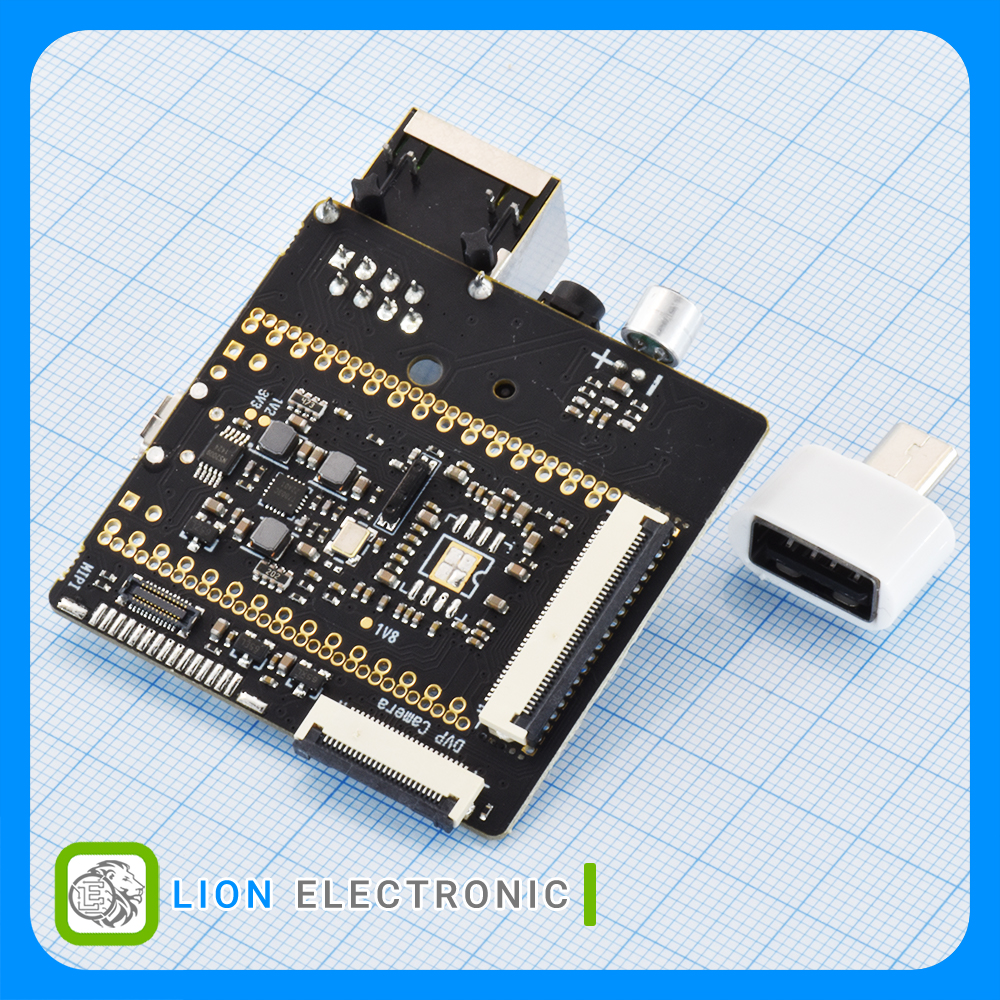

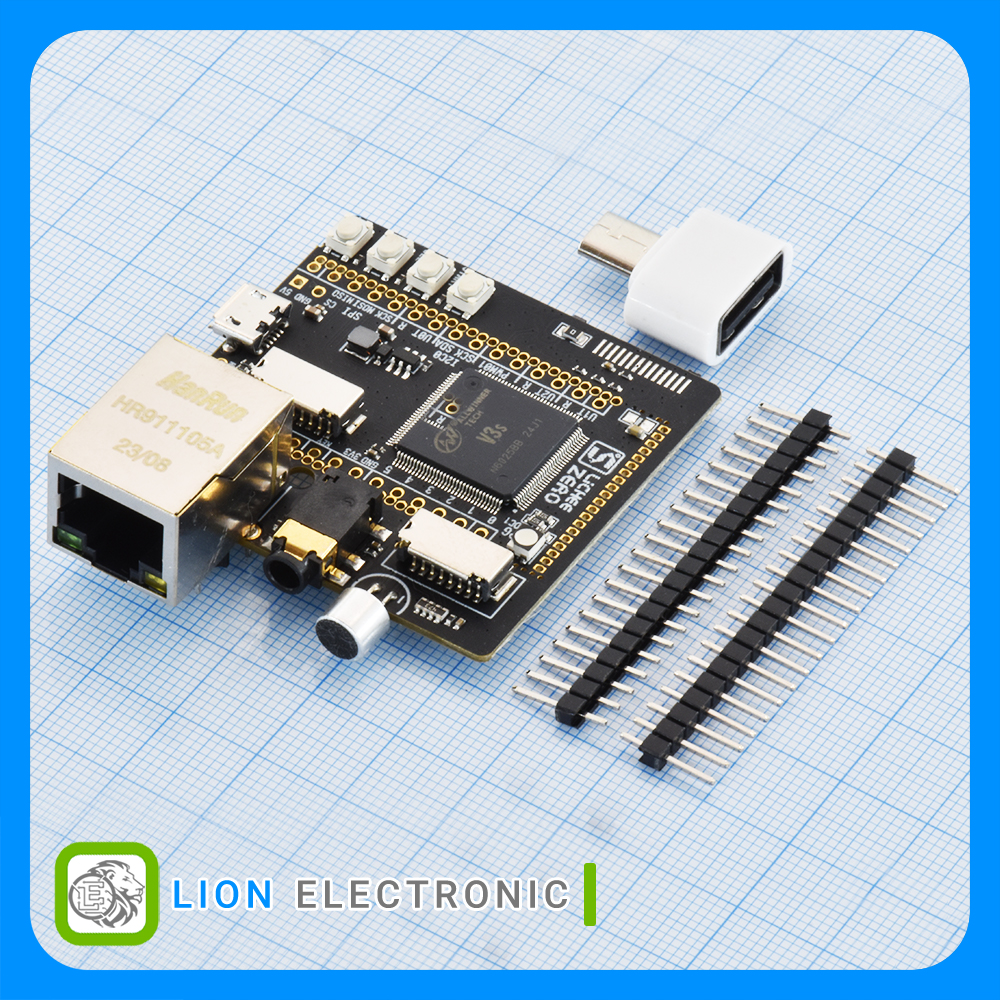

The Lichee Pi Zero Expansion Board extends the functionality of the Lichee Pi Zero by adding a microphone, an RJ45 Ethernet port, an audio jack, and a second SD card slot.
Memory and storage:
Integrated 64MB DDR2Reserved SOP8 SPI Flash pad (customizable patch 8~32MB SPI Nor Flash, 128MB Nand Flash) Onboard half-slot TF card holder, can be started by TF
Communication Interface:
SDIO x2, can be used with the SDIO WiFi+BT module
SPI x1, I2C x2, UART x3
100M Ether x1 (with EPHY)
OTG USB x1
MIPI CSI x1
Software function:
Support linux 3.4 bsp kernel, linux 4.16 mainline kernel Support Qt, python and other common linux applications
