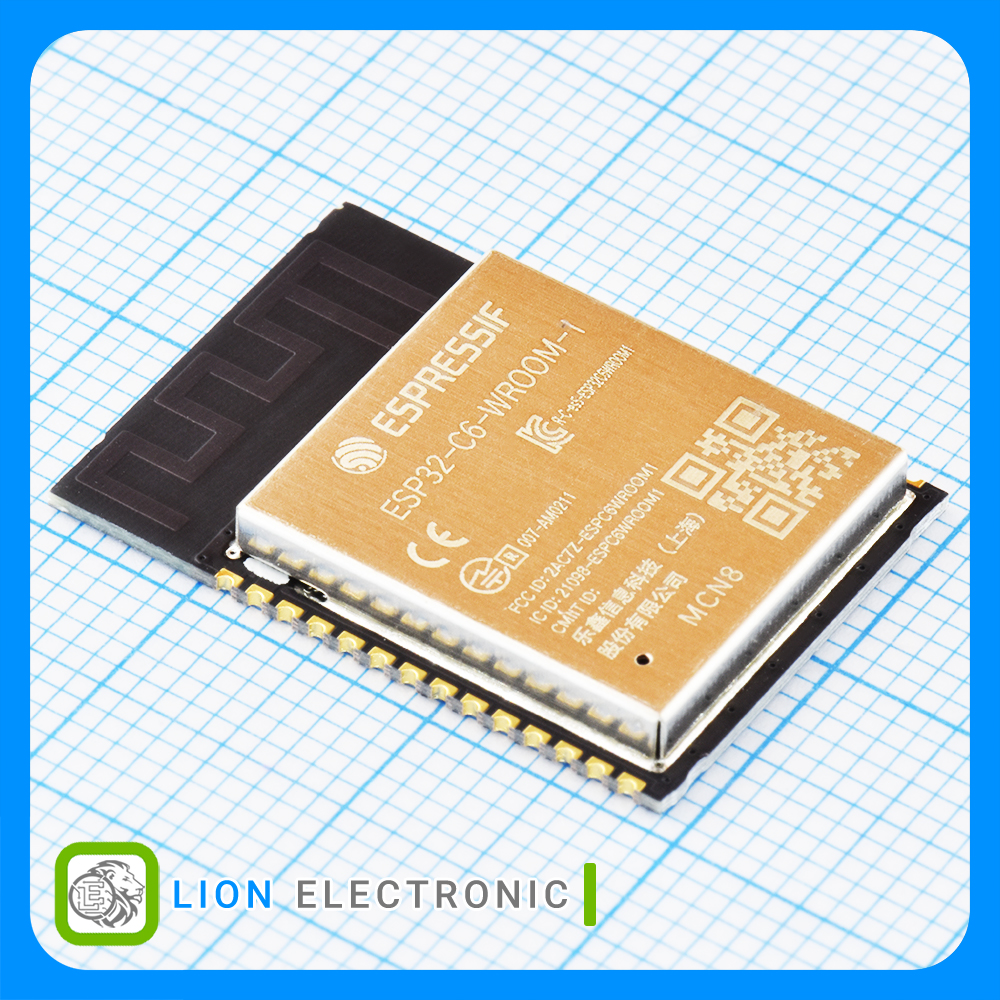

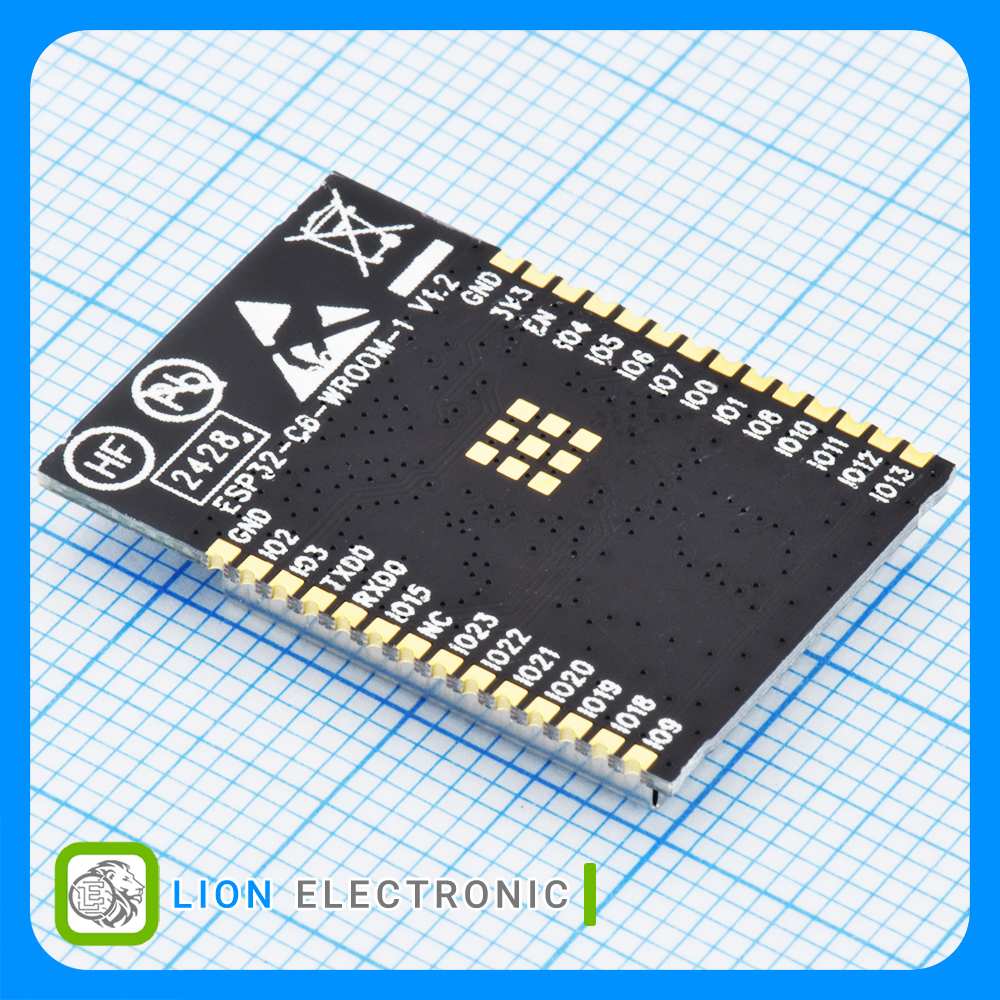

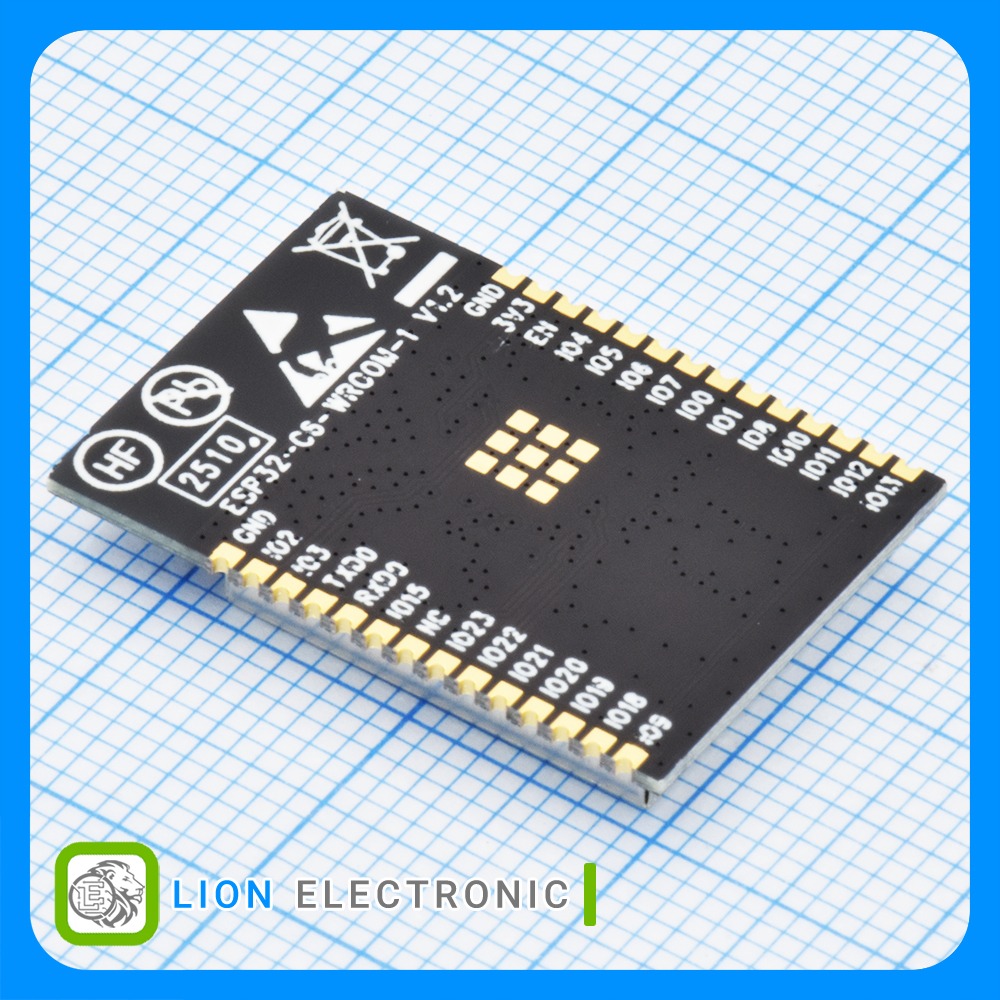

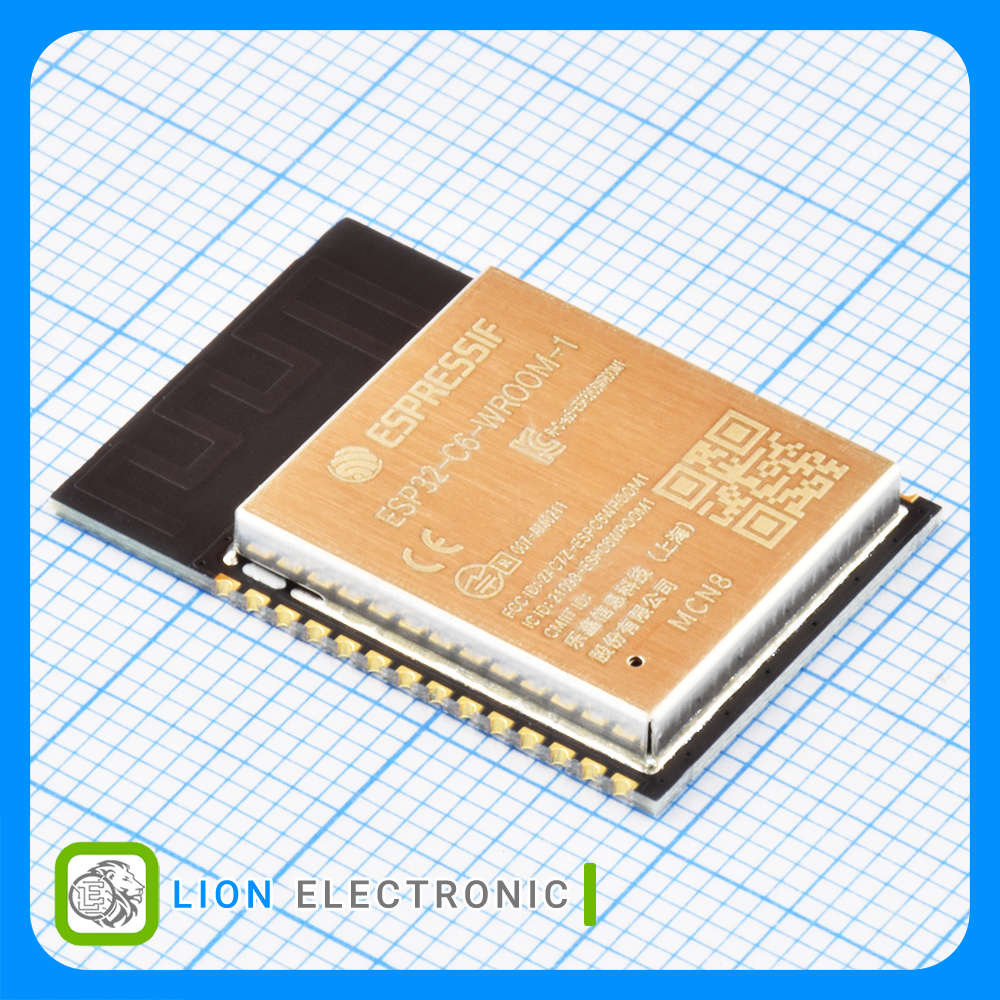

ESP32-C6-WROOM-1-N8

CPU and On-Chip Memory

• ESP32-C6 embedded, 32-bit RISC-V single-core microprocessor, up to 160 MHz
• ROM: 320 KB
• HP SRAM: 512 KB
• LP SRAM: 16 KB

Wi-Fi

• 1T1R in 2.4 GHz band
• Operating frequency: 2412 ~ 2484 MHz
• IEEE 802.11ax-compliant (Wi-Fi 6) supporting 20 MHz bandwidth
• IEEE 802.11b/g/n-compliant (Wi-Fi 4) supporting 20 MHz and 40 MHz bandwidth
• MCS0 ~ MCS9
• Uplink and downlink OFDMA, downlink MU-MIMO
• Target Wake Time (TWT)

Bluetooth

• Bluetooth LE: Bluetooth 5
• Speed: 125 kbps, 500 kbps, 1 Mbps, 2 Mbps
• Advertising extensions
• Multiple advertisement sets
• Channel selection algorithm #2
• 802.15.4 (Zigbee and Thread)
• IEEE 802.15.4-compliant
• O-QPSK modulation in 2.4 GHz band, data rate of 250 kbps
• Supports Thread and Zigbee networks

Peripherals

• 23 GPIOs
• GPIO, SPI, UART, I2C, I2S, LED PWM controller, low-power UART, low-power I2C, General DMA controller, TWAI® controller, USB Serial/JTAG controller, temperature sensor, SAR ADC, timers and watchdogs

Integrated Components on Module

• 40 MHz crystal oscillator
• 8 MB SPI flash

Antenna Options

• On-board PCB antenna

Operating Conditions

• Operating voltage/Power supply: 3.0 ~ 3.6 V
• Operating ambient temperature: –40 ~ 85 °C
