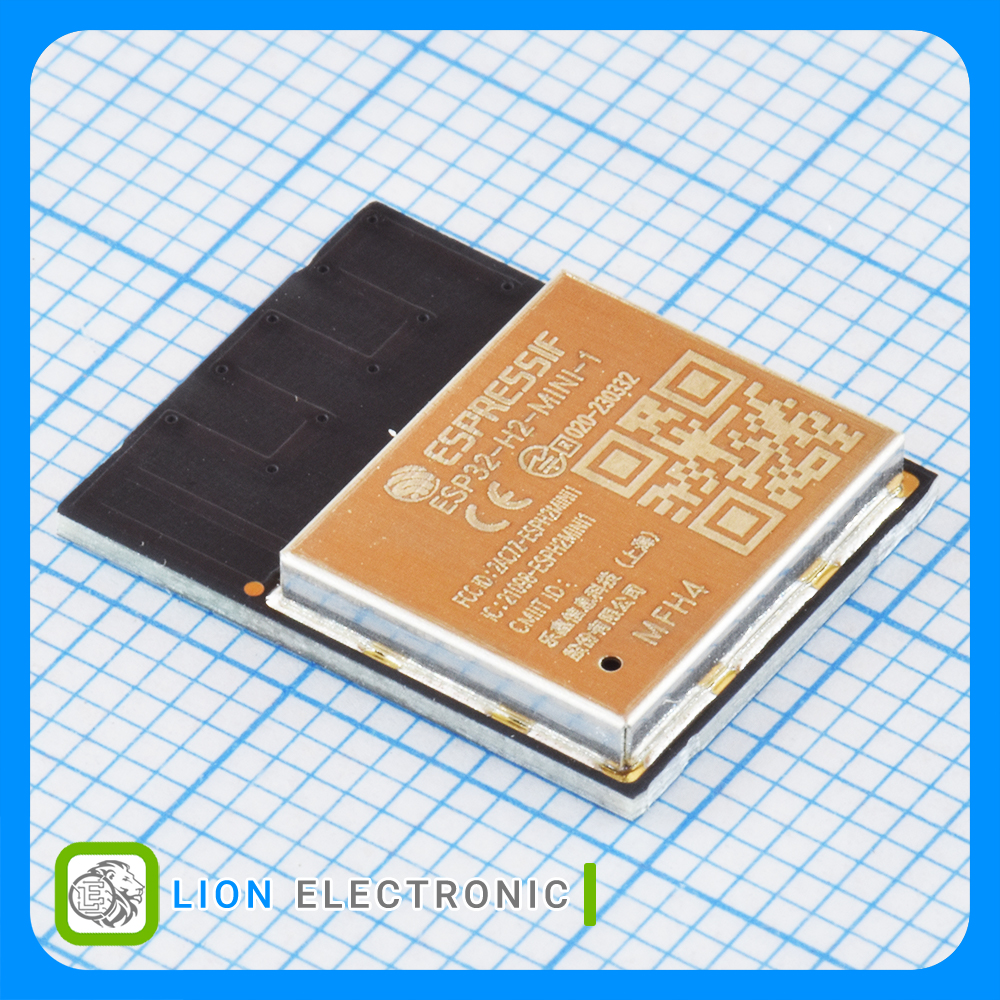

ESP32-H2-MINI-1-H4S
ESP32-H2-MINI-1-H4S
Part Number
6867
Lion Part
Datasheet
Espressif Manufacture
ماژول ESP32-H2-MINI-1-H4S مجهز به BLE و قابلیت پشتیبانی از استاندارد IEEE 802.15.4
Bluetooth® Low Energy and IEEE 802.15.4 module , Built around ESP32-H2 series of SoCs, RISC-V single-core 32-bit microprocessor with 2 MB or 4 MB flash in chip package , 19 GPIOs , On-board PCB antenna or external antenna connector
مشخصات ESP32-H2-MINI-1-H4S
ESP32-H2-MINI-1-H4S
Part Number
Reel
Packaging
-40C
Minimum Operating Temperature
PCB
Antenna Connector Type
+105C
Maximum Operating Temperature
19
Number of I-Os
Bluetooth Modules
Product
ESP32-H2
Series
96MHz
Frequency
0.35A
Supply Current Receiving
-24 - 20dBm
Output Power
3 - 3.6V
Operating Supply Voltage
Bluetooth, BLE
Interface Type
