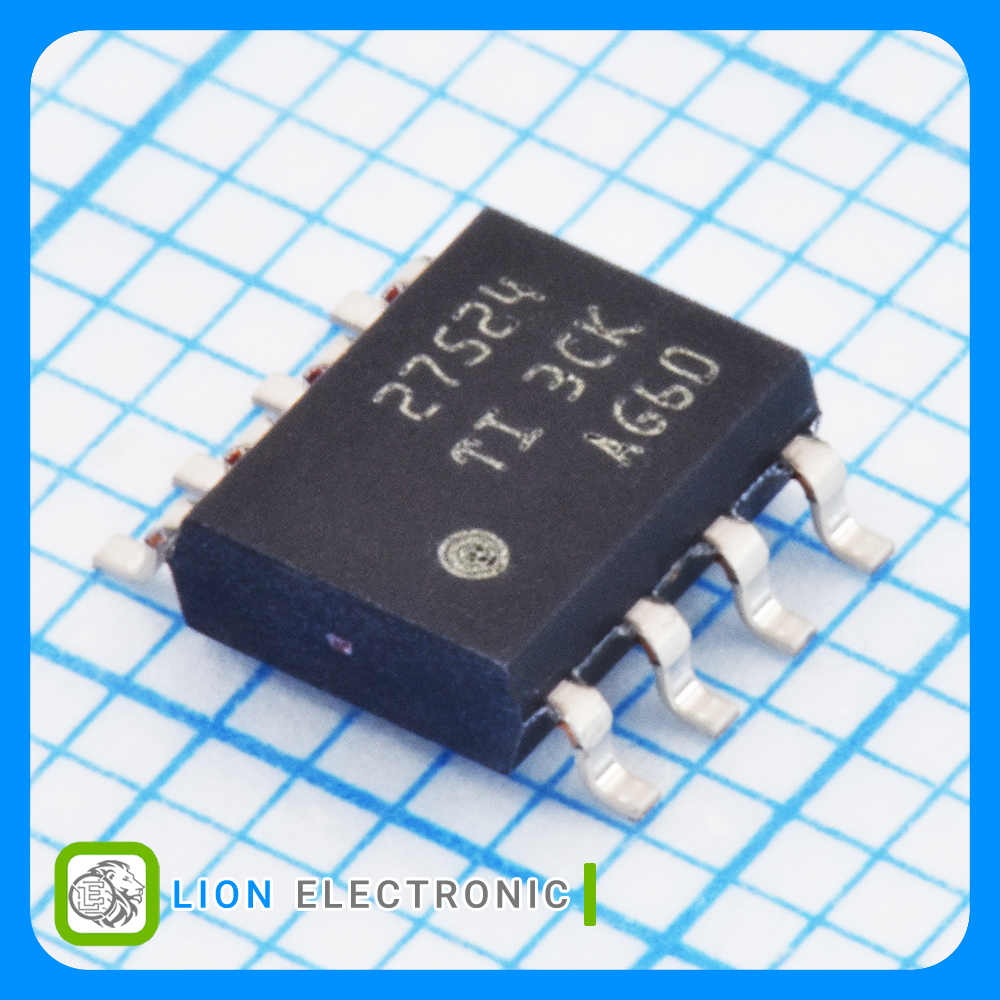

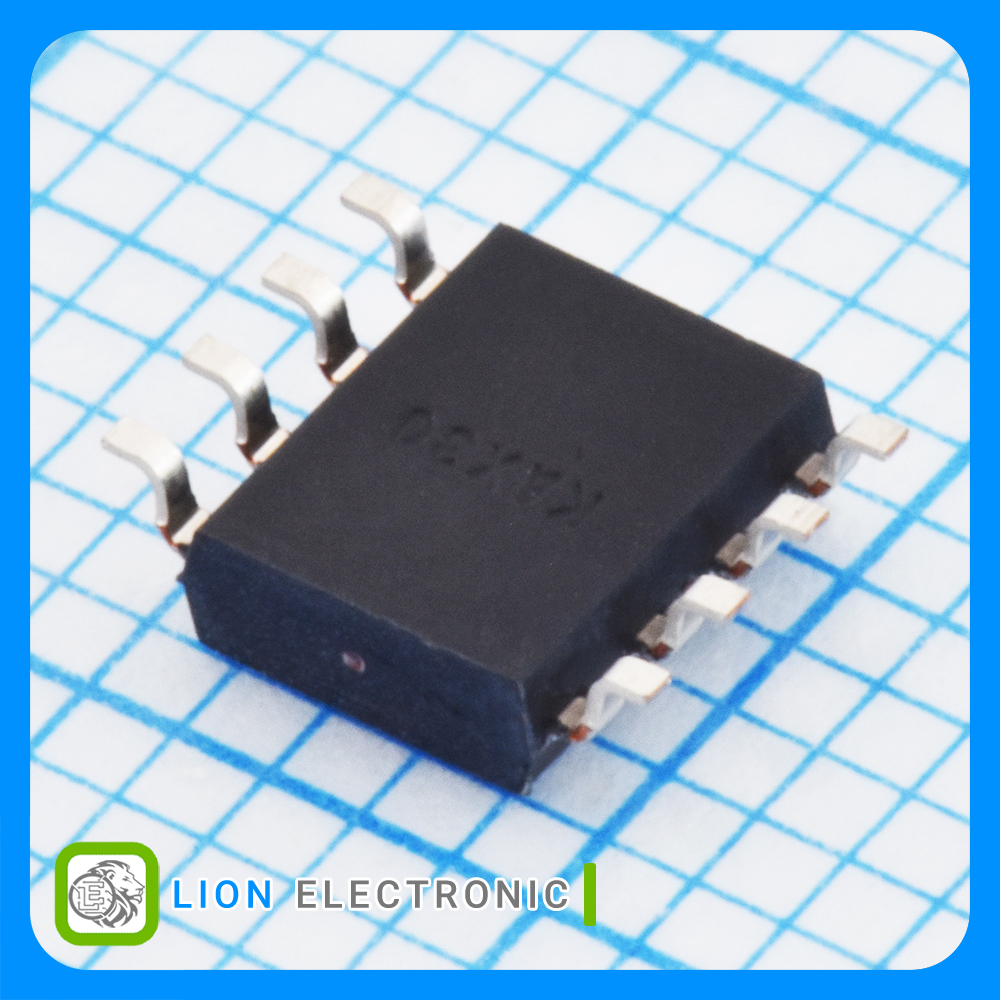

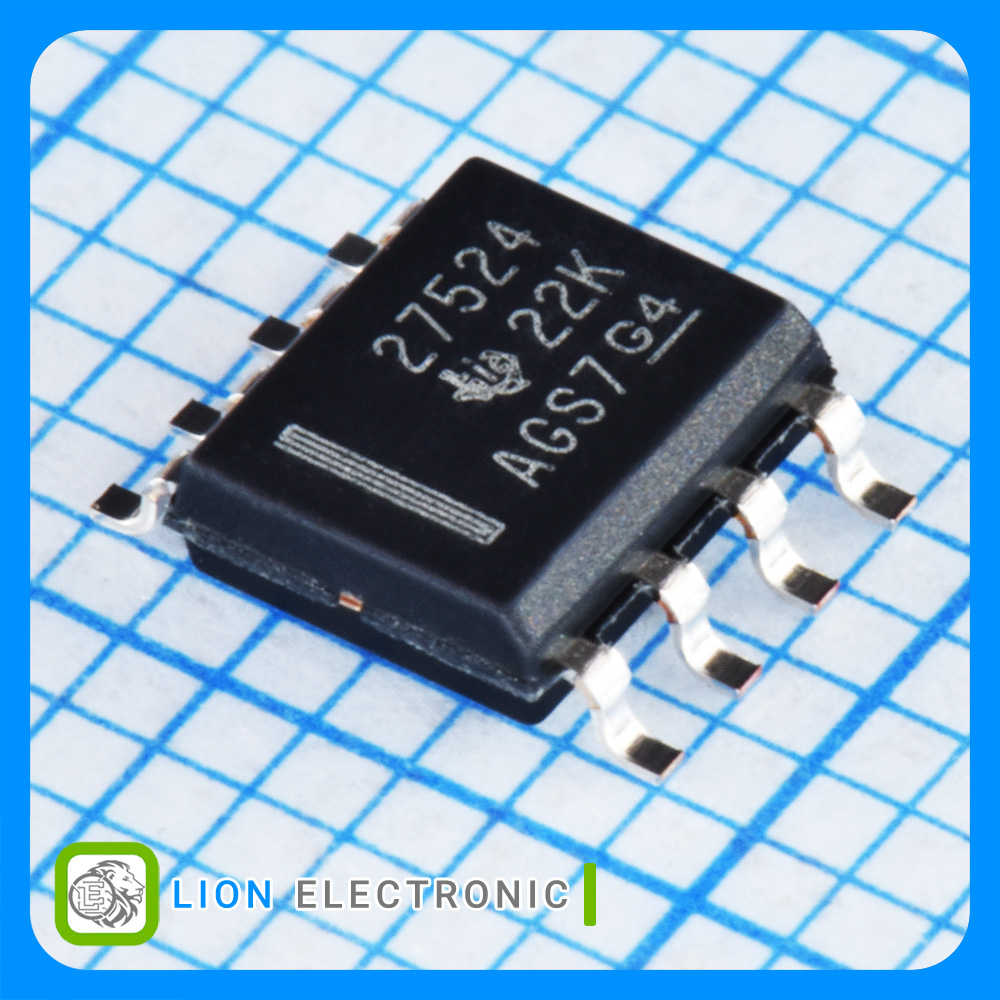

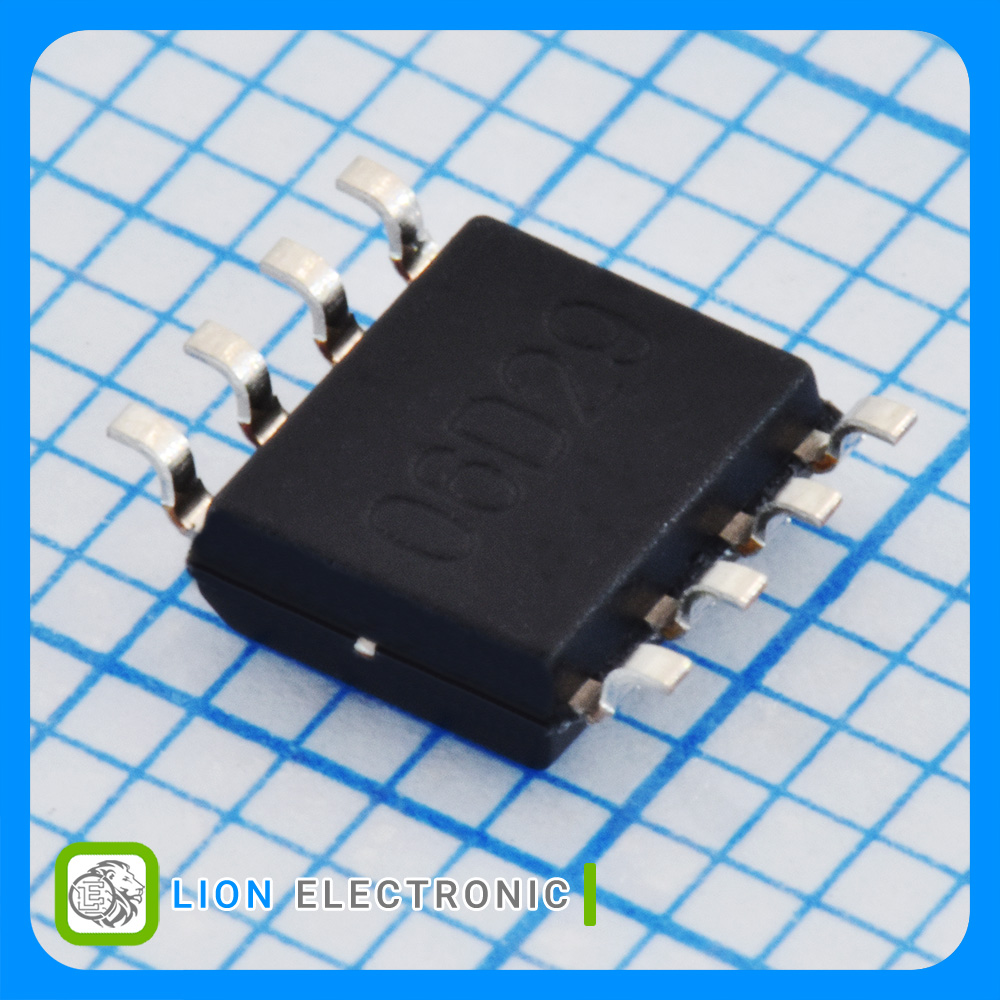

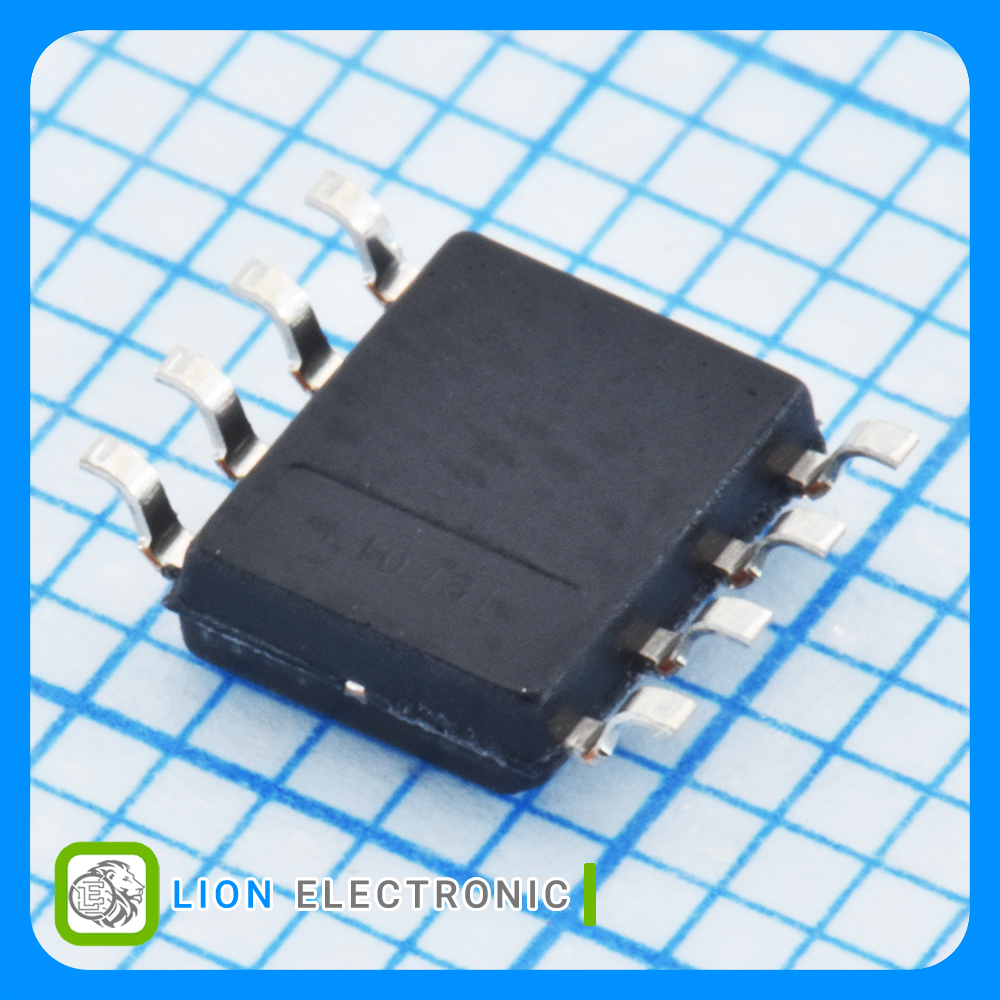

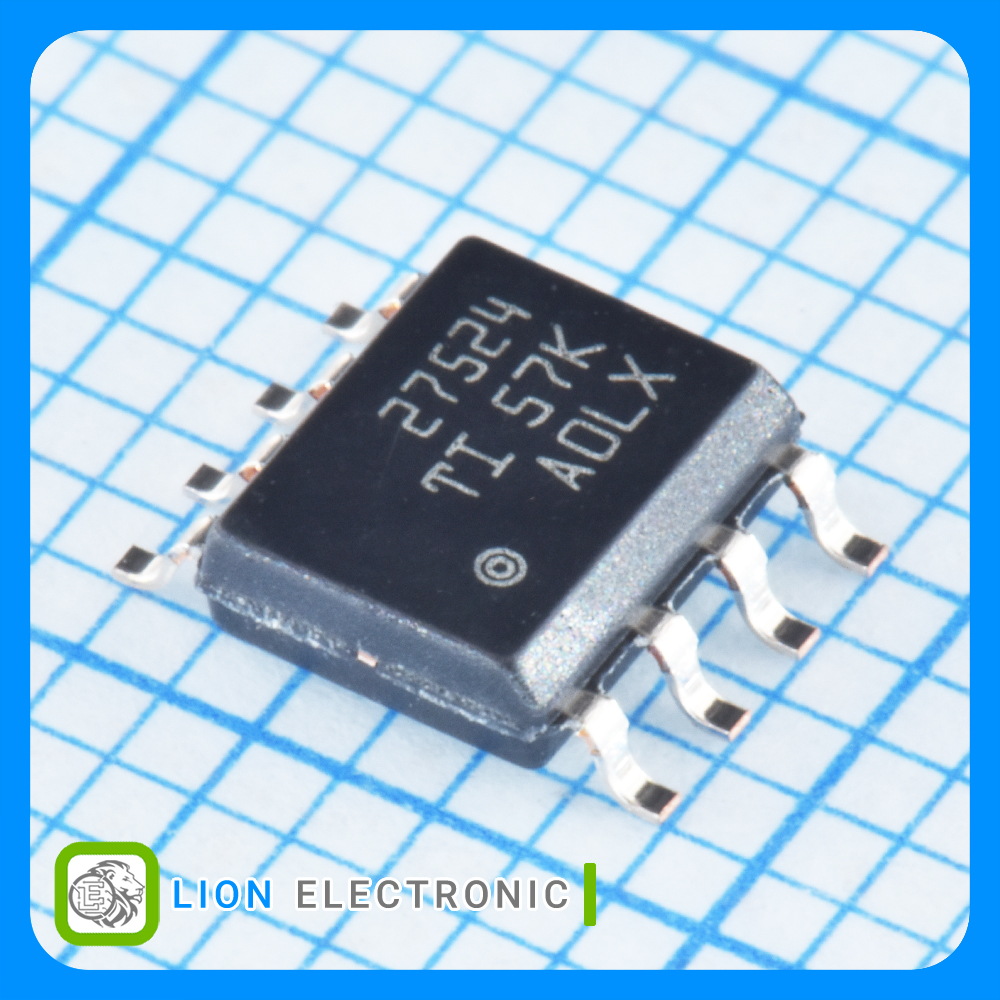

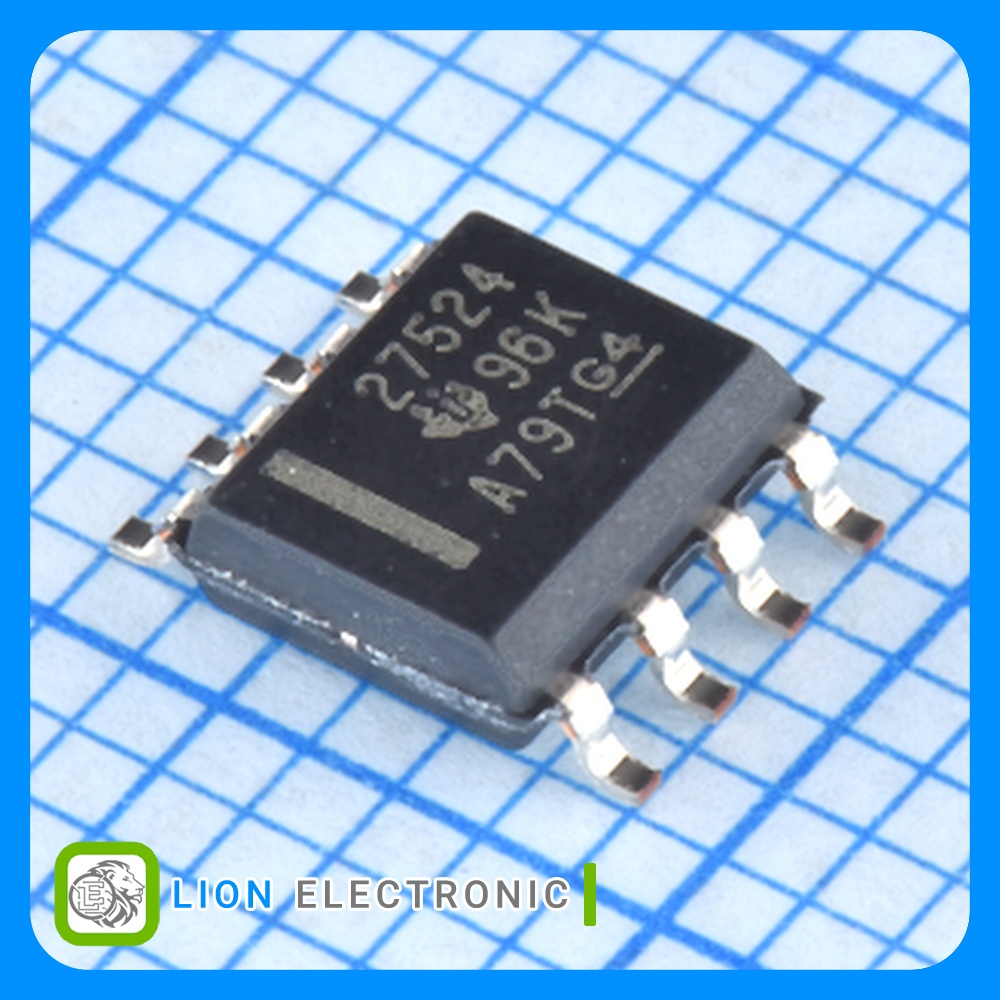

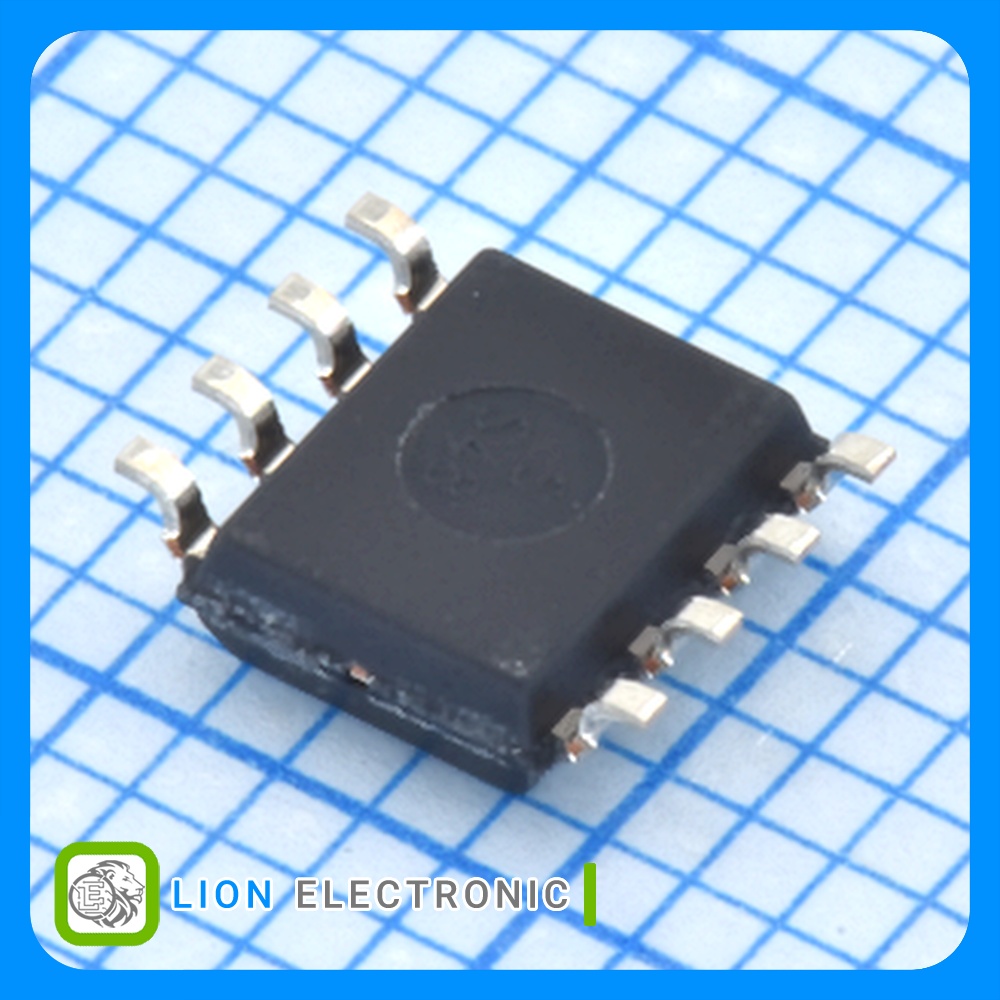

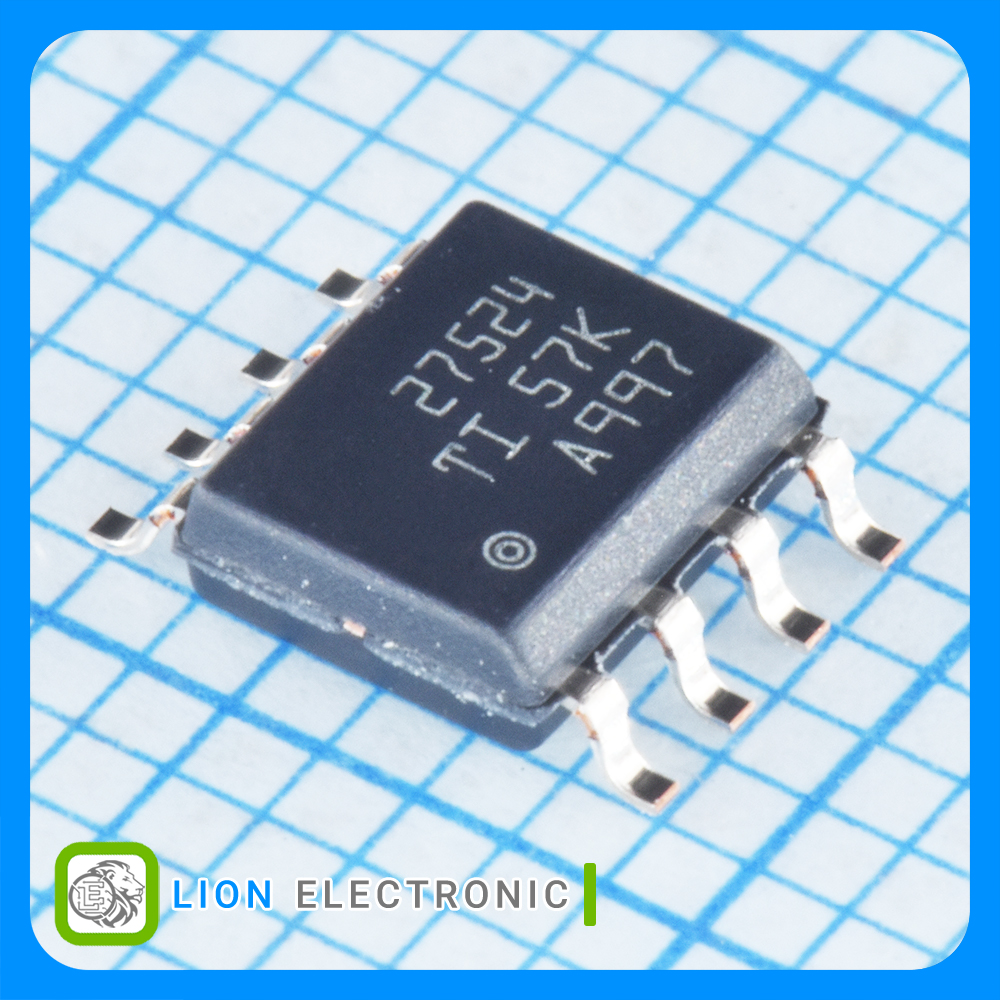

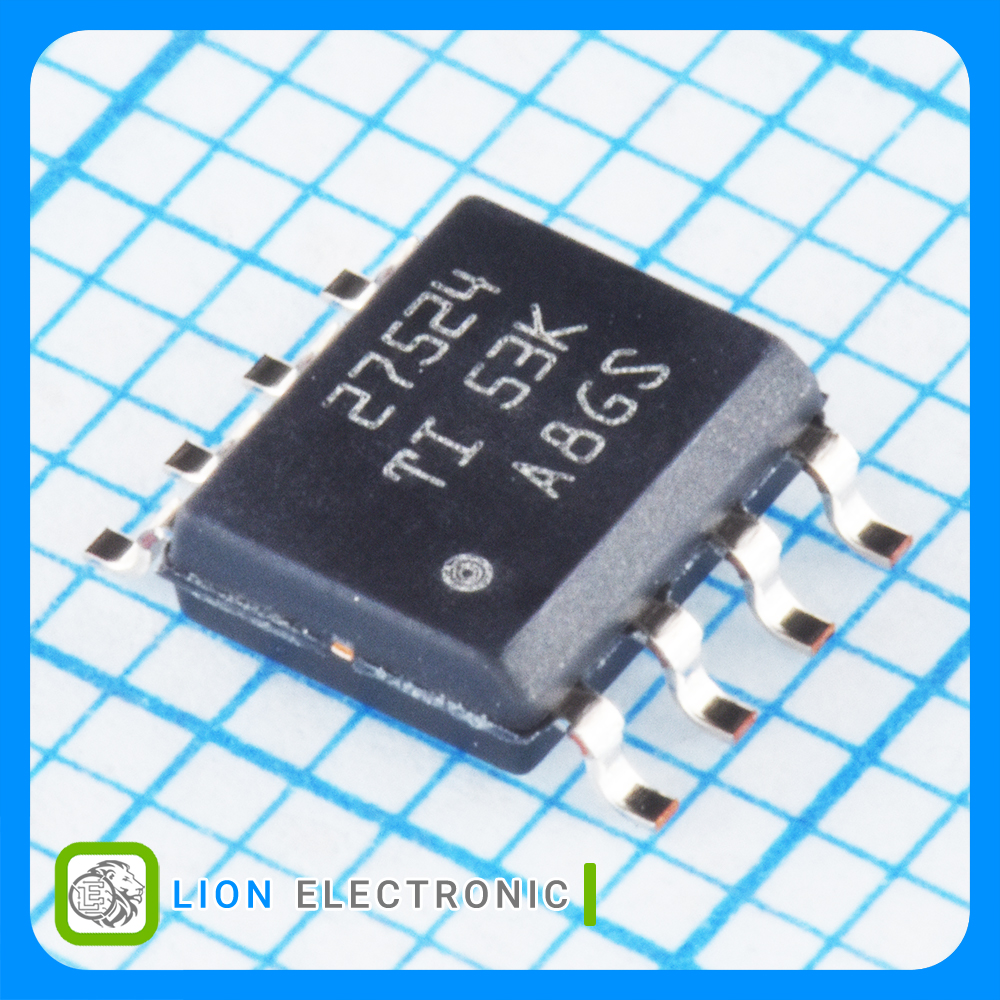

UCC27524DR
UCC27524DR
Part Number
6151
Lion Part
Datasheet
Texas Instruments Manufacture
گیت درایور دوتایی 18 ولت جریان خروجی 5 آمپر با سرعت بالا با پکیج SOIC-8
Dual Gate Driver 18V, 5A, High Speed Low Side, with SOIC-8 Package
معرفی
گیت درایور دوتایی 18 ولت جریان خروجی 5 آمپر با سرعت بالا با پکیج SOIC-8
Dual Gate Driver 18V, 5A, High Speed Low Side, with SOIC-8 Package
Specifications
- Configuration: Dual
- Output Current: 5A
- Supply Voltage - Min: 4.5V
- Supply Voltage - Max: 18V
- Operating Supply Current: 300uA
- Propagation Delay - Max: 23ns
- Pd - Power Dissipation: 430mW
- Number of Outputs: 2
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +140C
- Packaging: Reel
مشخصات گیت درایور UCC27524DR
گیت درایور UCC27524DR
Part Number
2
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
23ns
Propagation Delay - Max
N/A
Floating Voltage
SMD/SMT
Mounting Style
N/A
Dead Time
Dual
Configuration
+140C
Maximum Operating Temperature
430mW
Pd - Power Dissipation
18V
Supply Voltage - Max
4.5V
Supply Voltage - Min
300uA
Operating Supply Current
5A
Output Current
SOIC-8
Package-Case
