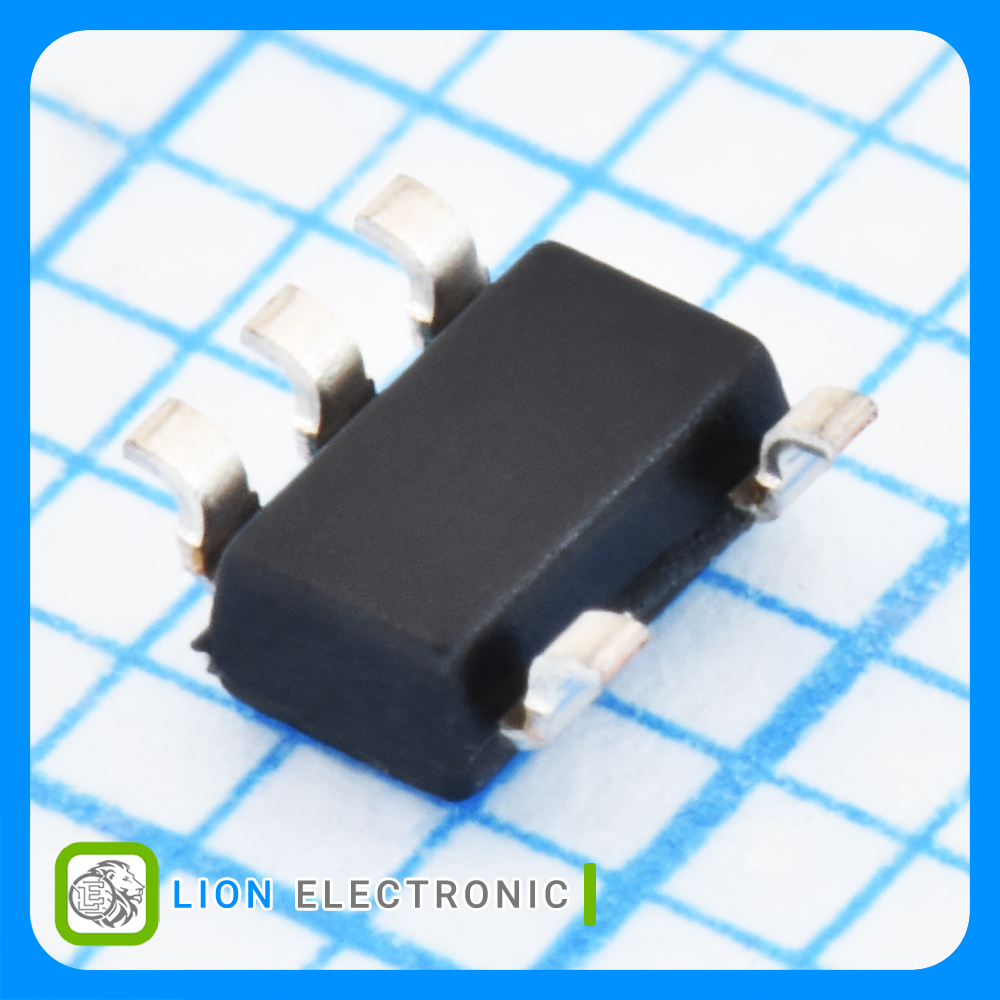

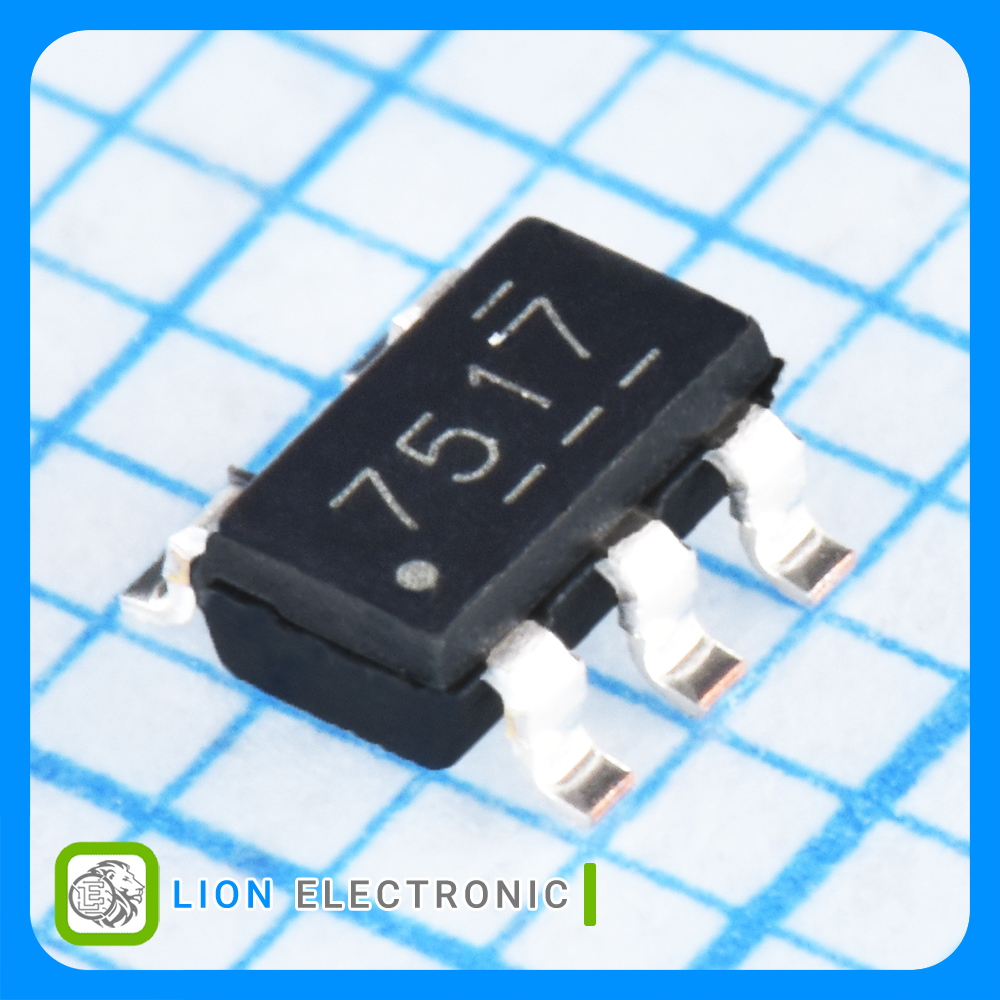

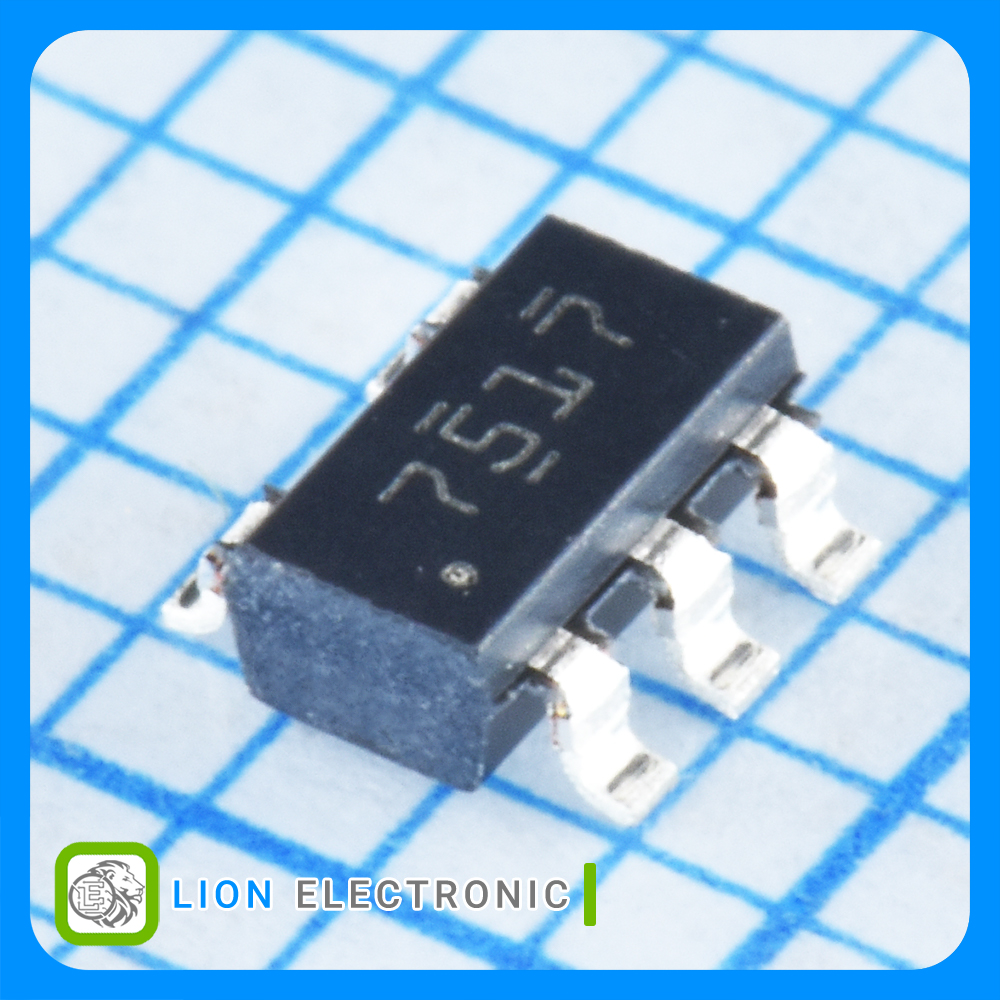

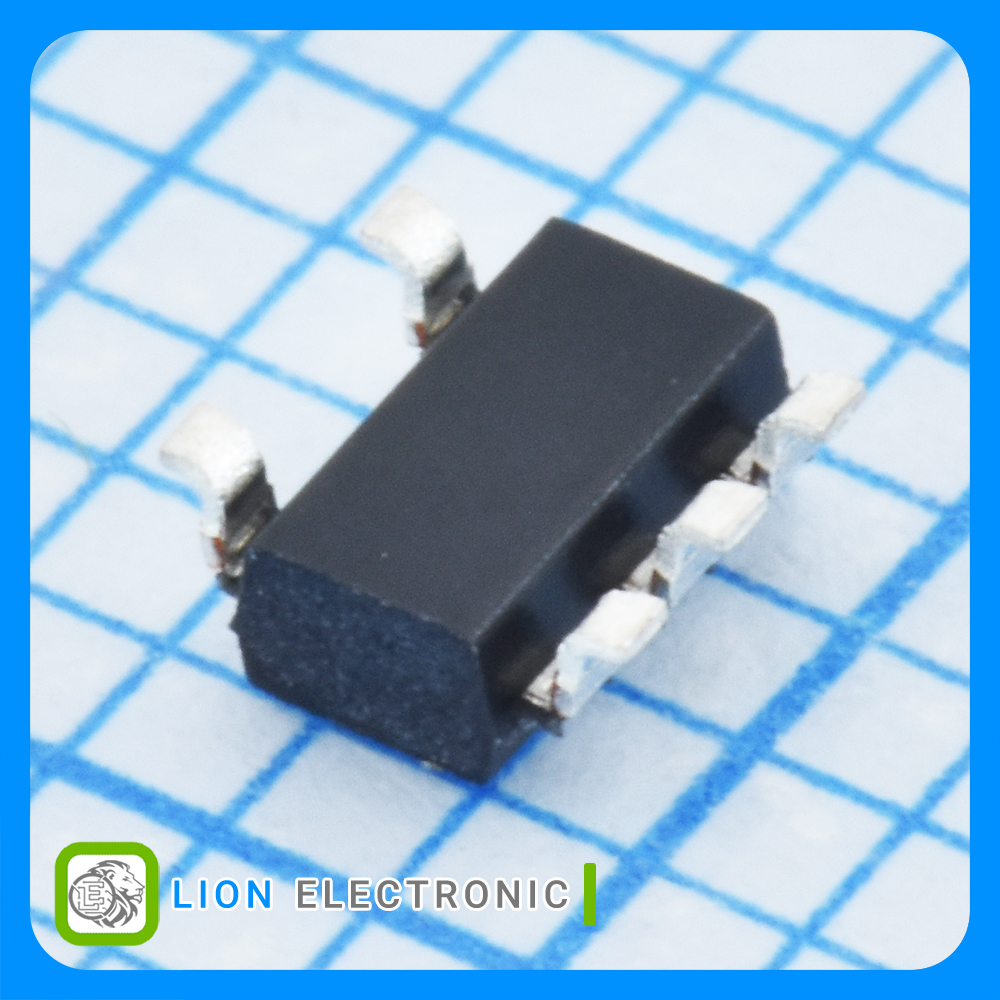

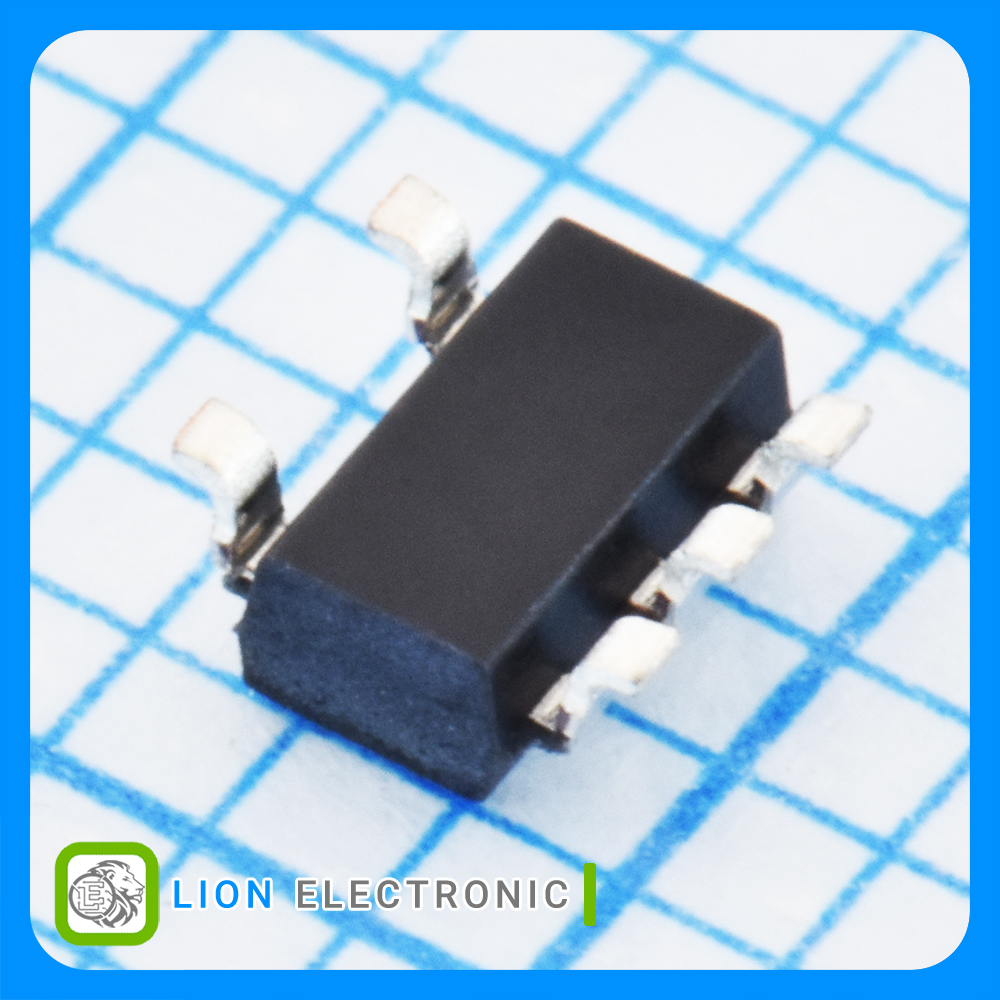

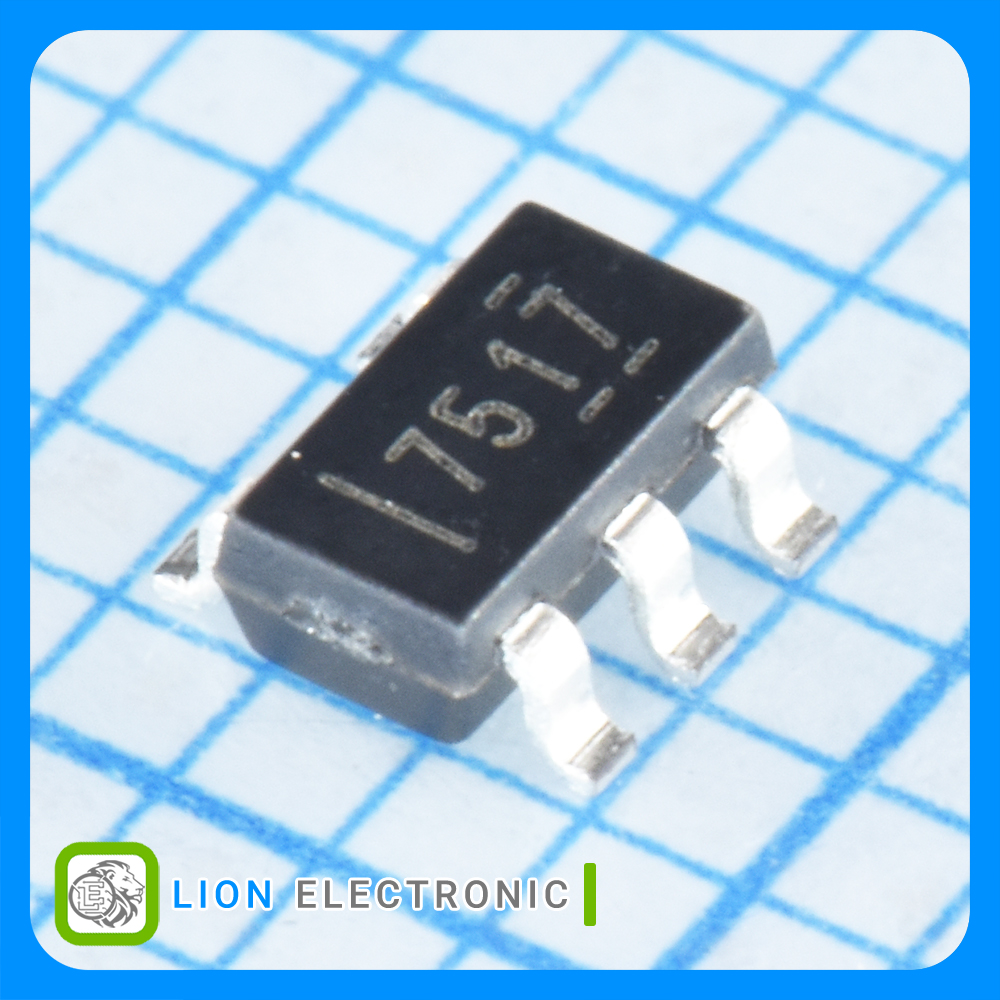

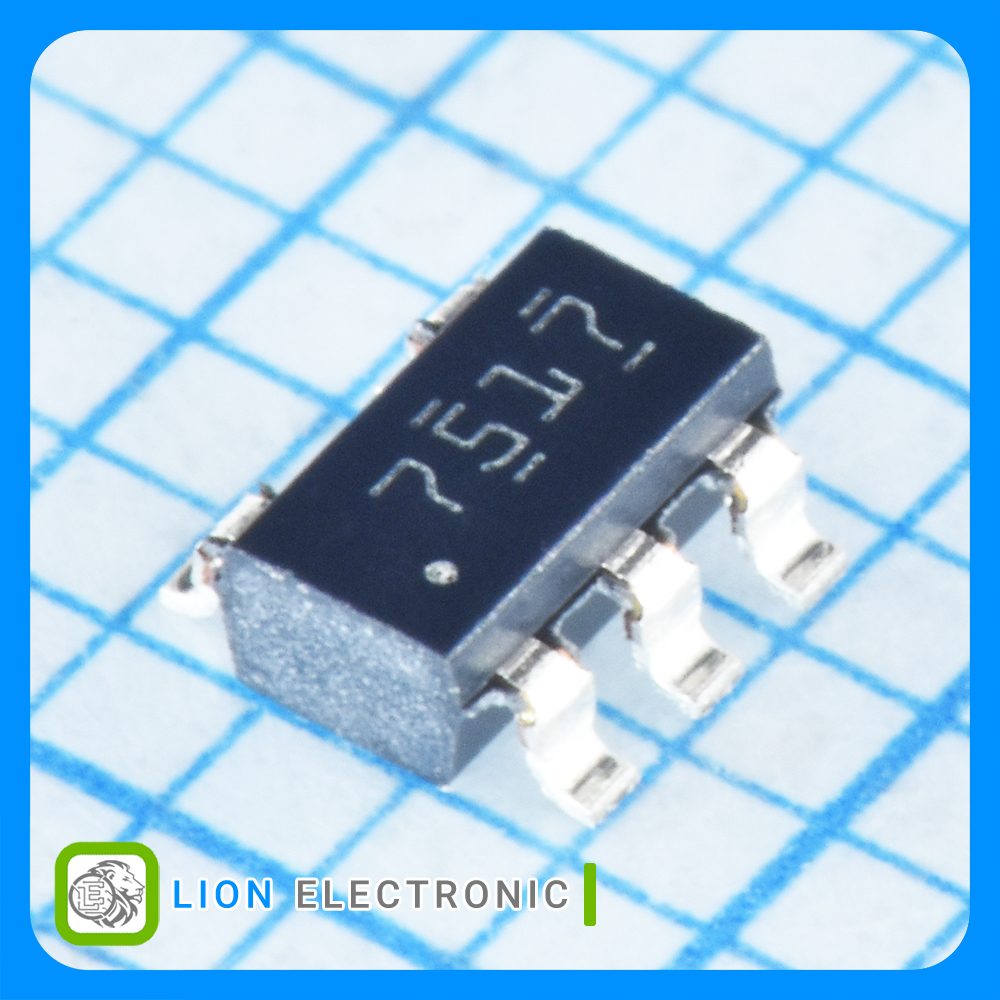

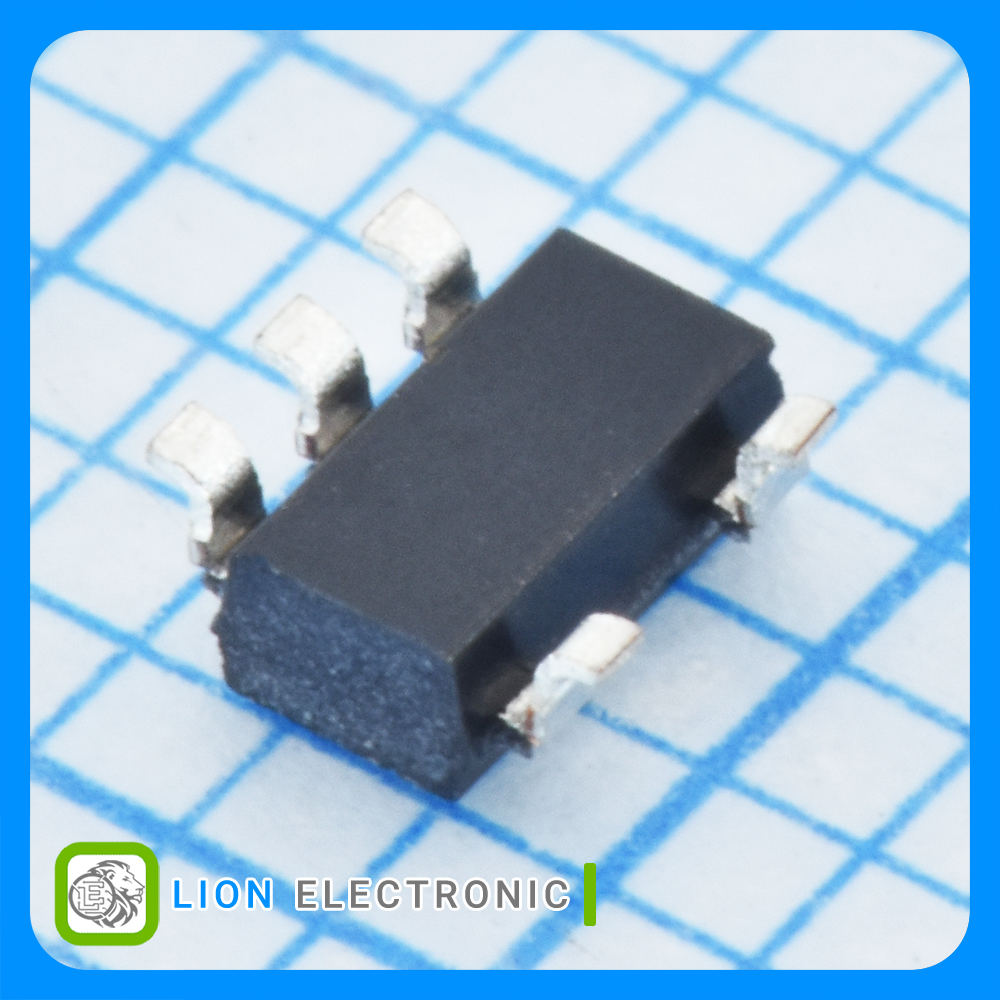

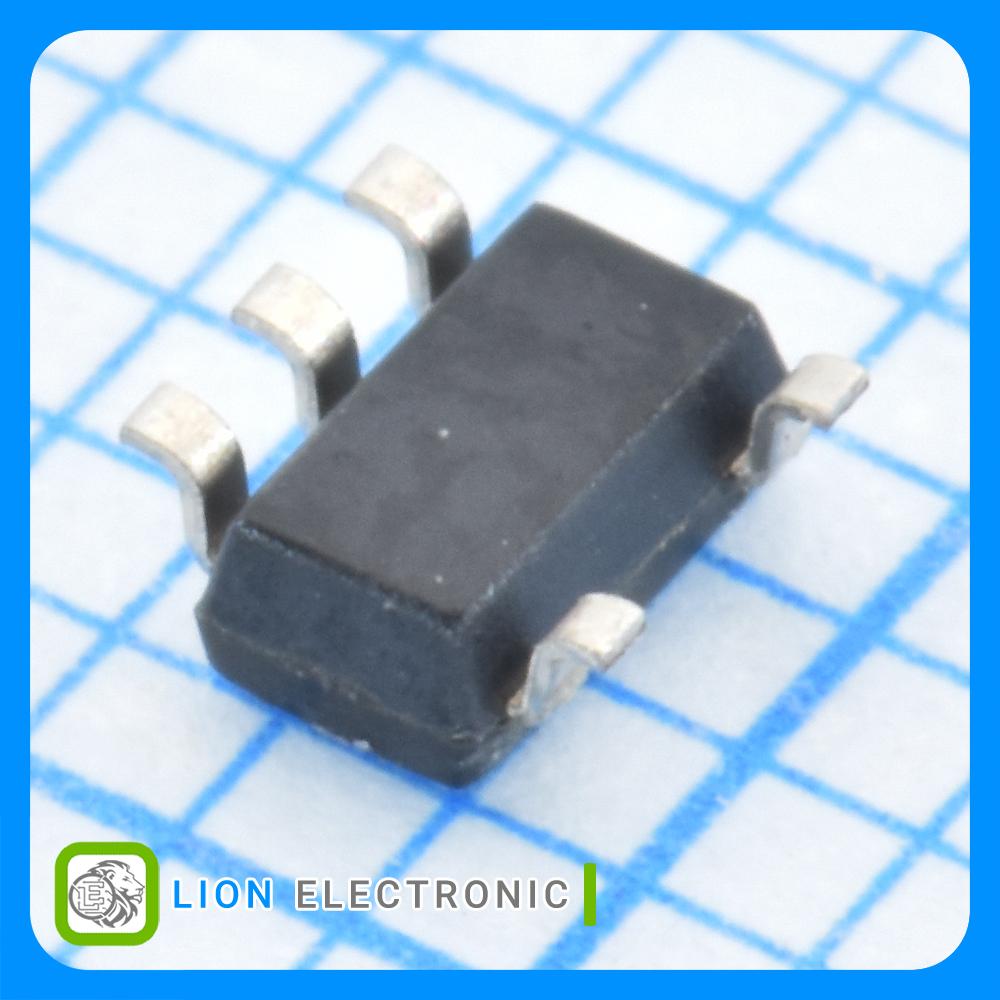

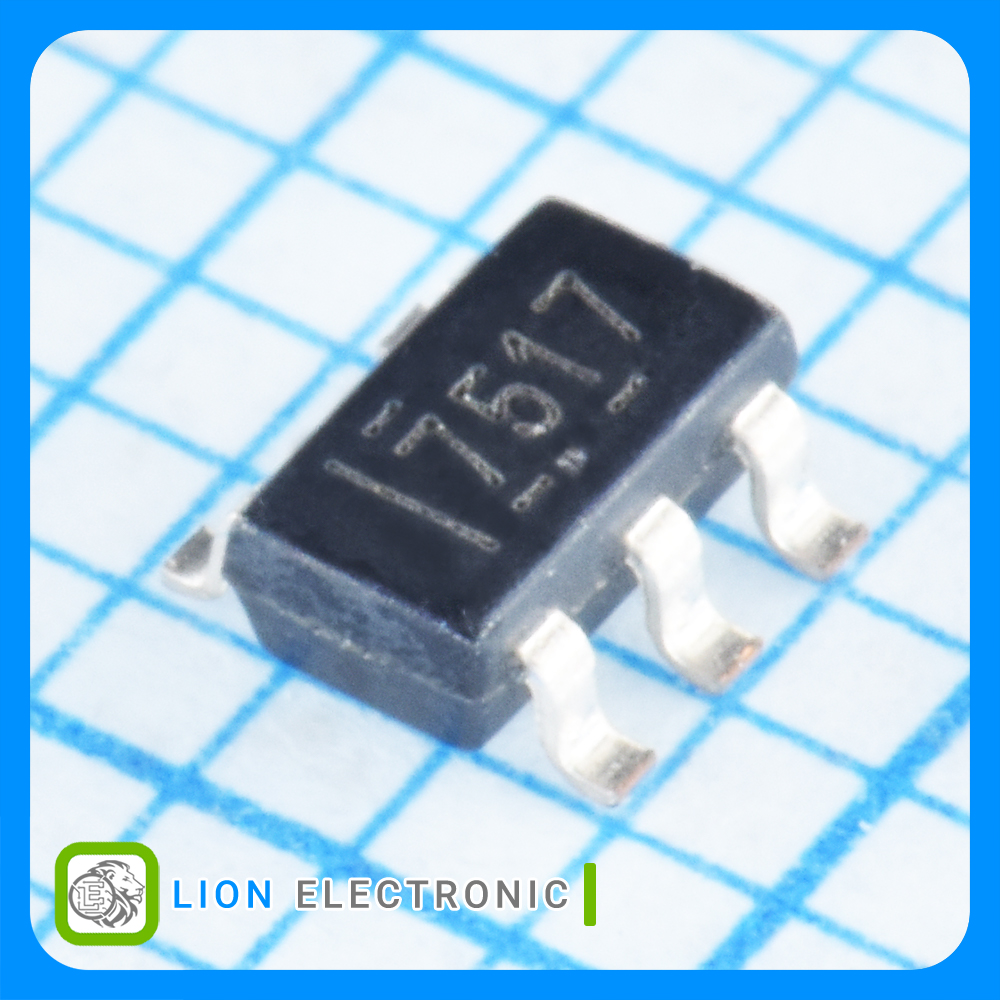

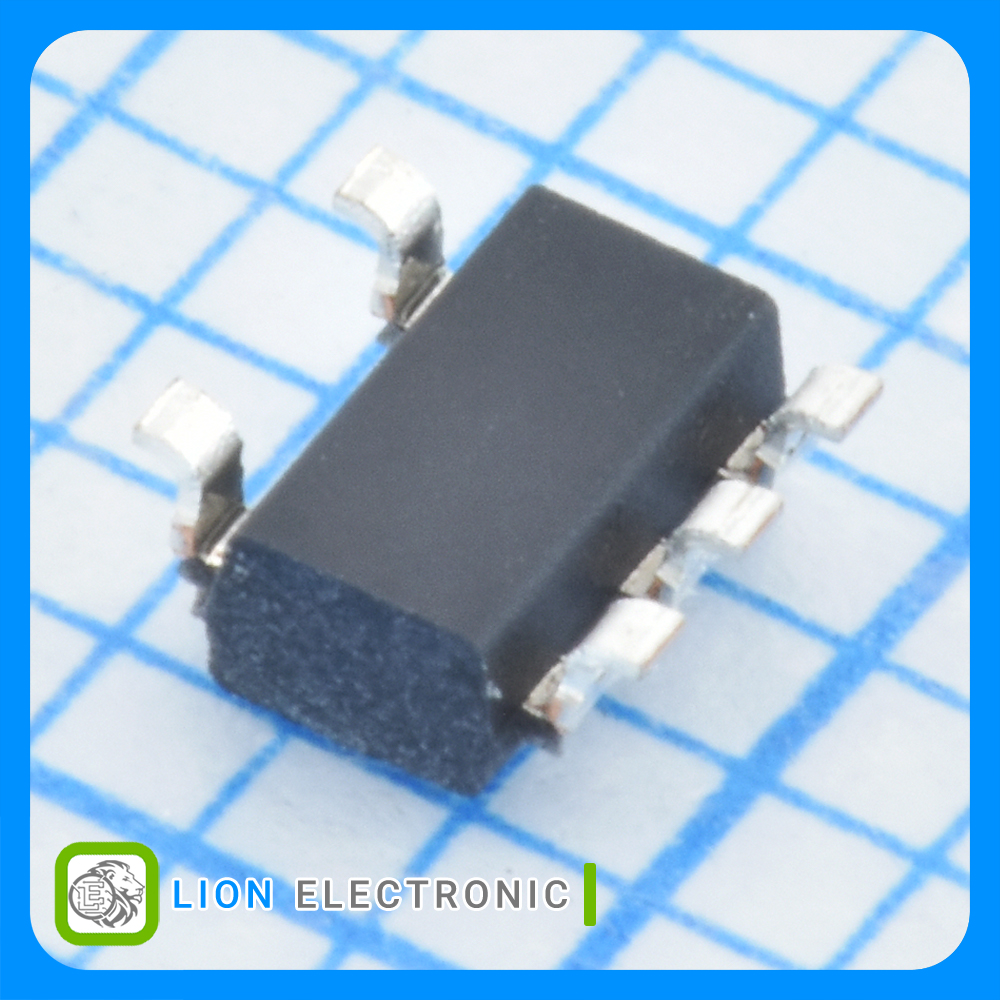

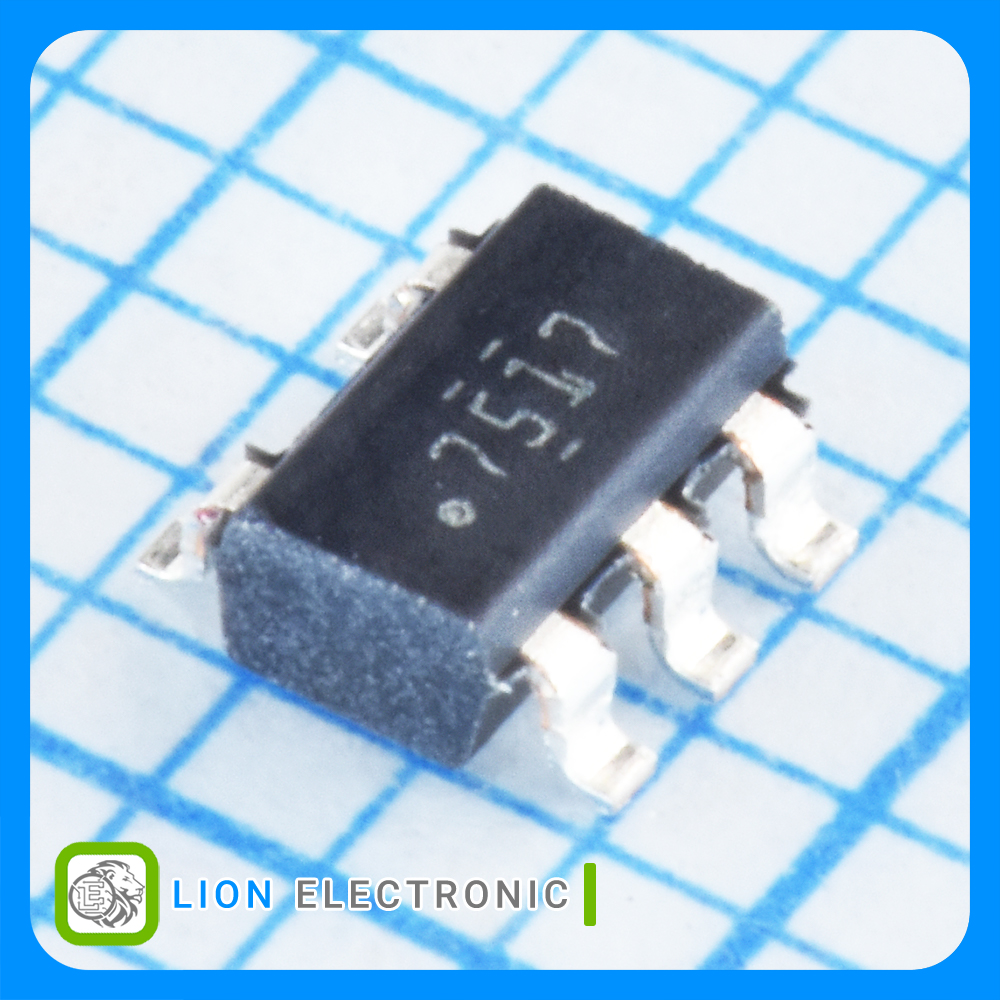

UCC27517DBVR
UCC27517DBVR
Part Number
6152
Lion Part
Datasheet
Texas Instruments Manufacture
گیت درایور تکی تککاناله با سرعت بالا 18 ولت جریان خروجی 4 آمپر با پکیج SOT-23-5
Single Channel High-Speed, Low-Side Gate Driver 18V, 4A with SOT-23-5 Package
معرفی
گیت درایور تکی تککاناله با سرعت بالا 18 ولت جریان خروجی 4 آمپر با پکیج SOT-23-5
Single Channel High-Speed, Low-Side Gate Driver 18V, 4A with SOT-23-5 Package
Specifications
- Configuration: Single
- Output Current: 4A
- Supply Voltage - Min: 4.5V
- Supply Voltage - Max: 18V
- Operating Supply Current: 1mA
- Propagation Delay - Max: 23ns
- Pd - Power Dissipation: 574mW
- Number of Outputs: 1
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +140C
- Packaging: Reel
مشخصات گیت درایور UCC27517DBVR
گیت درایور UCC27517DBVR
Part Number
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
23ns
Propagation Delay - Max
SMD/SMT
Mounting Style
N/A
Floating Voltage
N/A
Dead Time
+140C
Maximum Operating Temperature
Single
Configuration
574mW
Pd - Power Dissipation
18V
Supply Voltage - Max
4.5V
Supply Voltage - Min
4A
Output Current
1mA
Operating Supply Current
SOT-23-5
Package-Case
