COSINE
معرفی
گیت درایور MOSFET تکی 25 ولت جریان خروجی 1.5 آمپر با پکیج SOT-23-5
Single-Channel High-Speed Power MOSFET Gate Driver 25V, 1.5A with SOT-23-5 Package
Specifications
- Configuration: Single
- Output Current: 1.5A
- Supply Voltage - Min: 4.5V
- Supply Voltage - Max: 25V
- Operating Supply Current: 600uA
- Propagation Delay - Max: 3ns
- Pd - Power Dissipation: 390mW
- Number of Outputs: 1
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات گیت درایور COS1416

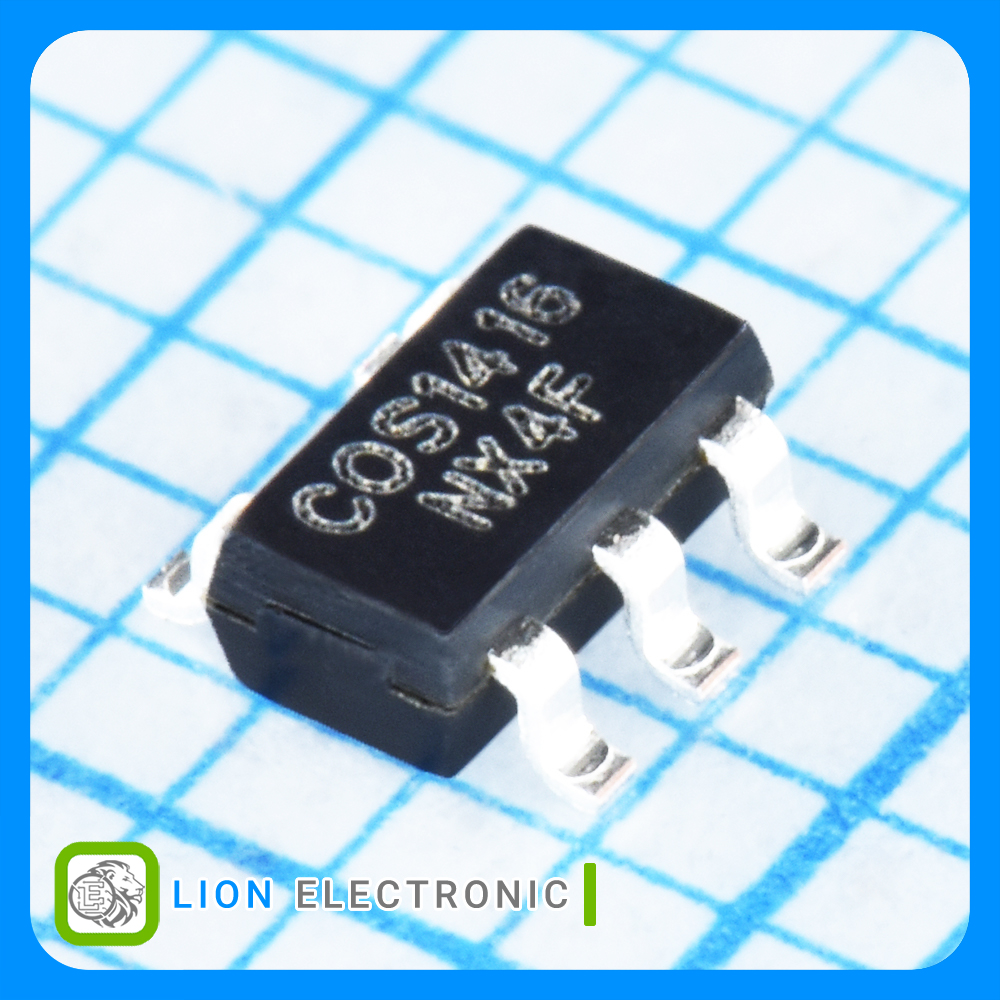

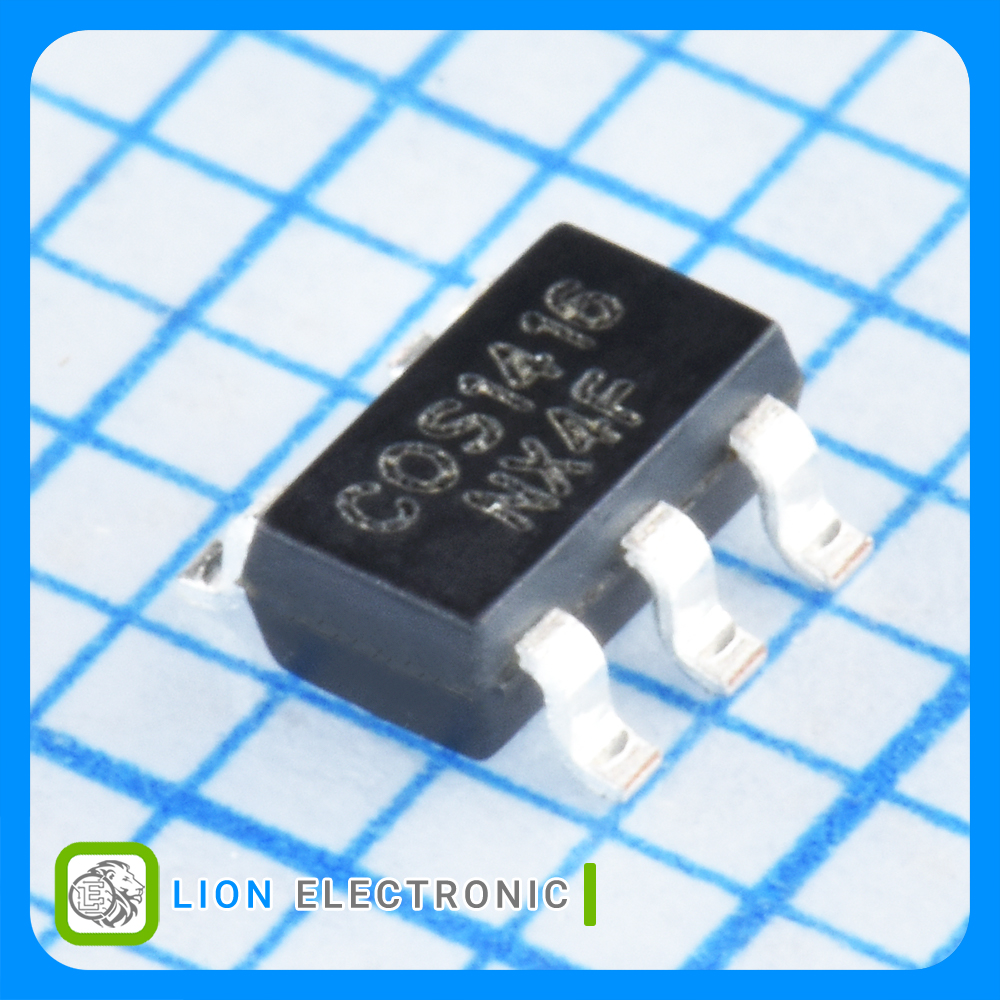

گیت درایور COS1416
Part Number
1
Number of Outputs
3ns
Propagation Delay - Max
Reel
Packaging
-40C
Minimum Operating Temperature
N/A
Floating Voltage
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
N/A
Dead Time
390mW
Pd - Power Dissipation
Single
Configuration
4.5V
Supply Voltage - Min
25V
Supply Voltage - Max
1.5A
Output Current
600uA
Operating Supply Current
SOT-23-5
Package-Case
