UNI-SEMIC
معرفی

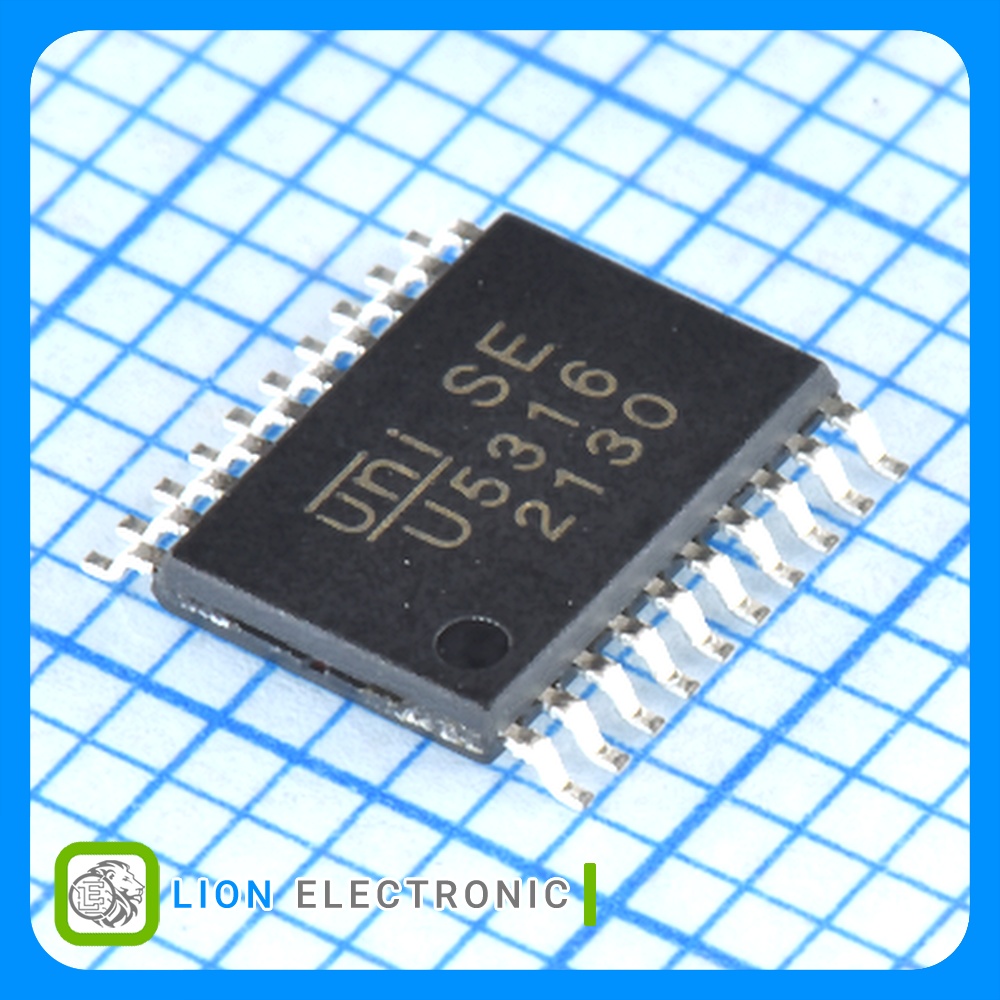

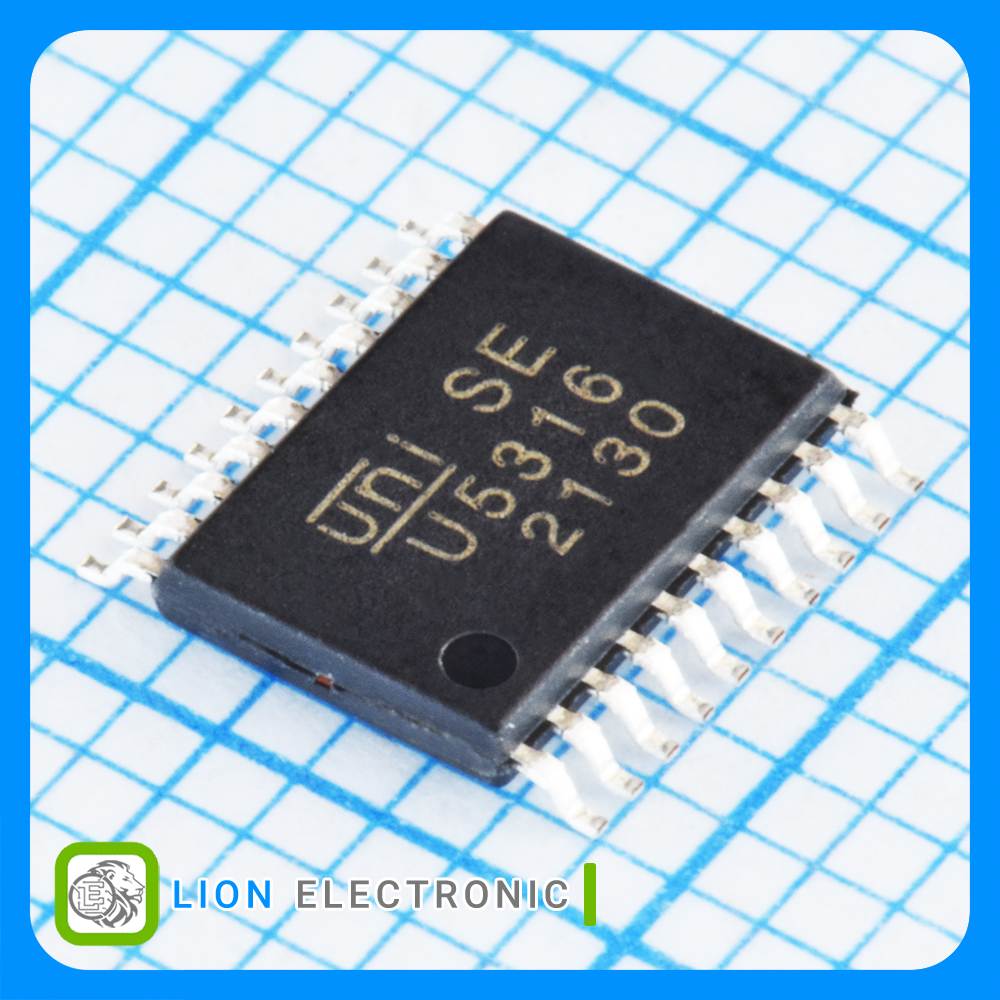

گیت درایور 3-Phase 20 ولت جریان خروجی 1.2 آمپر با پکیج TSSOP-20
3-Phase Gate Driver 20V, 1.2A with TSSOP-20 Package
Specifications
- Configuration: 3-Phase
- Output Current: 1.2A
- Supply Voltage - Min: 5V
- Supply Voltage - Max: 20V
- Operating Supply Current: 300uA
- Dead Time: 250ns
- Propagation Delay - Max: 380ns
- Pd - Power Dissipation: 1.5W
- Floating Voltage: 280V
- Number of Outputs: 3
- Mounting Style: SMD/SMT
- Package/Case: TSSOP-20
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات U5316
U5316
Part Number
3
Number of Outputs
280V
Floating Voltage
250ns
Dead Time
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
3-Phase
Configuration
+125C
Maximum Operating Temperature
380ns
Propagation Delay - Max
20V
Supply Voltage - Max
5V
Supply Voltage - Min
1.2A
Output Current
300uA
Operating Supply Current
1.5W
Pd - Power Dissipation
TSSOP-20
Package-Case
