BA159
BA159
Part Number
63
Lion Part
Datasheet
Vishay Semiconductors Manufacture
دیود فست 1000 ولت 1 آمپر زمان بازیابی 250 نانوثانیه با پکیج DO-41

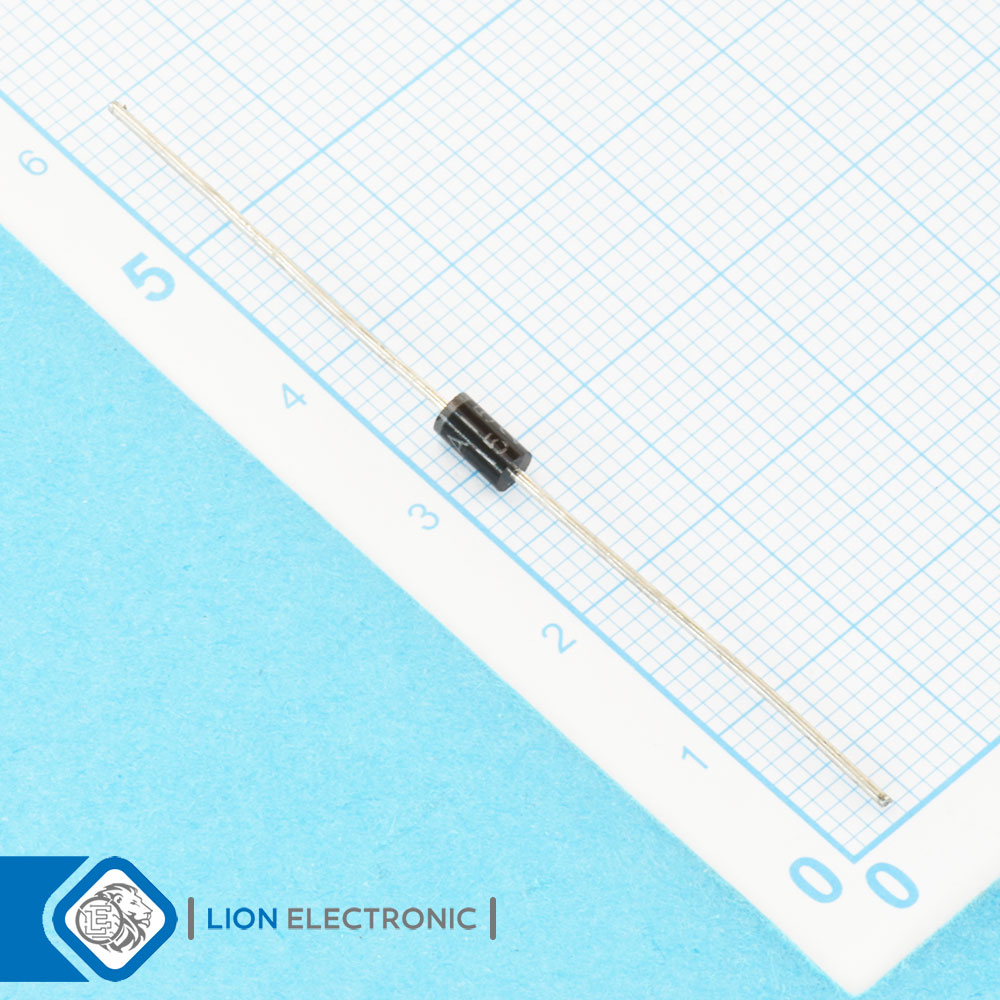

Fast Diode 1A, 1000V with 250ns Recovery Time and DO-41 Package
معرفی
دیود فست 1000 ولت 1 آمپر زمان بازیابی 250 نانوثانیه با پکیج DO-41
Fast Diode 1A, 1000V with 250ns Recovery Time and DO-41 Package
Specifications
- Configuration: Single
- Recovery Time: 250ns
- Vr - Reverse Voltage: 1kV
- If - Forward Current: 1A
- Max Surge Current: 30A
- Vf - Forward Voltage: 1.3V
- Ir - Reverse Current: 5uA
- Mounting Style: Through Hole
- Package/Case: DO-41
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات BA159
BA159
Part Number
-65C
Minimum Operating Temperature
Reel
Packaging
5uA
Ir - Reverse Current
30A
Max Surge Current
Through Hole
Mounting Style
1kV
Vr - Reverse Voltage
250ns
Recovery Time
+150C
Maximum Operating Temperature
Single
Configuration
1A
If - Forward Current
1.3V
Vf - Forward Voltage
DO-41
Package-Case
