HV1A108M1010PZ
HV1A108M1010PZ
Part Number
6381
Lion Part
Datasheet
Honor Elec Manufacture
خازن الکترولیت 1000 میکروفاراد 10 ولت تلرانس 20% سایز 10 میلیمترx10.5 میلیمتر

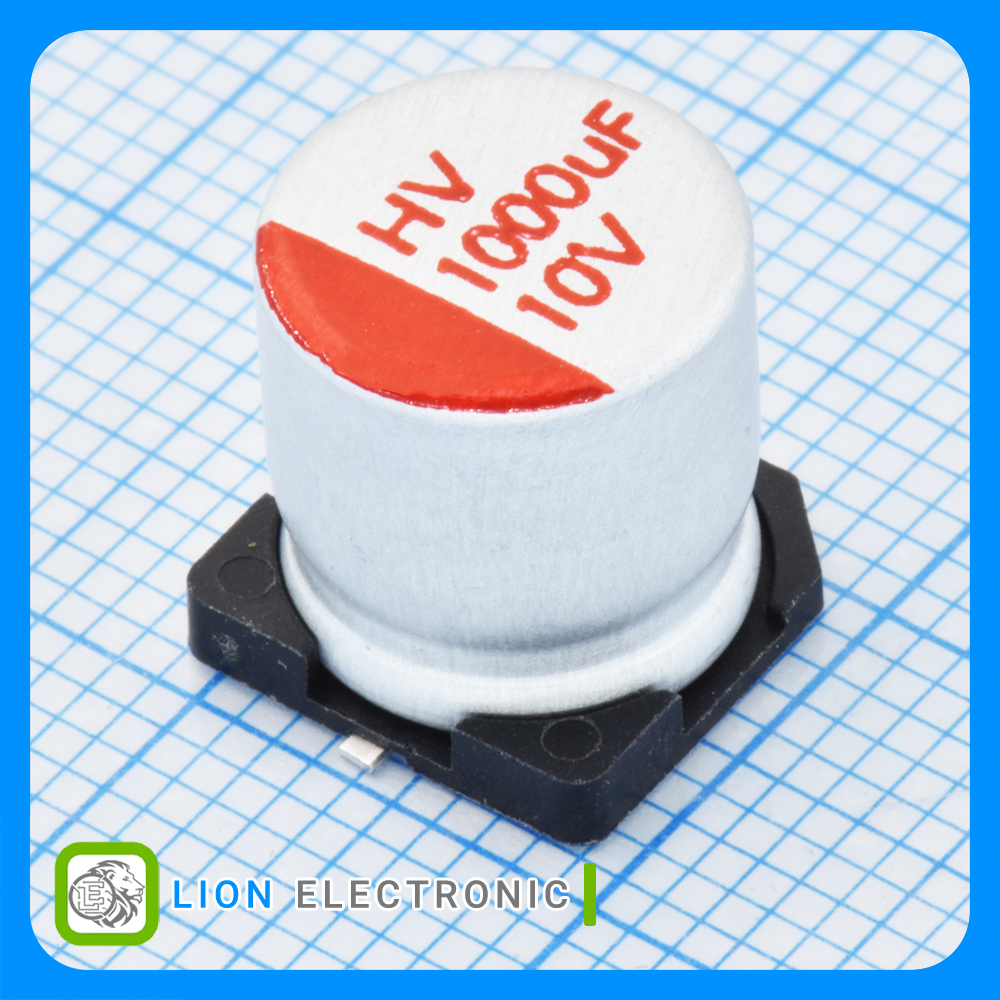

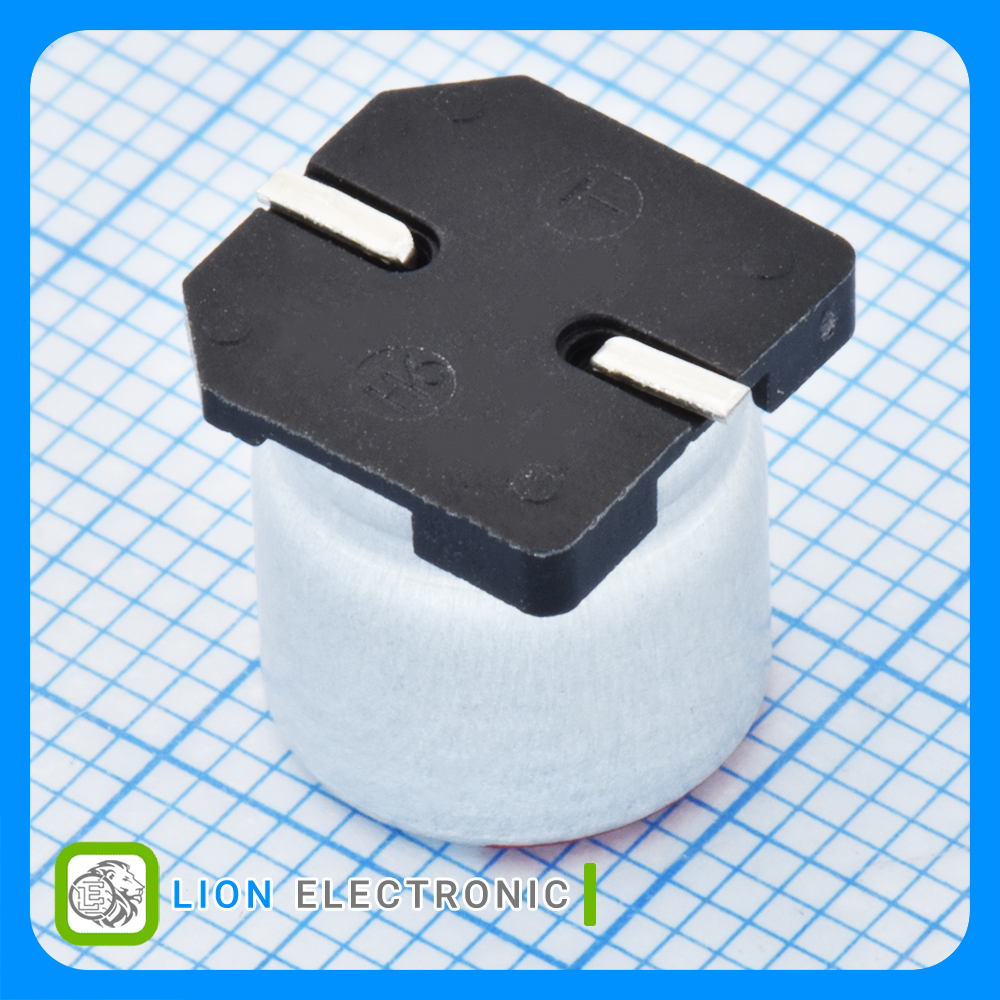

Aluminum Electrolytic Capacitor 1000uF, 10V, 20% with 10mmx10.5mm Size
معرفی
خازن الکترولیت 1000 میکروفاراد 10 ولت تلرانس 20% سایز 10 میلیمترx10.5 میلیمتر
Aluminum Electrolytic Capacitor 1000uF, 10V, 20% with 10mmx10.5mm Size
Specifications
- Life: 2000 Hour
- Capacitance: 1000uF
- Voltage Rating DC: 10VDC
- ESR: 25mΩ
- Tolerance: 20%
- Diameter: 10mm
- Height: 10.5mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات HV1A108M1010PZ
HV1A108M1010PZ
Part Number
2000 Hour
Life
-55C
Minimum Operating Temperature
25mΩ
ESR
Reel
Packaging
10VDC
Voltage Rating DC
20%
Tolerance
+105C
Maximum Operating Temperature
10mm
Diameter
-
Ripple Current
10.5mm
Height
1000uF
Capacitance
