خازن الکترولیت 2200 میکروفاراد 10 ولت تلرانس 20% سایز 12.5 میلیمترx16 میلیمتر

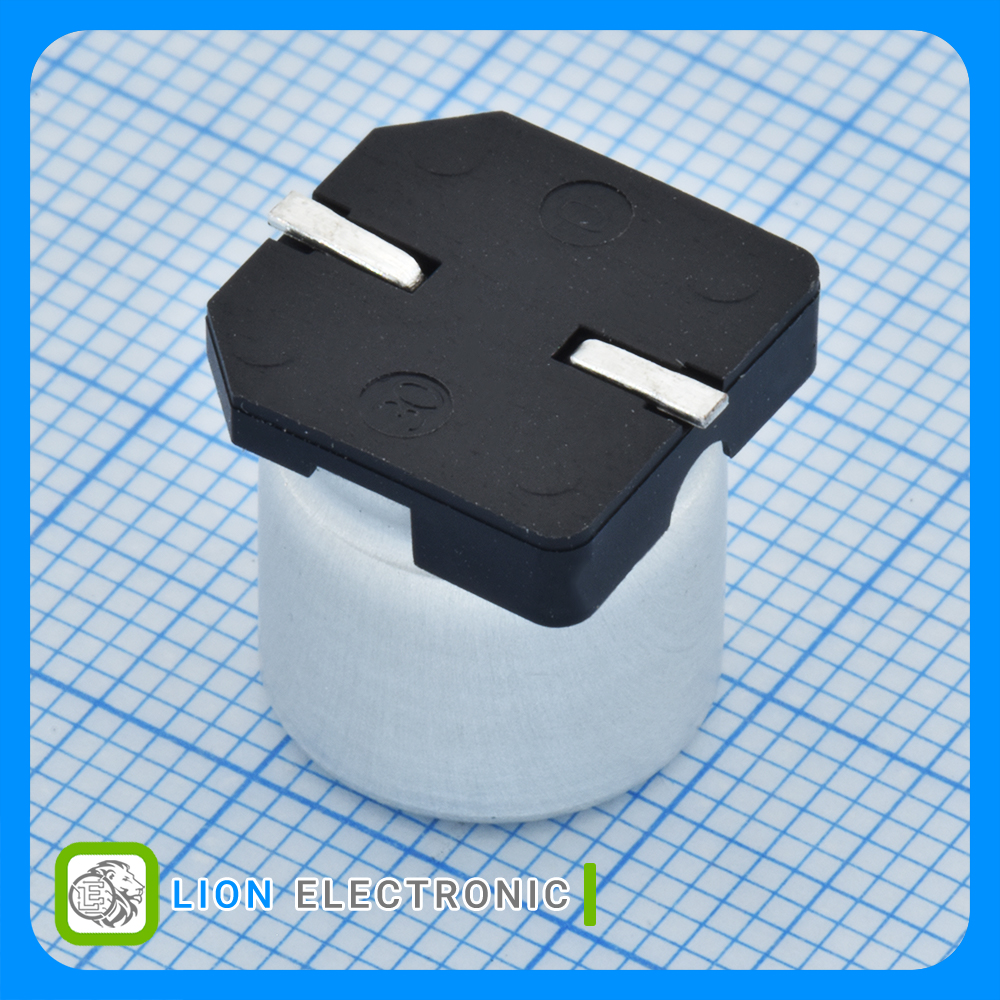

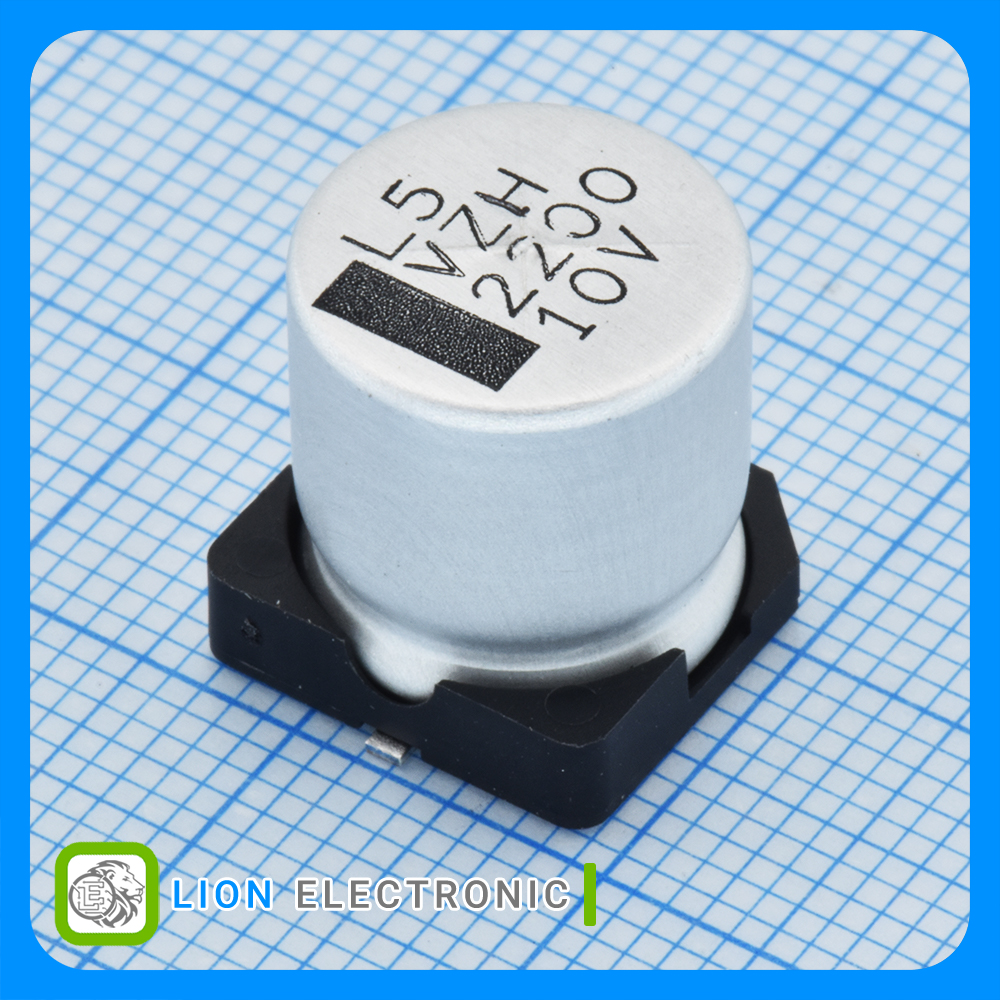

Aluminum Electrolytic Capacitor 2200uF, 10V, 20% with 12.5mmx16mm Size
Specifications
- Life: 2000~5000 Hour
- Capacitance: 2200uF
- Voltage Rating DC: 10VDC
- Ripple Current: 950mA
- ESR: 60mΩ
- Tolerance: 20%
- Diameter: 12.5mm
- Height: 16mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات VZH222M1ATR-1313

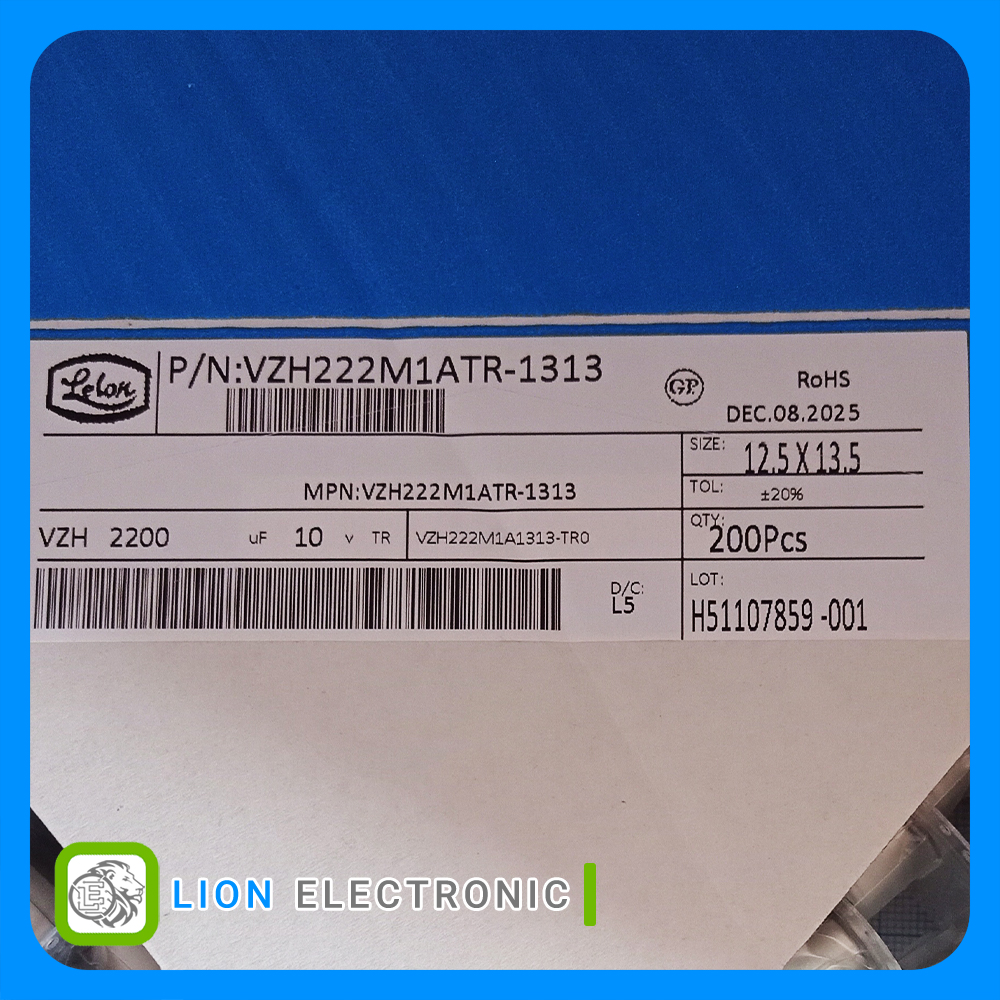

VZH222M1ATR-1313
Part Number
2000~5000 Hour
Life
-55C
Minimum Operating Temperature
Reel
Packaging
10VDC
Voltage Rating DC
+105C
Maximum Operating Temperature
20%
Tolerance
60mΩ
ESR
12.5mm
Diameter
950mA
Ripple Current
16mm
Height
2200uF
Capacitance
