HV1K476M1010PZ
HV1K476M1010PZ
Part Number
6383
Lion Part
Datasheet
Honor Elec Manufacture
خازن الکترولیت 47 میکروفاراد 80 ولت تلرانس 20% سایز 10 میلیمترx10.5 میلیمتر

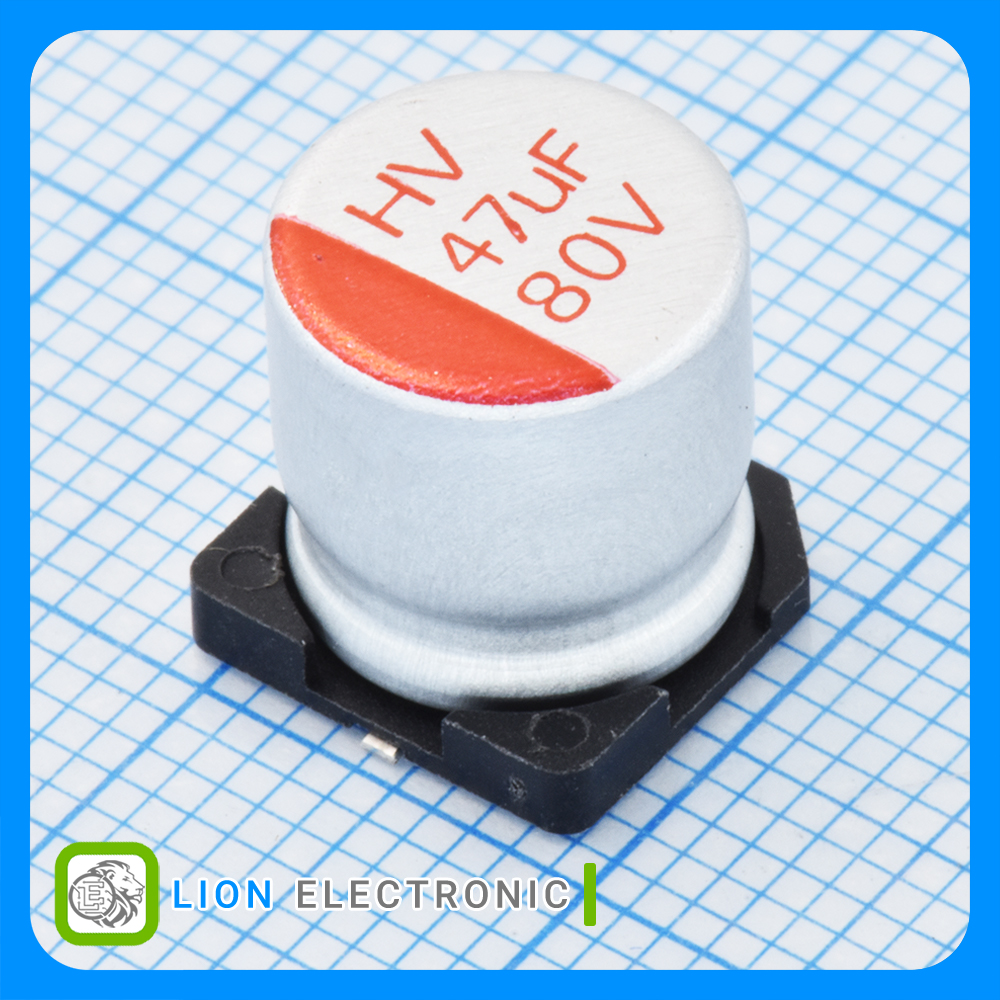

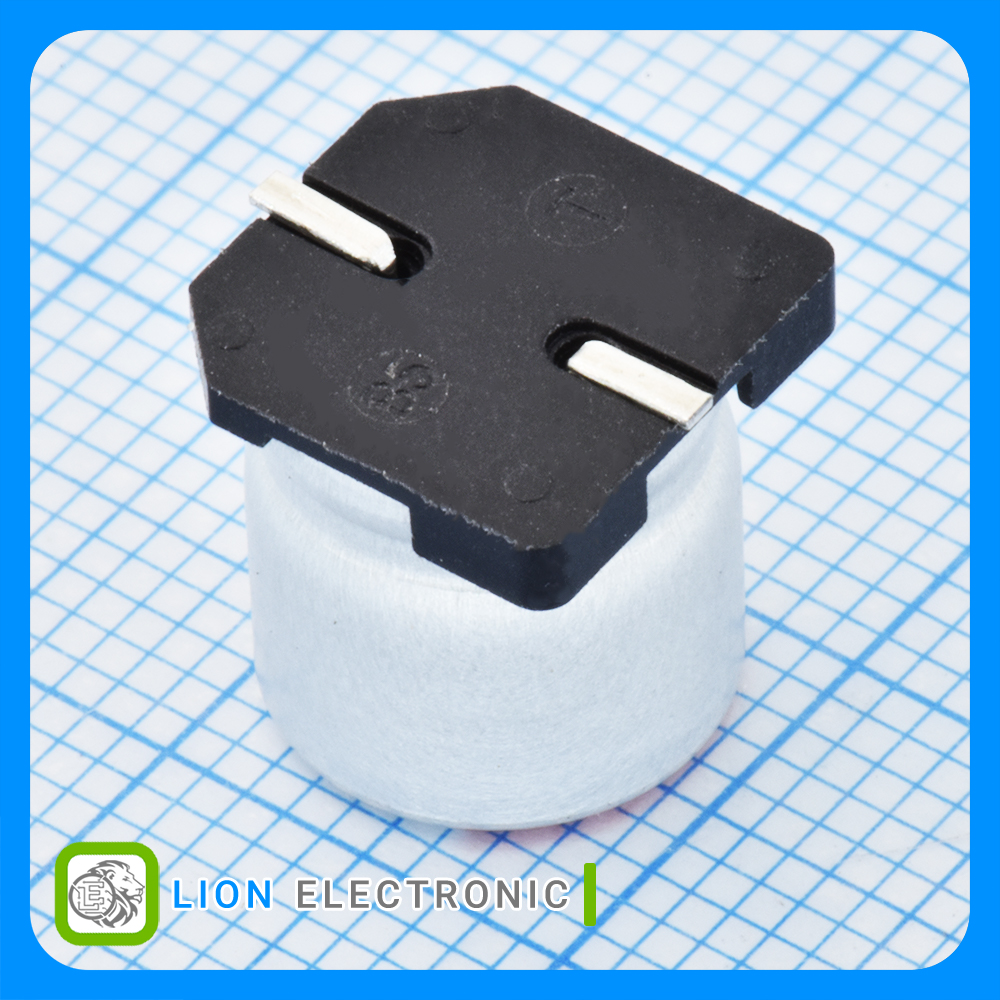

Aluminum Electrolytic Capacitor 47uF, 80V, 20% with 10mmx10.5mm Size
معرفی
خازن الکترولیت 47 میکروفاراد 80 ولت تلرانس 20% سایز 10 میلیمترx10.5 میلیمتر
Aluminum Electrolytic Capacitor 47uF, 80V, 20% with 10mmx10.5mm Size
Specifications
- Life: 2000 Hour
- Capacitance: 47uF
- Voltage Rating DC: 80VDC
- Ripple Current: 1.25A
- ESR: 55mΩ
- Tolerance: 20%
- Diameter: 10mm
- Height: 10.5mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات HV1K476M1010PZ
HV1K476M1010PZ
Part Number
2000 Hour
Life
-55C
Minimum Operating Temperature
Reel
Packaging
20%
Tolerance
+105C
Maximum Operating Temperature
55mΩ
ESR
10mm
Diameter
80VDC
Voltage Rating DC
1.25A
Ripple Current
10.5mm
Height
47uF
Capacitance
