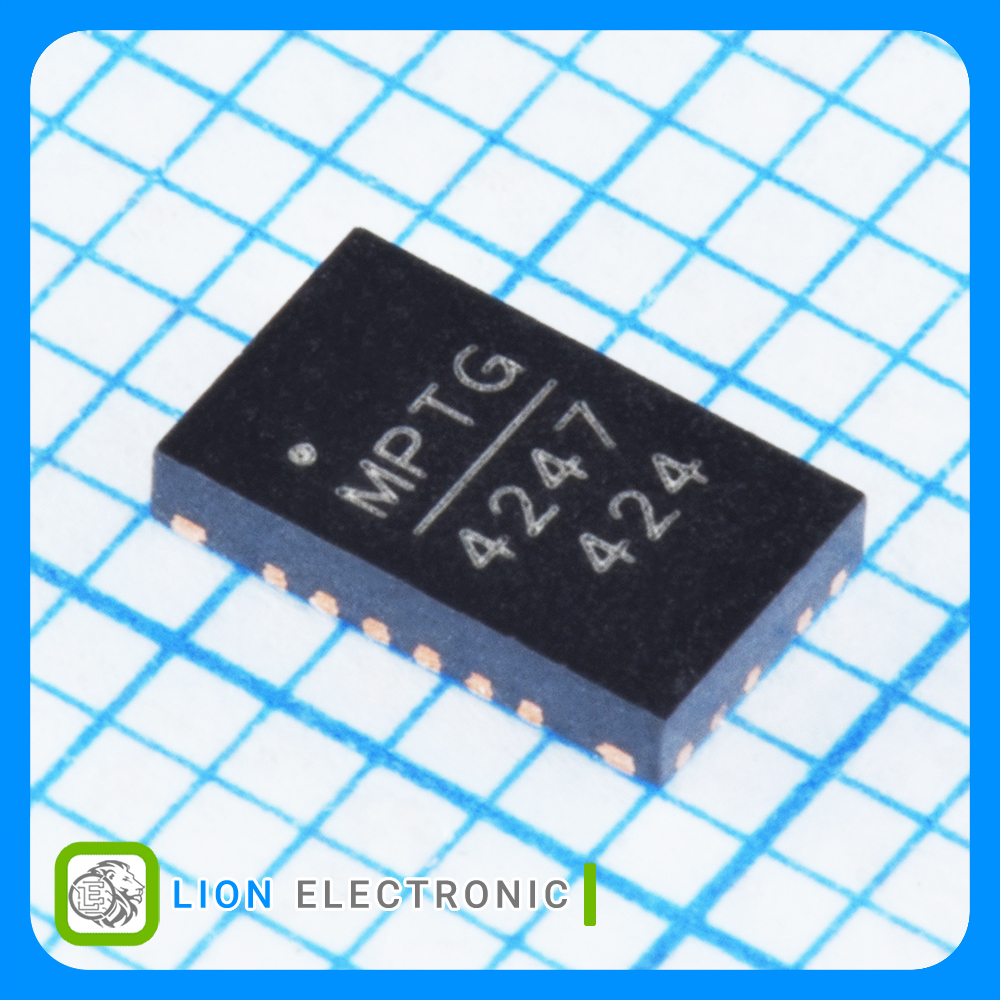

MP4247GQV-0000-Z
MP4247GQV-0000-Z
Part Number
6387
Lion Part
Datasheet
Monolithic Power Systems Manufacture
رگولاتور سوئیچینگ باک-بوست خروجی 1 تا 24 ولت 5 آمپر ورودی 3.6 تا 36 ولت با پکیج QFN-20
Buck-Boost Switching Regulator 1 - 24V, 5A Output, 3.6V-36V Input with QFN-20 Package
معرفی
رگولاتور سوئیچینگ باک-بوست خروجی 1 تا 24 ولت 5 آمپر ورودی 3.6 تا 36 ولت با پکیج QFN-20
Buck-Boost Switching Regulator 1 - 24V, 5A Output, 3.6V-36V Input with QFN-20 Package
Specifications
- Topology: Buck-Boost
- Switching Frequency: 280kHz, 420kHz, 580kHz
- Number of Outputs: 2
- Output Voltage: 1 - 24V
- Output Current: 5A
- Synchronous Rectification: No
- Input Voltage Min: 3.6V
- Input Voltage Max: 36V
- Mounting Style: SMD/SMT
- Package/Case: QFN-20
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات MP4247GQV-0000-Z
MP4247GQV-0000-Z
Part Number
No
Synchronous Rectification
2
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
Buck-Boost
Topology
+125C
Maximum Operating Temperature
36V
Input Voltage Max
3.6V
Input Voltage Min
280kHz, 420kHz, 580kHz
Switching Frequency
1 - 24V
Output Voltage
5A
Output Current
QFN-20
Package-Case
