B2403S-1WR3
B2403S-1WR3
Part Number
6628
Lion Part
Datasheet
HI-LINK Manufacture
مبدل دیسی به دیسی ایزوله ورودی 21.6 تا 26.4 ولت خروجی 3.3 ولت 303 میلیآمپر توان 1 وات ایزولاسیون 1.5 کیلو ولت با پکیج SIP-4

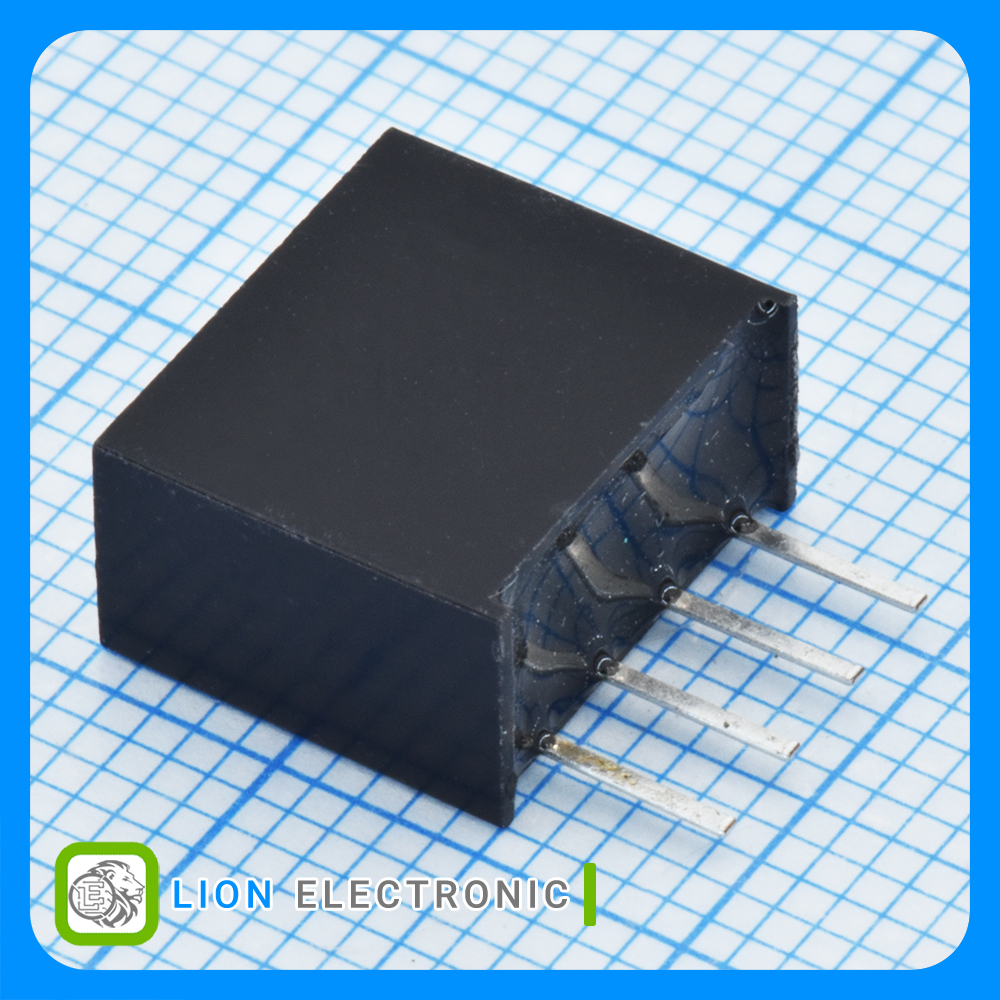

Isolated DC/DC Converter 21.6 - 26.4V in, 3.3V 303mA out, 1W, 1.5kVDC Isolation with SIP-4 Package
معرفی
مبدل دیسی به دیسی ایزوله ورودی 21.6 تا 26.4 ولت خروجی 3.3 ولت 303 میلیآمپر توان 1 وات ایزولاسیون 1.5 کیلو ولت با پکیج SIP-4
Isolated DC/DC Converter 21.6 - 26.4V in, 3.3V 303mA out, 1W, 1.5kVDC Isolation with SIP-4 Package
Specifications
- Number of Outputs: 1
- Output Voltage - Channel 1: 3.3V
- Isolation Voltage: 1.5kVDC
- Output Voltage - Channel 2: N/A
- Output Power: 1W
- Package/Case Size: SIP-4
- Output Current - Channel 2: N/A
- Output Current - Channel 1: 303mA
- Input Voltage: 21.6 - 26.4V
- Mounting Style: Through Hole
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
مشخصات B2403S-1WR3
B2403S-1WR3
Part Number
1
Number of Outputs
3.3V
Output Voltage - Channel 1
1.5kVDC
Isolation Voltage
-40C
Minimum Operating Temperature
N/A
Output Voltage - Channel 2
+85C
Maximum Operating Temperature
1W
Output Power
Through Hole
Mounting Style
SIP-4
Package-Case Size
N/A
Output Current - Channel 2
303mA
Output Current - Channel 1
21.6 - 26.4V
Input Voltage
