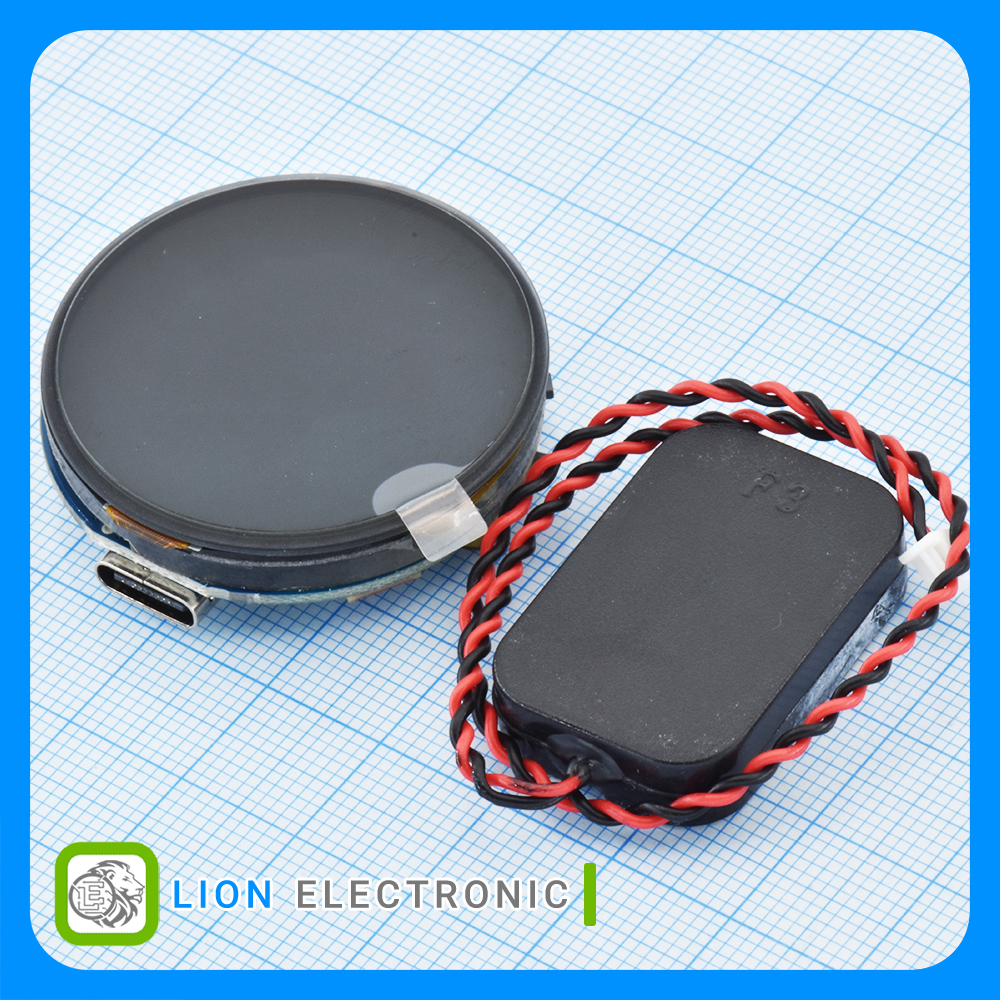

ESP32-S3 1.32inch AMOLED Round Touch Display Development Board

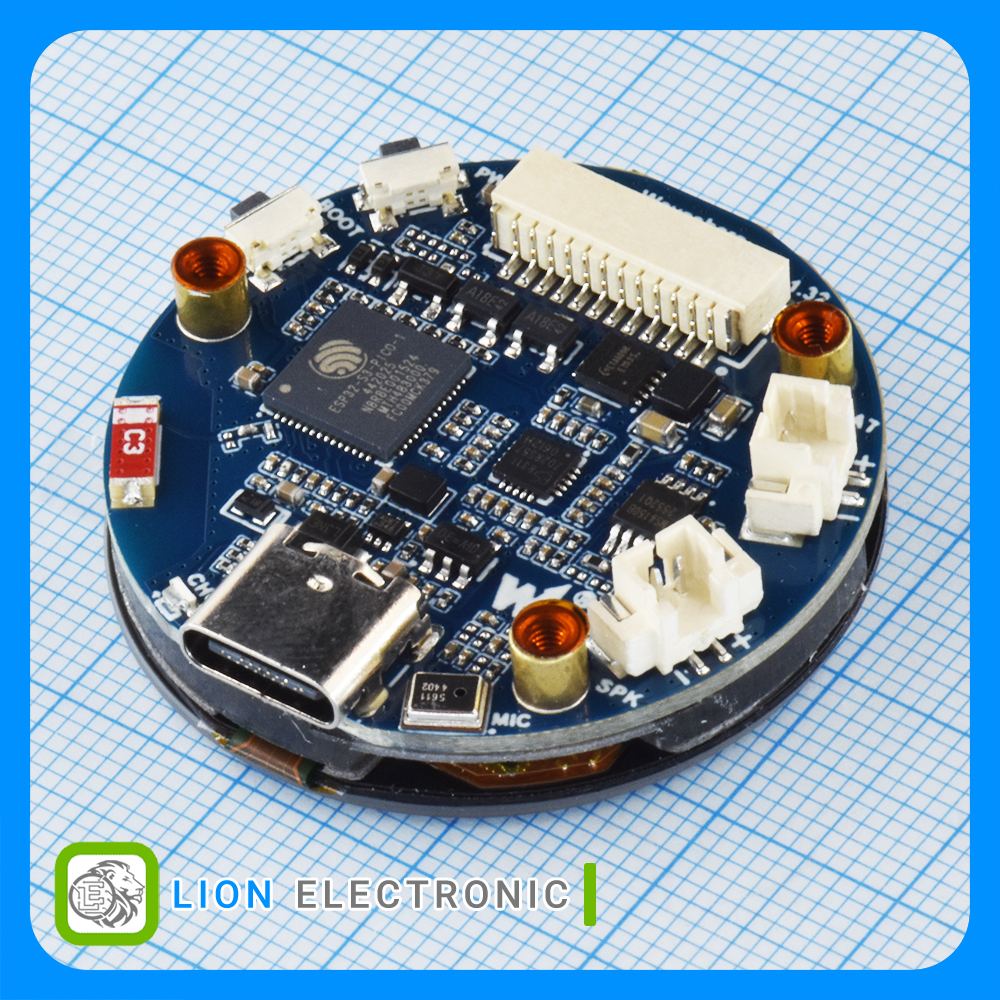

The ESP32-S3-Touch-AMOLED-1.32 is a compact 1.32inch AMOLED capacitive touch display development board designed by Waveshare. Onboard power management module, low power audio codec circuit, and MIC, adapting 12PIN expansion I/O interface, Lithium Batt. header, and speaker header, suitable for applications such as AI voice agents.

• Equipped with ESP32-S3 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna
• Built-in 512KB of Static RAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash memory
• Onboard 1.32inch AMOLED capacitive touch display for clear color picture display, 466 × 466 resolution, 16.7M color
• Built-in CO5300 display driver and CST820 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
• Onboard PWR and BOOT programmable buttons for easy custom function development
• Onboard 3.7V MX1.25 Lithium Batt. recharge/discharge header
• Equipped with the ES8311 low-power audio codec chip, supports high-quality audio input and output to meet diverse application needs such as speech interaction and audio playback
• Adapting SH1.0 12PIN expansion interface for DIY functionality expansion
• Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
