RHRP15120
RHRP15120
Part Number
71
Lion Part
Datasheet
ON Semiconductor Manufacture
دیود فست 1200 ولت 15 آمپر زمان بازیابی 75 نانوثانیه با پکیج TO-220-2

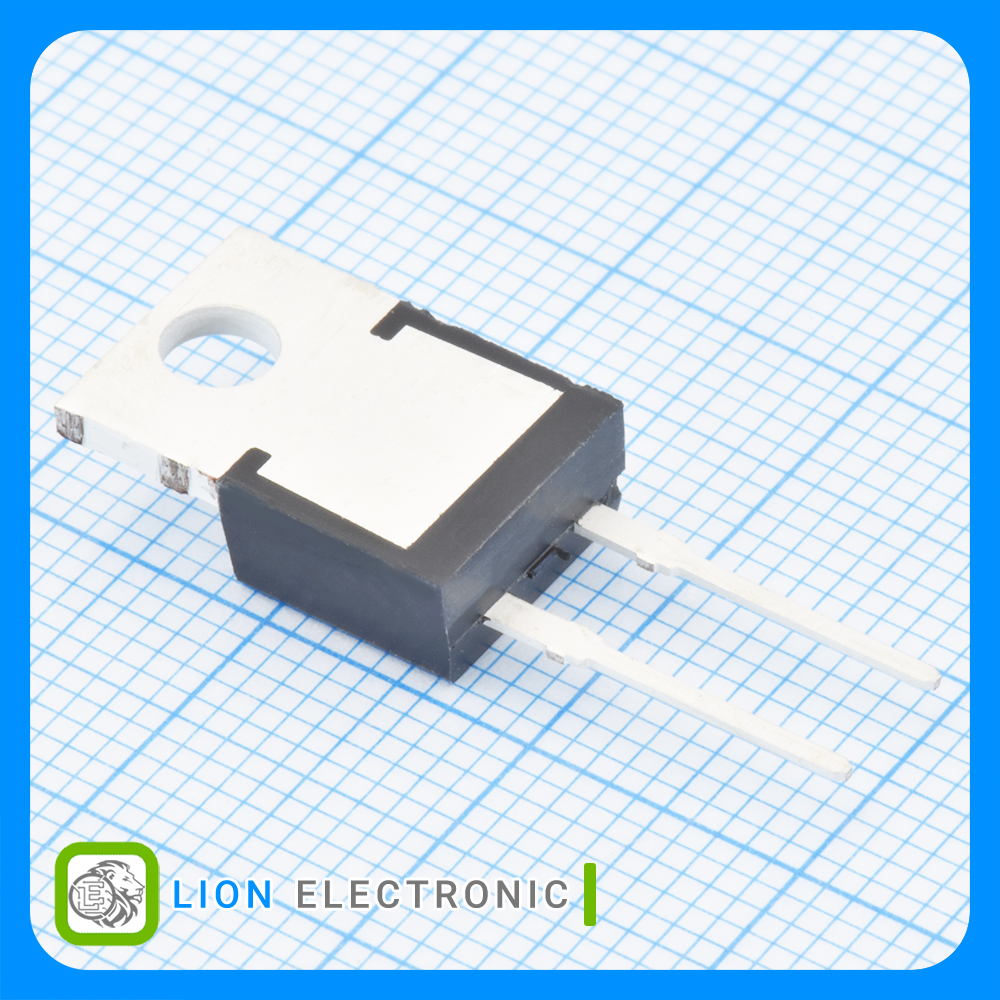

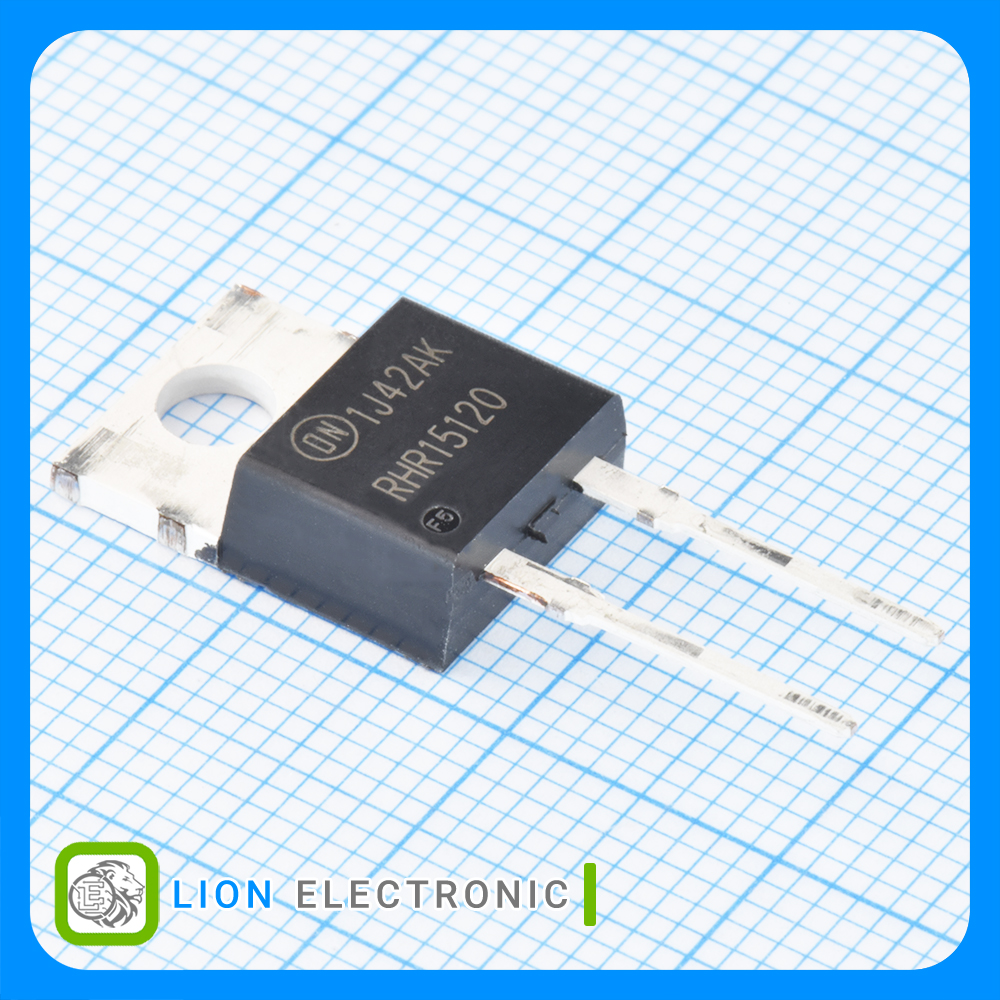

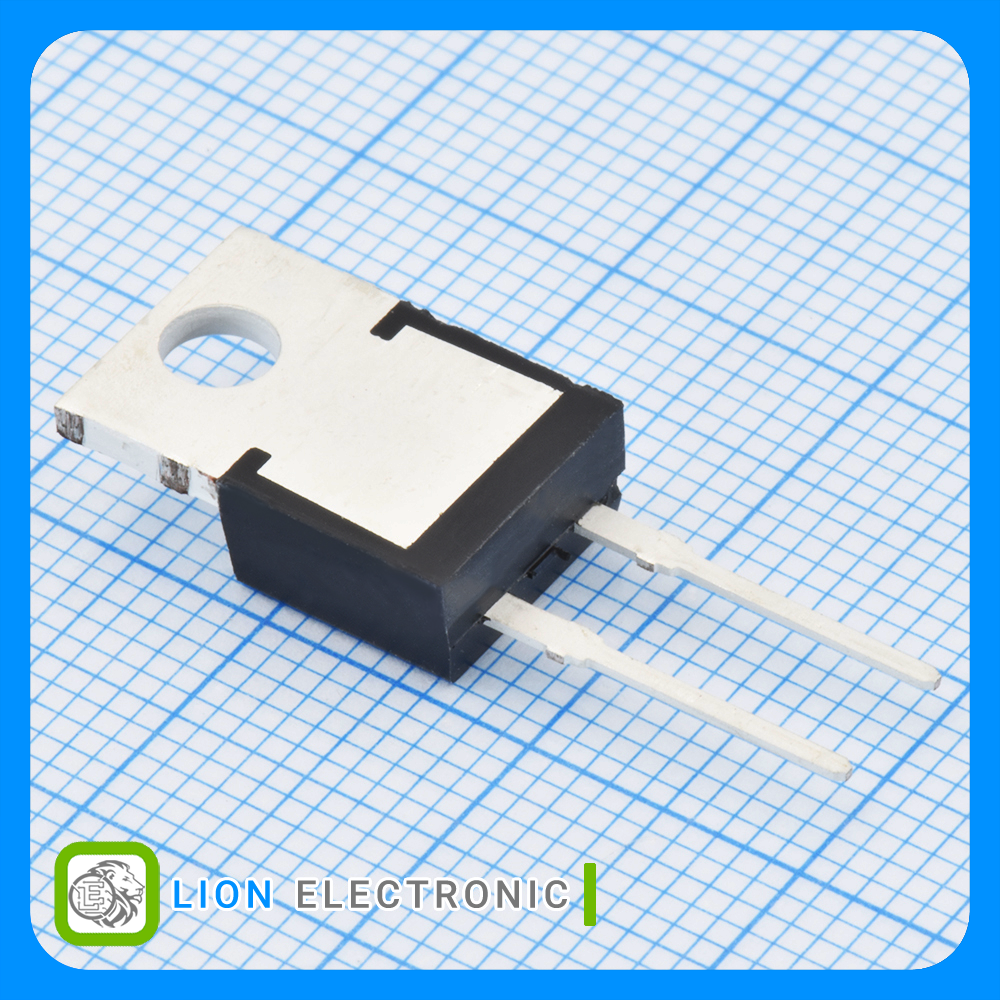

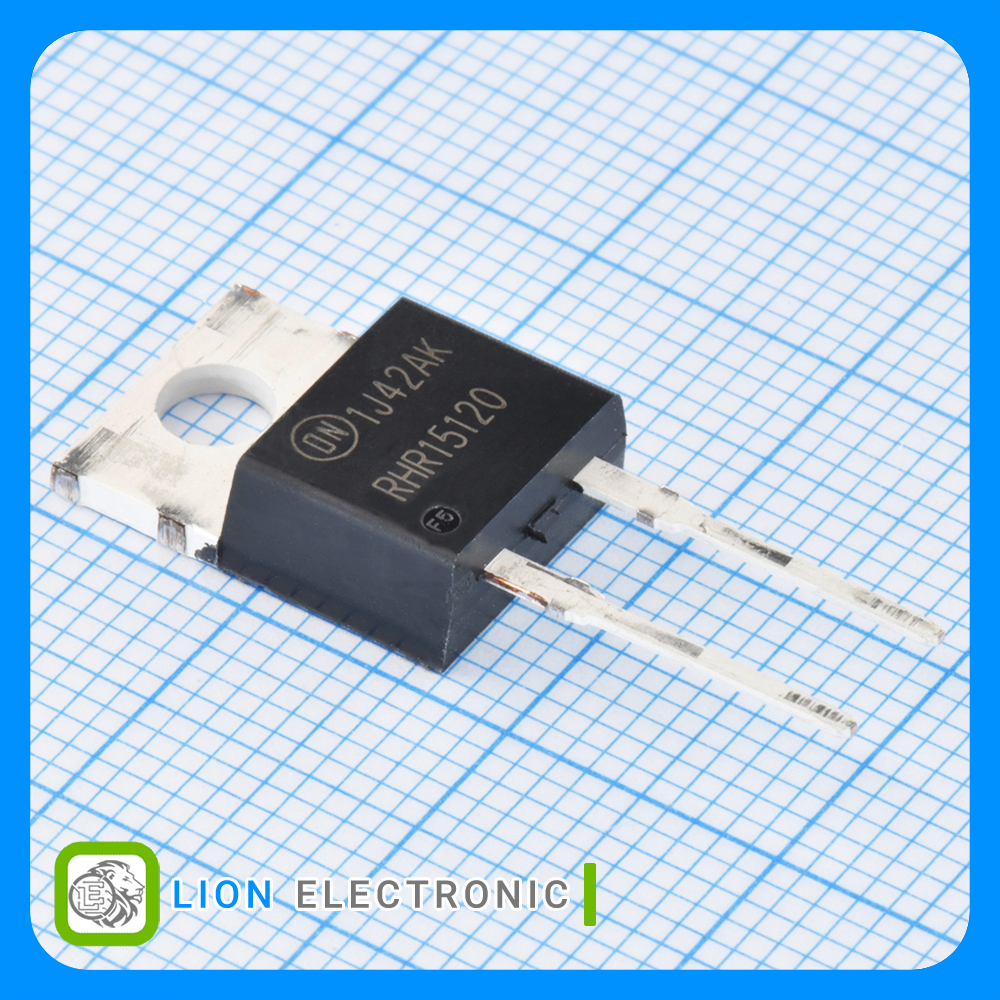

Fast Diode 1200V, 15A with 75ns Recovery Time and TO-220-2 Package
معرفی
دیود فست 1200 ولت 15 آمپر زمان بازیابی 75 نانوثانیه با پکیج TO-220-2
Fast Diode 1200V, 15A with 75ns Recovery Time and TO-220-2 Package
Specifications
- Configuration: Single
- Recovery Time: 75ns
- Vr - Reverse Voltage: 1.2kV
- If - Forward Current: 15A
- Max Surge Current: 200A
- Vf - Forward Voltage: 3.2V
- Ir - Reverse Current: 100uA
- Mounting Style: Through Hole
- Package/Case: TO-220-2
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات RHRP15120
RHRP15120
Part Number
-65C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
75ns
Recovery Time
1.2kV
Vr - Reverse Voltage
100uA
Ir - Reverse Current
+175C
Maximum Operating Temperature
200A
Max Surge Current
Single
Configuration
15A
If - Forward Current
3.2V
Vf - Forward Voltage
TO-220-2
Package-Case
