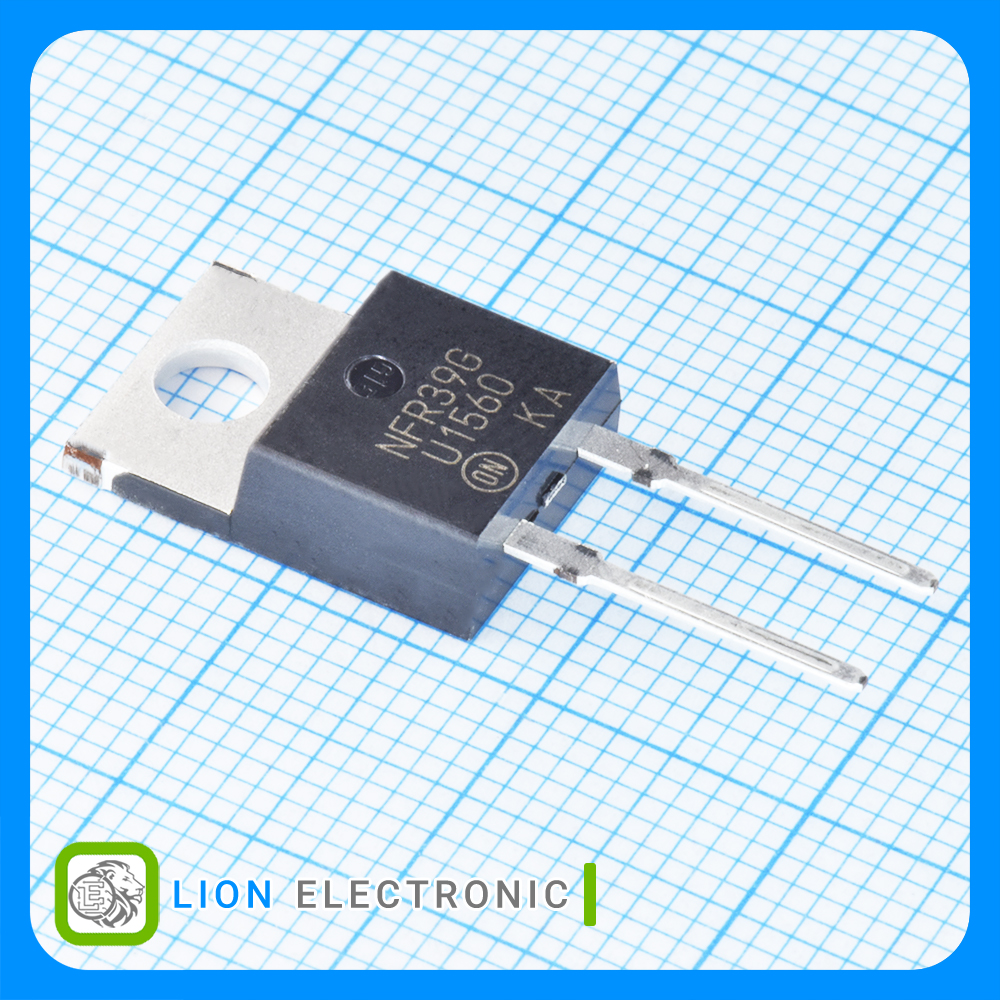

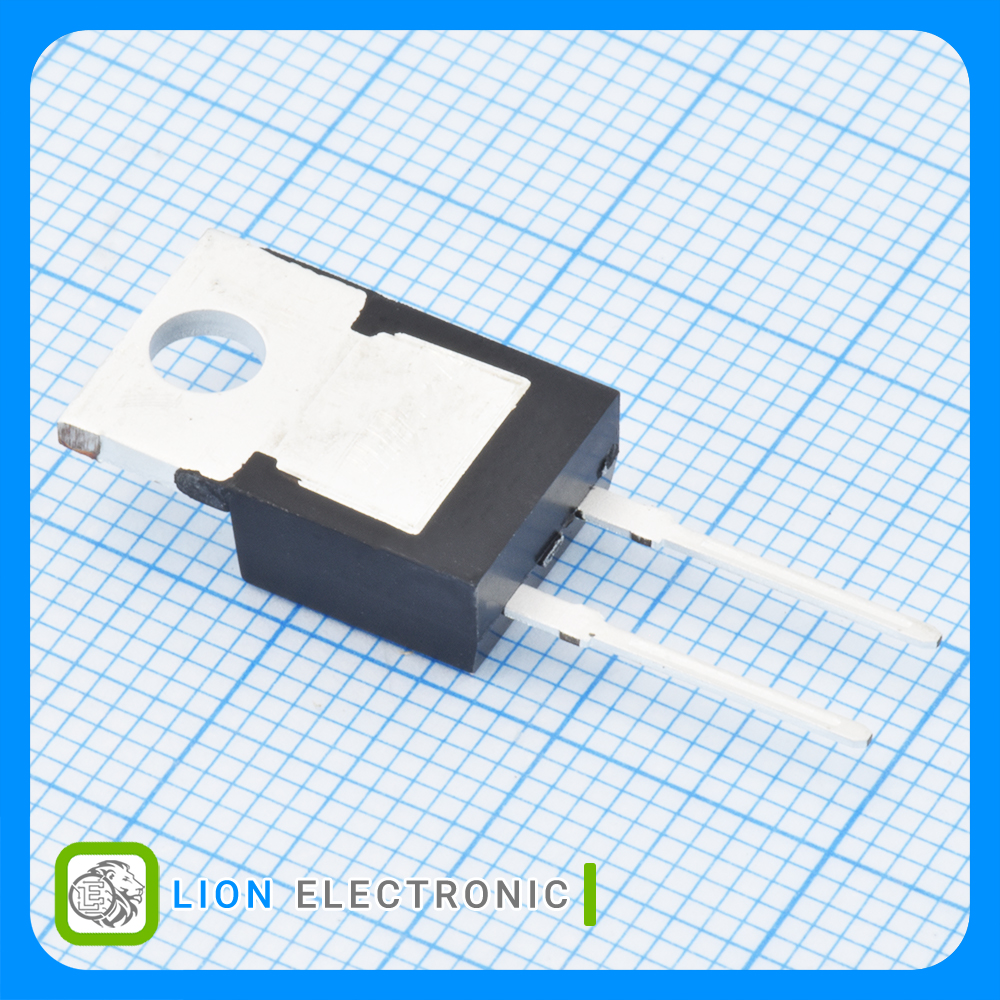

MUR1560G
MUR1560G
Part Number
72
Lion Part
Datasheet
ON Semiconductor Manufacture
دیود فست 600 ولت 15 آمپر زمان بازیابی 60 نانوثانیه با پکیج TO-220-2
Fast Diode 600V, 15A with 60ns Recovery Time and TO-220-2 Package
معرفی
دیود فست 600 ولت 15 آمپر زمان بازیابی 60 نانوثانیه با پکیج TO-220-2
Fast Diode 600V, 15A with 60ns Recovery Time and TO-220-2 Package
Specifications
- Configuration: Single
- Recovery Time: 60ns
- Vr - Reverse Voltage: 600V
- If - Forward Current: 15A
- Max Surge Current: 150A
- Vf - Forward Voltage: 1.5V
- Ir - Reverse Current: 10uA
- Mounting Style: Through Hole
- Package/Case: TO-220-2
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات MUR1560G
MUR1560G
Part Number
-65C
Minimum Operating Temperature
Tube
Packaging
10uA
Ir - Reverse Current
Through Hole
Mounting Style
60ns
Recovery Time
600V
Vr - Reverse Voltage
150A
Max Surge Current
+175C
Maximum Operating Temperature
Single
Configuration
15A
If - Forward Current
1.5V
Vf - Forward Voltage
TO-220-2
Package-Case
