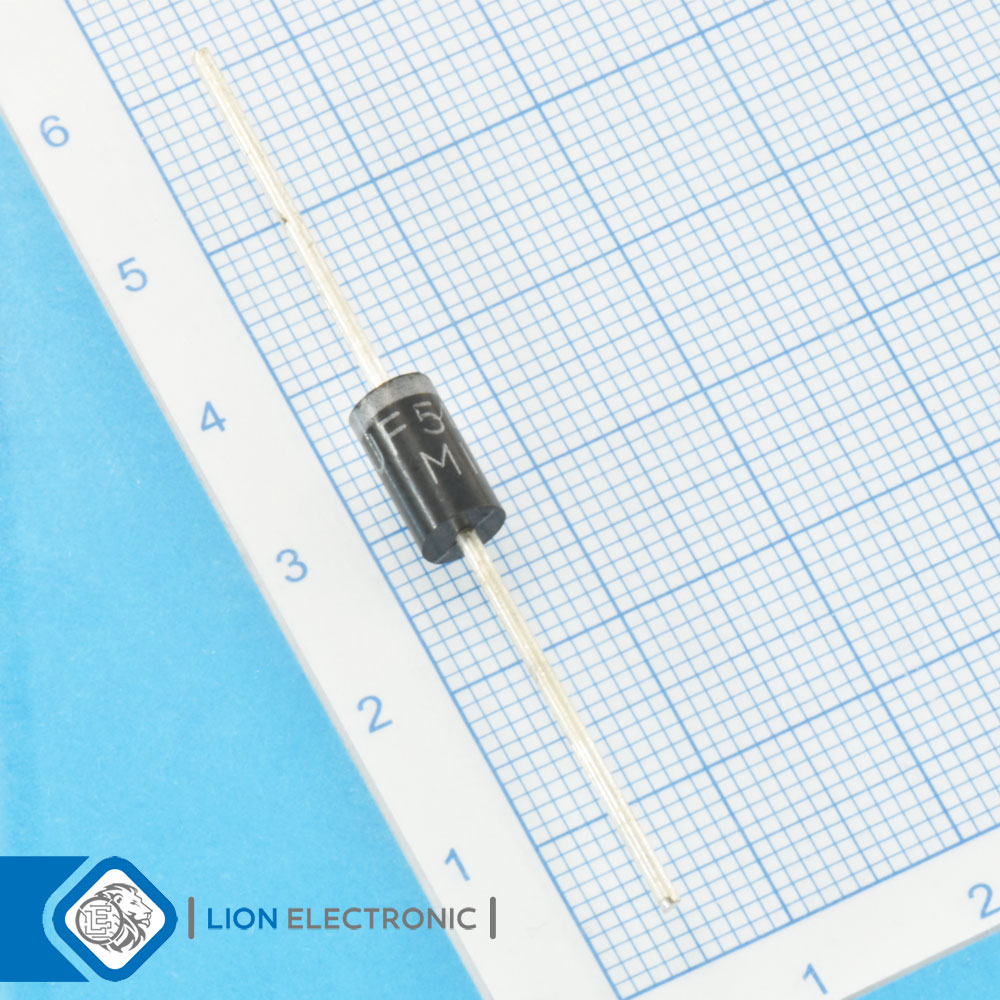

دیود فست 1 کیلو ولت 3 آمپر زمان بازیابی 75 نانوثانیه با پکیج DO-27
Fast Diode 1kV, 3A with 75ns Recovery Time and DO-27 Package
Specifications
- Configuration: Single
- Recovery Time: 75ns
- Vr - Reverse Voltage: 1kV
- If - Forward Current: 3A
- Max Surge Current: 150A
- Vf - Forward Voltage: 1.7V
- Ir - Reverse Current: 10uA
- Mounting Style: Through Hole
- Package/Case: DO-27
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات UF5408-TP
UF5408-TP
Part Number
1-Channel Mono
Type
-55C
Minimum Operating Temperature
Reel
Packaging
10uA
Ir - Reverse Current
Through Hole
Mounting Style
75ns
Recovery Time
1kV
Vr - Reverse Voltage
+150C
Maximum Operating Temperature
150A
Max Surge Current
Single
Configuration
3A
If - Forward Current
1.7V
Vf - Forward Voltage
DO-27
Package-Case
