TME1205S
TME1205S
Part Number
1519
Lion Part
Datasheet
TRACO Power Manufacture
مبدل DC-to-DC ایزوله ورودی 12 ولت خروجی 5 ولت جریان 200 میلیآمپر توان 1 وات ایزولاسیون 1 کیلوولت با پکیج SIP-4

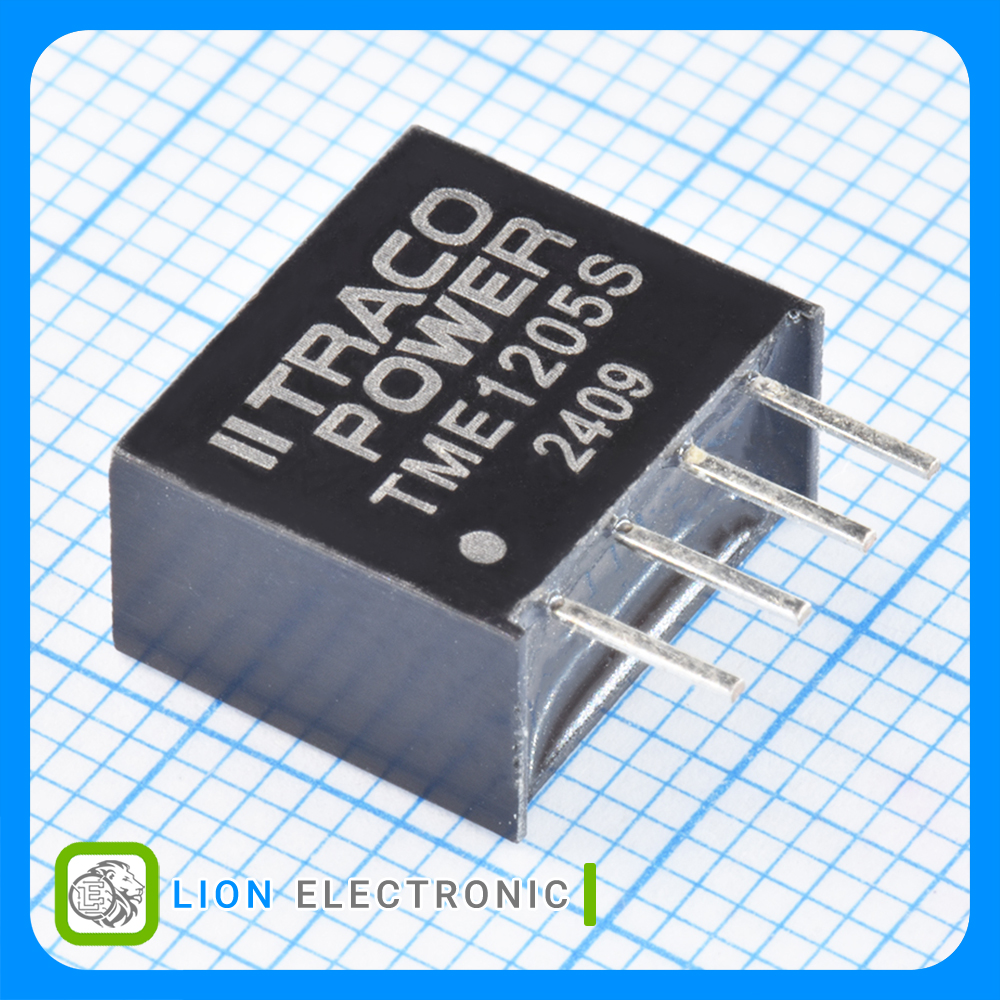

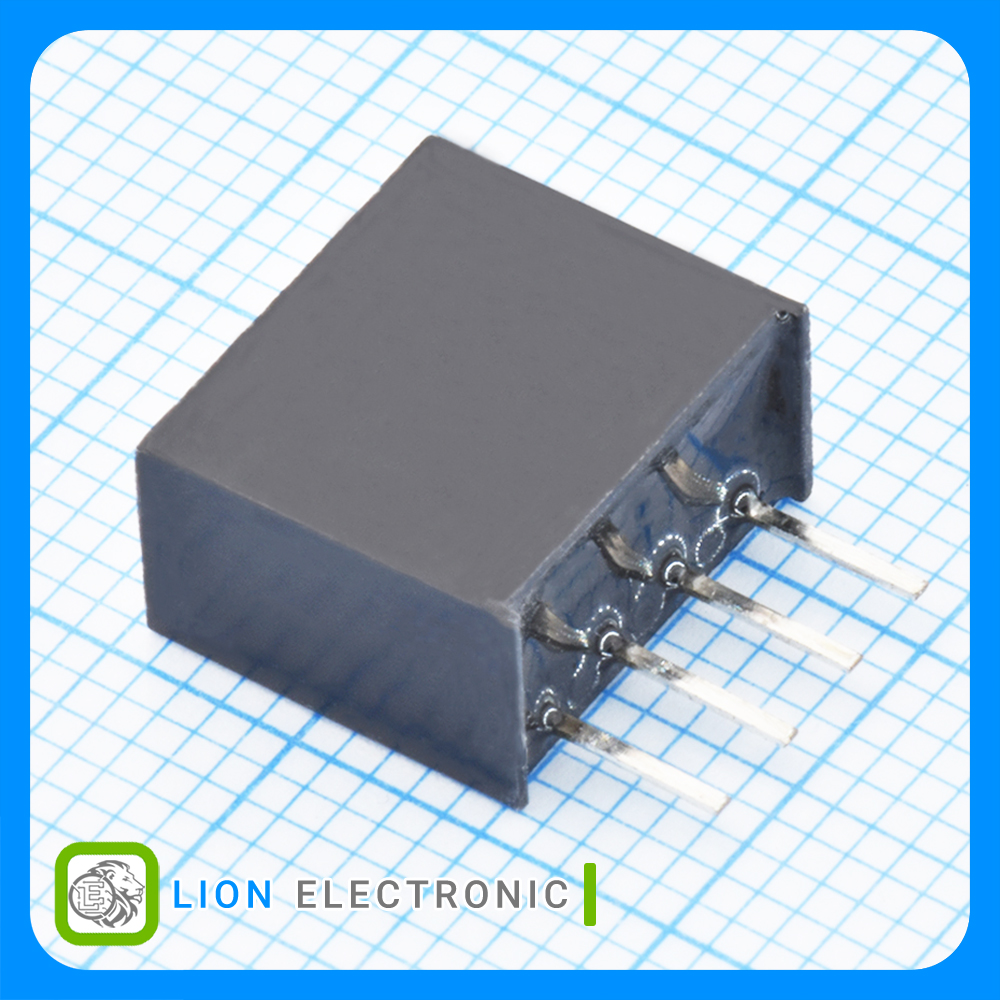

Isolated DC-to-DC Converter 12V in, 5V 200mA out, 1W, 1kV Isolation with SIP-4 Package
معرفی
مبدل DC-to-DC ایزوله ورودی 12 ولت خروجی 5 ولت جریان 200 میلیآمپر توان 1 وات ایزولاسیون 1 کیلوولت با پکیج SIP-4
Isolated DC-to-DC Converter 12V in, 5V 200mA out, 1W, 1kV Isolation with SIP-4 Package
Specifications
- Input Voltage: 12V
- Number of Outputs: 1
- Output Voltage - Channel 1: 5V
- Output Current - Channel 1: 200mA
- Output Power: 1W
- Isolation Voltage: 1kV
- Mounting Style: Through Hole
- Package/Case Size: SIP-4
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
مشخصات TME1205S
TME1205S
Part Number
1
Number of Outputs
1kV
Isolation Voltage
5V
Output Voltage - Channel 1
-40C
Minimum Operating Temperature
N/A
Output Voltage - Channel 2
Tube
Packaging
+85C
Maximum Operating Temperature
Through Hole
Mounting Style
SIP-4
Package-Case Size
N/A
Output Current - Channel 2
200mA
Output Current - Channel 1
1W
Output Power
7mm
Width
12mm
Length
12V
Input Voltage
10mm
Height
