TEL3-2423
TEL3-2423
Part Number
1521
Lion Part
Datasheet
TRACO Power Manufacture
مبدل دیسی به دیسی، ورودی 24 ولت، خروجی 15± ولت 100± میلیآمپر با پکیج DIL-24

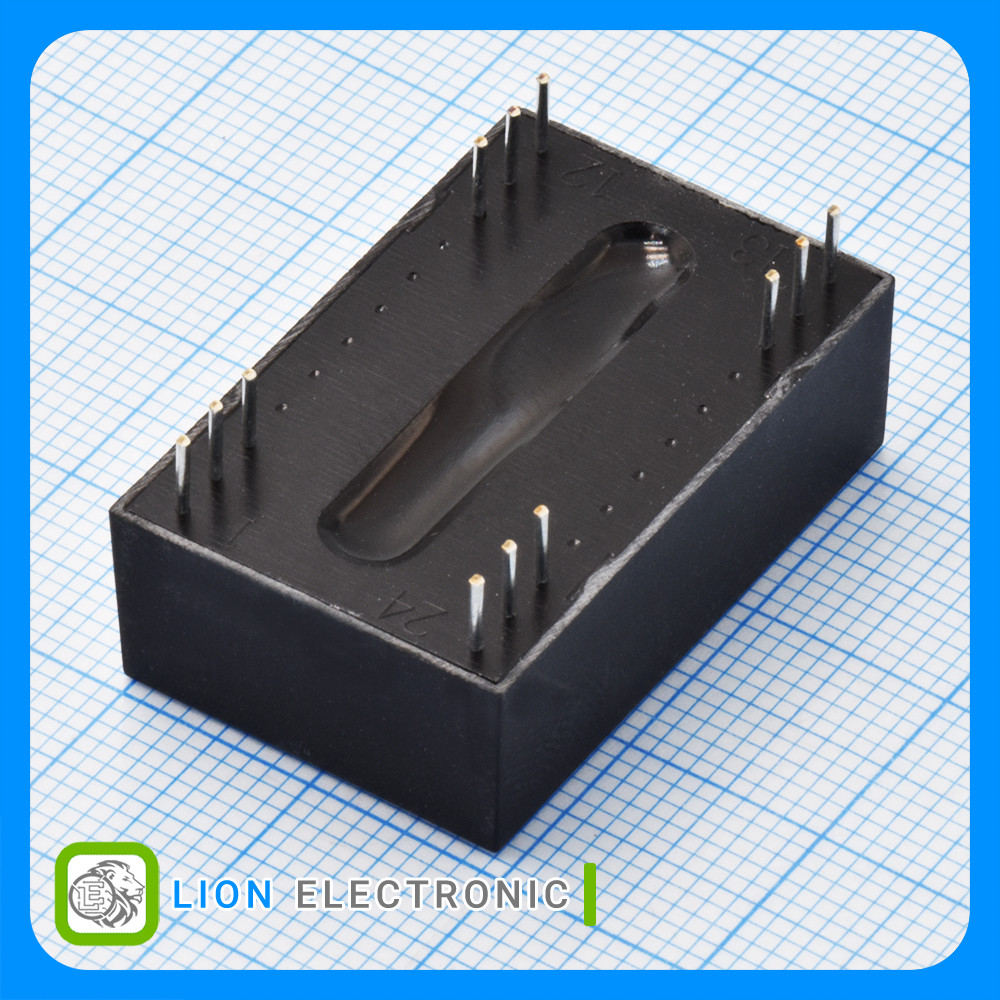

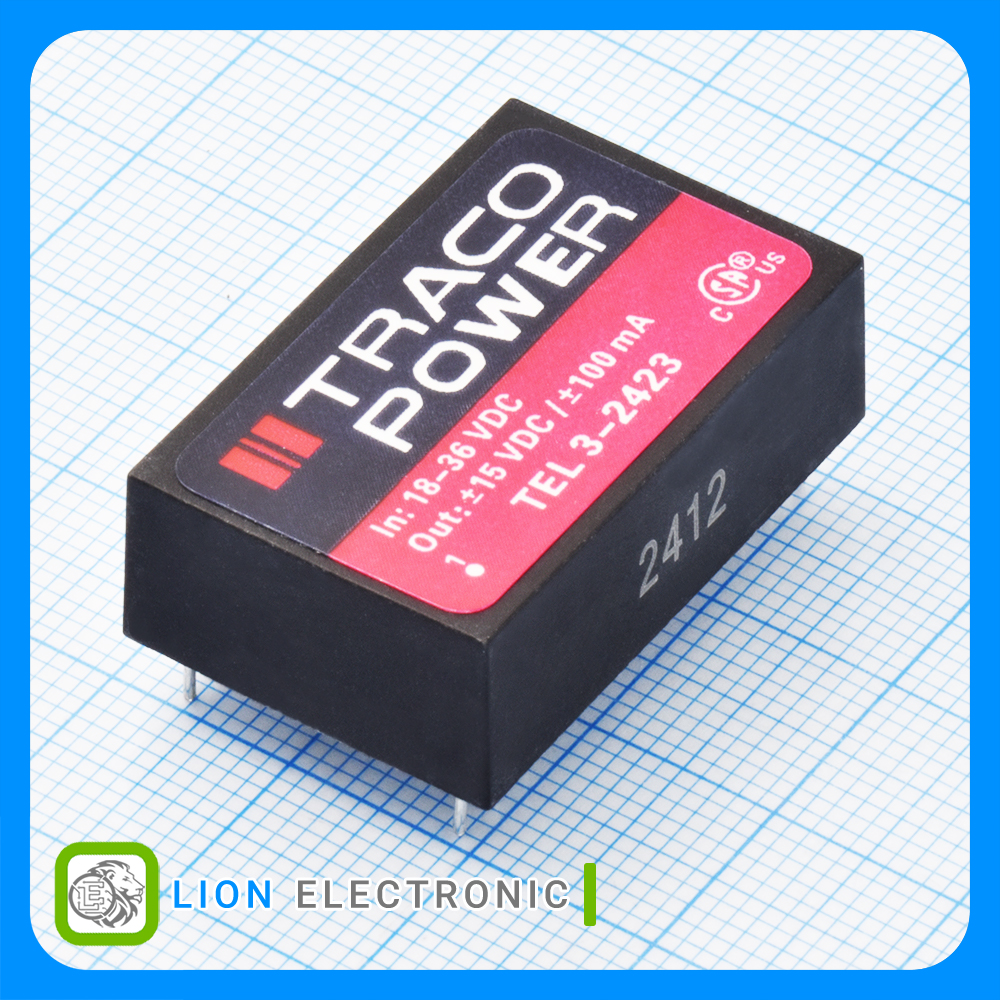

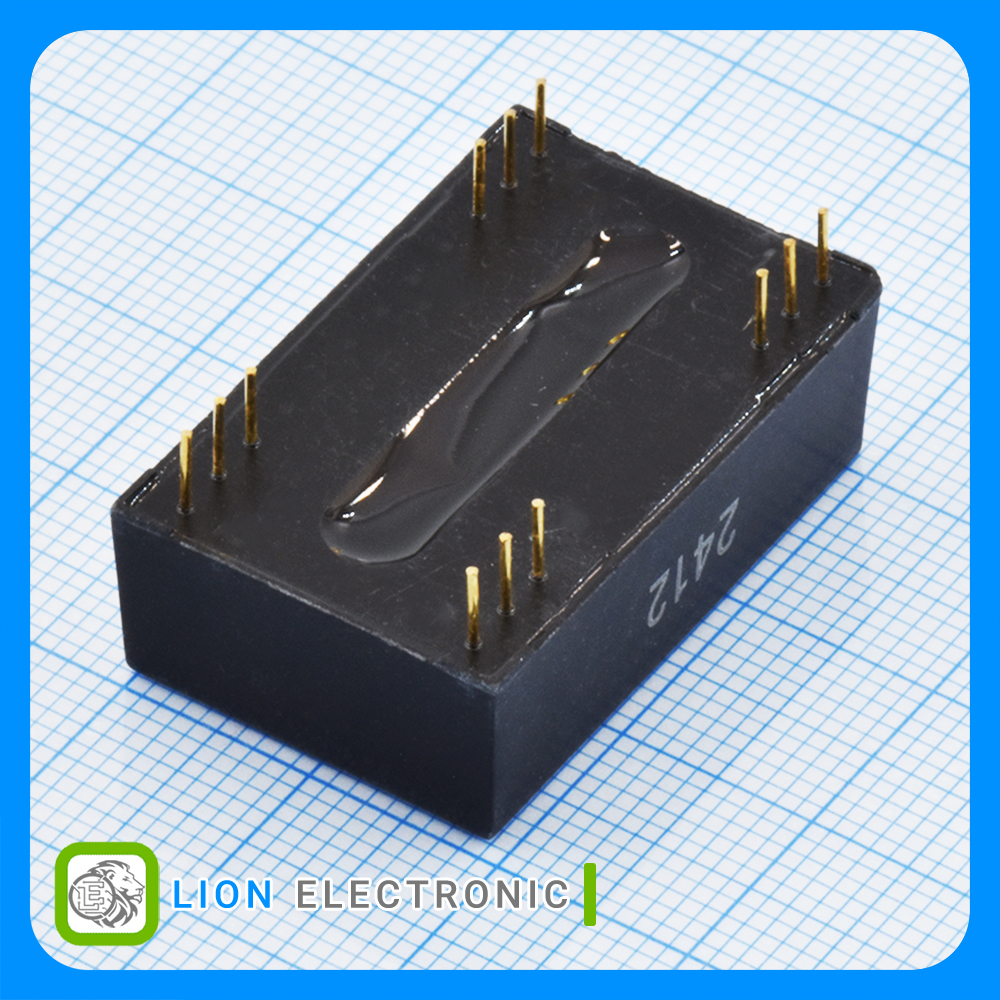

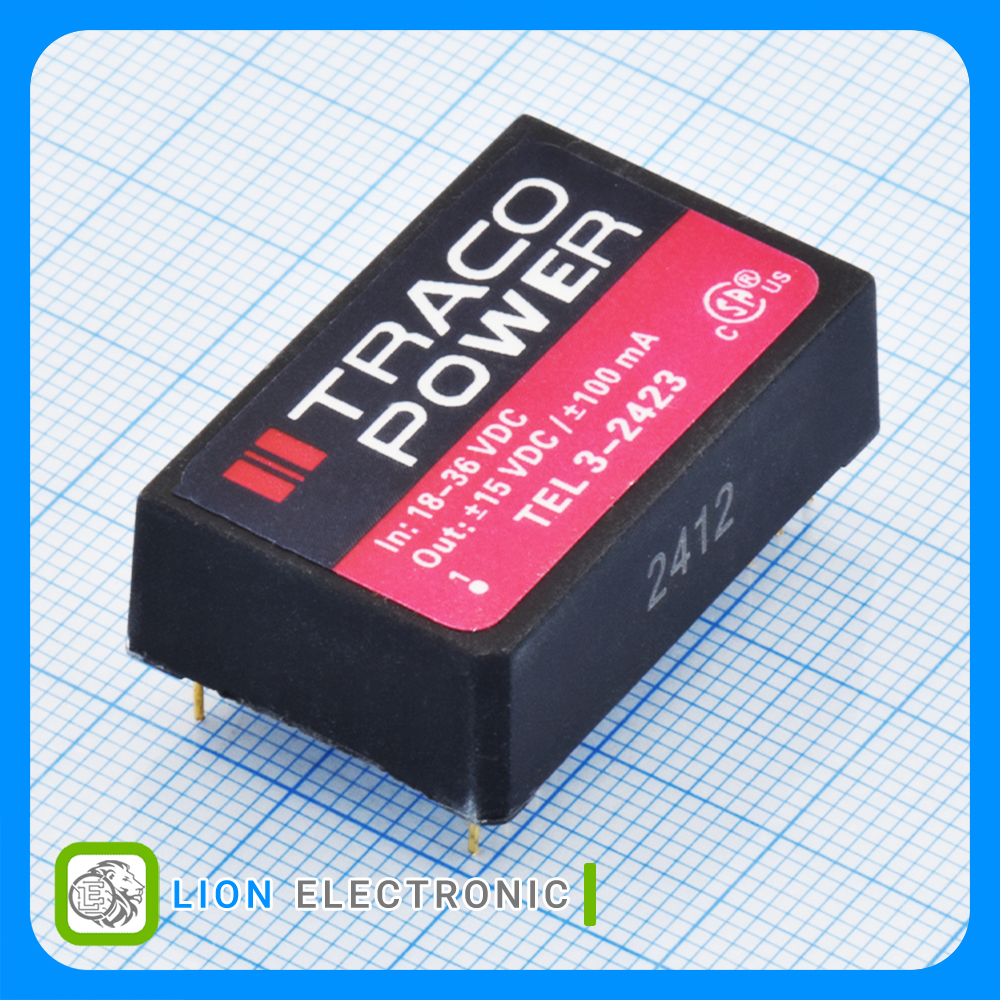

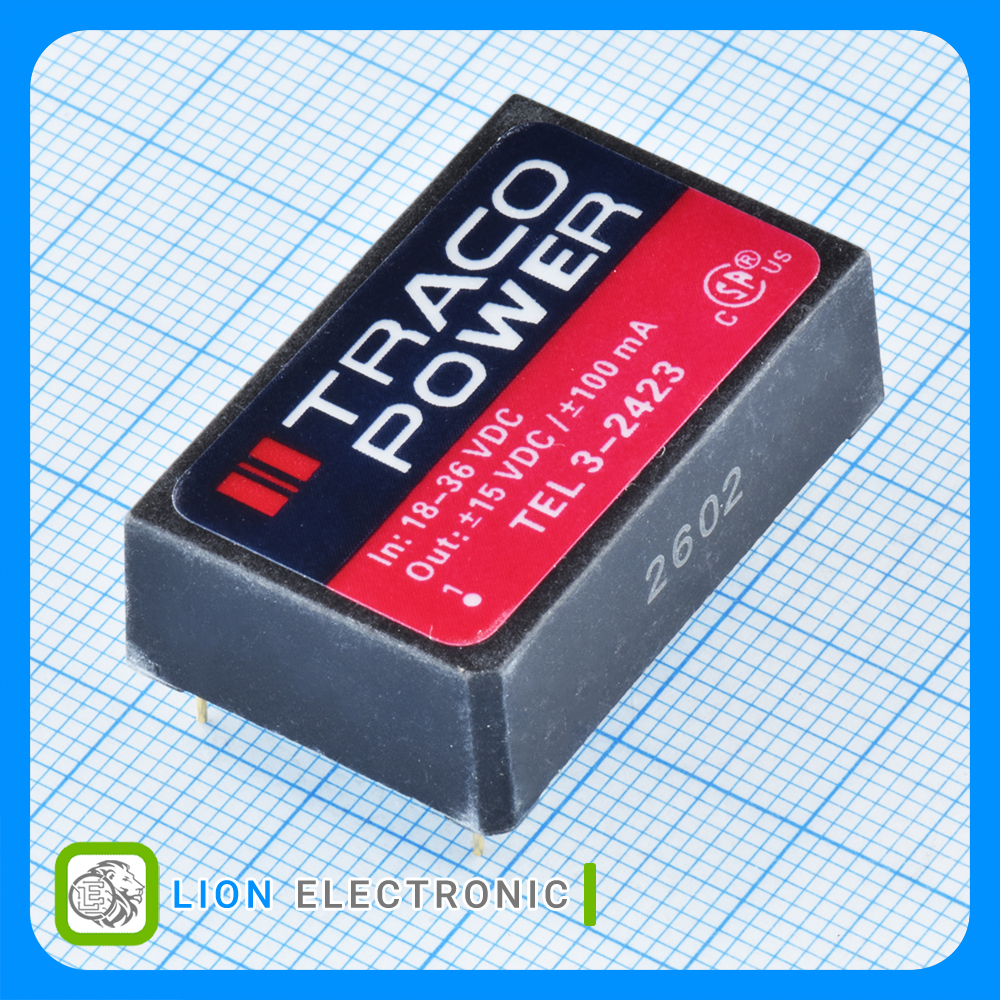

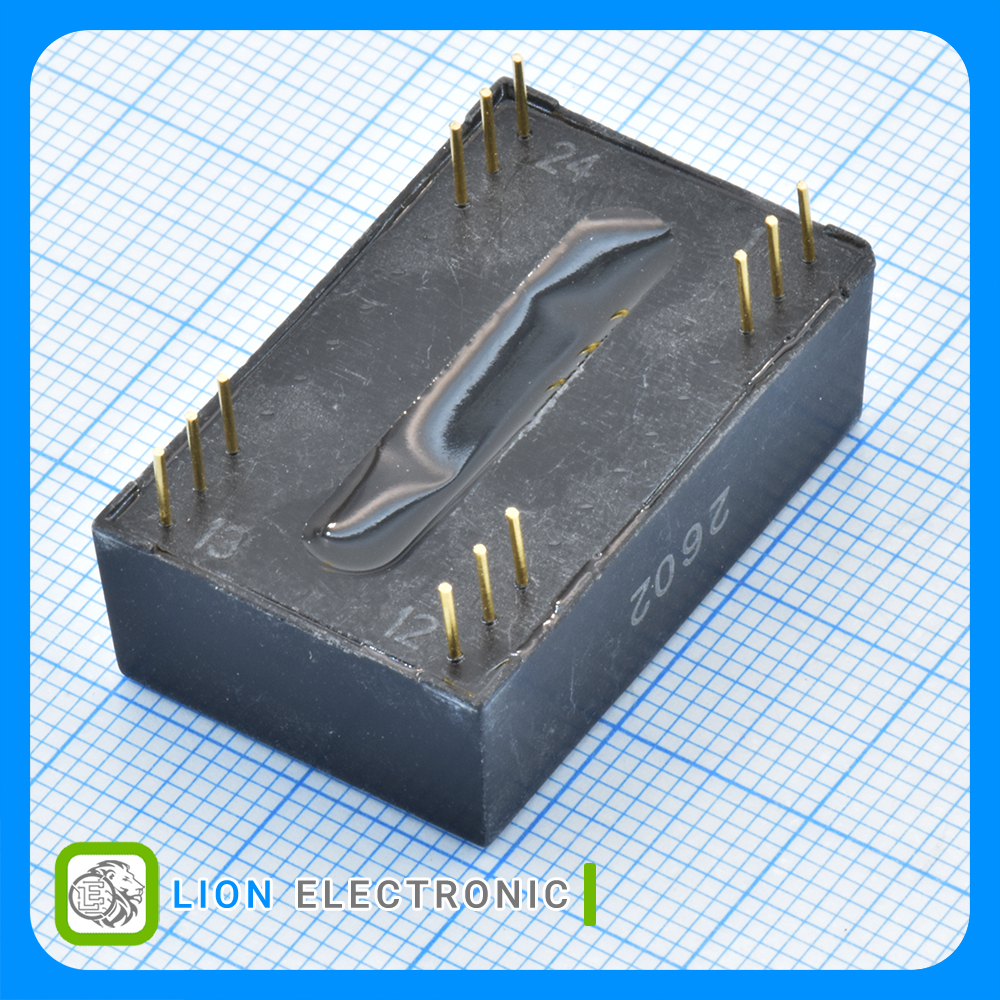

Isolated DC-to-DC Converter DIL-24
مشخصات TEL3-2423
TEL3-2423
Part Number
1.5kV
Isolation Voltage
-15V
Output Voltage - Channel 2
2
Number of Outputs
100mA
Output Current - Channel 2
-40C
Minimum Operating Temperature
15V
Output Voltage - Channel 1
DIL-24
Package-Case Size
100mA
Output Current - Channel 1
Through Hole
Mounting Style
+85C
Maximum Operating Temperature
3W
Output Power
18 - 36V
Input Voltage
10mm
Height
20mm
Width
32mm
Length
