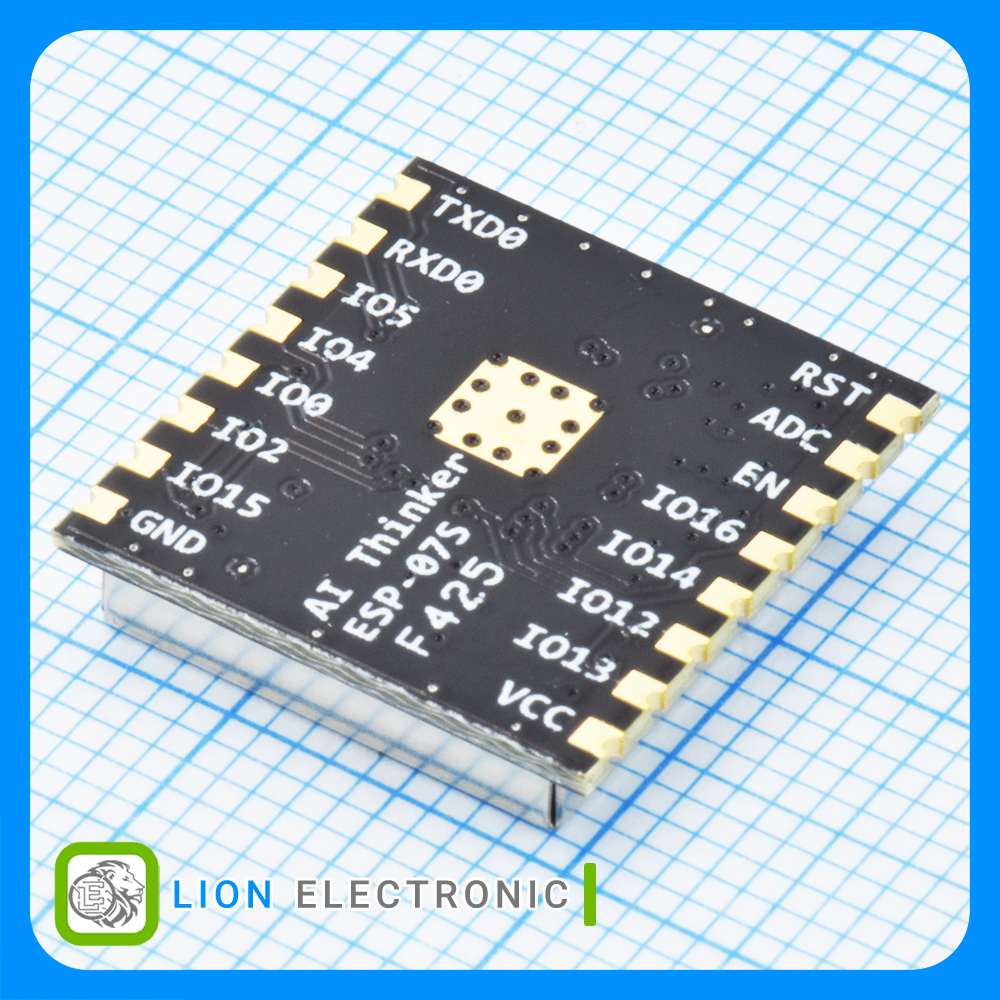

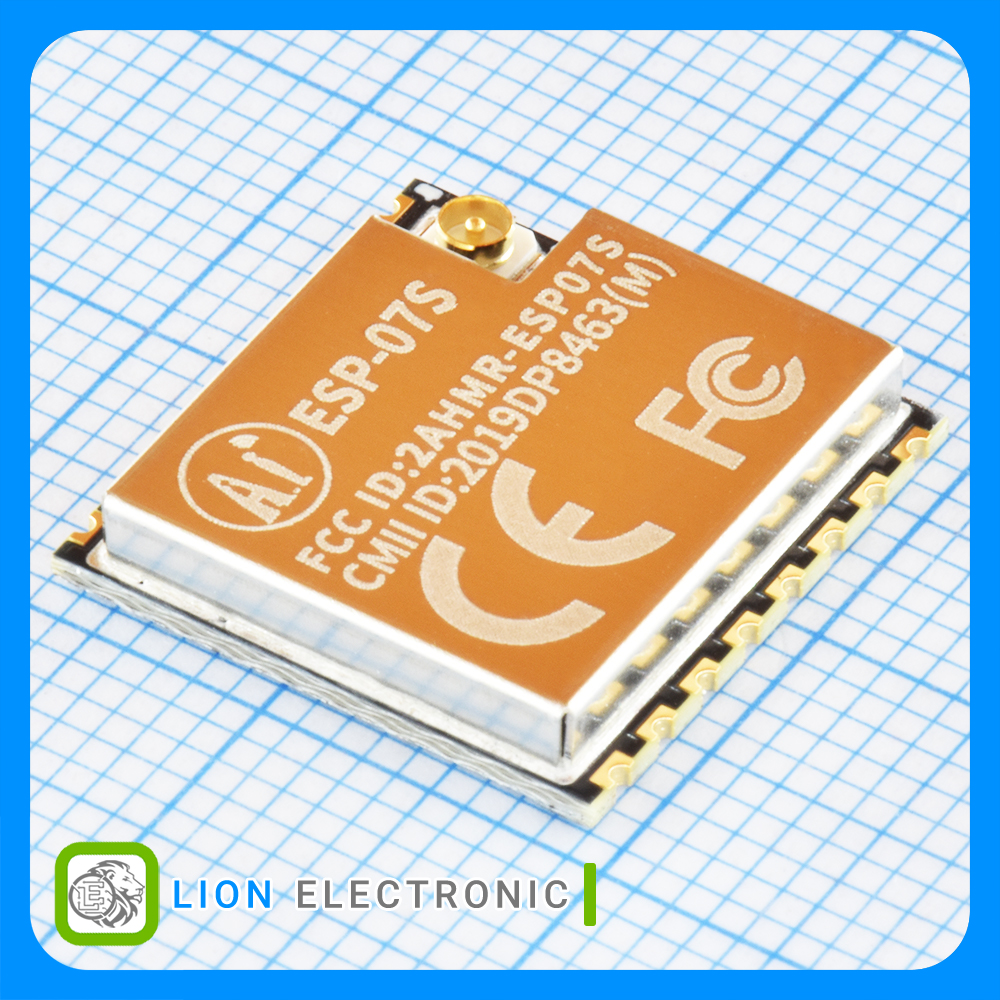

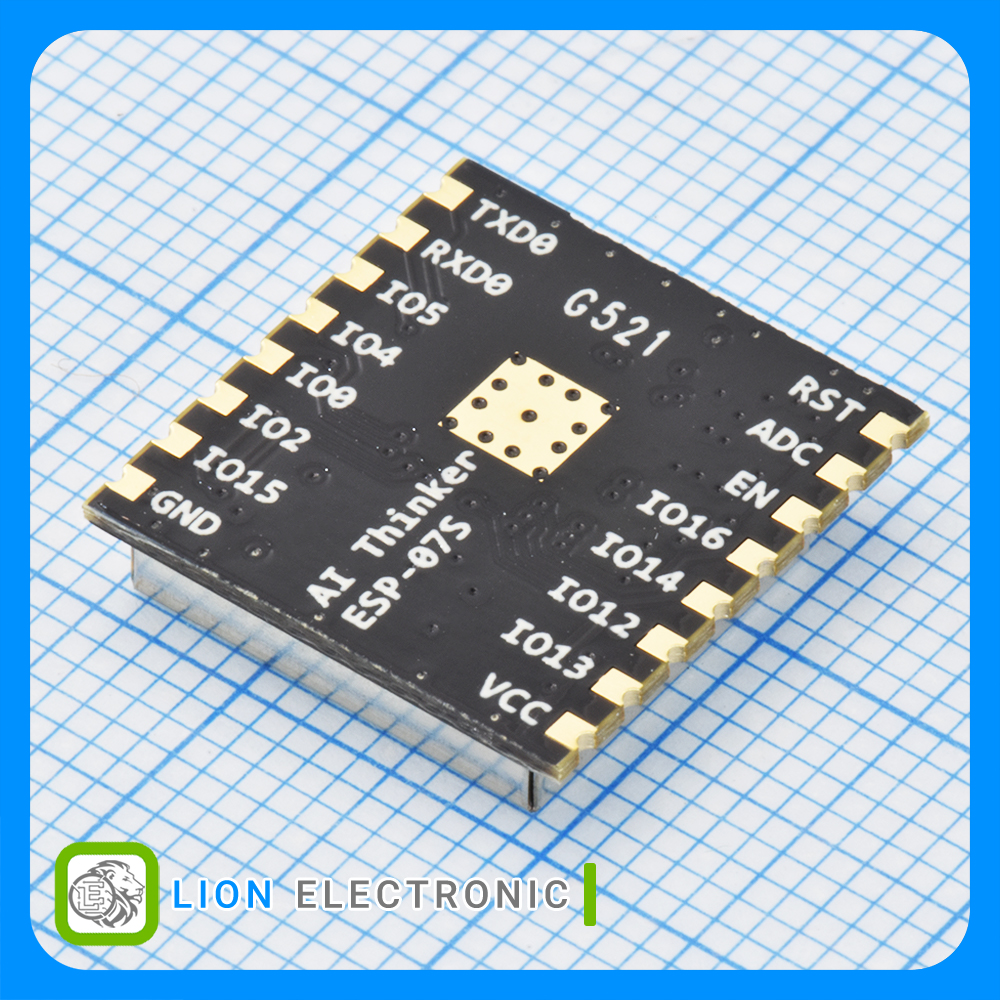

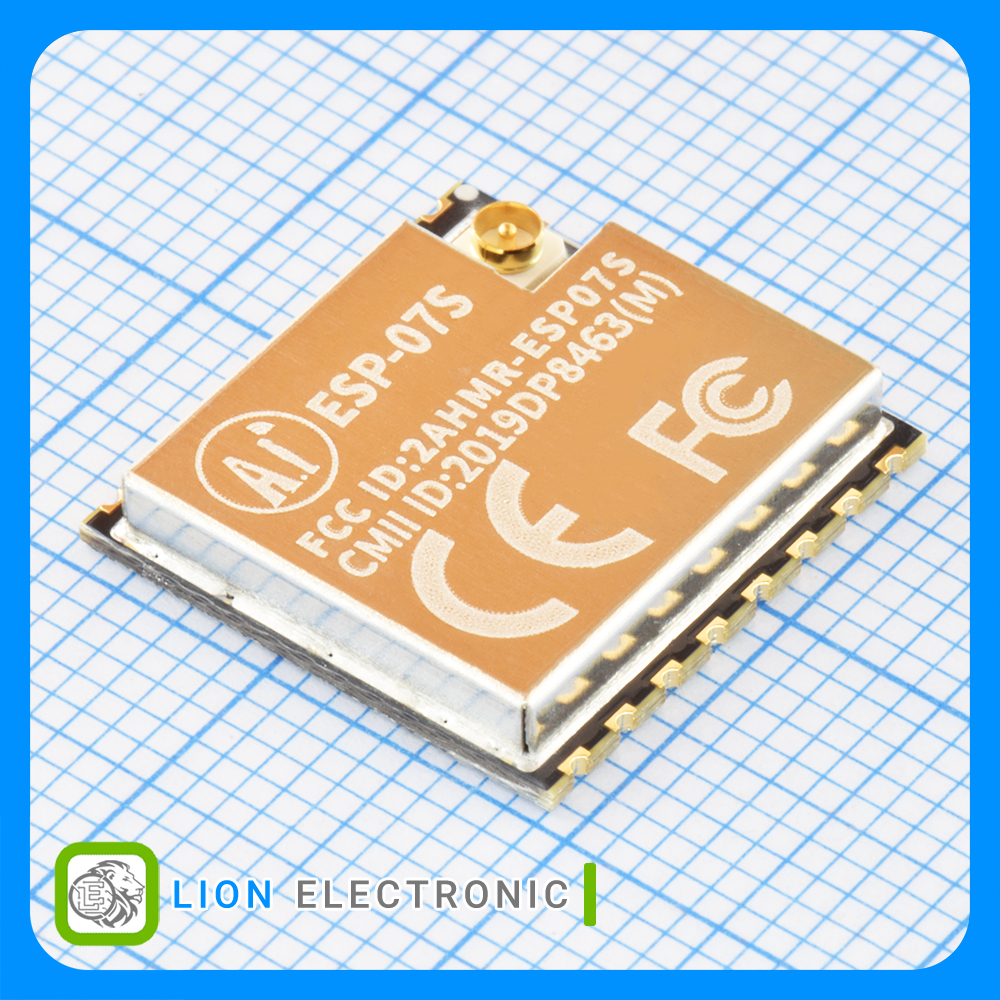

ESP-07S
ESP-07S
Part Number
2476
Lion Part
Datasheet
Ai-Thinker Manufacture
ماژول وایفای بیسیم ESP8266 با رابط UART, GPIO, ADC, PWM، آنتن IPEX و ولتاژ تغذیه 3 تا 3.6 ولت
ESP8266 Wireless Wi-Fi Module with UART, GPIO, ADC, PWM Interface, IPEX Antenna and 3 - 3.6V Supply Voltage
معرفی
ماژول وایفای بیسیم ESP8266 با رابط UART, GPIO, ADC, PWM، آنتن IPEX و ولتاژ تغذیه 3 تا 3.6 ولت
ESP8266 Wireless Wi-Fi Module with UART, GPIO, ADC, PWM Interface, IPEX Antenna and 3 - 3.6V Supply Voltage
Specifications
- Product: Wi-Fi & MCU Module
- Interface Type: UART, GPIO, ADC, PWM
- Antenna Connector Type: IPEX
- Number of I/Os: 9
- Operating Supply Voltage: 3 - 3.6V
- Minimum Operating Temperature: -20C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ESP-07S
ESP-07S
Part Number
---
Supply Current Receiving
---
Supply Current Transmitting
---
Frequency
---
Output Power
IPEX
Antenna Connector Type
Reel
Packaging
9
Number of I-Os
+85C
Maximum Operating Temperature
-20C
Minimum Operating Temperature
17mm x 16mm x 3mm
Dimensions
3 - 3.6V
Operating Supply Voltage
Wi-Fi & MCU Module
Product
UART, GPIO, ADC, PWM
Interface Type
