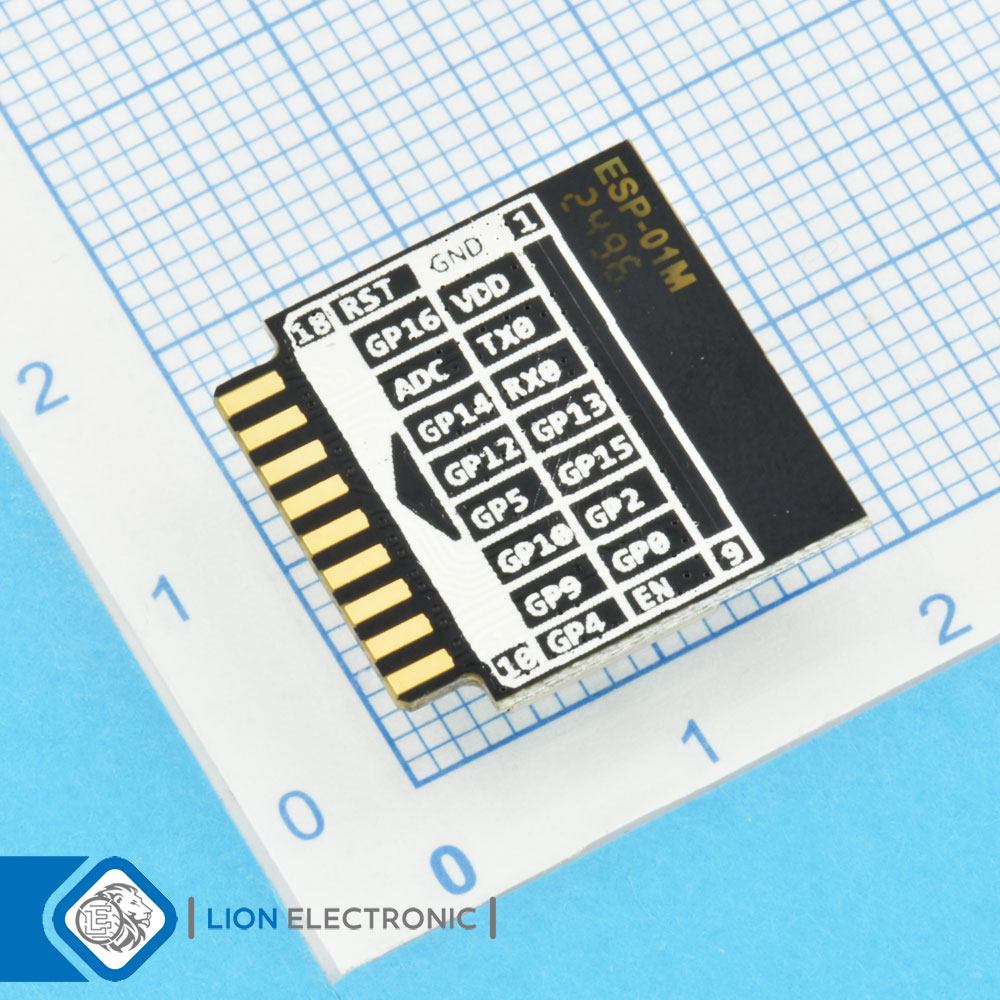

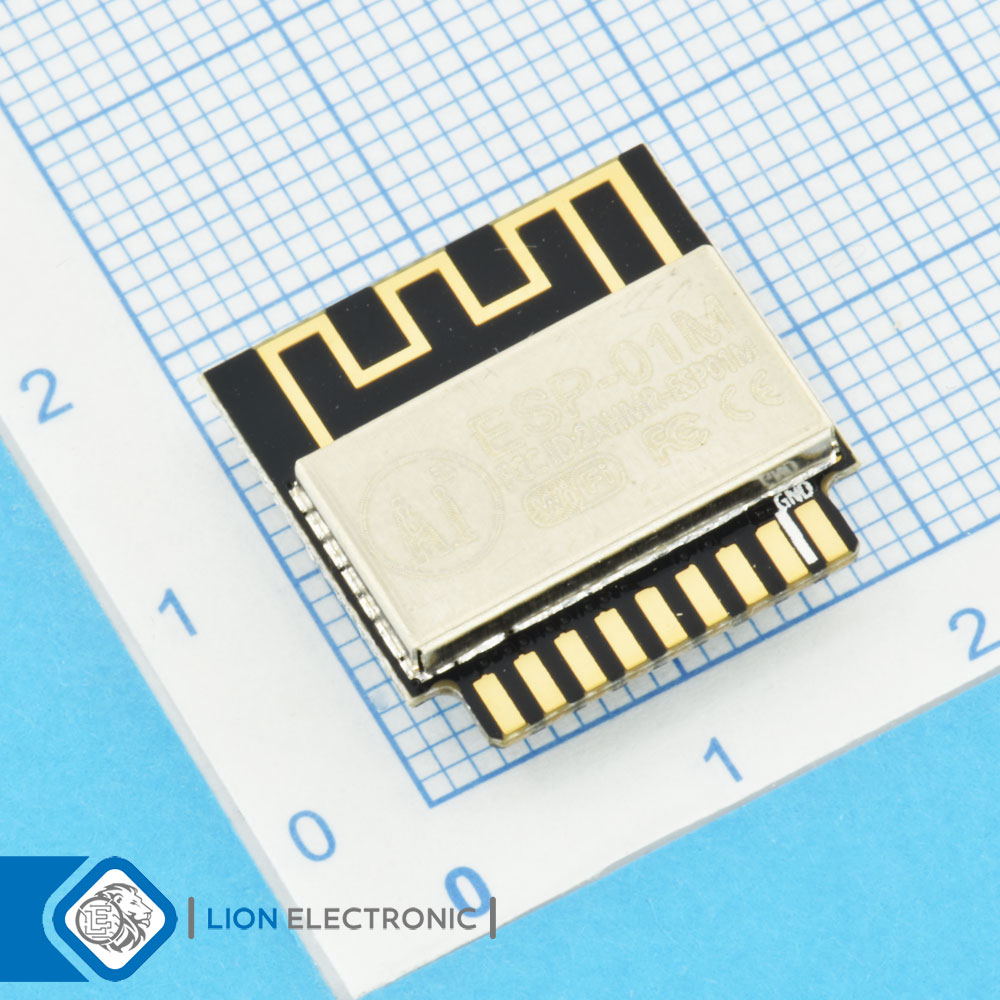

ESP-01M
ESP-01M
Part Number
2481
Lion Part
Datasheet
Ai-Thinker Manufacture
ماژول وایفای ESP8266
The Smallest 802.11b/g/n Wi-Fi SOC Module
Chip Built-in 1MB SPI Flash
Onboard PCB Antenna
معرفی
• Low power 32-bit CPU, can also serve as the application processor
• Up to 160MHz clock speed
• Built-in 10 bit high precision ADC
• Supports UART/GPIO/IIC/PWM/ADC
• SMD-18 package for easy welding
• Integrated Wi-Fi MAC/BB/RF/PA/LNA
• Support multiple sleep patterns. Deep sleep current as low as 20uA
• UART baud rate up to 4Mbps
• Embedded LWIP protocol stack
• Supports STA/AP/STA + AP operation mode
• Support Smart Config/AirKiss technology
• Supports remote firmware upgrade (FOTA)
• General AT commands can be used quickly
• Support for the two development, integration of windows, Linux development environment
مشخصات ESP-01M
ESP-01M
Part Number
---
Supply Current Transmitting
---
Output Power
Bag
Packaging
PCB
Antenna Connector Type
11
Number of I-Os
+85C
Maximum Operating Temperature
-20C
Minimum Operating Temperature
71mA
Supply Current Receiving
160MHz
Frequency
18mm x 18mm x 2.8mm
Dimensions
3 - 3.6V
Operating Supply Voltage
Wi-Fi & MCU Module
Product
UART, GPIO, ADC, PWM
Interface Type
