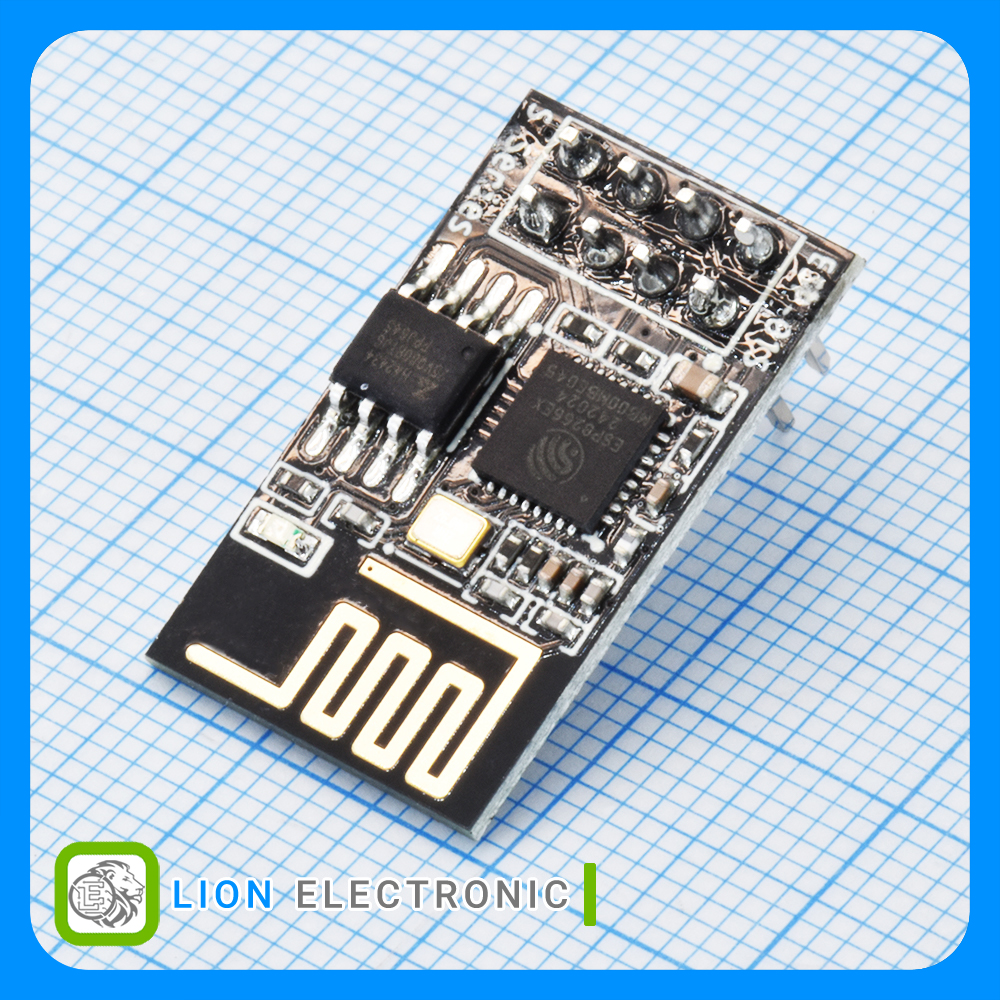

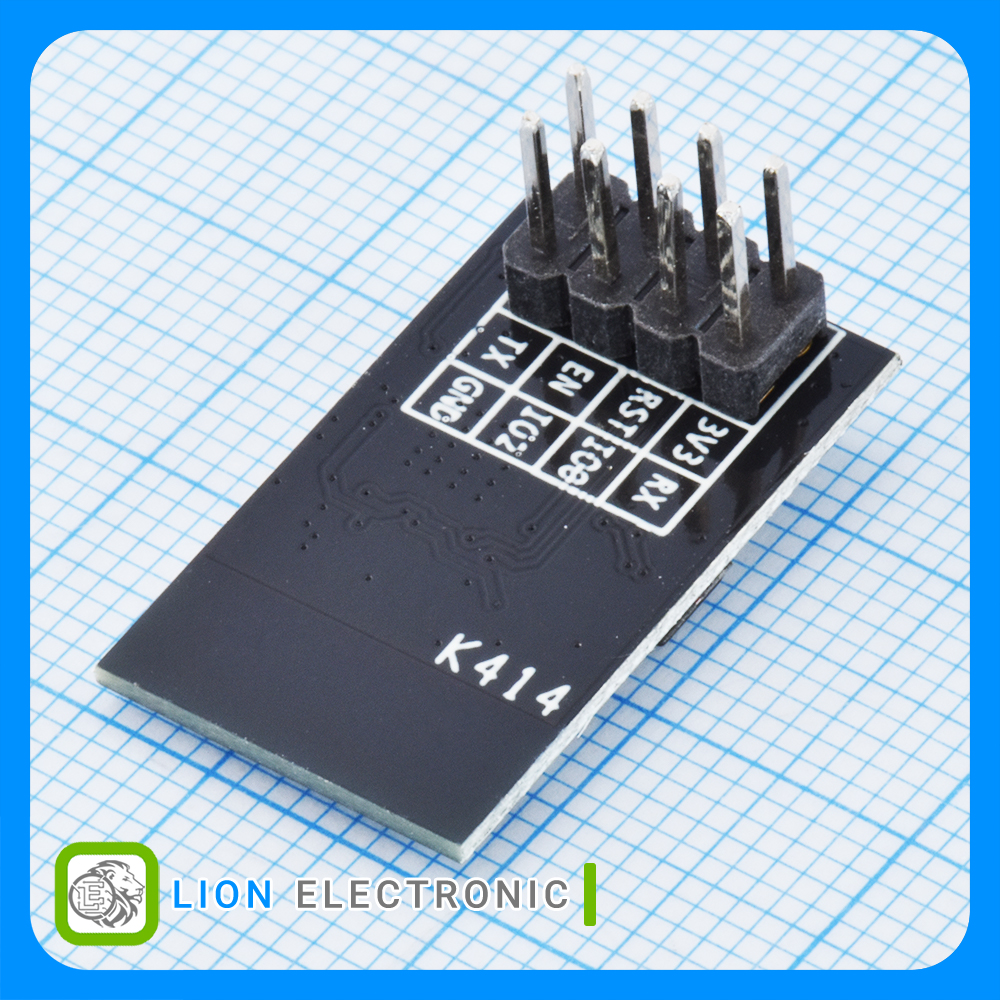

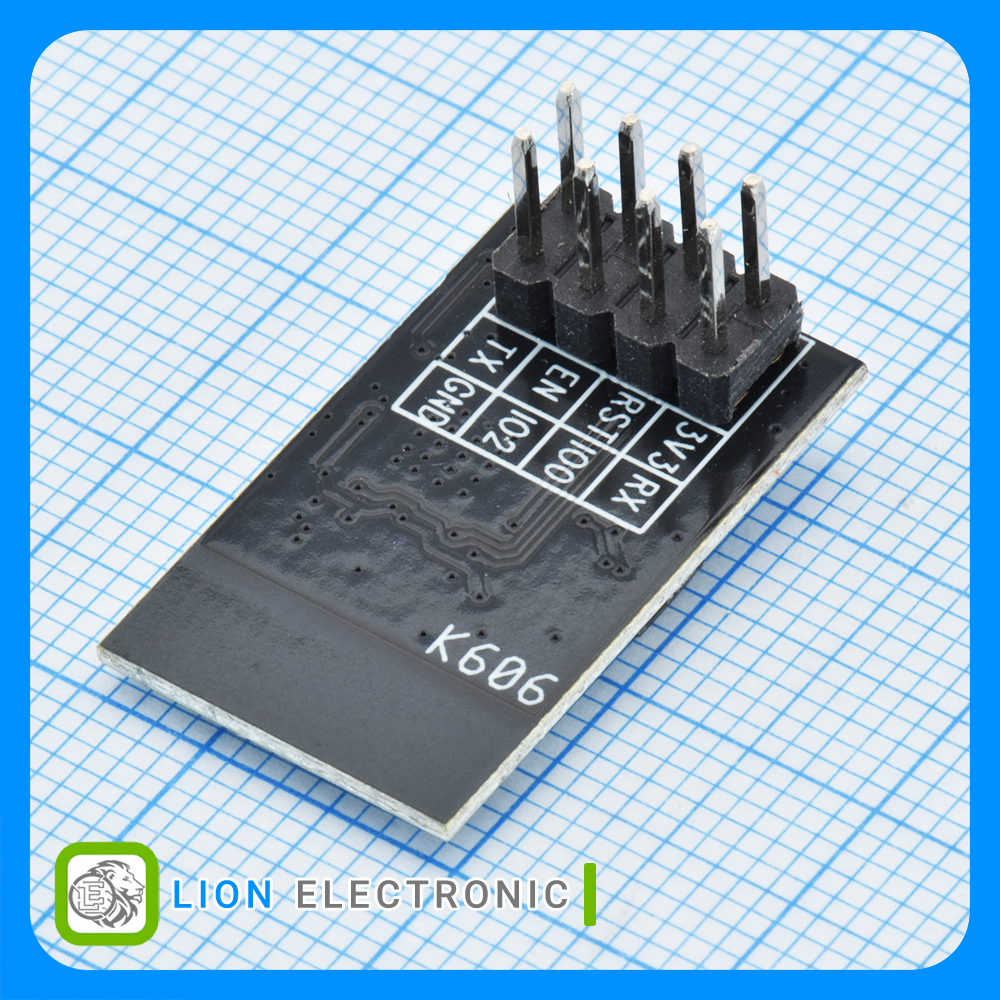

ESP-01S
ESP-01S
Part Number
4718
Lion Part
Datasheet
Ai-Thinker Manufacture
ماژول وایفای 2.4 گیگاهرتز ESP8266 با رابط HSPI, I2C, I2S، کنترل از راه دور مادون قرمز، UART، آنتن PCB و ولتاژ تغذیه 3 تا 3.6 ولت
2.4GHz ESP8266 Wi-Fi Module with HSPI, I2C, I2S, Ir Remote Control, UART Interface, PCB Antenna and 3 - 3.6V Supply Voltage
معرفی
ماژول وایفای 2.4 گیگاهرتز ESP8266 با رابط HSPI, I2C, I2S، کنترل از راه دور مادون قرمز، UART، آنتن PCB و ولتاژ تغذیه 3 تا 3.6 ولت
2.4GHz ESP8266 Wi-Fi Module with HSPI, I2C, I2S, Ir Remote Control, UART Interface, PCB Antenna and 3 - 3.6V Supply Voltage
Specifications
- Product: WiFi & Bluetooth Module
- Interface Type: HSPI, I2C, I2S, Ir Remote Control, UART
- Antenna Connector Type: PCB
- Output Power: 20.5dBm
- Frequency: 80MHz , 160MHz
- Operating Supply Voltage: 3 - 3.6V
- Supply Current Transmitting: 170mA, 140mA, 120mA
- Supply Current Receiving: 56mA, 50mA
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات ماژول وای فای ESP-01S

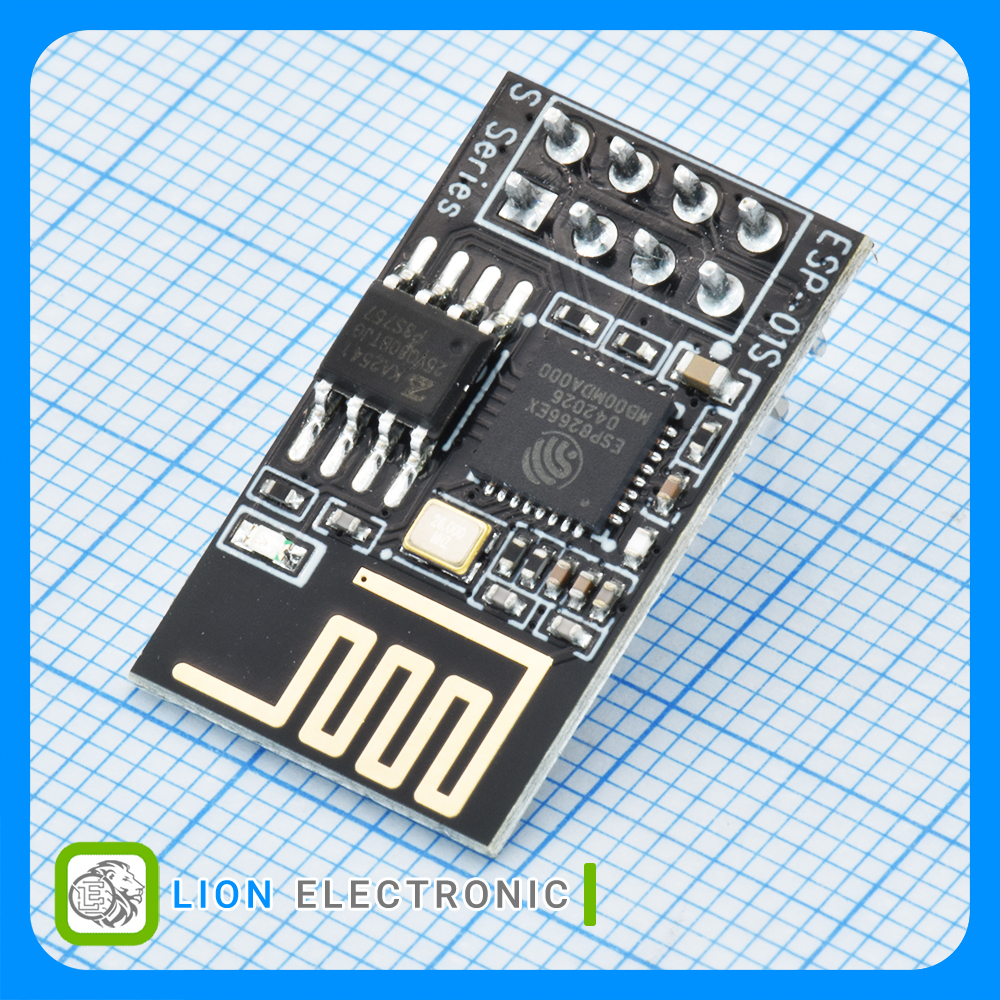

ماژول وای فای ESP-01S
Part Number
--- Reel
Packaging
--- 56mA, 50mA
Supply Current Receiving
--- +125C
Maximum Operating Temperature
--- 170mA, 140mA, 120mA
Supply Current Transmitting
--- -40C
Minimum Operating Temperature
--- 80MHz , 160MHz
Frequency
--- HSPI, I2C, I2S, Ir Remote Control, UART
Interface Type
--- 20.5dBm
Output Power
--- 3 - 3.6V
Operating Supply Voltage
---
Number of I-Os
--- WiFi & Bluetooth Module
Product
--- PCB
Antenna Connector Type
14.3mm x 24.8mm x 3mm
Dimensions
