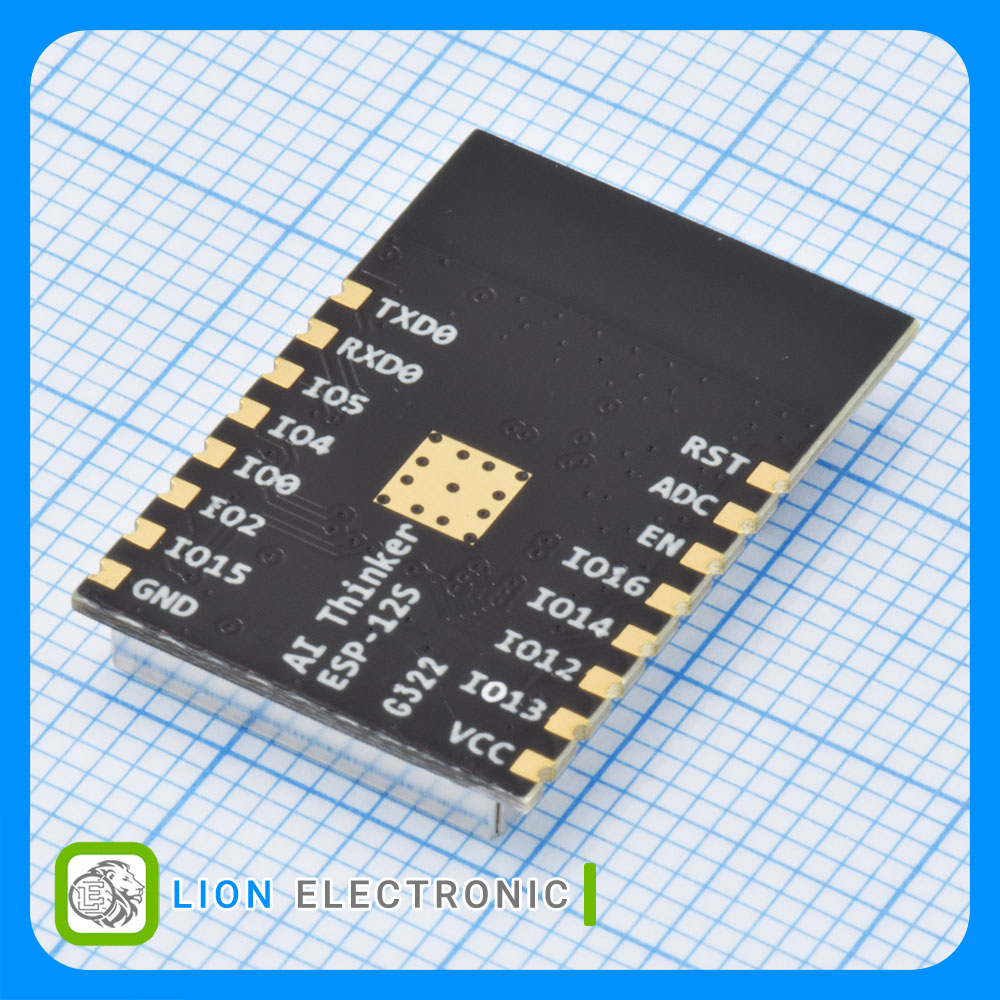

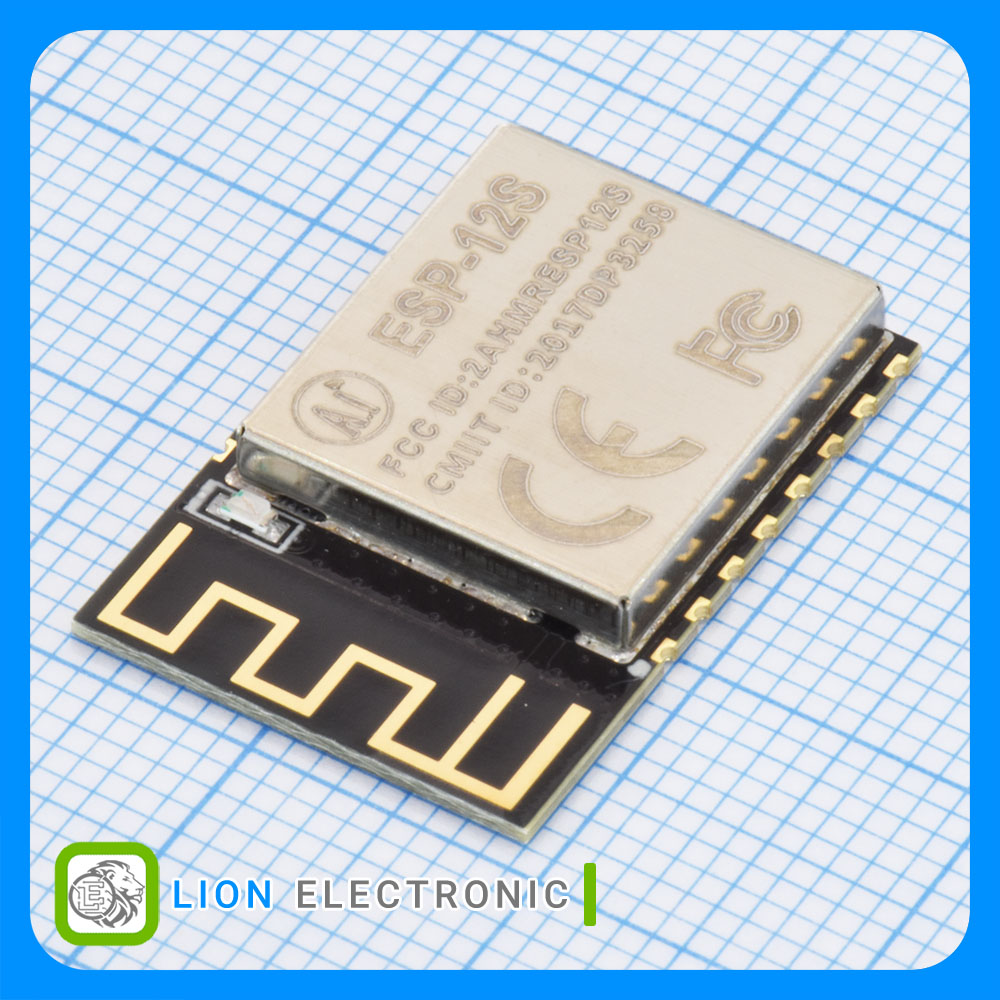

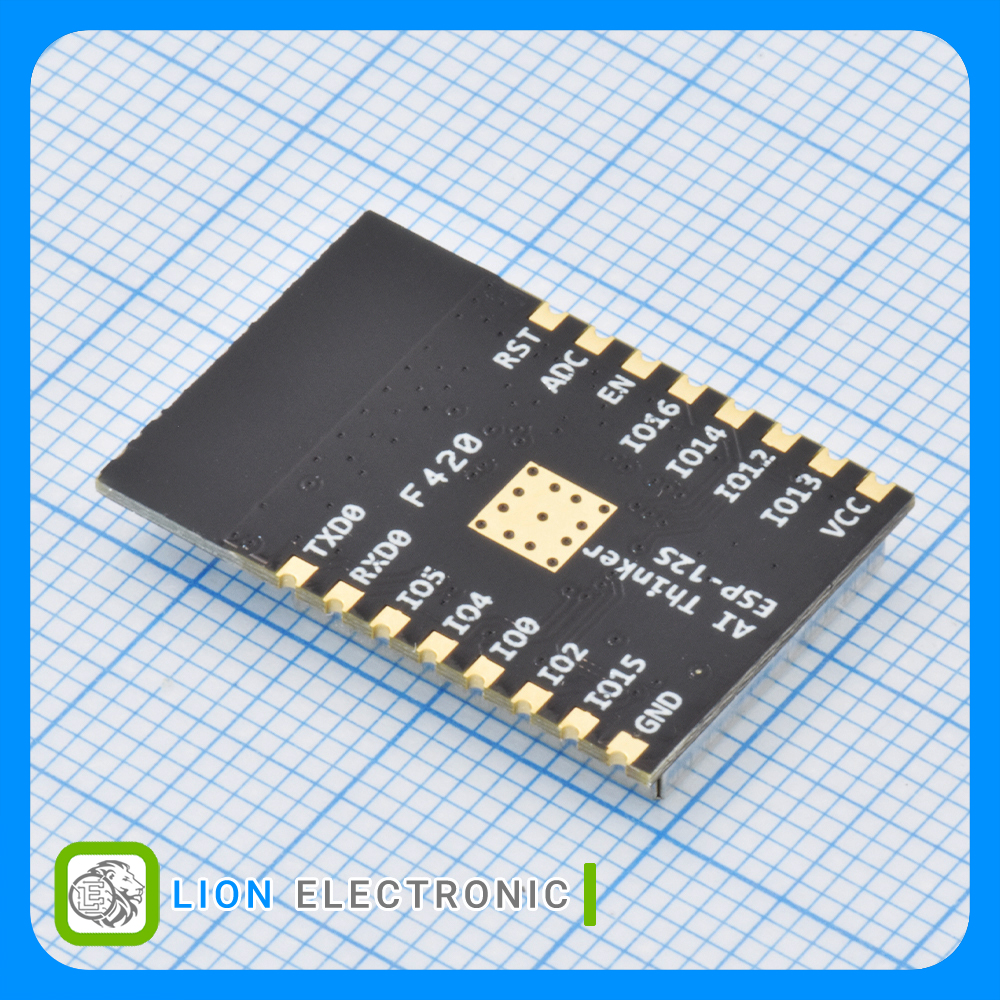

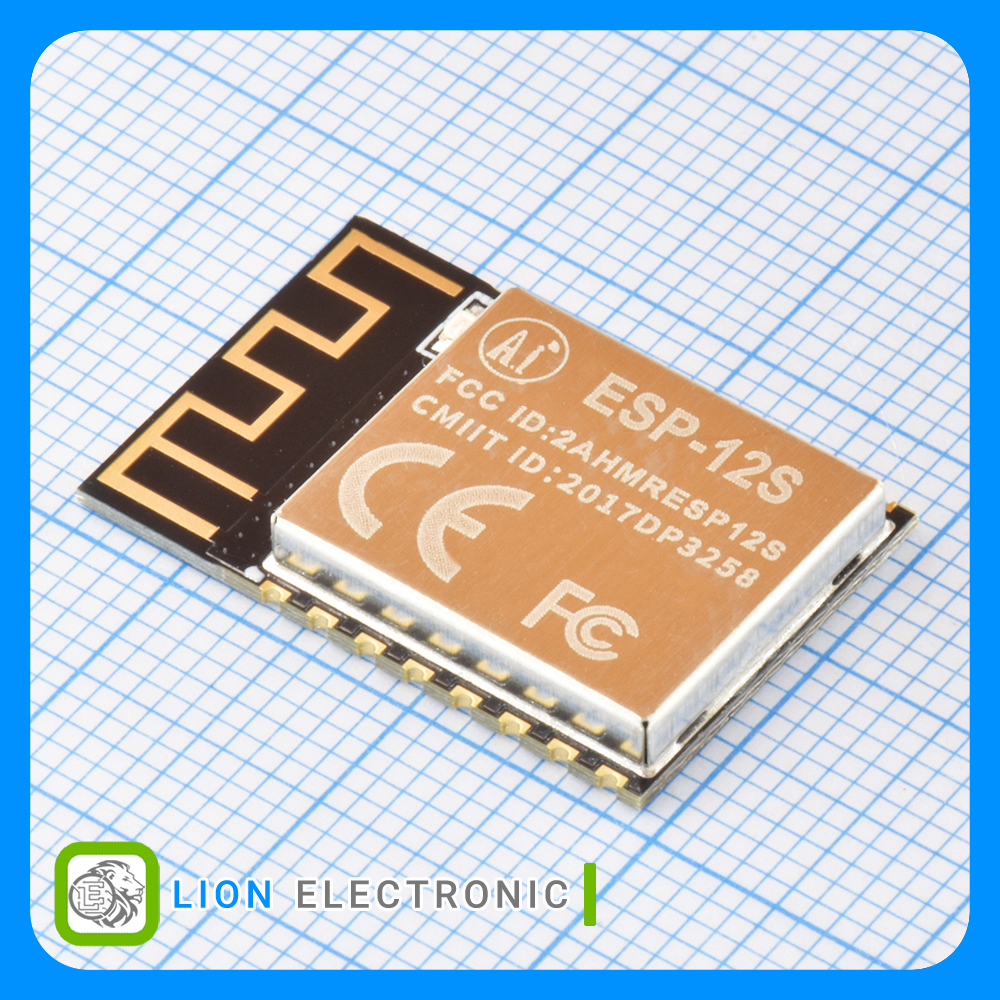

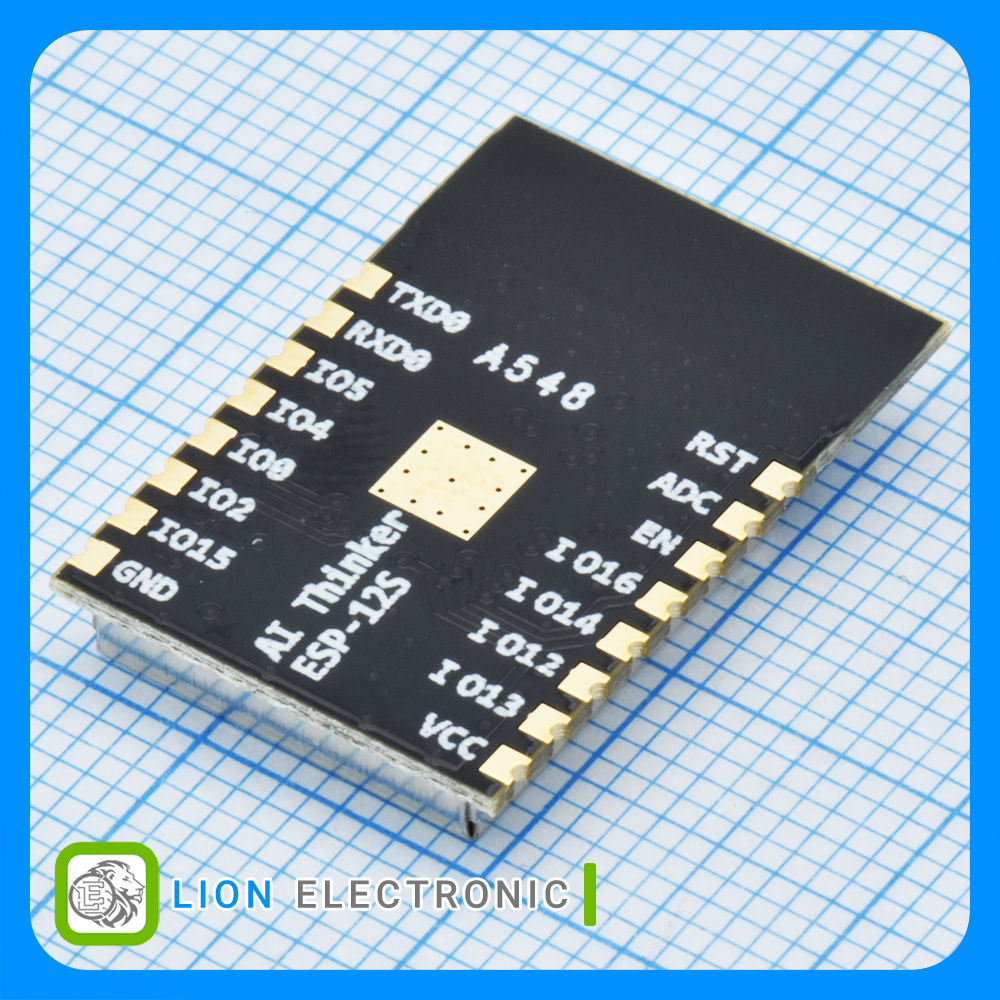

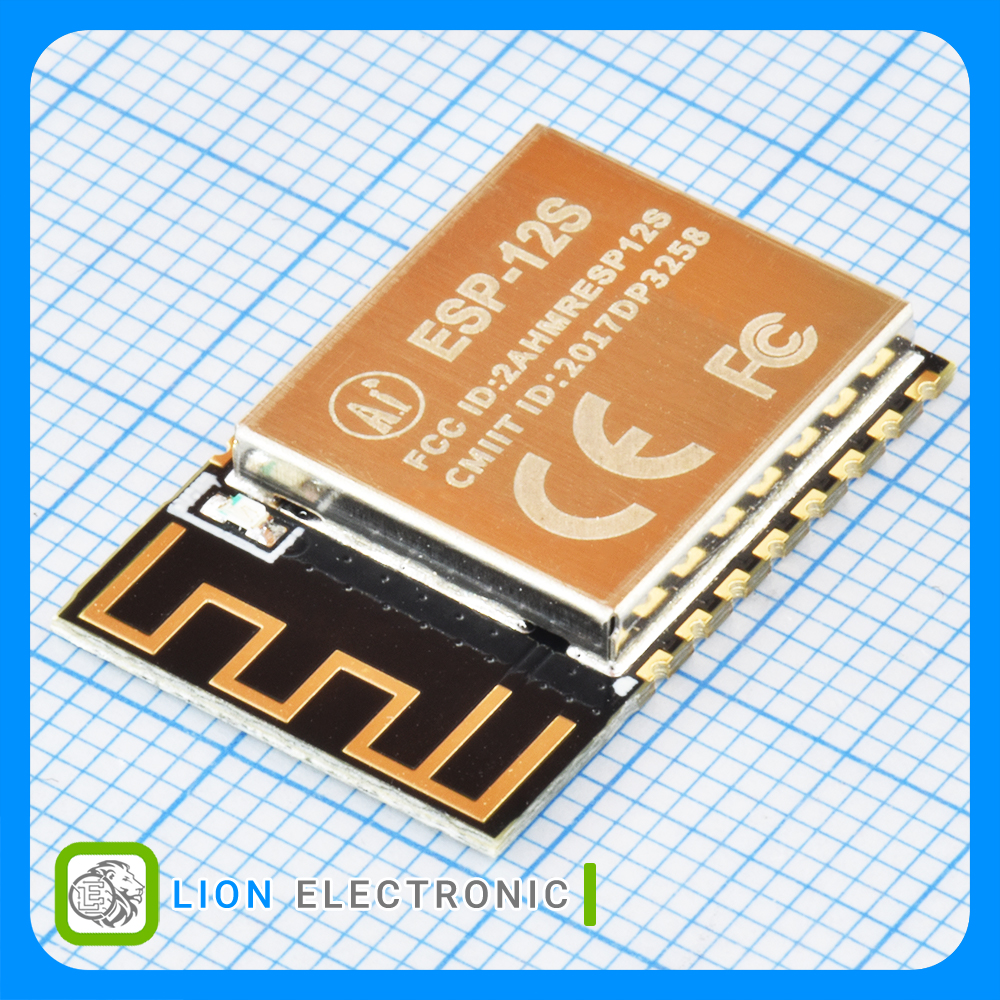

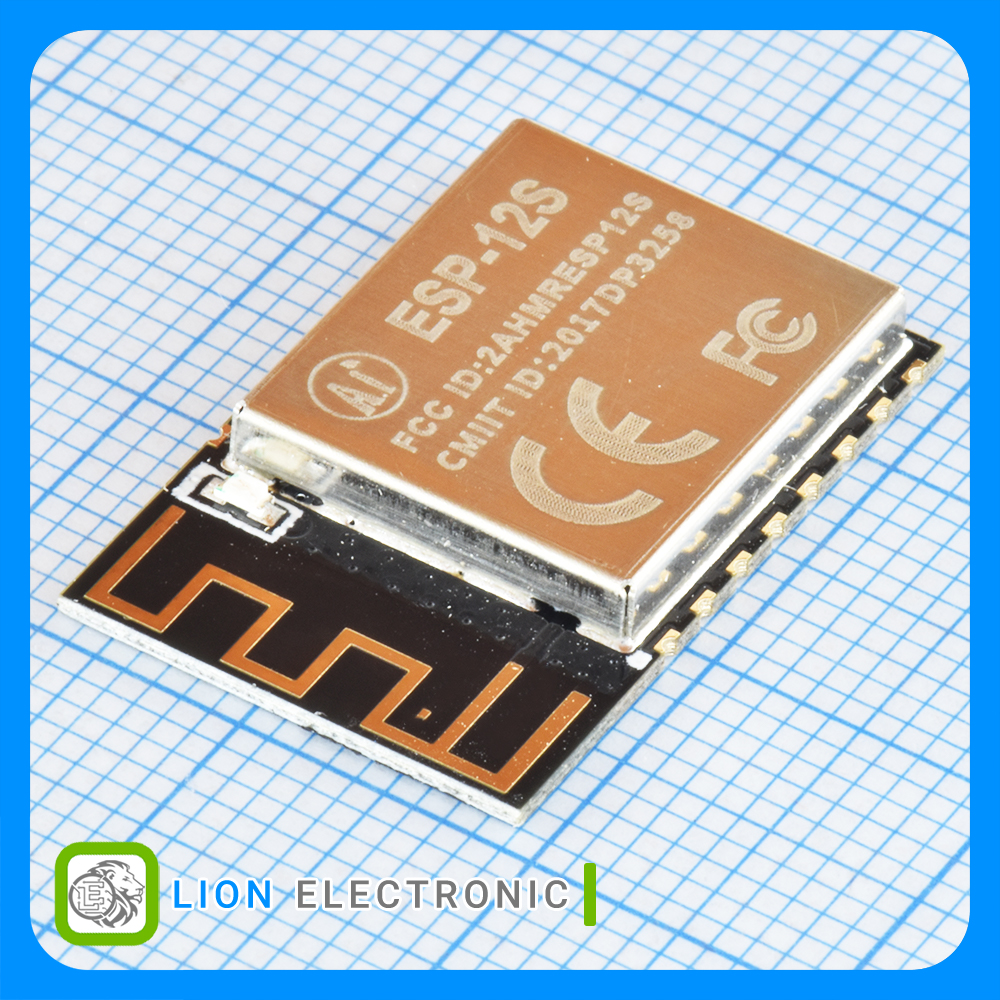

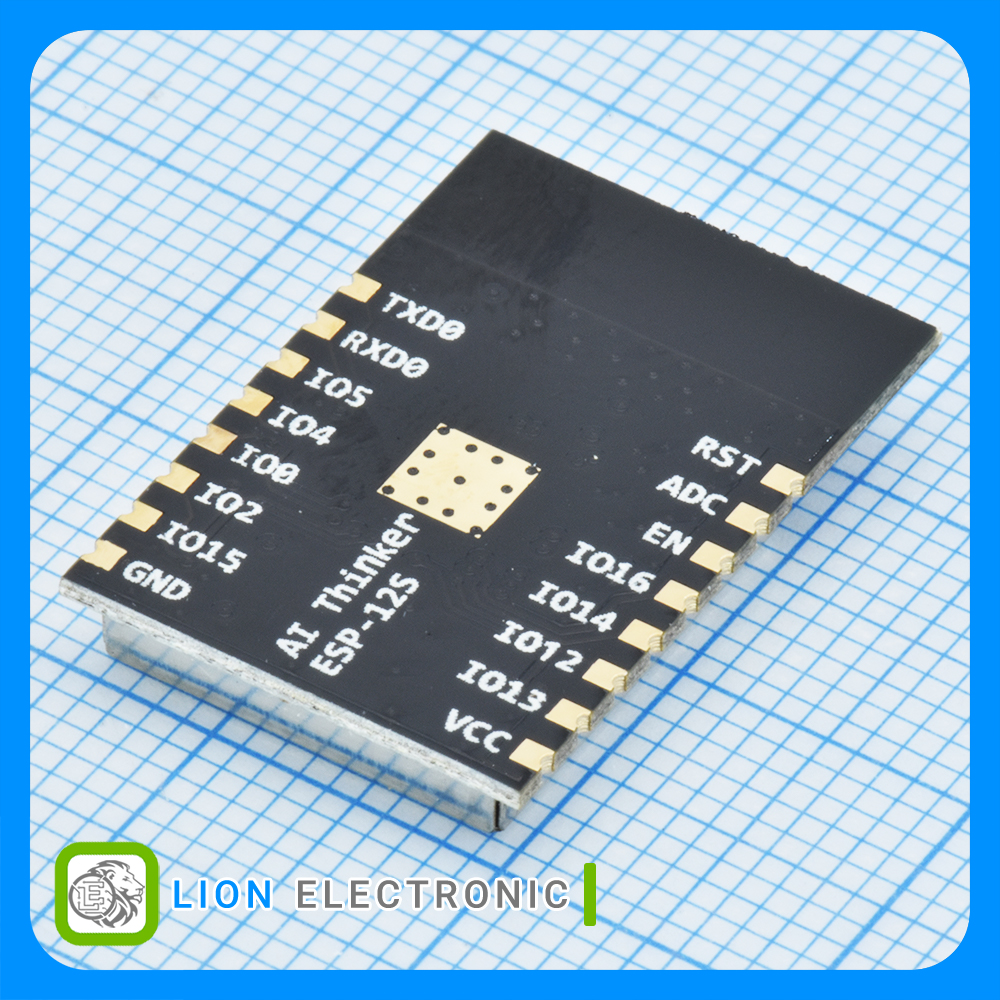

ESP-12S
ESP-12S
Part Number
973
Lion Part
Datasheet
Ai-Thinker Manufacture
ماژول وایفای ESP8266
The Smallest 802.11b/g/n Wi-Fi SOC Module(ESP8266)
Default 32Mbit SPI Flash
Onboard PCB Antenna
معرفی
• Low power 32bit CPU, can also serve as the application processor
• Up to 160MHz clock speed
• Built-in 10bit high precision ADC
• Supports UART/GPIO/IIC/PWM/ADC
• SMD-16 package for easy welding
• Integrated Wi-Fi MAC/BB/RF/PA/LNA
• Support multiple sleep patterns. Deep sleep current as low as 20uA
• UART baud rate up to 4Mbps
• Embedded LWIP protocol stack
• Supports STA/AP/STA + AP operation mode
• Support Smart Config/AirKiss technology
• Supports remote firmware upgrade (FOTA)
• General AT commands can be used quickly
• Support for the two development, integration of windows, Linux development environment
مشخصات ESP-12S
ESP-12S
Part Number
--- Reel
Packaging
--- 71mA
Supply Current Receiving
--- +85C
Maximum Operating Temperature
--- 500mA
Supply Current Transmitting
--- -20C
Minimum Operating Temperature
--- 160MHz
Frequency
--- UART, GPIO, ADC, PWM
Interface Type
--- 16dBm
Output Power
--- 3 - 3.6V
Operating Supply Voltage
--- 9
Number of I-Os
--- Wi-Fi & MCU Module
Product
--- PCB
Antenna Connector Type
24mm x 16mm x 3mm
Dimensions
