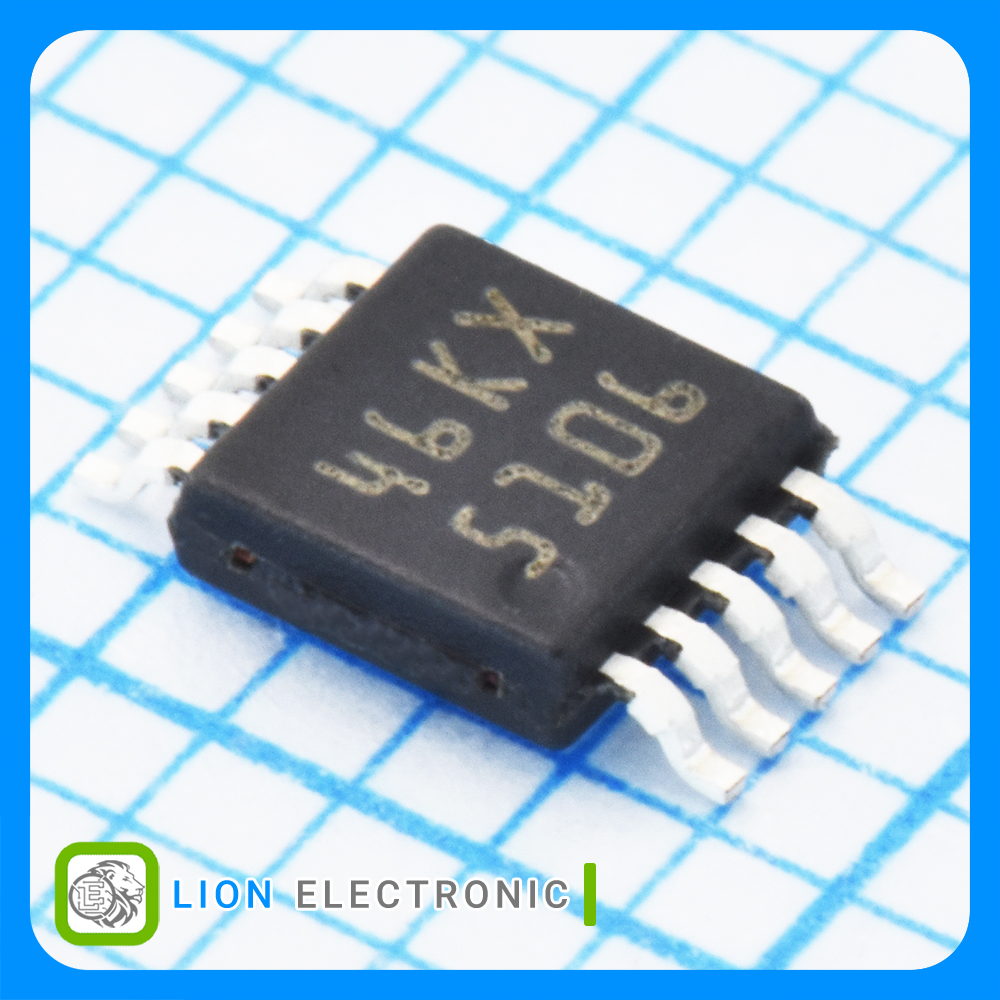

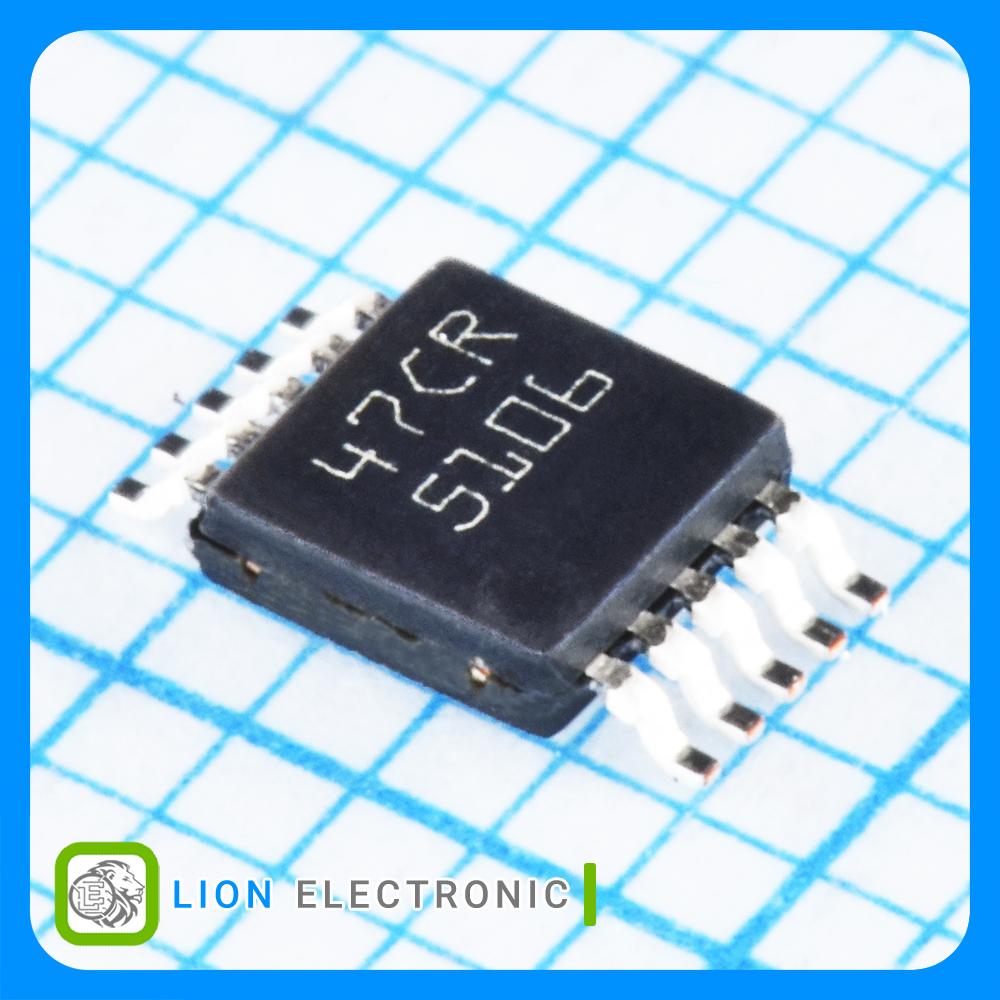

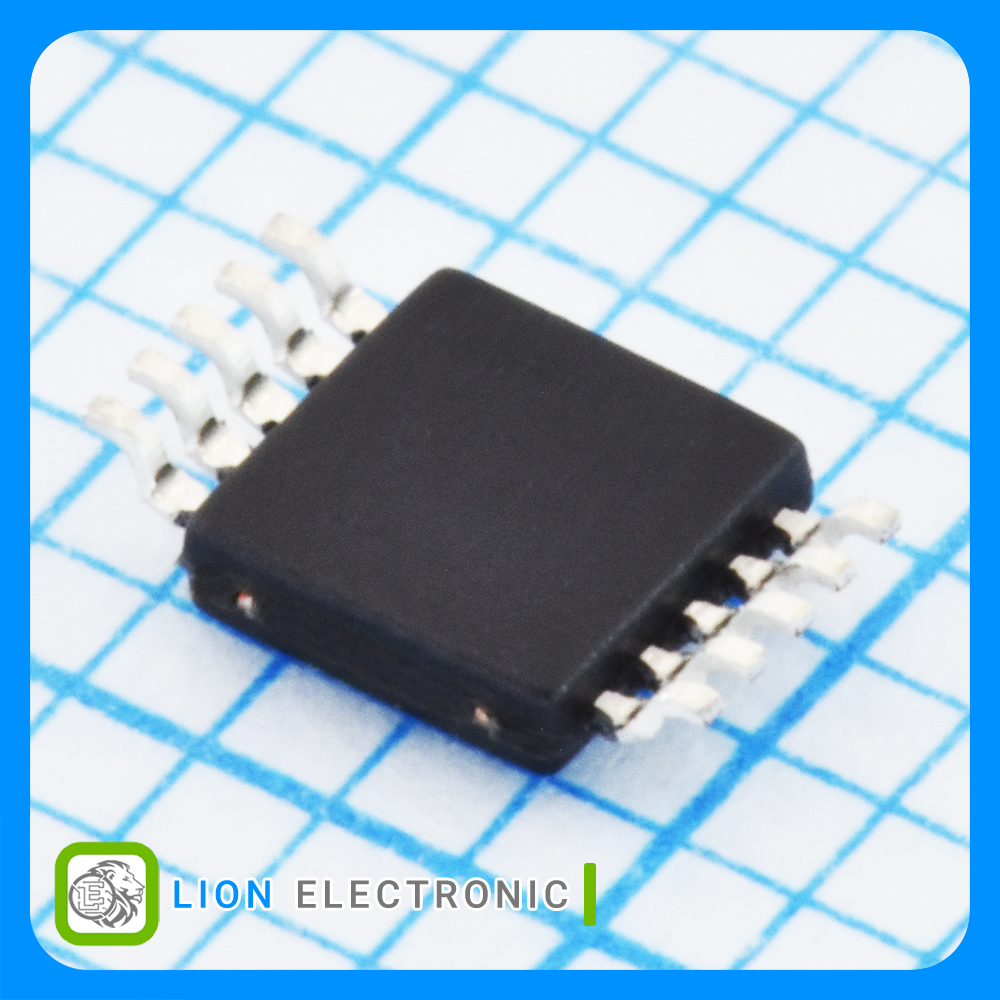

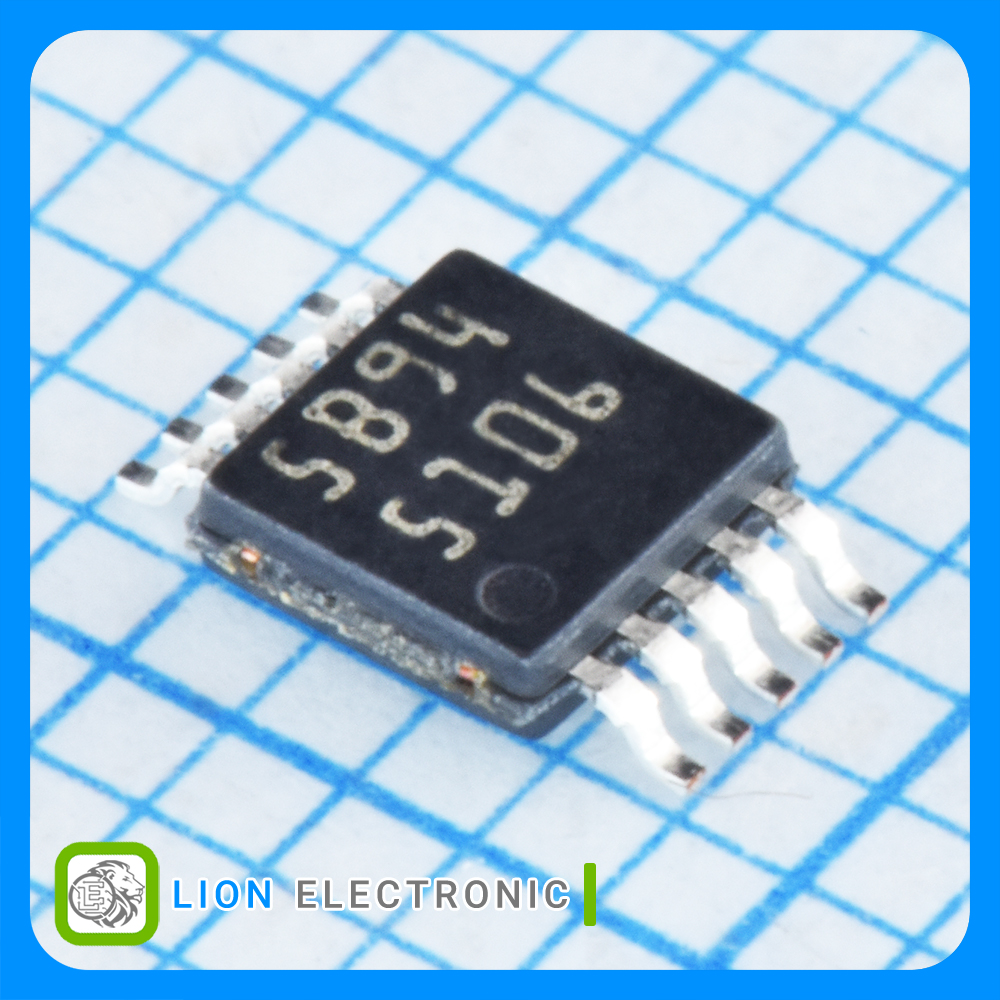

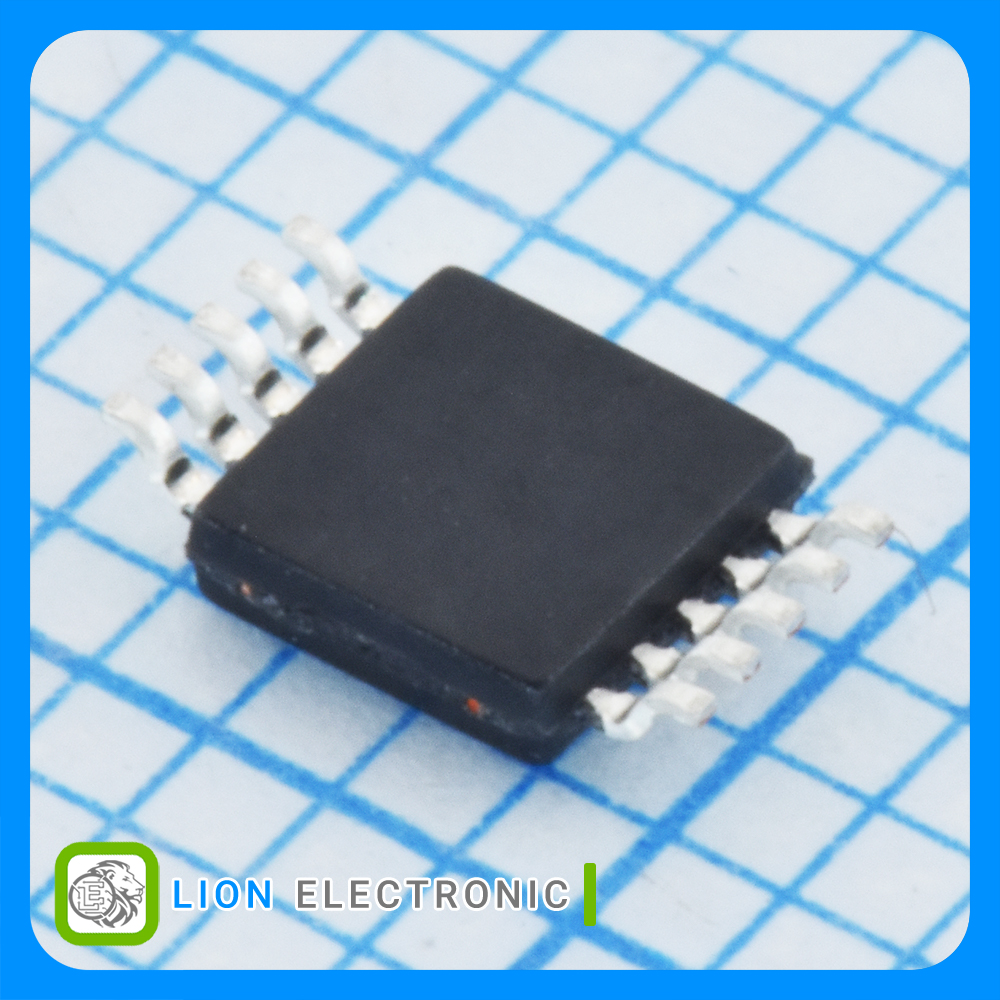

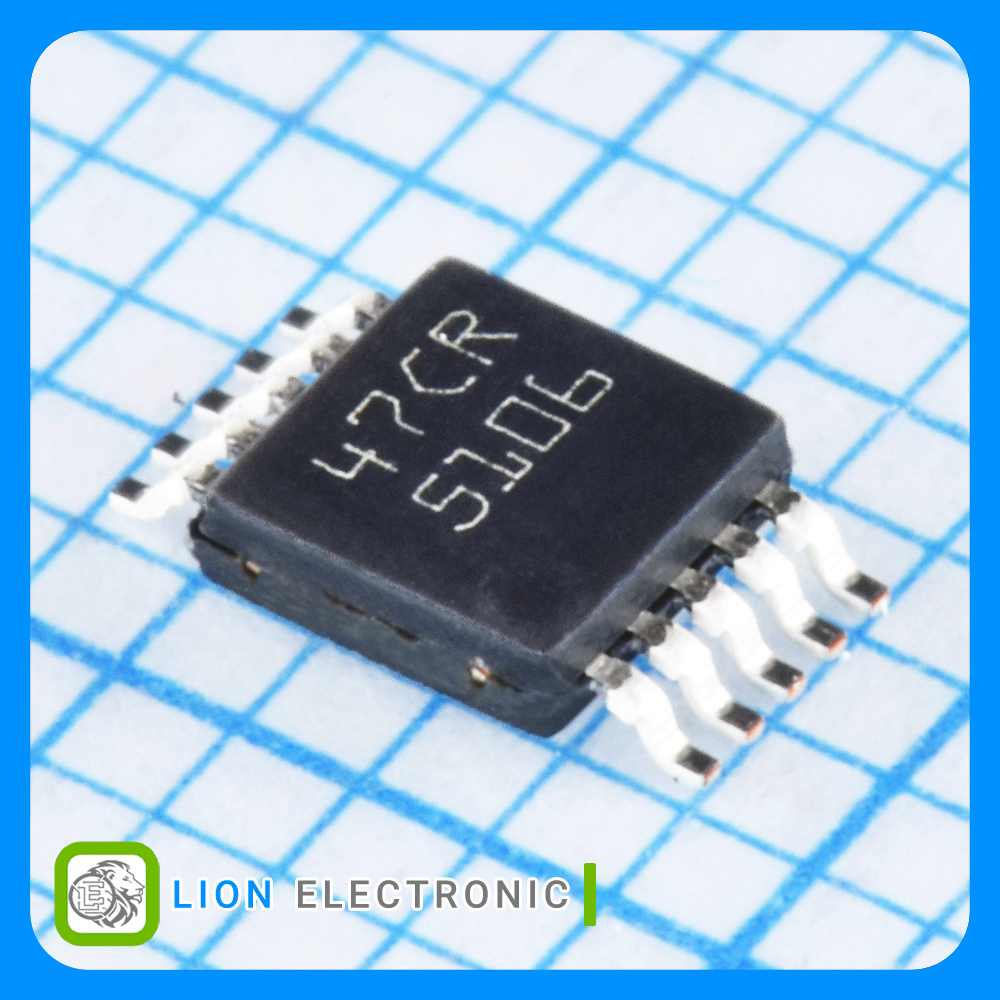

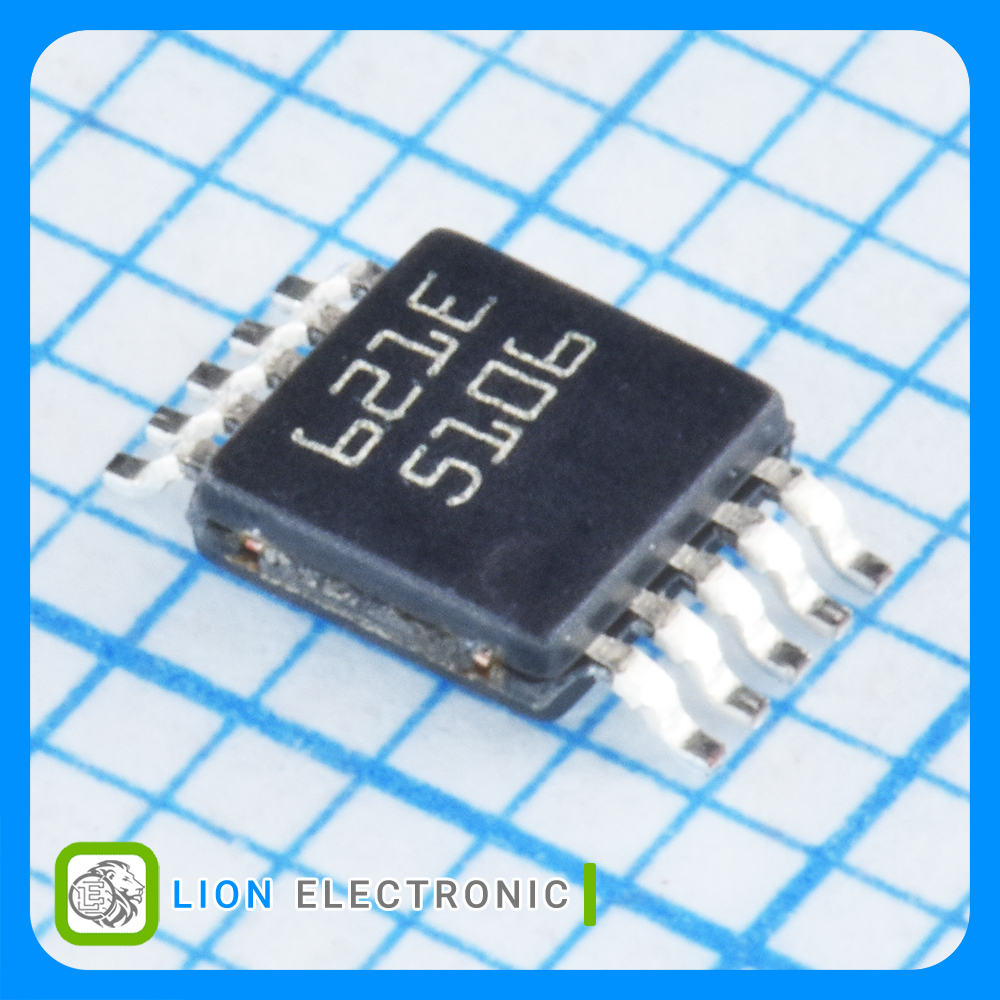

LM5106MMX/NOPB
LM5106MMX/NOPB
Part Number
2480
Lion Part
Datasheet
Texas Instruments Manufacture
گیت درایور نیمپل 14 ولت 100 ولت جریان خروجی 1.8 آمپر با پکیج MSOP-10
Half-Bridge Gate Driver 14V, 100V, 1.8A with MSOP-10 Package
معرفی
گیت درایور نیمپل 14 ولت 100 ولت جریان خروجی 1.8 آمپر با پکیج MSOP-10
Half-Bridge Gate Driver 14V, 100V, 1.8A with MSOP-10 Package
Specifications
- Configuration: Half-Bridge
- Output Current: 1.8A
- Supply Voltage - Min: 8V
- Supply Voltage - Max: 14V
- Operating Supply Current: 2.1mA
- Dead Time: 800ns
- Propagation Delay - Max: 56ns
- Floating Voltage: 100V
- Number of Outputs: 2
- Mounting Style: SMD/SMT
- Package/Case: MSOP-10
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات LM5106MMX/NOPB
LM5106MMX/NOPB
Part Number
2
Number of Outputs
100V
Floating Voltage
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
800ns
Dead Time
56ns
Propagation Delay - Max
+125C
Maximum Operating Temperature
Half-Bridge
Configuration
14V
Supply Voltage - Max
8V
Supply Voltage - Min
1.8A
Output Current
2.1mA
Operating Supply Current
MSOP-10
Package-Case
N/A
Pd - Power Dissipation
