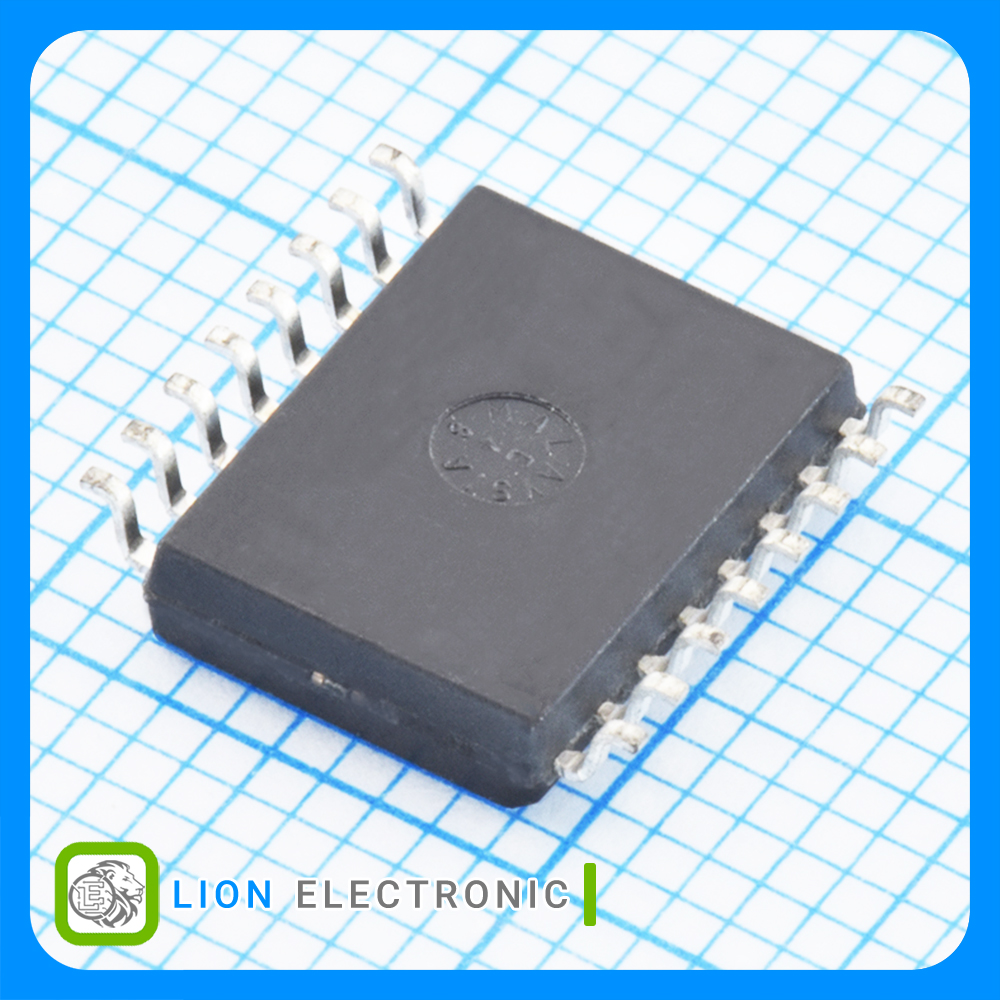

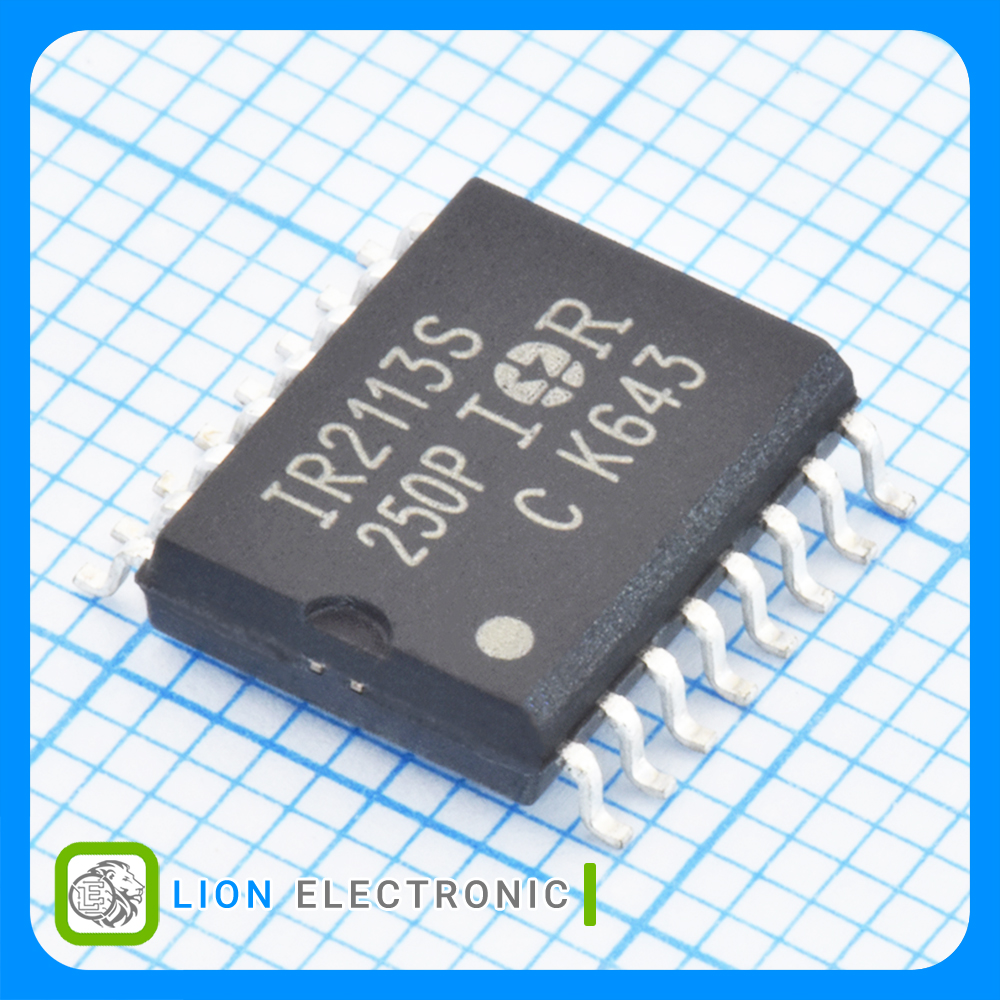

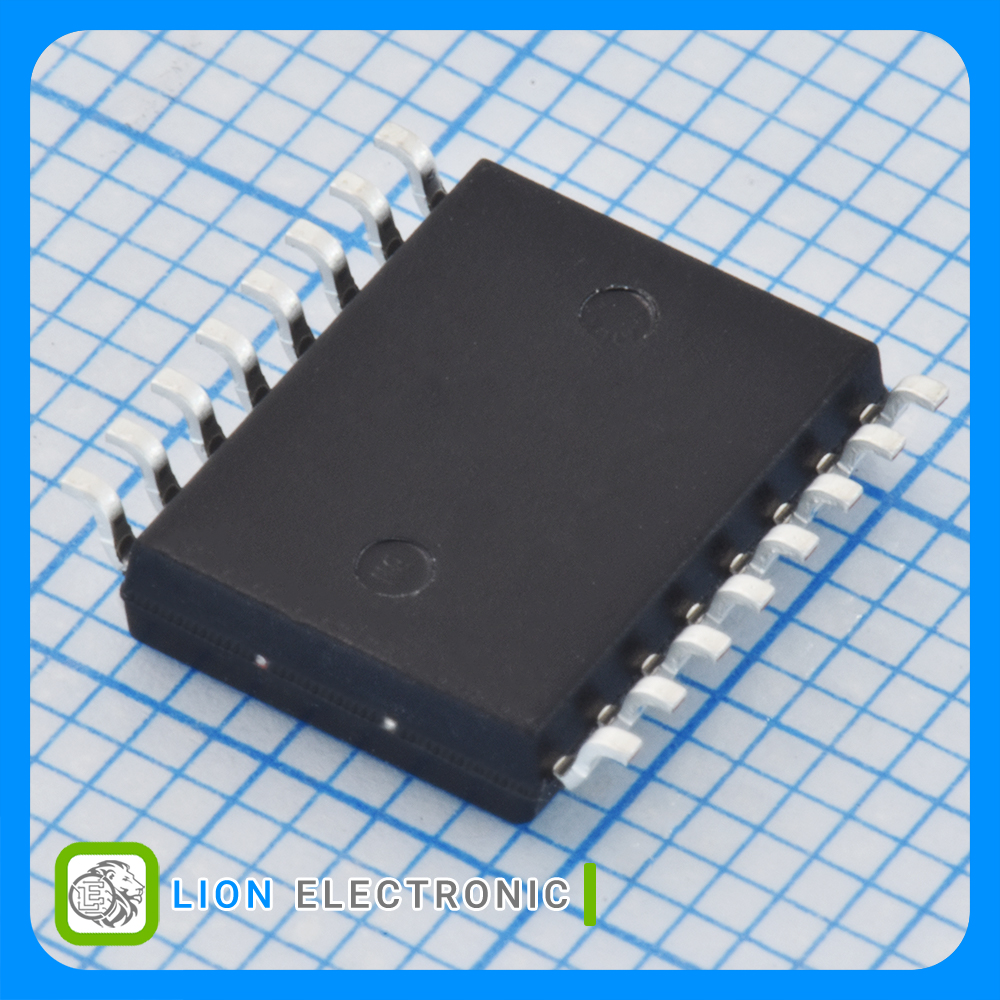

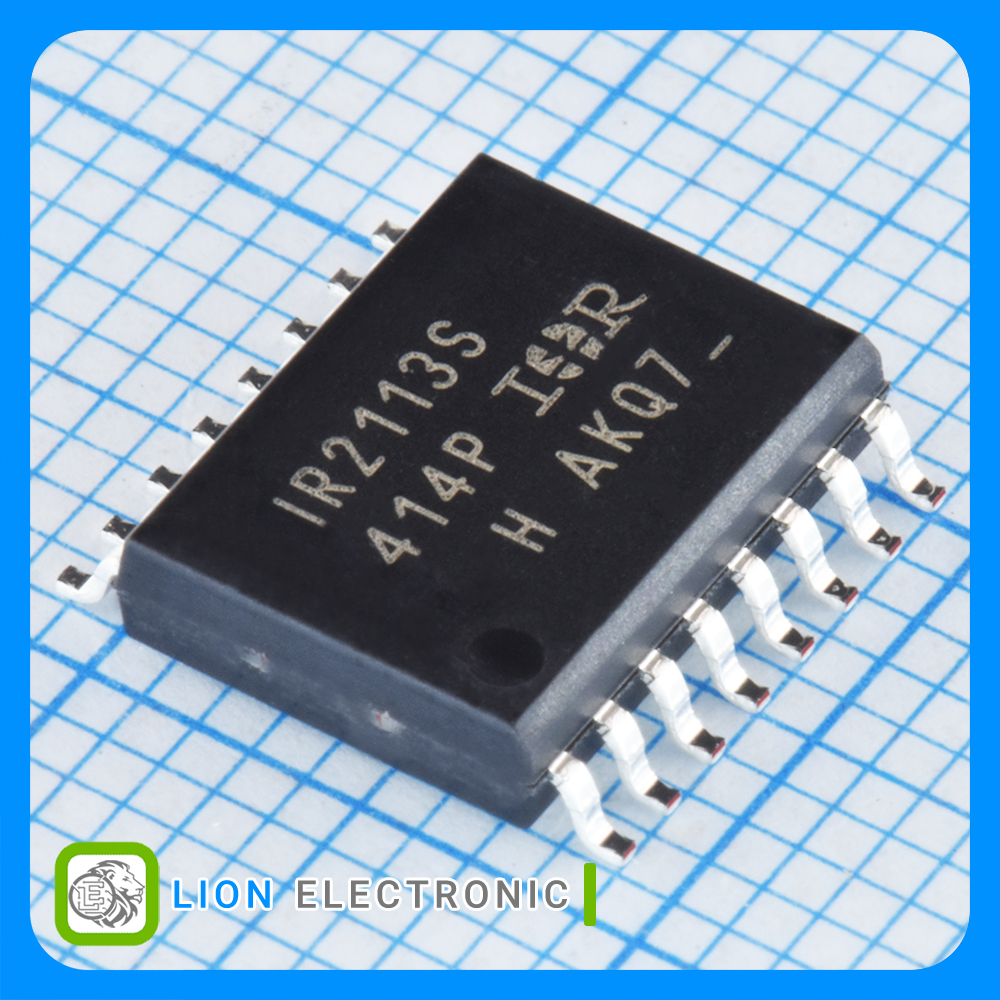

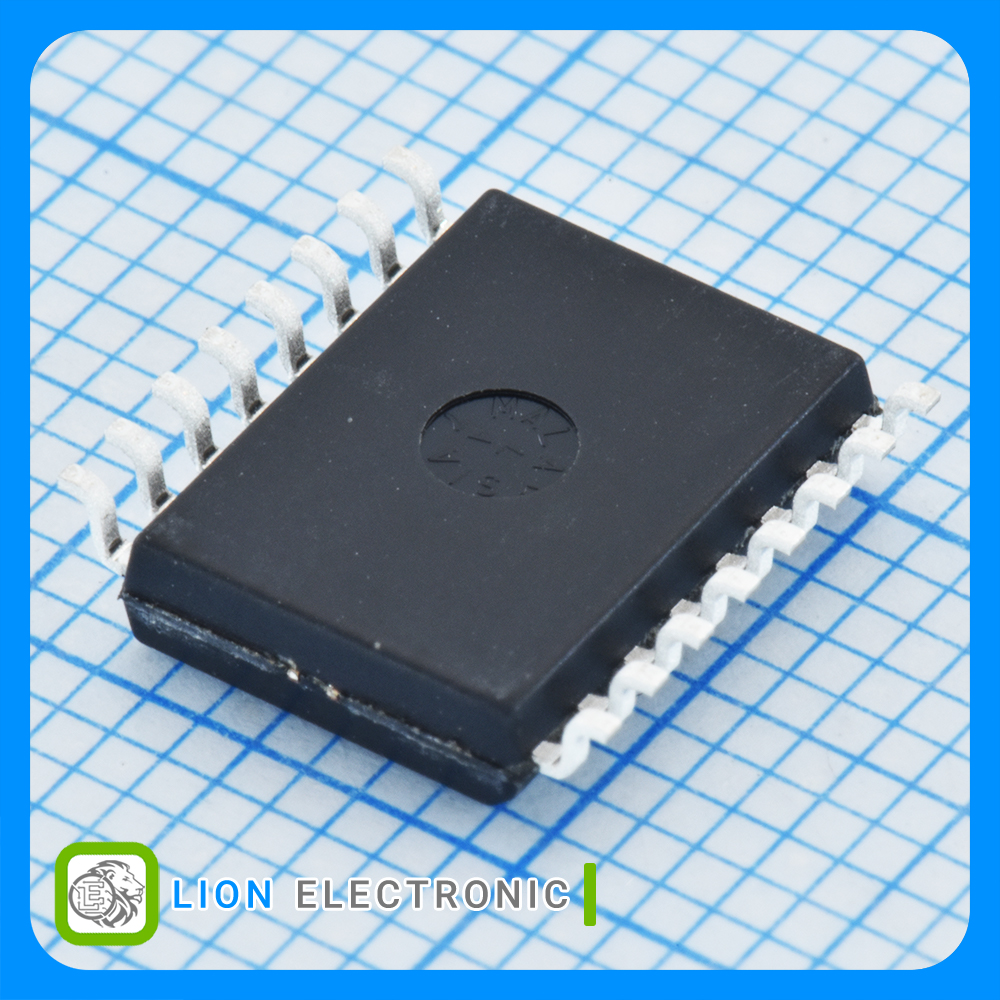

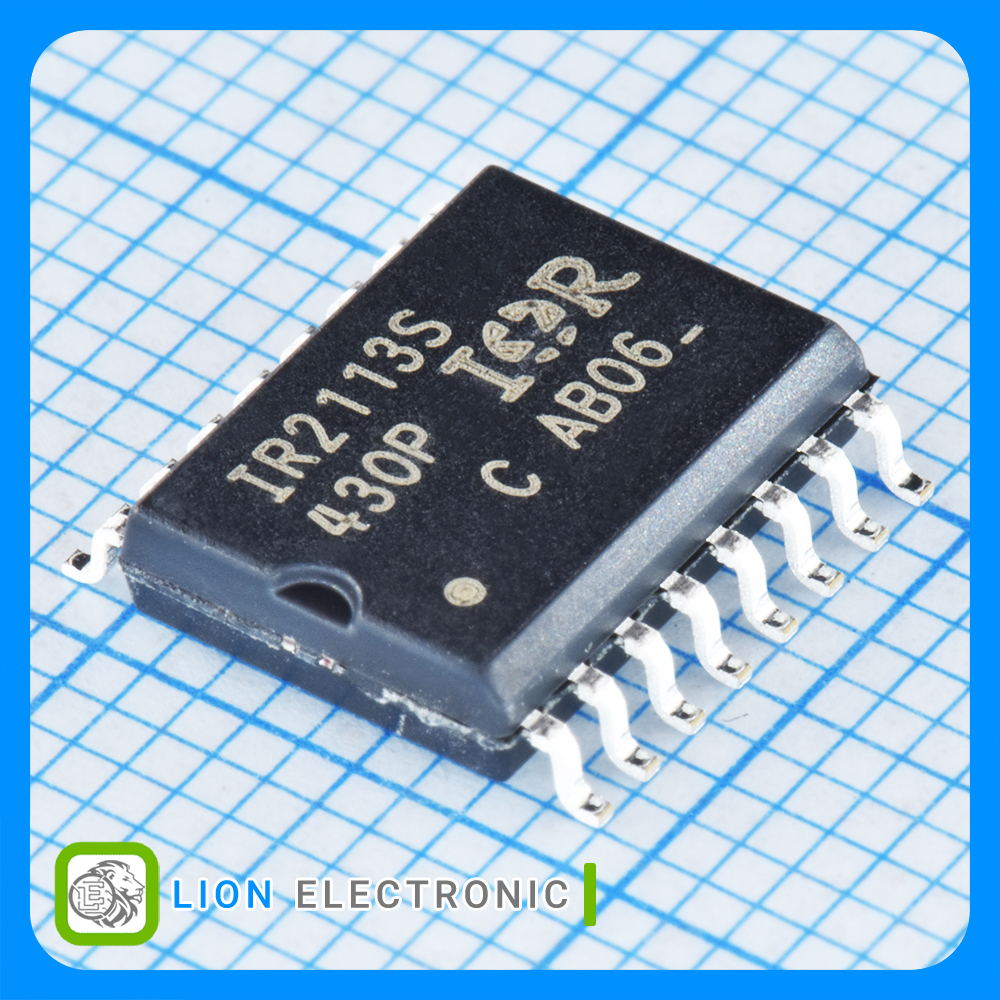

IR2113STRPBF
IR2113STRPBF
Part Number
2631
Lion Part
Datasheet
Infineon Technologies Manufacture
گیت درایور نیمپل 600 ولت 25 ولت جریان خروجی 2.5 آمپر با پکیج SOIC-16
Half-Bridge Gate Driver 600V, 25V, 2.5A with SOIC-16 Package
معرفی
گیت درایور نیمپل 600 ولت 25 ولت جریان خروجی 2.5 آمپر با پکیج SOIC-16
Half-Bridge Gate Driver 600V, 25V, 2.5A with SOIC-16 Package
Specifications
- Configuration: Half-Bridge
- Output Current: 2.5A
- Supply Voltage - Min: 10V
- Supply Voltage - Max: 25V
- Operating Supply Current: 340uA
- Propagation Delay - Max: 150ns
- Pd - Power Dissipation: 1.25W
- Floating Voltage: 600V
- Number of Outputs: 2
- Mounting Style: SMD/SMT
- Package/Case: SOIC-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات IR2113STRPBF
IR2113STRPBF
Part Number
2
Number of Outputs
Reel
Packaging
600V
Floating Voltage
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
N/A
Dead Time
+125C
Maximum Operating Temperature
Half-Bridge
Configuration
150ns
Propagation Delay - Max
25V
Supply Voltage - Max
1.25W
Pd - Power Dissipation
340uA
Operating Supply Current
10V
Supply Voltage - Min
2.5A
Output Current
SOIC-16
Package-Case
