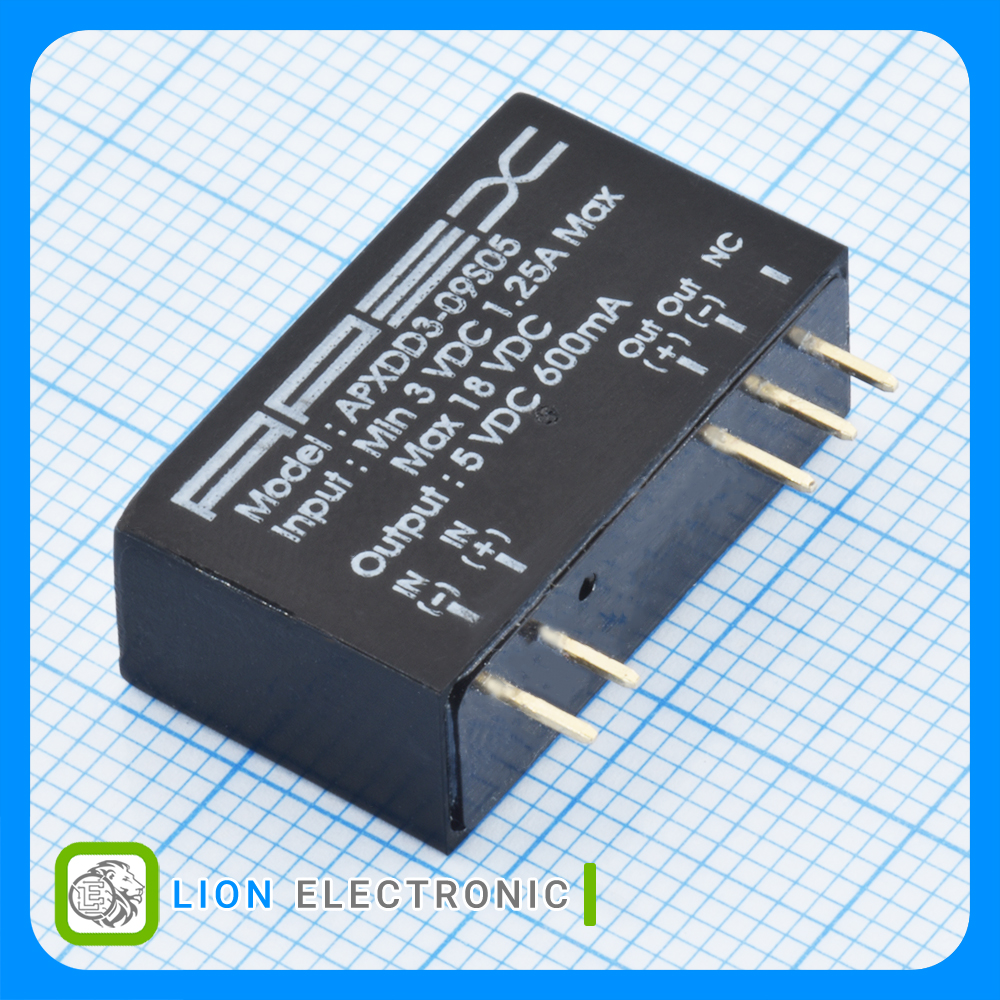

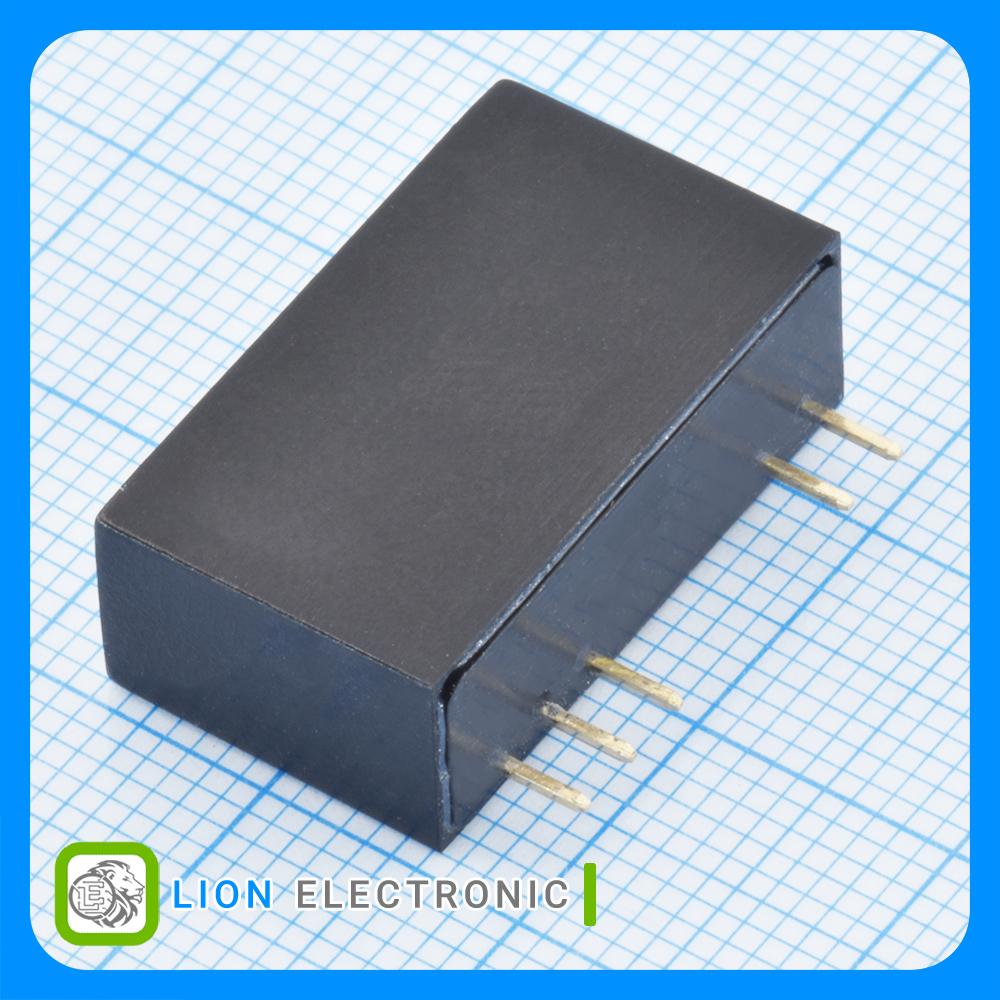

مبدل DC/DC ایزوله APXDD3-09S05
APXDD3-09S05
Part Number
2658
Lion Part
Datasheet
APEX Converters Manufacture
مبدل دیسی به دیسی 5 ولت 3 وات با پکیج SIP-8
Isolated DC-to-DC Converter 5V 3W SIP-8
مشخصات مبدل DC/DC ایزوله APXDD3-09S05
مبدل DC/DC ایزوله APXDD3-09S05
Part Number
1
Number of Outputs
Box
Packaging
5V
Output Voltage - Channel 1
1.6kVDC
Isolation Voltage
-40C
Minimum Operating Temperature
N/A
Output Voltage - Channel 2
+75C
Maximum Operating Temperature
Through Hole
Mounting Style
3 - 18V
Input Voltage
N/A
Output Current - Channel 2
SIP-8
Package-Case Size
3W
Output Power
600mA
Output Current - Channel 1
