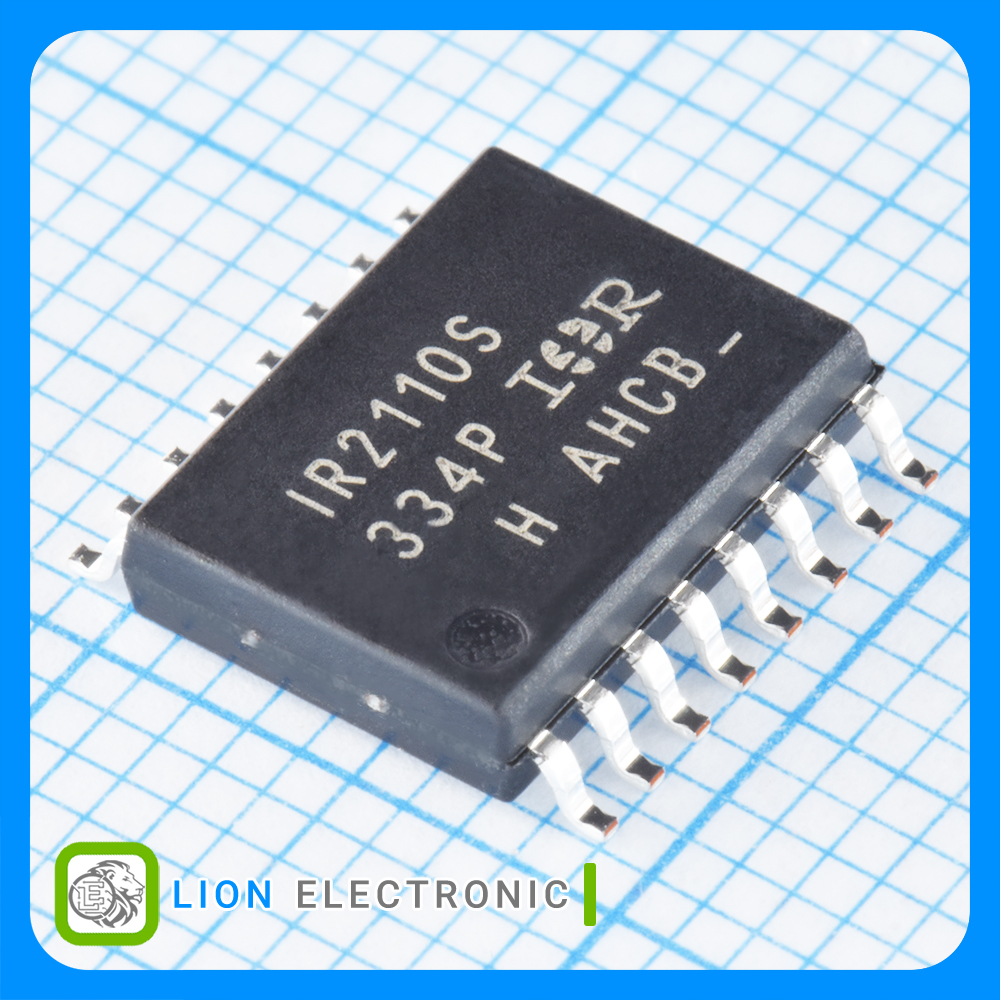

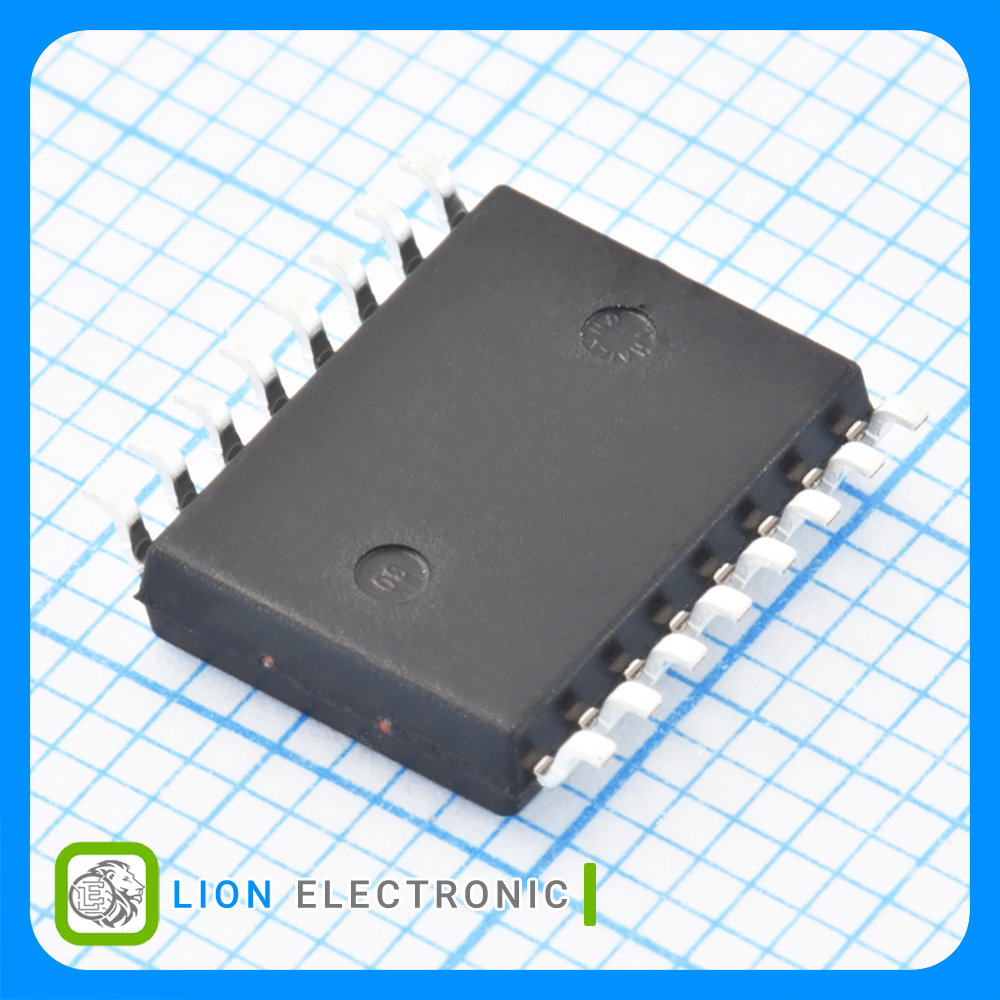

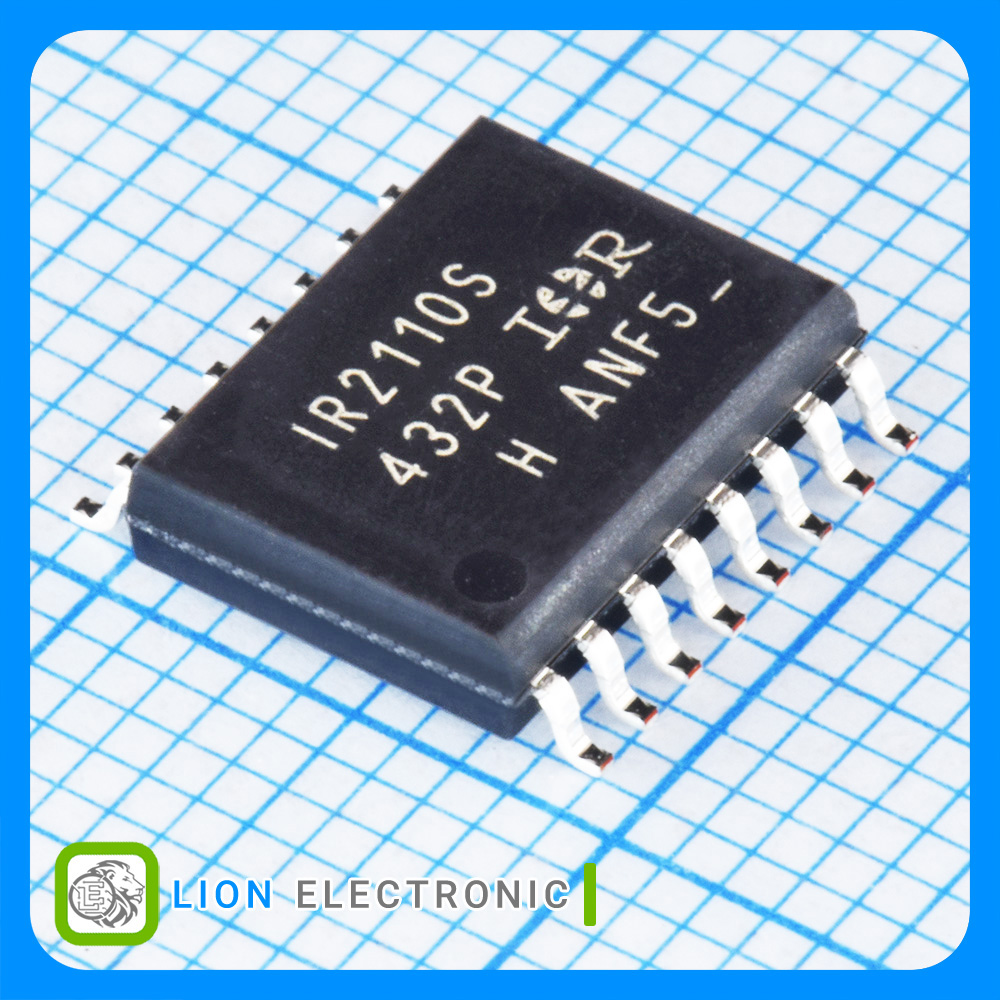

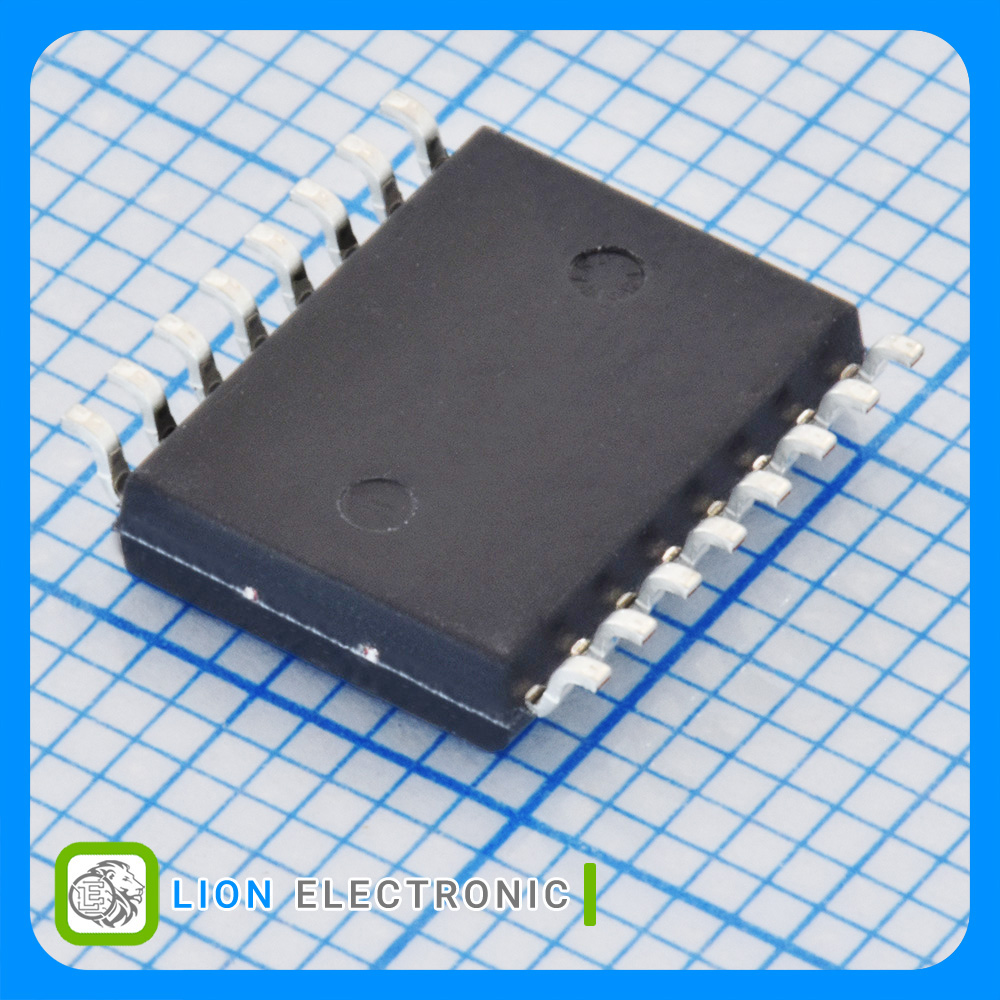

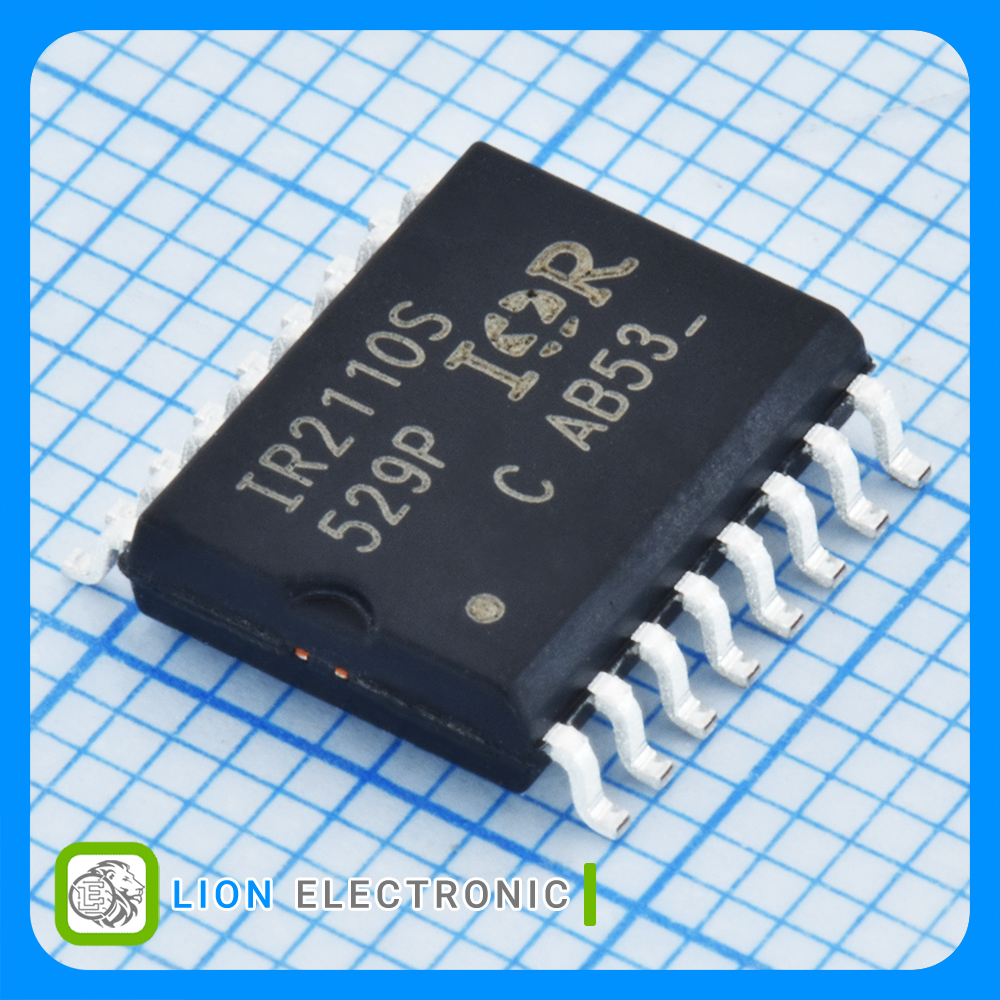

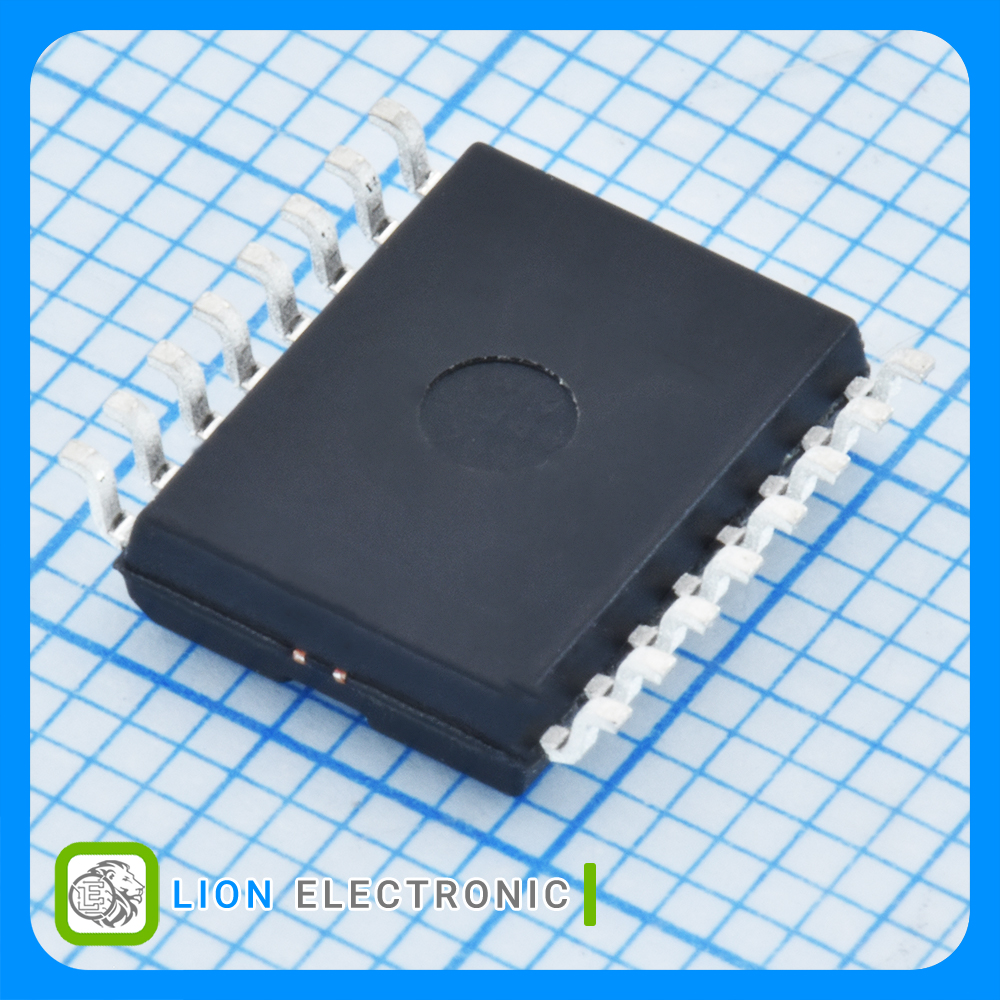

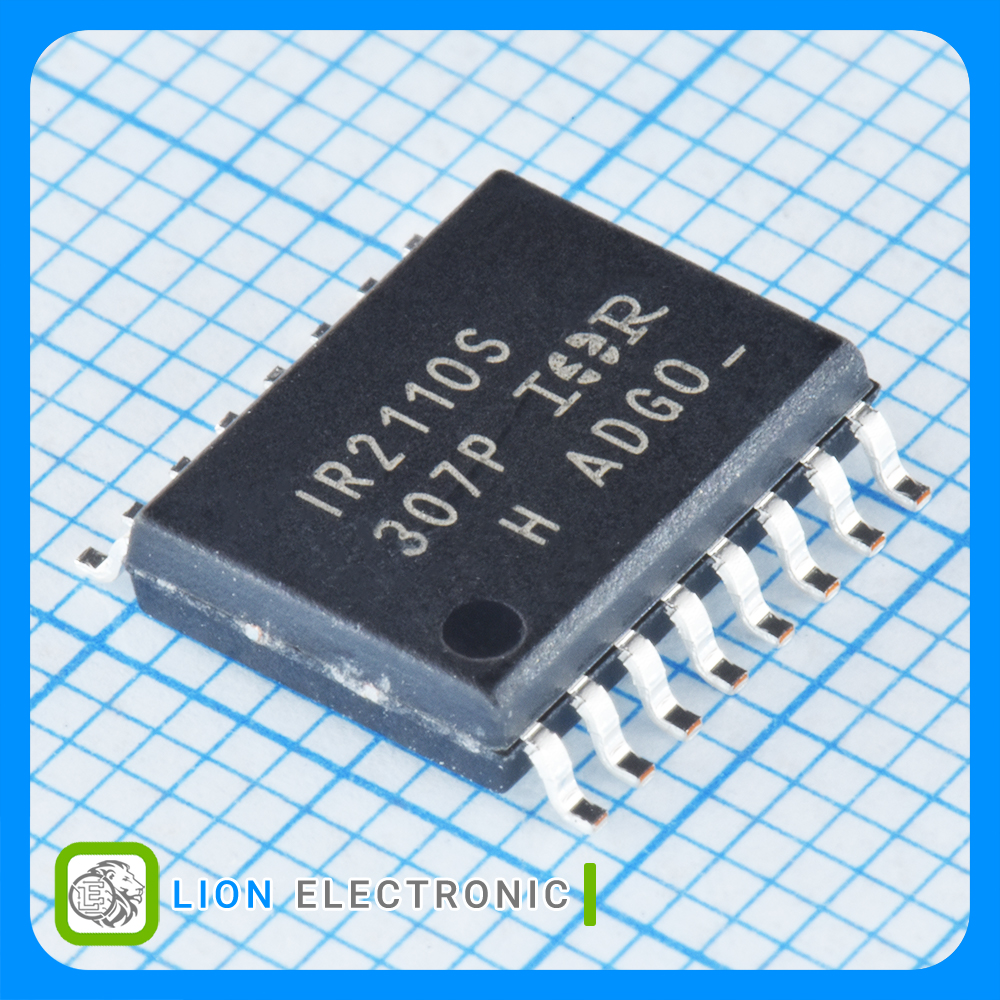

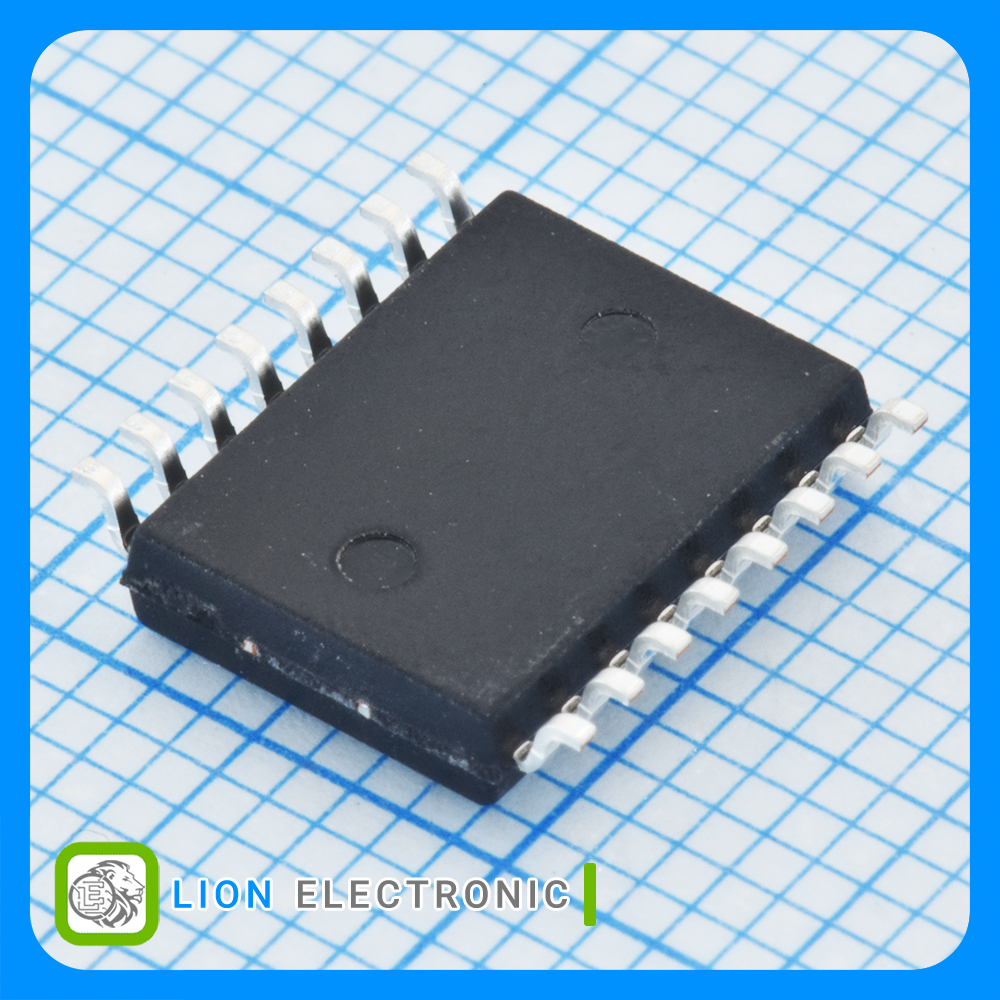

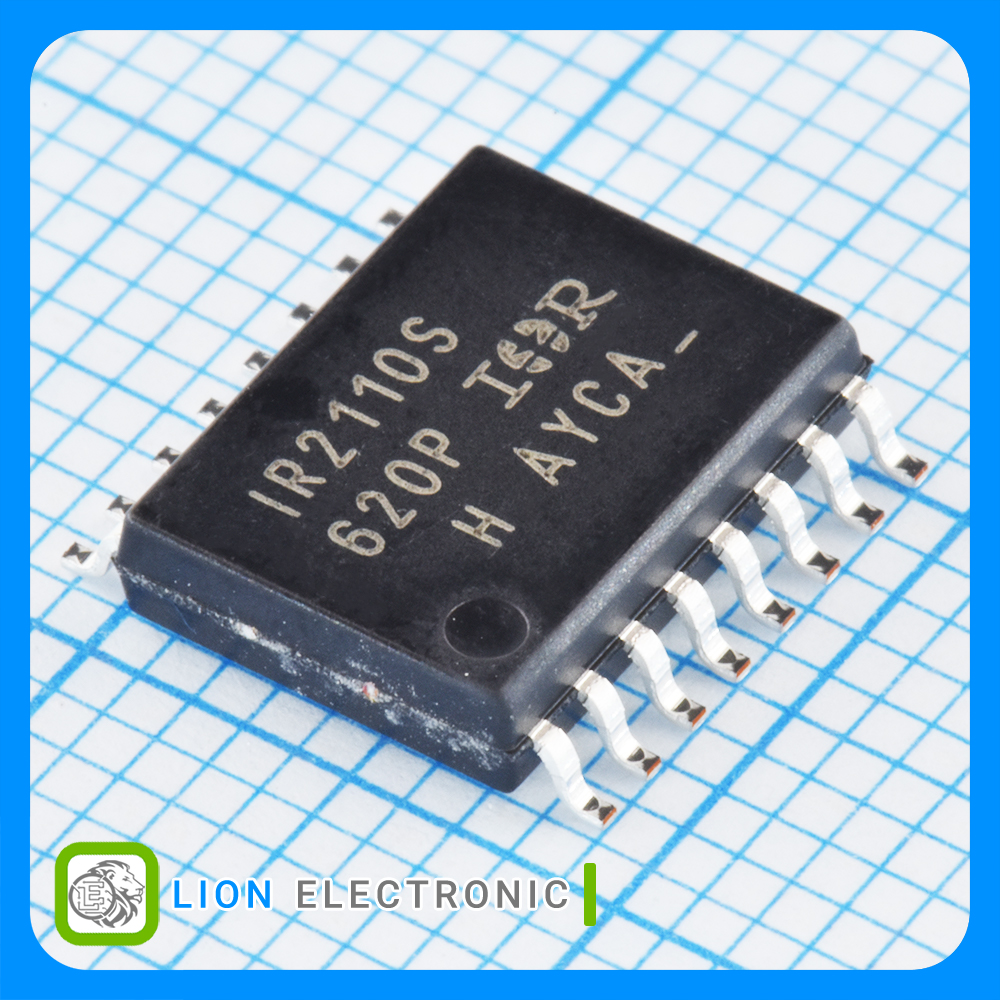

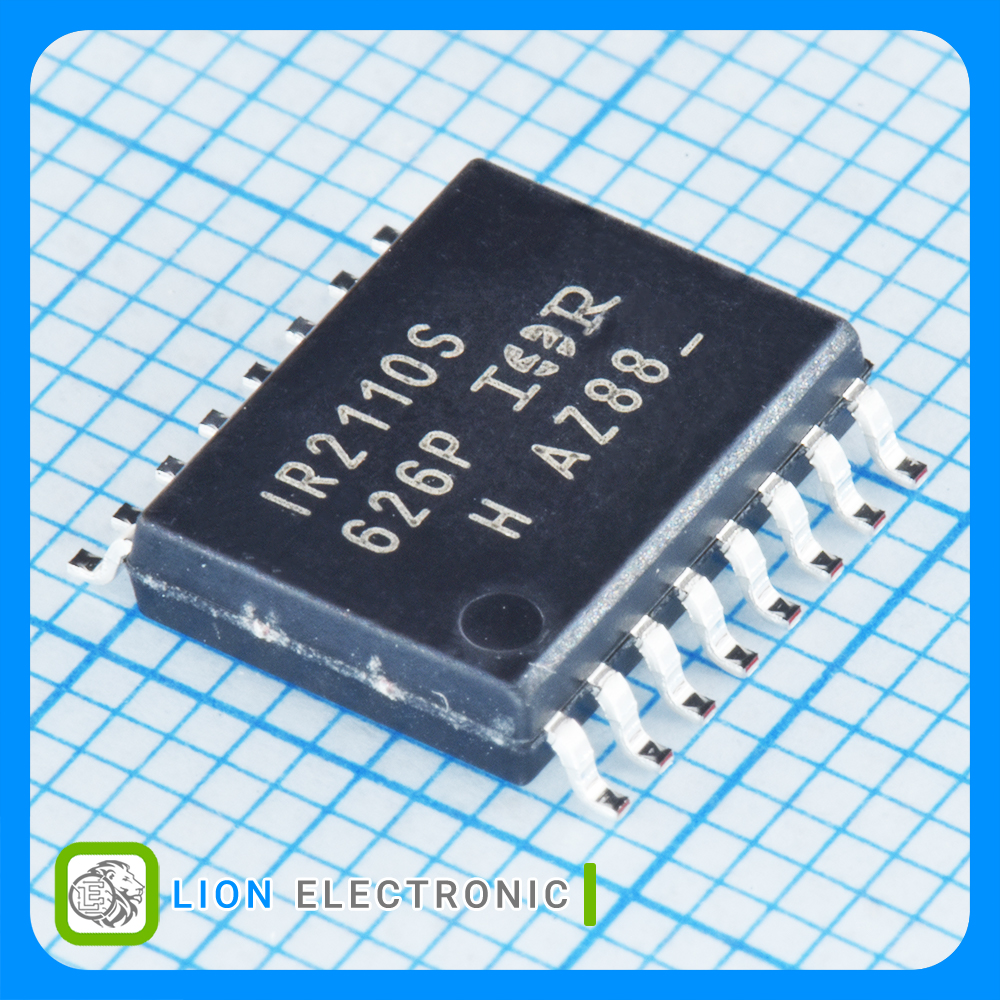

IR2110SPBF
IR2110SPBF
Part Number
2675
Lion Part
Datasheet
Infineon Technologies Manufacture
گیت درایور دوبل نیمپل سمت بالا و سمت پایین 500 ولت 20 ولت جریان خروجی 2.5 آمپر با پکیج SOIC-16
Half-Bridge High and Low Side Gate Driver 500V, 20V, 2.5A with SOIC-16 Package
معرفی
گیت درایور دوبل نیمپل سمت بالا و سمت پایین 500 ولت 20 ولت جریان خروجی 2.5 آمپر با پکیج SOIC-16
Half-Bridge High and Low Side Gate Driver 500V, 20V, 2.5A with SOIC-16 Package
Specifications
- Configuration: Half-Bridge
- Output Current: 2.5A
- Supply Voltage - Min: 10V
- Supply Voltage - Max: 20V
- Operating Supply Current: 340uA
- Propagation Delay - Max: 150ns
- Pd - Power Dissipation: 1.25W
- Floating Voltage: 500V
- Number of Outputs: 2
- Mounting Style: SMD/SMT
- Package/Case: SOIC-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات گیت درایور IR2110SPBF
گیت درایور IR2110SPBF
Part Number
2
Number of Outputs
500V
Floating Voltage
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
N/A
Dead Time
+125C
Maximum Operating Temperature
Half-Bridge
Configuration
150ns
Propagation Delay - Max
20V
Supply Voltage - Max
1.25W
Pd - Power Dissipation
340uA
Operating Supply Current
10V
Supply Voltage - Min
2.5A
Output Current
SOIC-16
Package-Case
