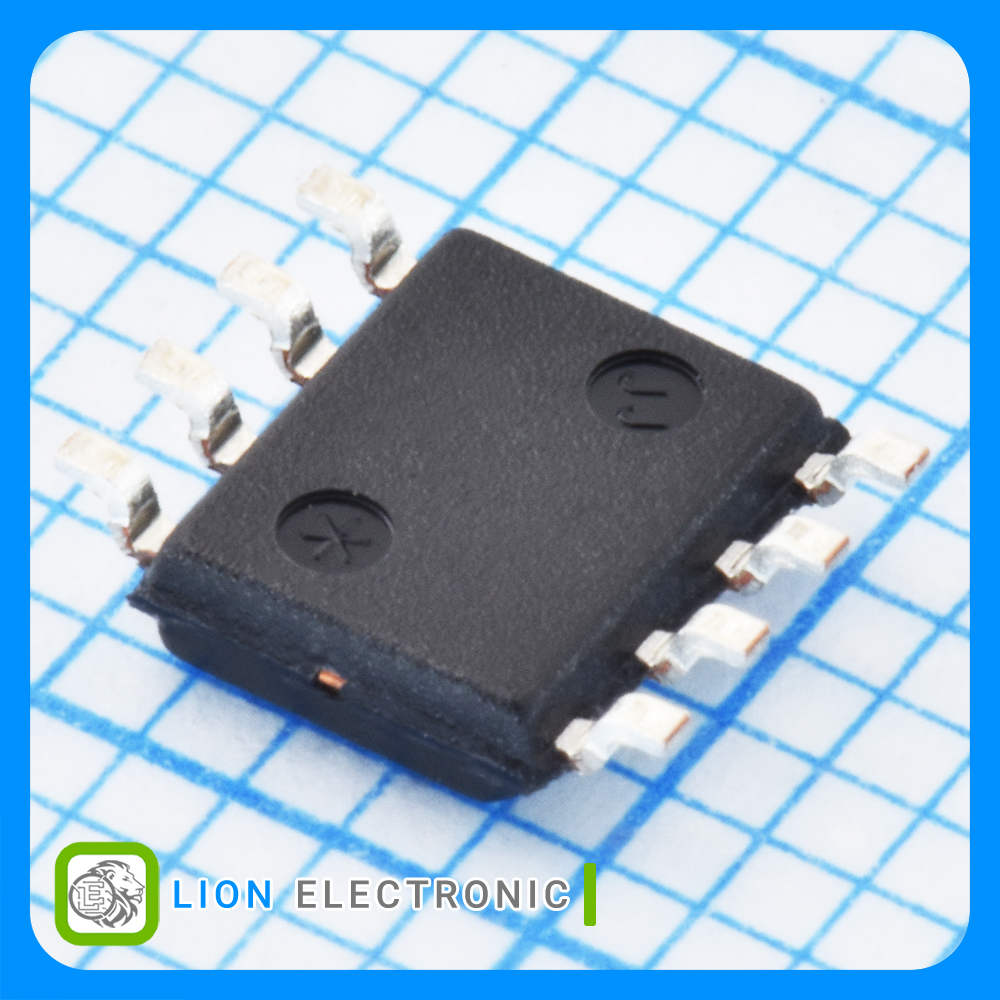

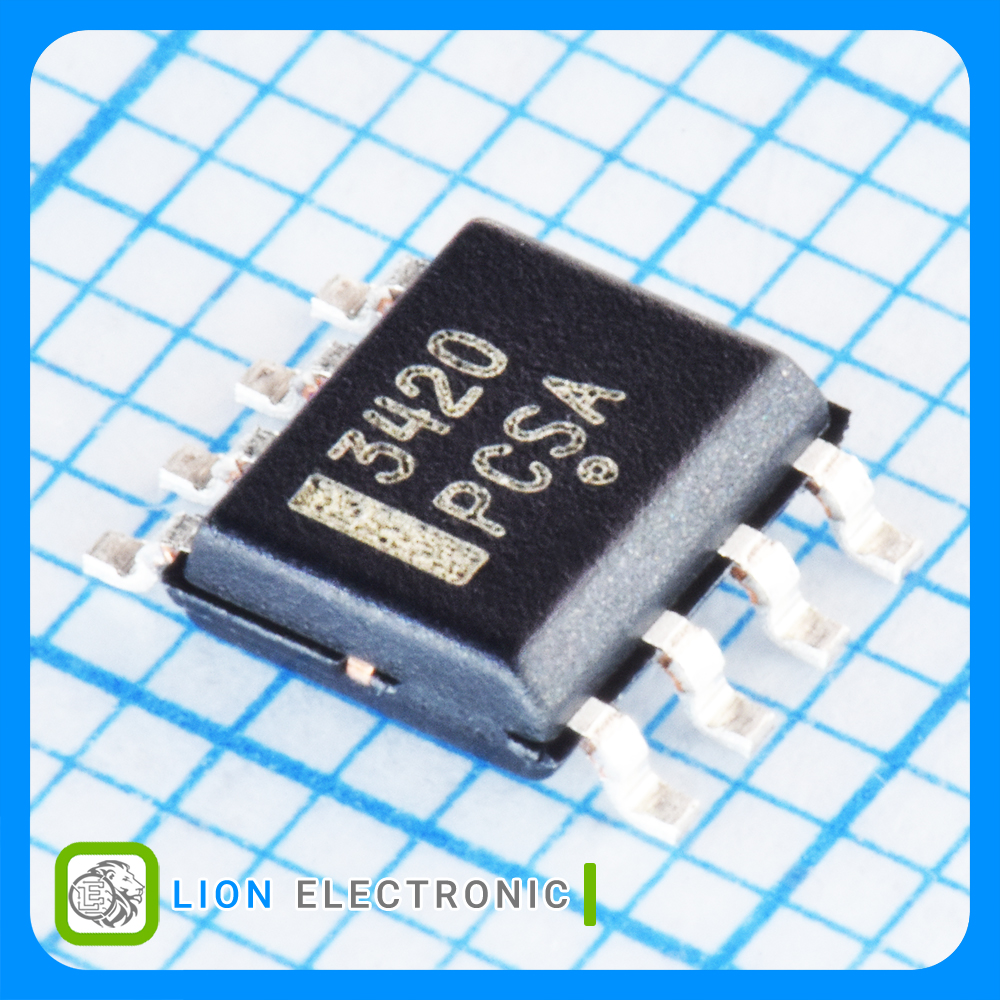

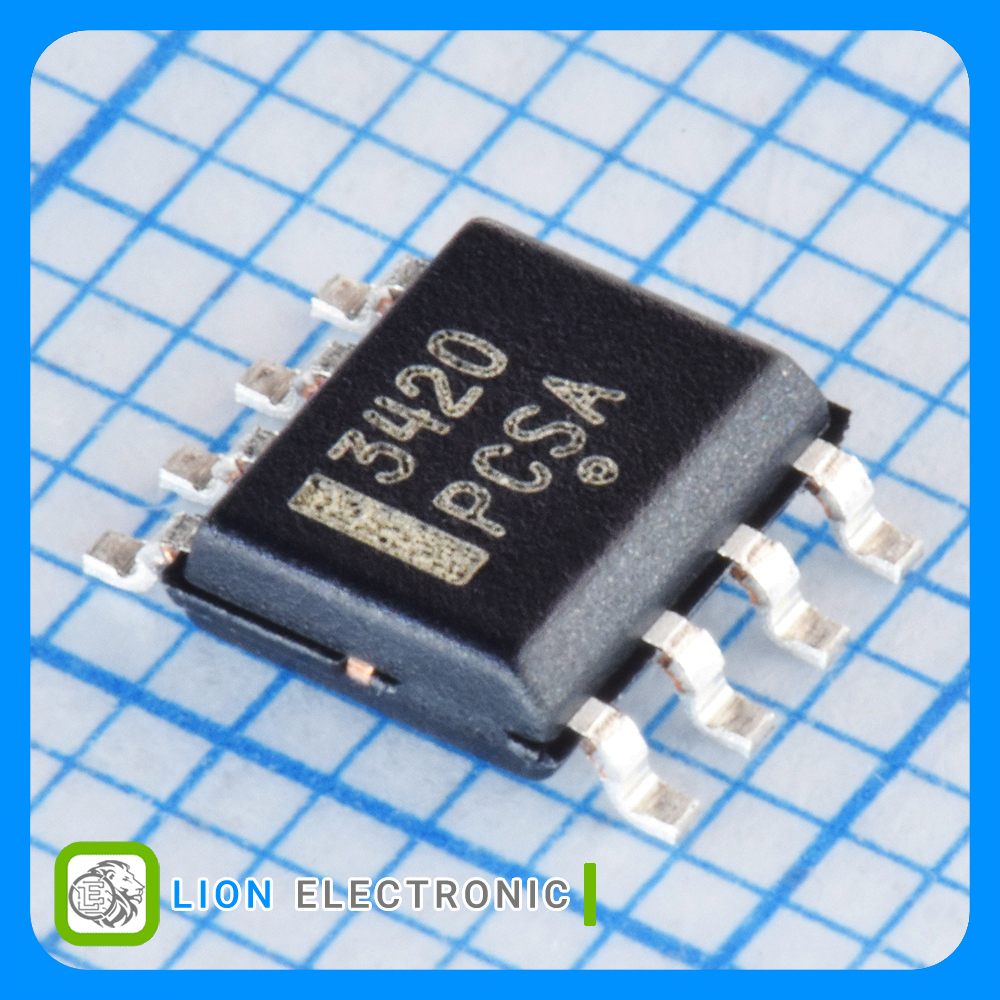

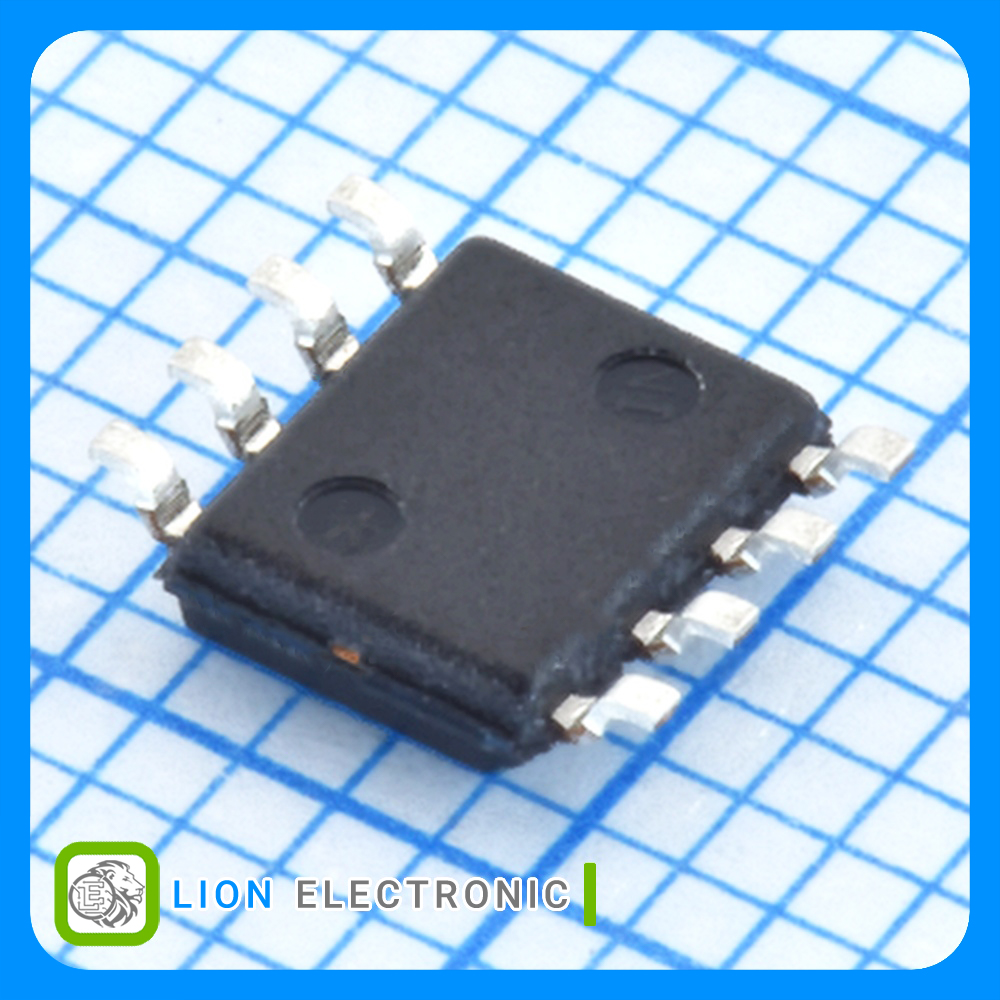

NCP3420DR2G
NCP3420DR2G
Part Number
2742
Lion Part
Datasheet
ON Semiconductor Manufacture
گیت درایور Half-Bridge 13.2 ولت جریان خروجی 6.6 آمپر با پکیج SOIC-8
Half-Bridge Gate Driver 13.2V, 6.6A with SOIC-8 Package
معرفی
گیت درایور Half-Bridge 13.2 ولت جریان خروجی 6.6 آمپر با پکیج SOIC-8
Half-Bridge Gate Driver 13.2V, 6.6A with SOIC-8 Package
Specifications
- Configuration: Half-Bridge
- Output Current: 6.6A
- Supply Voltage - Min: 4.6V
- Supply Voltage - Max: 13.2V
- Operating Supply Current: 6mA
- Propagation Delay - Max: 45ns
- Floating Voltage: 35V
- Number of Outputs: 2
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +85C
- Packaging: Reel

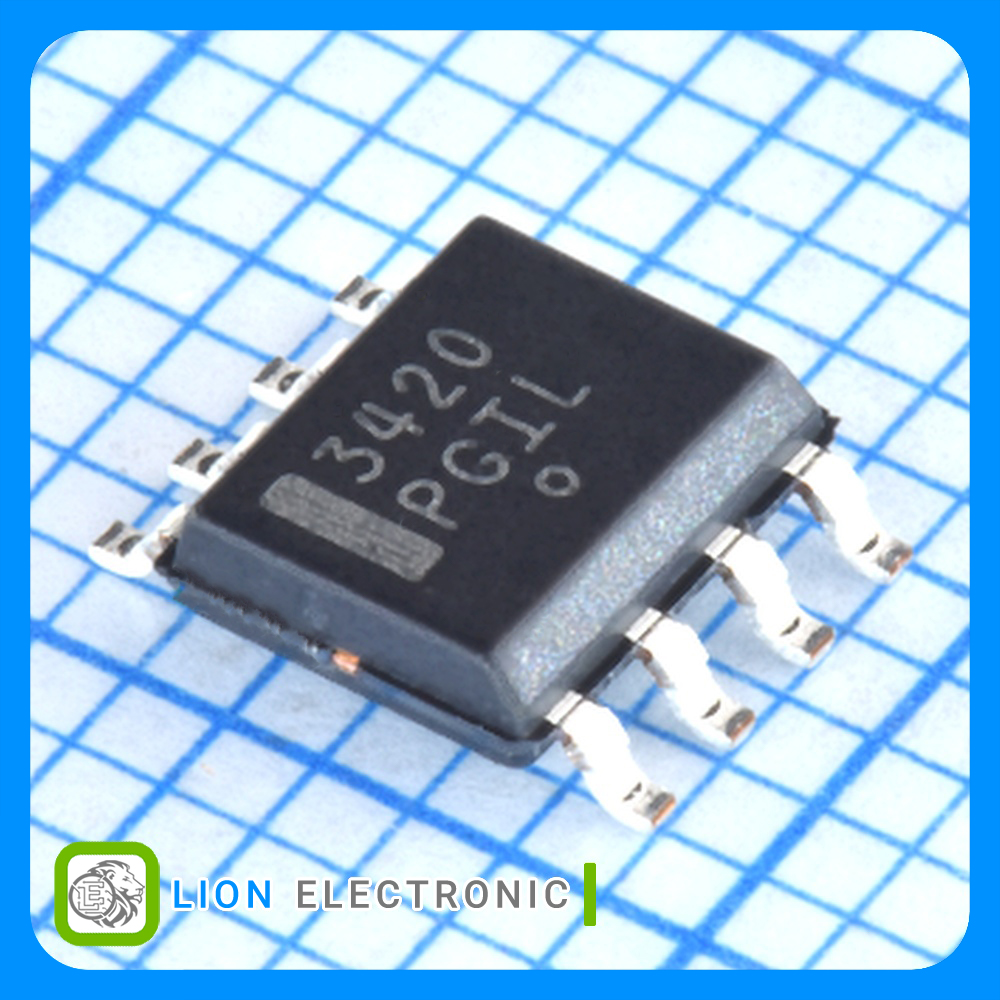

مشخصات 'گیت درایور NCP3420DR2G
'گیت درایور NCP3420DR2G
Part Number
35V
Floating Voltage
2
Number of Outputs
Reel
Packaging
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
N/A
Dead Time
0C
Minimum Operating Temperature
45ns
Propagation Delay - Max
Half-Bridge
Configuration
13.2V
Supply Voltage - Max
4.6V
Supply Voltage - Min
6.6A
Output Current
6mA
Operating Supply Current
N/A
Pd - Power Dissipation
SOIC-8
Package-Case
