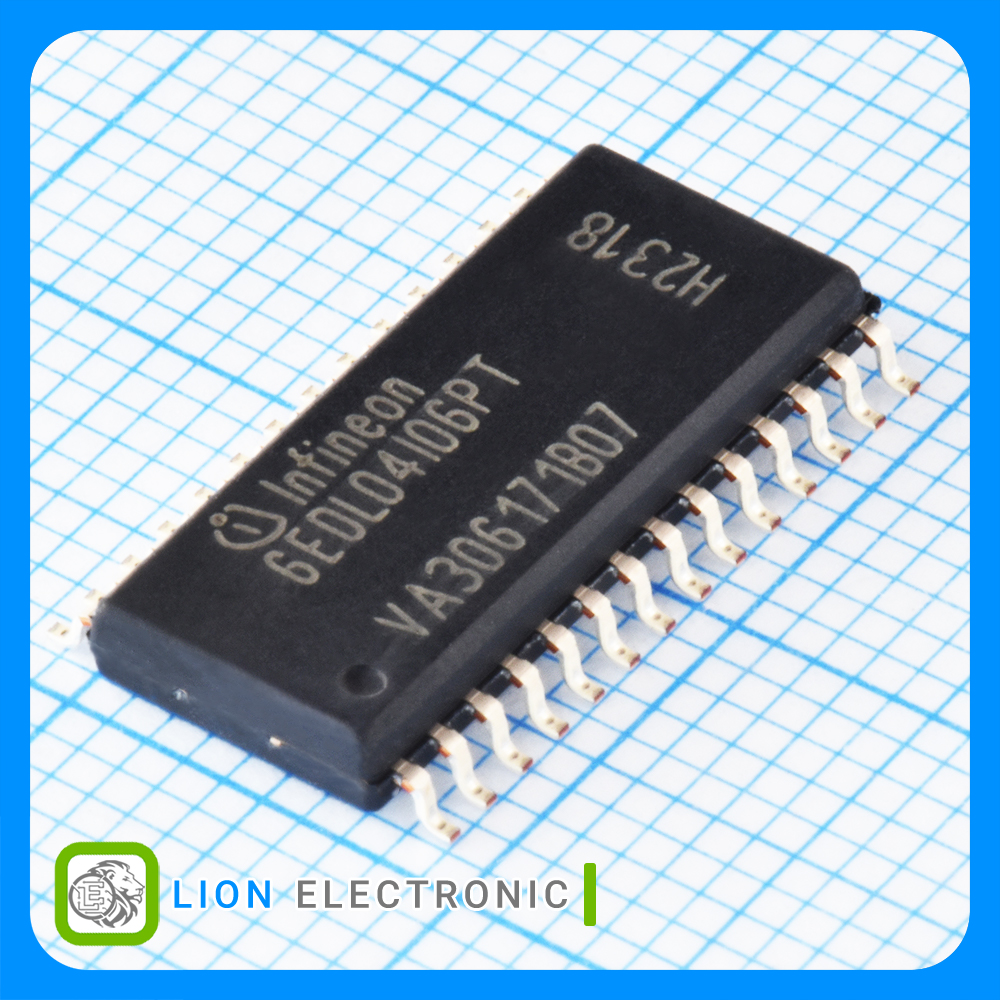

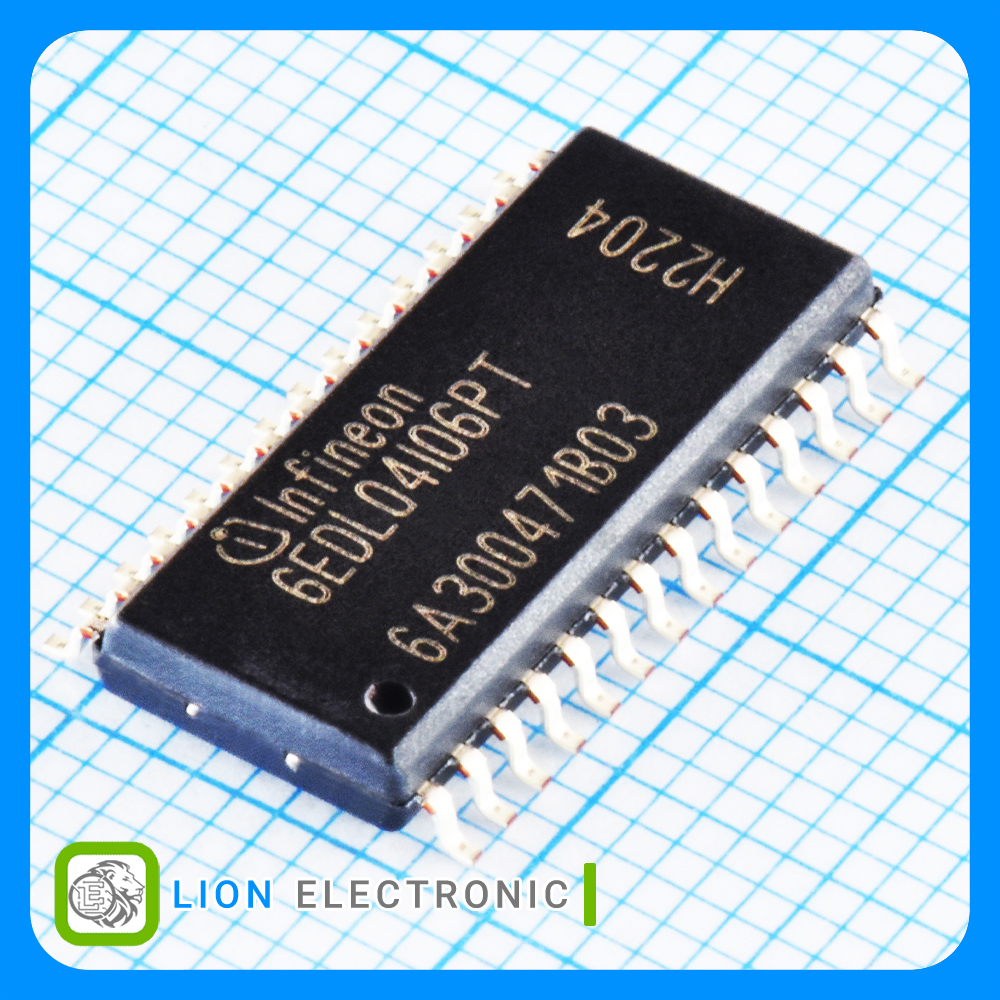

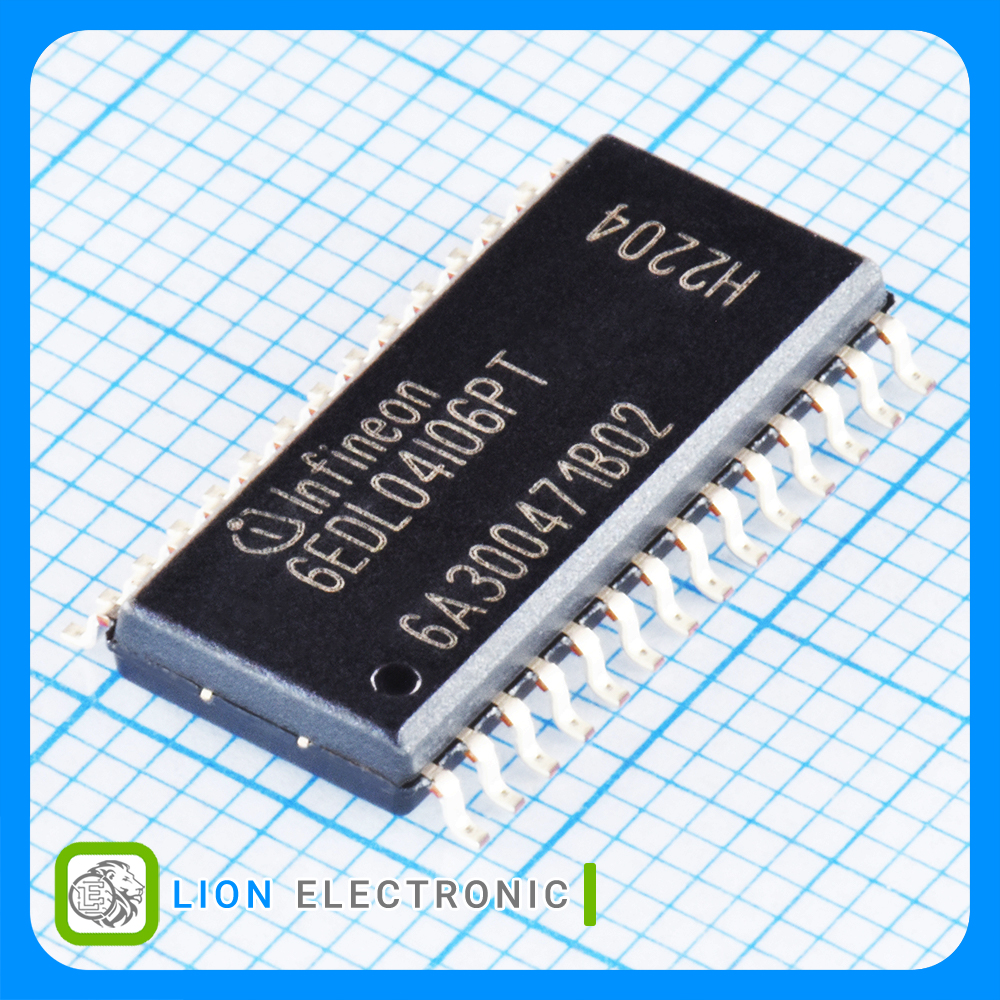

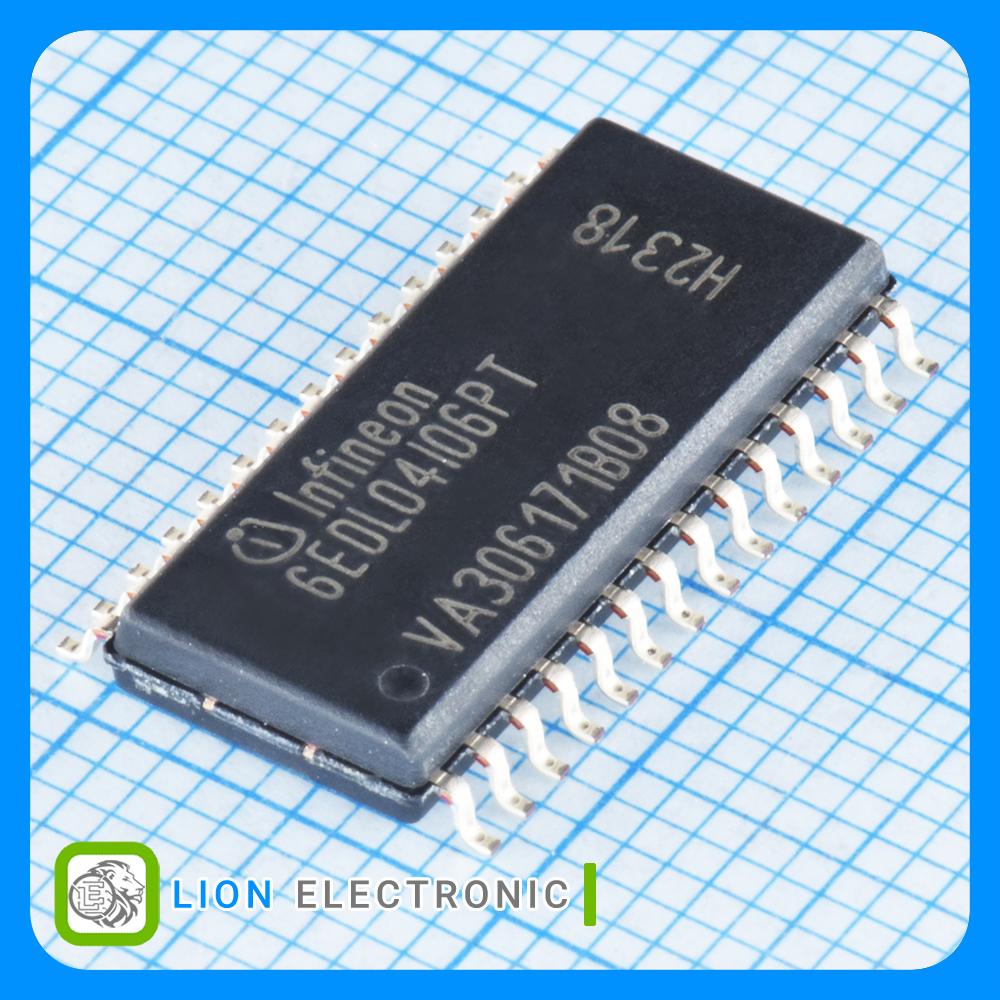

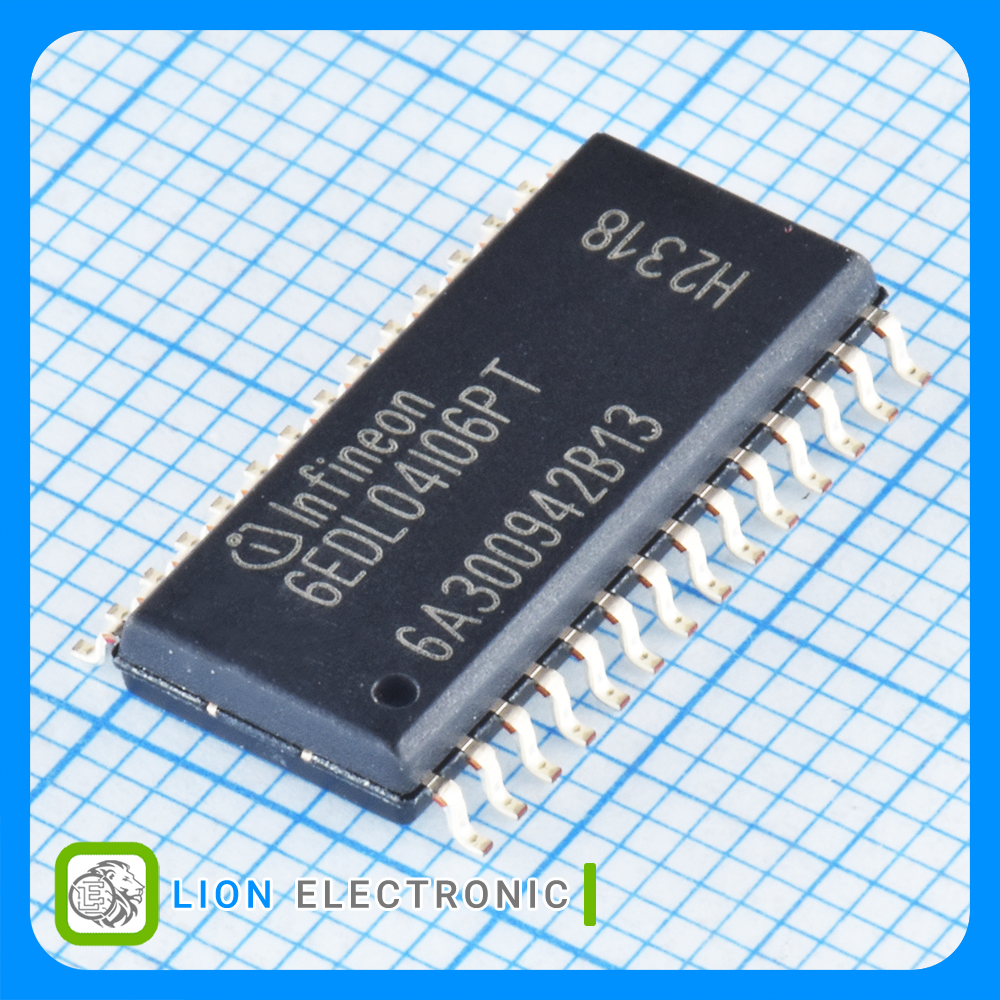

6EDL04I06PT
6EDL04I06PT
Part Number
2754
Lion Part
Datasheet
Infineon Technologies Manufacture
گیت درایور سهفاز ولتاژ شناور 620 ولت جریان خروجی 165 میلیآمپر با پکیج DSO-28
3-Phase Gate Driver, 620V Floating Voltage, 165mA with DSO-28 Package
معرفی
گیت درایور سهفاز ولتاژ شناور 620 ولت جریان خروجی 165 میلیآمپر با پکیج DSO-28
3-Phase Gate Driver, 620V Floating Voltage, 165mA with DSO-28 Package
Specifications
- Configuration: 3-Phase
- Output Current: 165mA
- Supply Voltage - Min: 13V
- Supply Voltage - Max: 17.5V
- Operating Supply Current: 750uA
- Dead Time: 310ns
- Propagation Delay - Max: 800ns
- Pd - Power Dissipation: 1.3W
- Floating Voltage: 620V
- Number of Outputs: 6
- Mounting Style: SMD/SMT
- Package/Case: DSO-28
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات گیت درایور 3 فاز 6EDL04I06PT

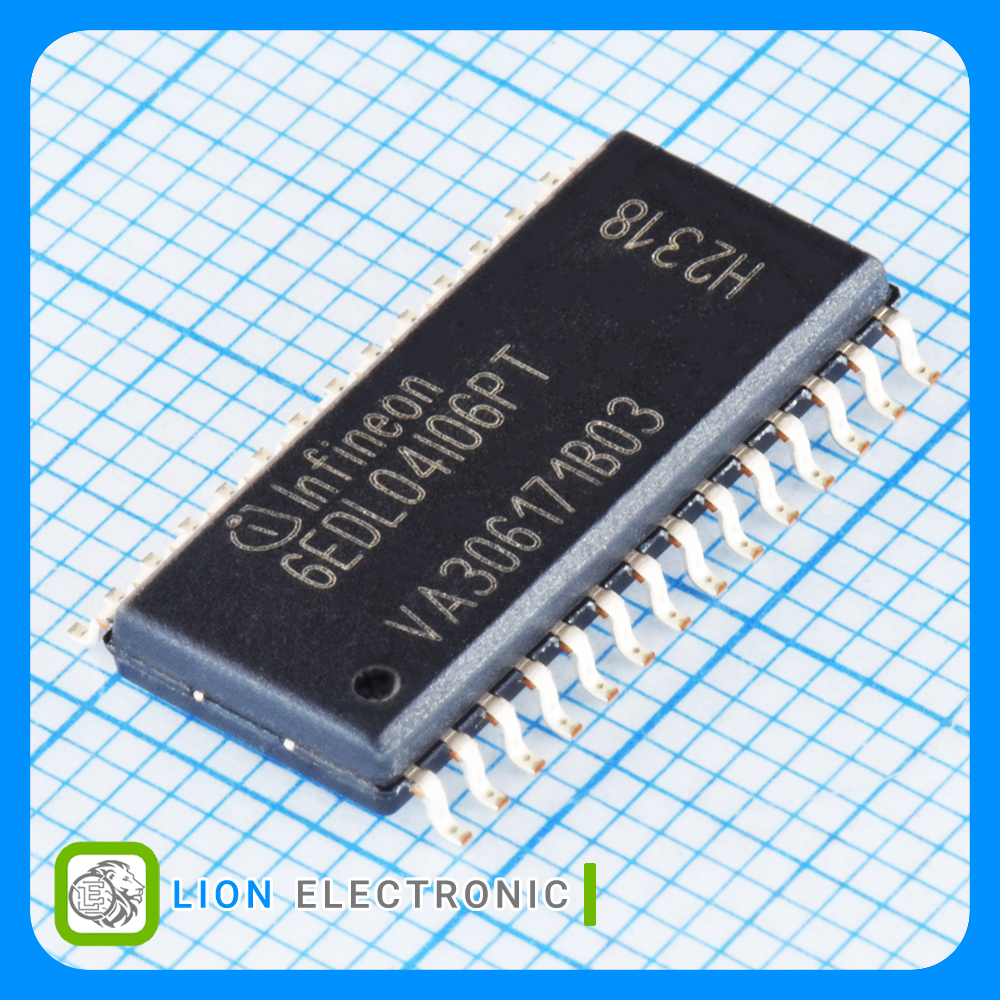

گیت درایور 3 فاز 6EDL04I06PT
Part Number
6
Number of Outputs
310ns
Dead Time
Reel
Packaging
-40C
Minimum Operating Temperature
620V
Floating Voltage
SMD/SMT
Mounting Style
3-Phase
Configuration
+105C
Maximum Operating Temperature
165mA
Output Current
800ns
Propagation Delay - Max
17.5V
Supply Voltage - Max
1.3W
Pd - Power Dissipation
13V
Supply Voltage - Min
750uA
Operating Supply Current
DSO-28
Package-Case
