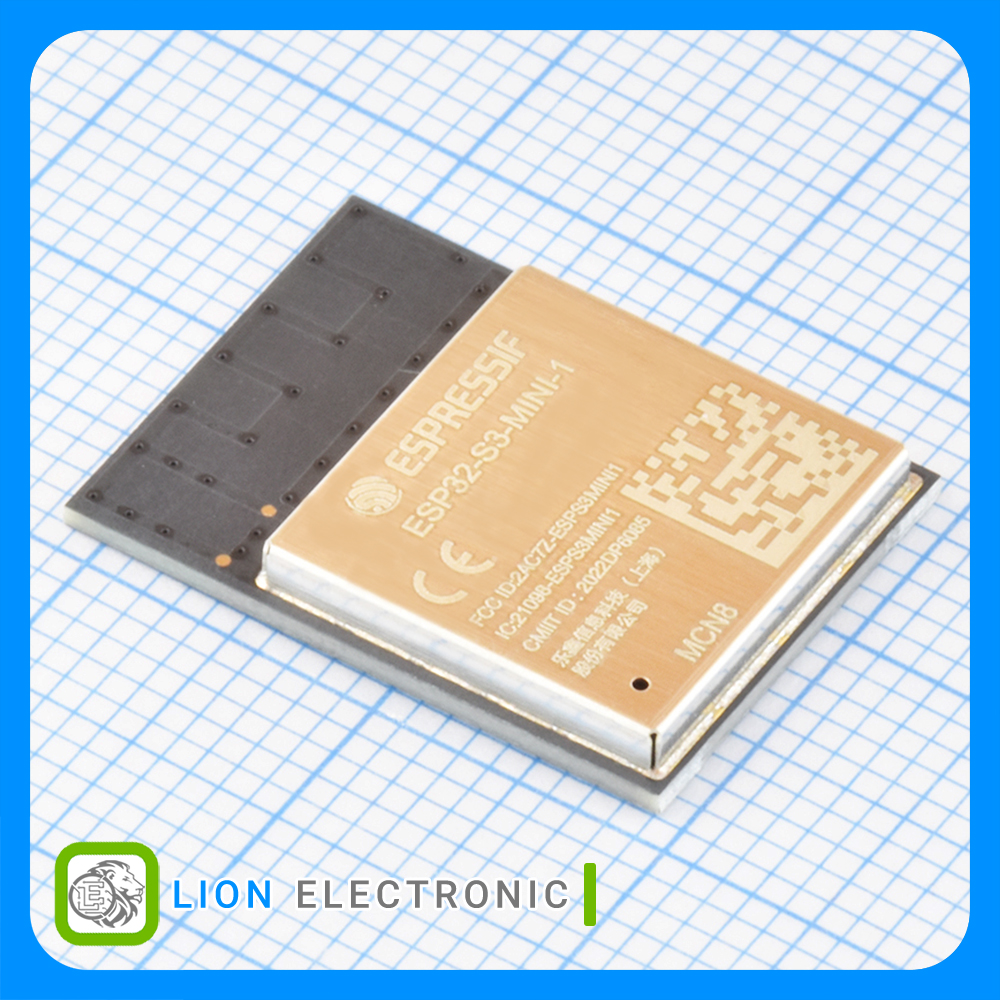

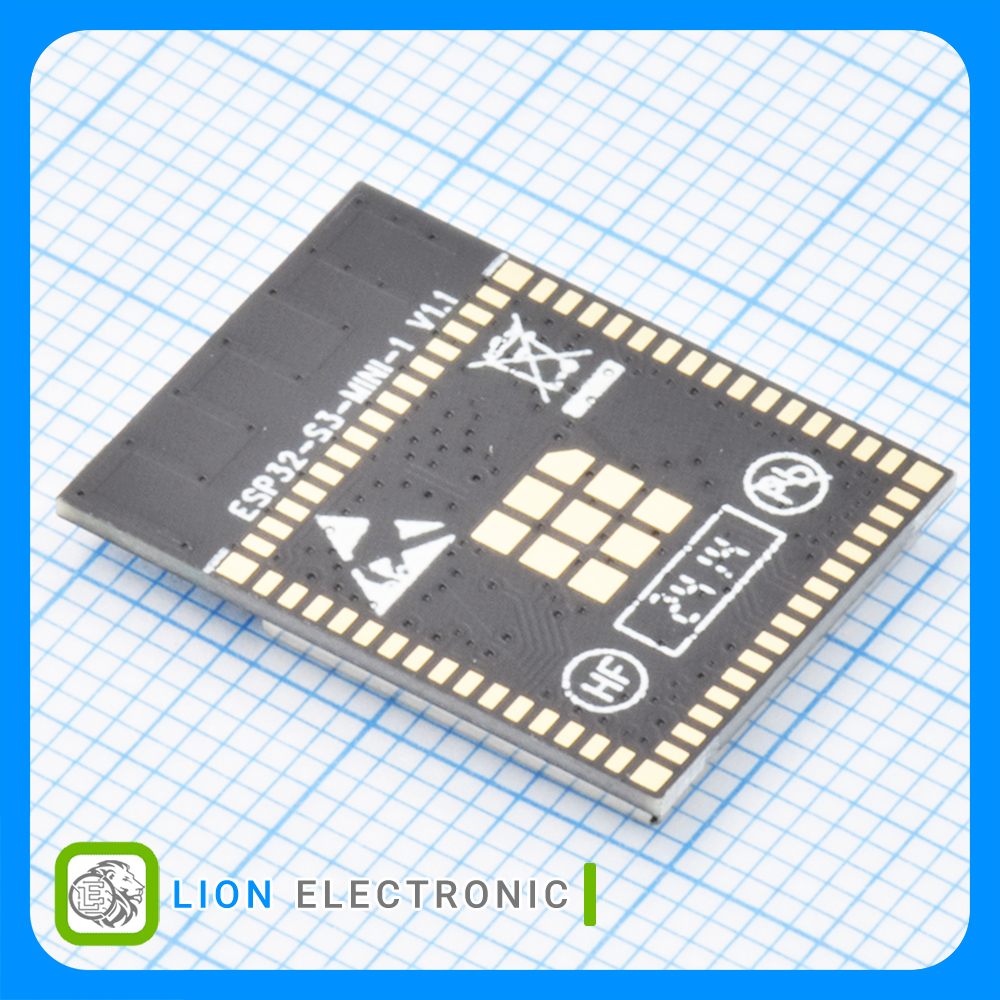

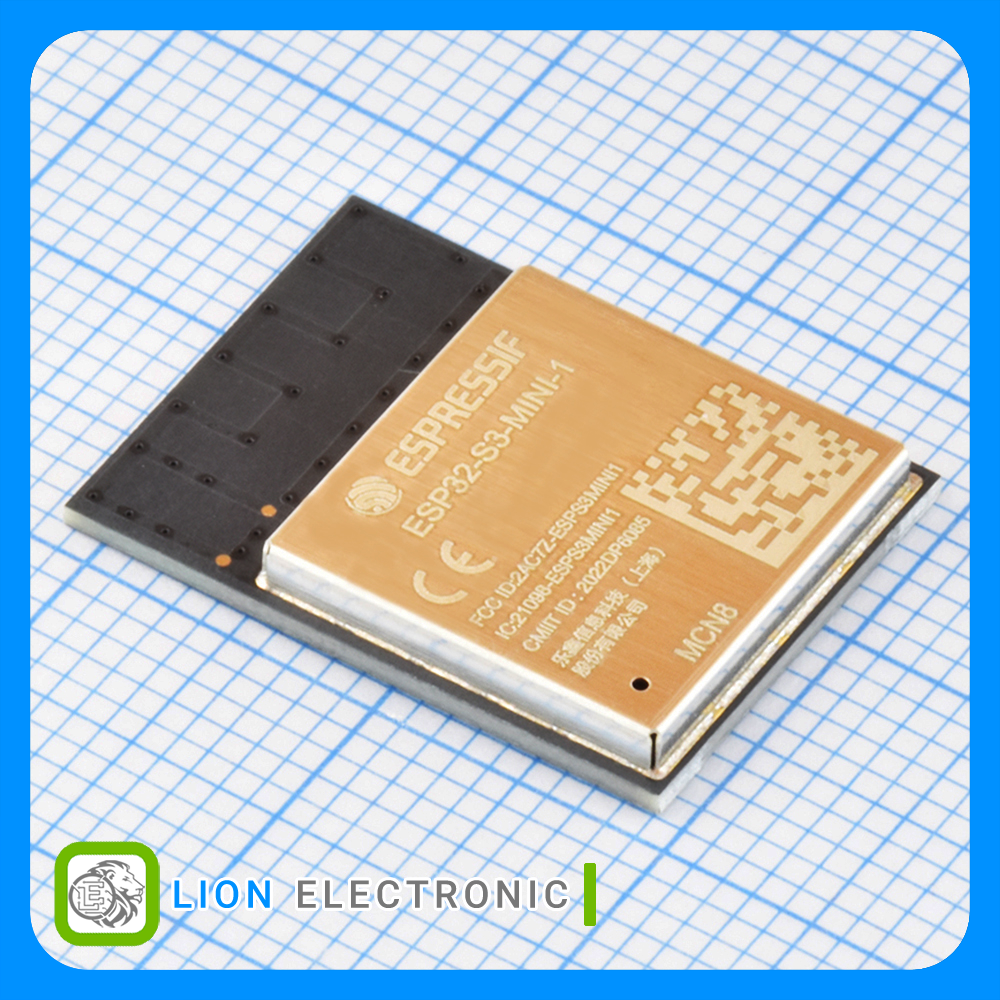

ماژول وای فای و بلوتوث ESP32-S3-MINI-1-N8

Part Number
ESP32-S3-MINI-1-N8
Lion Part
2759
Manufacturer
Description

Small-Sized Module Supporting 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)

8MB Quad SPI Flash

On­board PCB Antenna

39GPIOs

موجودی محصول
37
Full Reel: 650

در صورت کمبود موجودی محصول می توانید آنرا به لیست استعلام اضافه نمایید تا توسط کارشناسان واحد سفارشات خارجی بررسی شده و نتیجه به شما اطلاع داده شود

قیمت محصول
تعداد قیمت
1 3,507,638 ریال
10 3,407,420 ریال
50 3,332,256 ریال
معرفی

CPU and On-Chip Memory
• ESP32-S3 embedded, Xtensa dual-core 32bit LX7 microprocessor, up to 240MHz
• 384KB ROM
• 512KB SRAM
• 16KB SRAM in RTC
• 8MB Quad SPI flash

Wi-Fi
• 802.11 b/g/n
• Bit rate: 802.11n up to 150Mbps
• A-MPDU and A-MSDU aggregation
• 0.4µs guard interval support
• Center frequency range of operating channel: 2412 ~ 2484MHz

Bluetooth
• Bluetooth LE: Bluetooth 5, Bluetooth mesh
• Speed: 125Kbps, 500Kbps, 1Mbps, 2Mbps
• Advertising extensions
• Multiple advertisement sets
• Channel selection algorithm #2
• Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna

Peripherals
• GPIO, SPI, LCD interface, Camera interface, UART, I2C, I2S, remote control, pulse counter, LED PWM, USB 1.1 OTG, USB Serial/JTAG controller, MCPWM, SDIO host, GDMA, TWAI controller (compatible with ISO 11898-1, i.e. CAN Specification 2.0), ADC, touch sensor, temperature sensor, timers and watchdogs

Integrated Components on Module
• 40MHz crystal oscillator

Antenna Options
• On-board PCB antenna (ESP32-S3-MINI-1)

Operating Conditions
• Operating voltage/Power supply: 3.0 ~ 3.6V
• Operating ambient temperature: –40 ~ 85°C

مشخصات ماژول وای فای و بلوتوث ESP32-S3-MINI-1-N8

  • Part Number
    ماژول وای فای و بلوتوث ESP32-S3-MINI-1-N8
  • Packaging
    Reel
  • Minimum Operating Temperature
    -40C
  • Antenna Connector Type
    PCB
  • Maximum Operating Temperature
    +85C
  • Dimensions
    15.4mm x 20.5mm
  • Number of I-Os
    39
  • Supply Current Transmitting
    285mA, 286mA, 297mA, 355mA
  • Supply Current Receiving
    95mA, 97mA
  • Frequency
    240MHz
  • Output Power
    17dBm, 17.5dBm, 18dBm, 18.5dBm, 19dBm, 20.5dBm
  • Operating Supply Voltage
    3 - 3.6V
  • Product
    Wi-Fi & Bluetooth (LE) & MCU Module
  • Interface Type
    درج شده در توضیحات محصول
