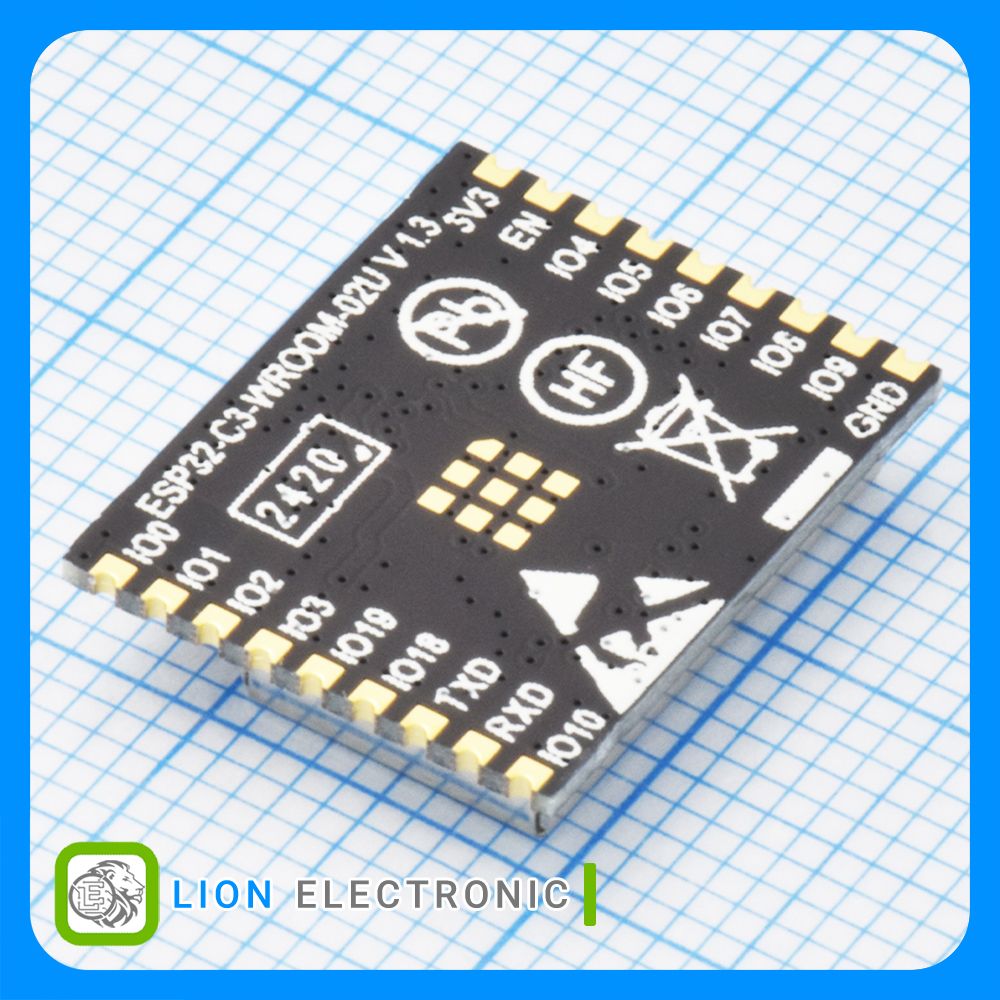

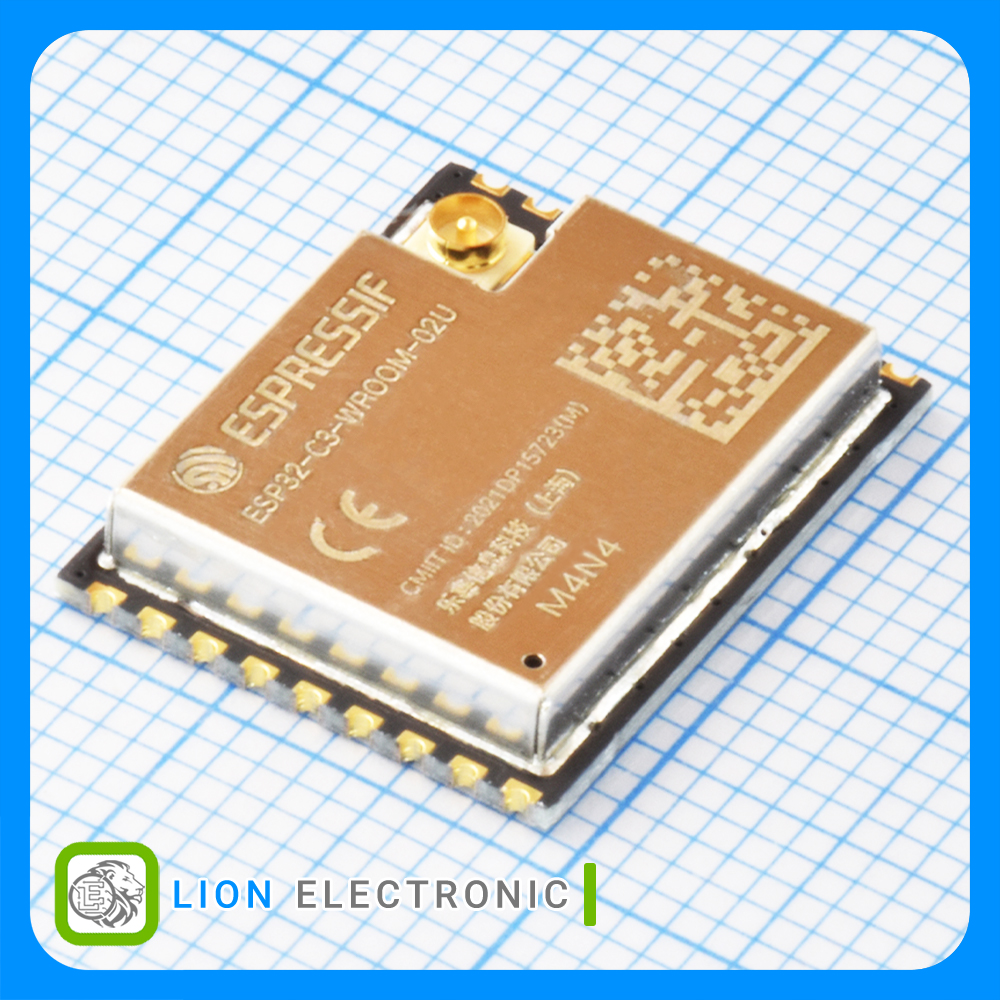

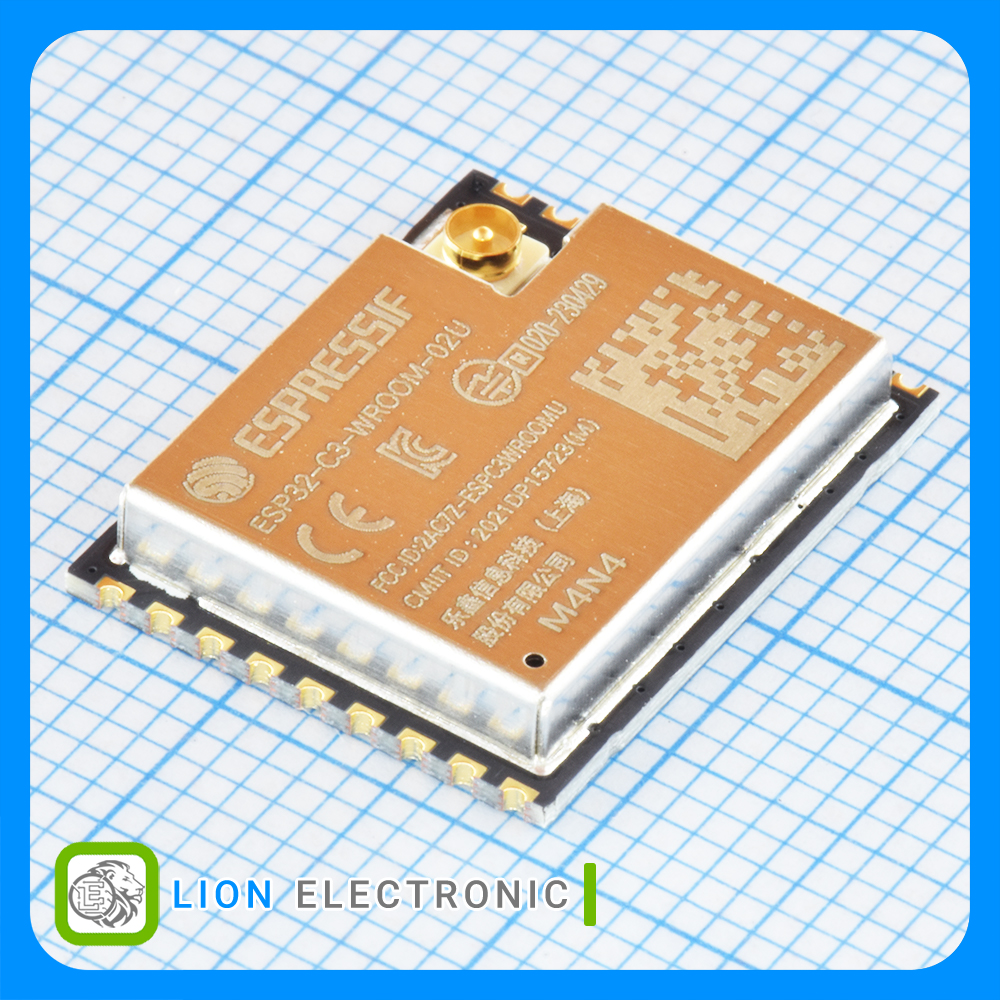

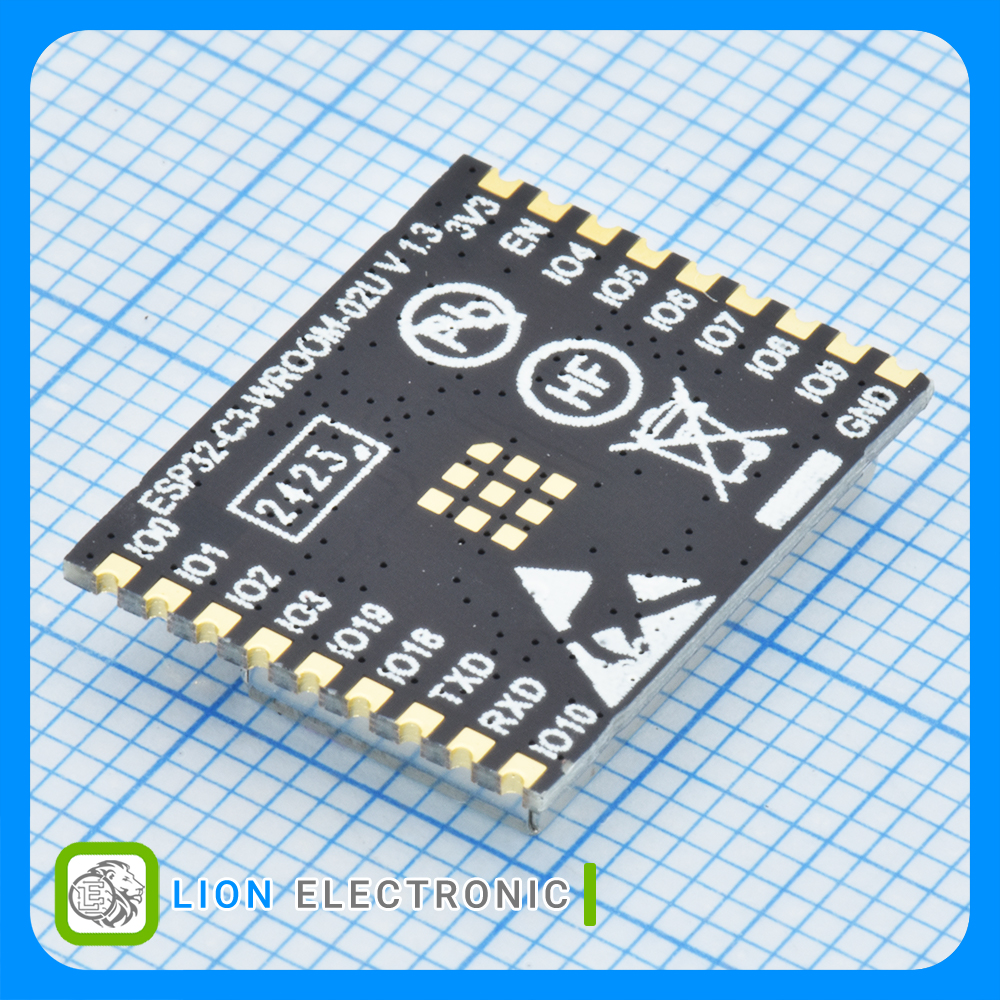

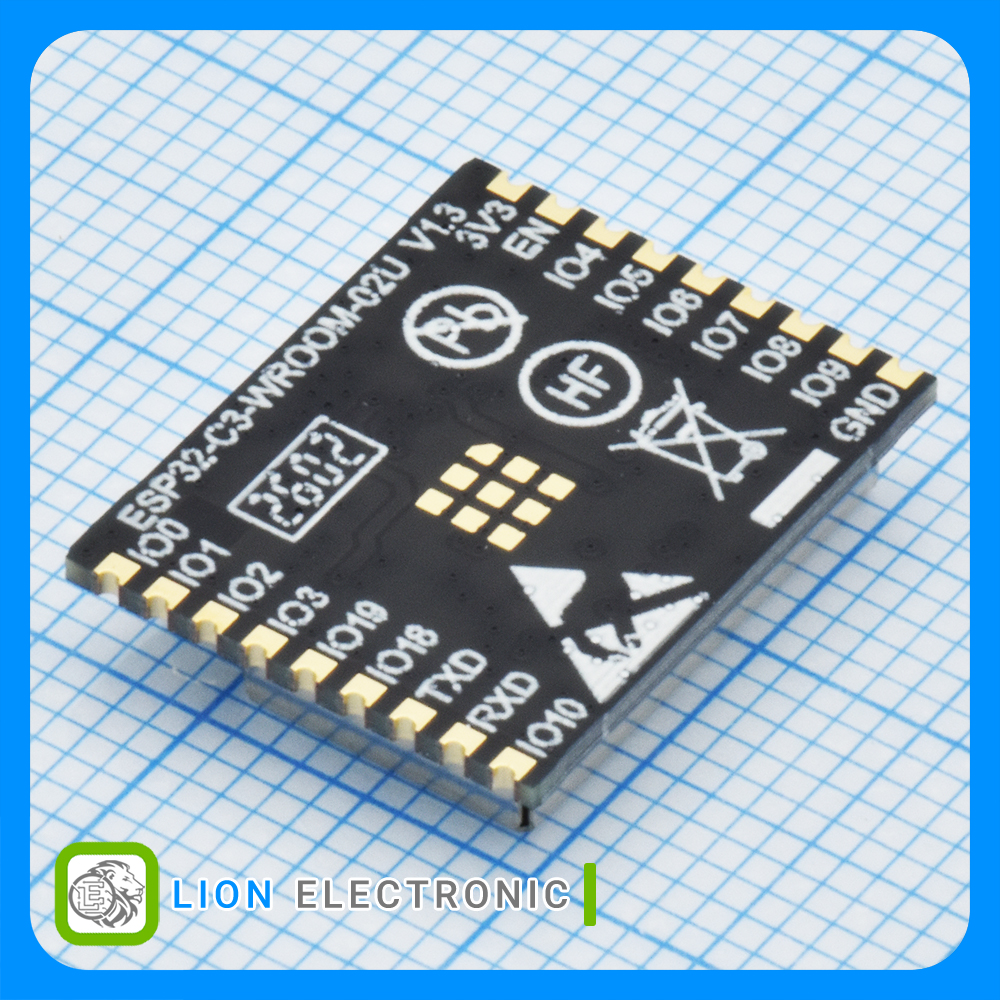

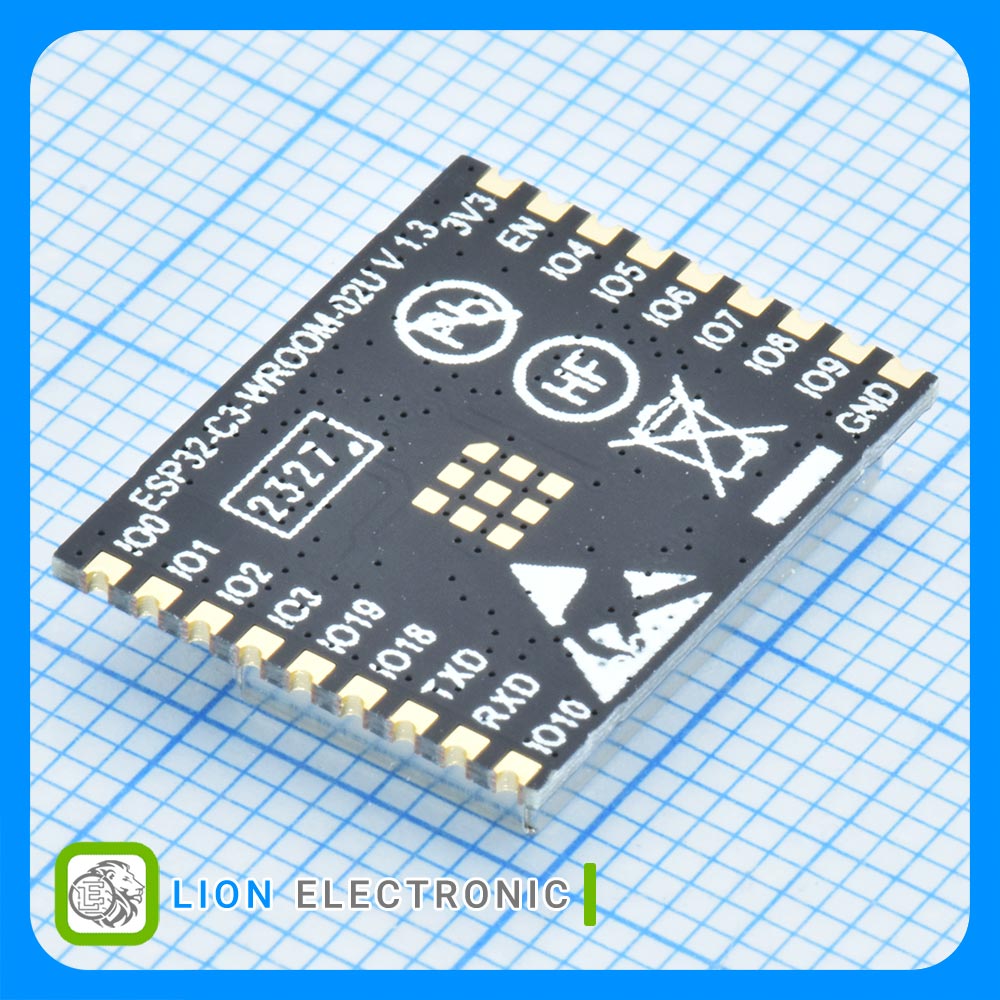

ماژول وای فای و بلوتوث ESP32-C3-WROOM-02U-N4

ماژول وای فای و بلوتوث ESP32-C3-WROOM-02U-N4

Part Number
ESP32-C3-WROOM-02U-N4
Datasheet
Manufacturer
Espressif
Espressif
Description

2.4GHz Wi­Fi (802.11 b/g/n) and Bluetooth 5 Module

4MB Quad SPI Flash

External Antenna Connector

15GPIOs

موجودی محصول
51

در صورت کمبود موجودی محصول می توانید آنرا به لیست استعلام اضافه نمایید تا توسط کارشناسان واحد سفارشات خارجی بررسی شده و نتیجه به شما اطلاع داده شود

قیمت محصول
تعداد قیمت
1 1,335,312 ریال
10 1,315,530 ریال
50 1,295,747 ریال
معرفی

CPU and On­Chip Memory
• ESP32-C3 embedded, 32-bit RISC-V single-core processor, up to 160 MHz
• 384 KB ROM
• 400 KB SRAM (16 KB for cache)
• 8 KB SRAM in RTC

Wi­Fi
• IEEE 802.11 b/g/n-compliant
• Center frequency range of operating channel: 2412 ~ 2484 MHz
• Supports 20 MHz, 40 MHz bandwidth in 2.4 GHz band
• 1T1R mode with data rate up to 150 Mbps
• Wi-Fi Multimedia (WMM)
• TX/RX A-MPDU, TX/RX A-MSDU
• Immediate Block ACK
• Fragmentation and defragmentation
• Transmit opportunity (TXOP)
• Automatic Beacon monitoring (hardware TSF)
• 4 × virtual Wi-Fi interfaces
• Simultaneous support for Infrastructure BSS in Station mode, SoftAP mode, Station + SoftAP mode, and promiscuous mode

• 802.11mc FTM

Bluetooth®
• Bluetooth LE: Bluetooth 5, Bluetooth mesh
• Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
• Advertising extensions
• Multiple advertisement sets
• Channel selection algorithm #2
• Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna

Peripherals
• GPIO, SPI, UART, I2C, I2S, remote control peripheral, LED PWM controller, general DMA controller, TWAI® controller (compatible with ISO 11898-1, i.e. CAN Specification 2.0), USB Serial/JTAG controller, temperature sensor, SAR ADC, general-purpose timers, watchdog timers

Integrated Components on Module
• 40 MHz crystal oscillator
• SPI flash


Antenna Options
• On-board PCB antenna (ESP32-C3-WROOM-02)
• External antenna via a connector (ESP32-C3-WROOM-02U)

Operating Conditions
• Operating voltage/Power supply: 3.0 ~ 3.6 V

• Operating ambient temperature: –40 ~ 85 °C

مشخصات ماژول وای فای و بلوتوث ESP32-C3-WROOM-02U-N4

  • Part Number
    ماژول وای فای و بلوتوث ESP32-C3-WROOM-02U-N4
  • Antenna Connector Type
    IPEX
  • Packaging
    Reel
  • Minimum Operating Temperature
    -40C
  • Maximum Operating Temperature
    +85C
  • Dimensions
    14.3mm x 18mm
  • Supply Current Transmitting
    280mA, 285mA, 345mA
  • Supply Current Receiving
    82mA, 84mA
  • Frequency
    2.412GHz to 2.484GHz
  • Output Power
    17dBm, 17.5dBm, 18dBm, 18.5dBm, 19dBm, 20.5dBm
  • Operating Supply Voltage
    3V to 3.6V
  • Product
    Wi-Fi & Bluetooth (LE) & MCU Module
  • Interface Type
    درج شده در توضیحات محصول
