Espressif
معرفی
CPU and OnChip Memory
• ESP32-S2FH4 or ESP32-S2FN4R2 embedded, Xtensa single-core 32-bit LX7 microprocessor, up to 240MHz
• 128KB ROM
• 320KB SRAM
• 16KB SRAM in RTC
• 4MB embedded flash
WiFi
• 802.11 b/g/n
• Bit rate: 802.11n up to 150Mbps
• A-MPDU and A-MSDU aggregation
• 0.4µs guard interval support
• Operating frequency: 2412 ~ 2484MHz
Peripherals
• GPIO, SPI, LCD, UART, I2C, I2S, Camera interface, IR, pulse counter, LED PWM, TWAI (compatible with ISO 11898-1, i.e. CAN Specification 2.0), full-speed USB OTG, ADC, DAC, touch sensor, temperature sensor
• 40MHz crystal oscillator
Antenna Options
• On-board PCB antenna (ESP32-S2-MINI-1)
Operating Conditions
• Operating voltage/Power supply: 3.0 ~ 3.6V
• Operating ambient temperature: –40 ~ 85°C
مشخصات ماژول وای فای ESP32-S2-MINI-1-N4

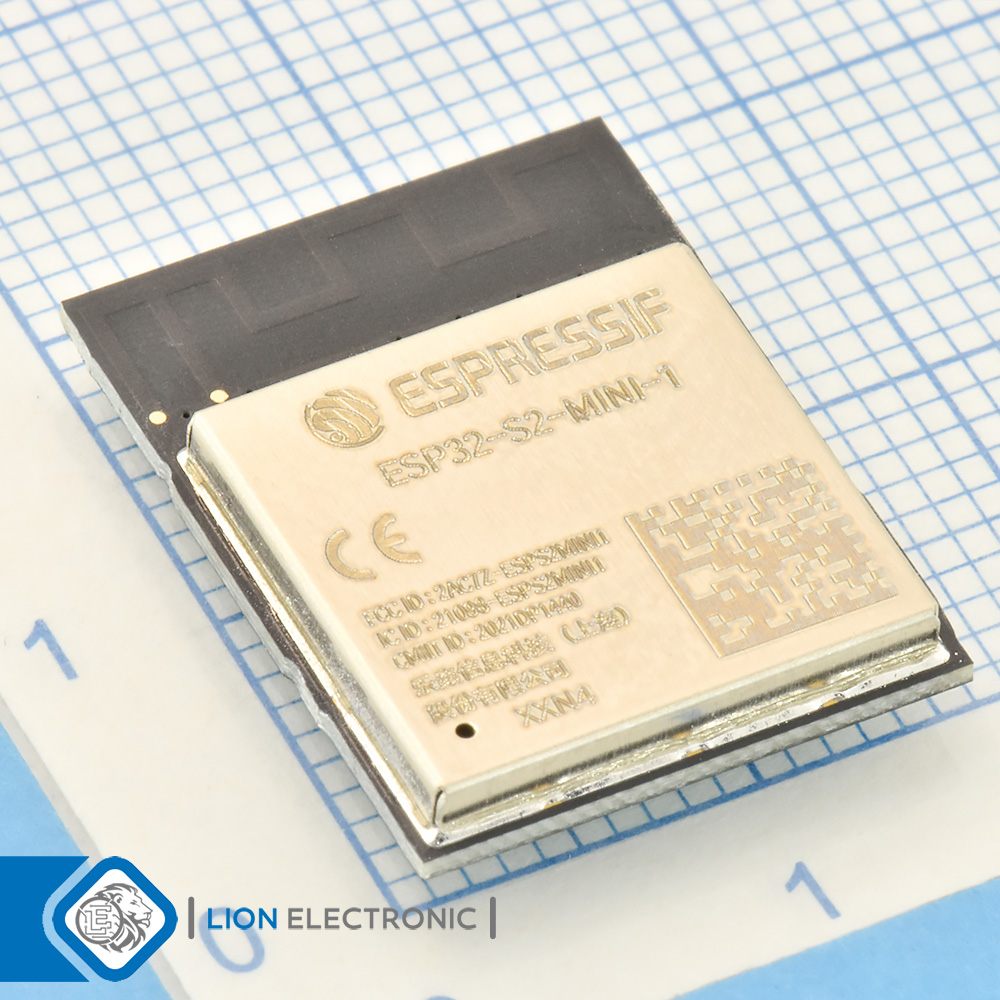

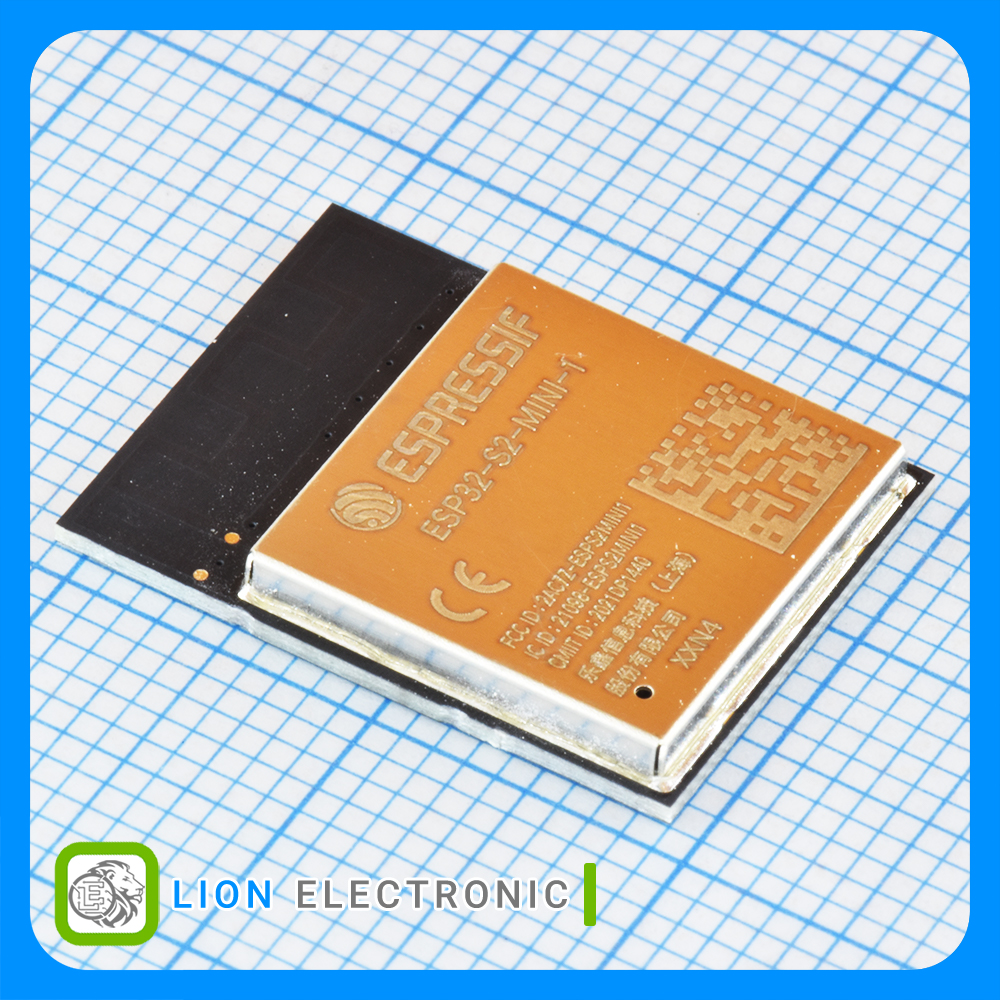

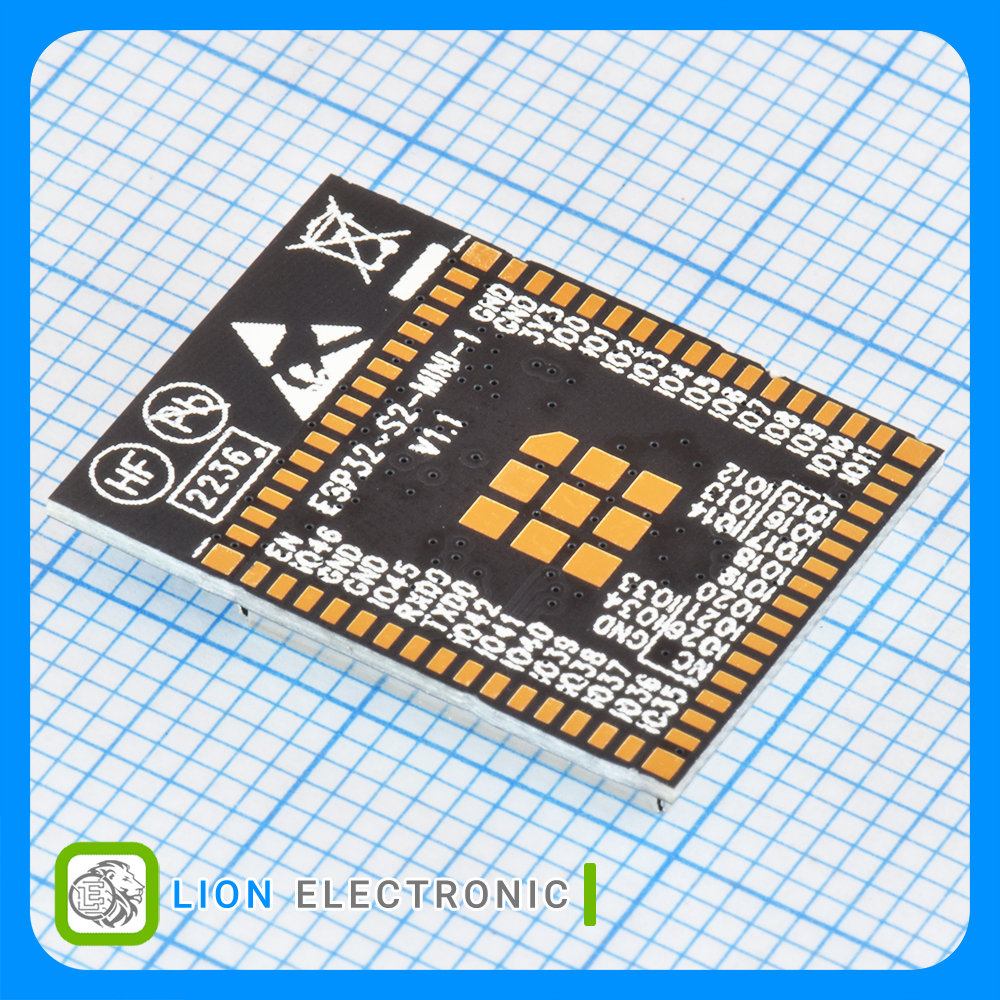

ماژول وای فای ESP32-S2-MINI-1-N4
Part Number
Reel
Packaging
-40C
Minimum Operating Temperature
PCB
Antenna Connector Type
+85C
Maximum Operating Temperature
160mA, 200mA, 220mA, 310mA
Supply Current Transmitting
63mA, 68mA
Supply Current Receiving
15.4mm x 20mm
Dimensions
37
Number of I-Os
240MHz
Frequency
13.5dBm, 15dBm, 18dBm, 19.5dBm
Output Power
3 - 3.6V
Operating Supply Voltage
Wi-Fi & MCU Module
Product
درج شده در توضیحات محصول
Interface Type
