معرفی
رگولاتور سوئیچینگ باک خروجی 5 ولت 3 آمپر ورودی 3.6 تا 45 ولت با پکیج DPAK
Buck Switching Regulator 5V, 3A Output, 3.6V-45V Input with DPAK Package
Specifications
- Topology: Buck
- Switching Frequency: 150KHz
- Number of Outputs: 1
- Output Voltage: 5V
- Output Current: 3A
- Synchronous Rectification: No
- Input Voltage Min: 3.6V
- Input Voltage Max: 45V
- Mounting Style: SMD/SMT
- Package/Case: DPAK
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات رگولاتور سوئیچینگ TD1507T5

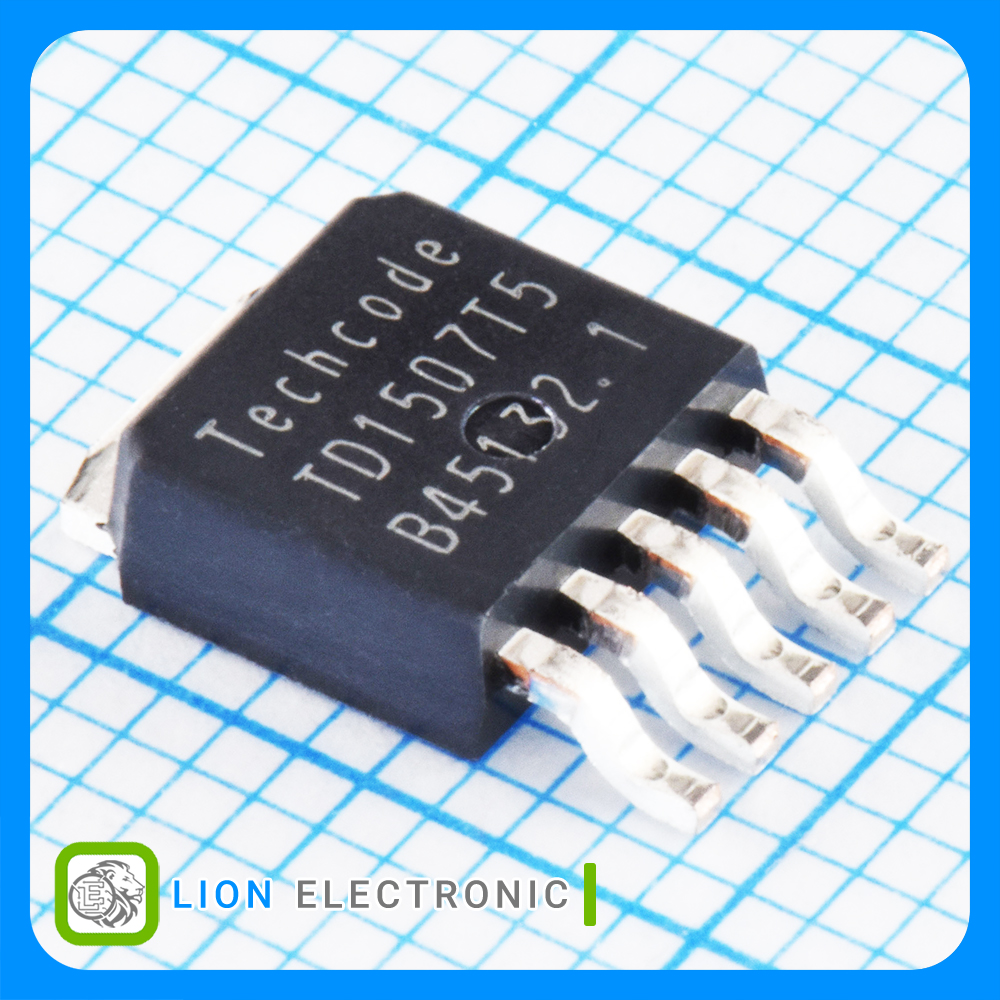

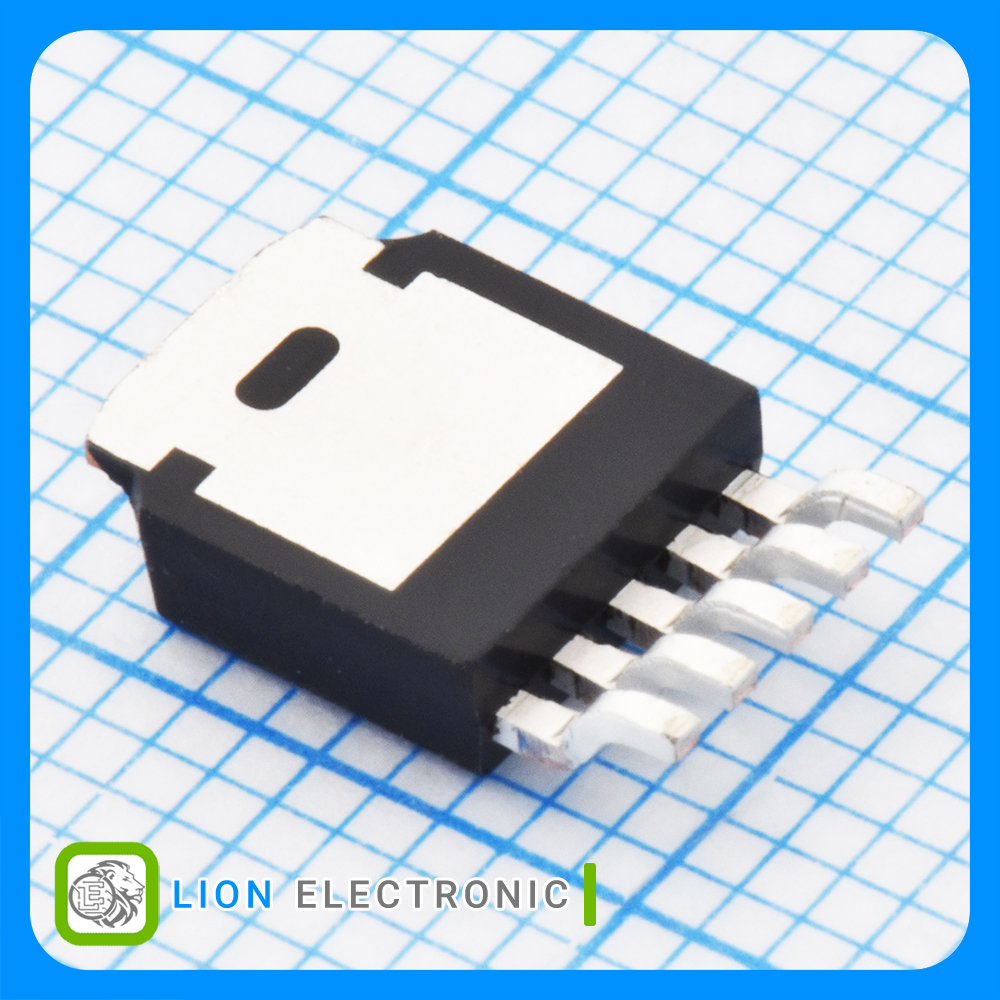

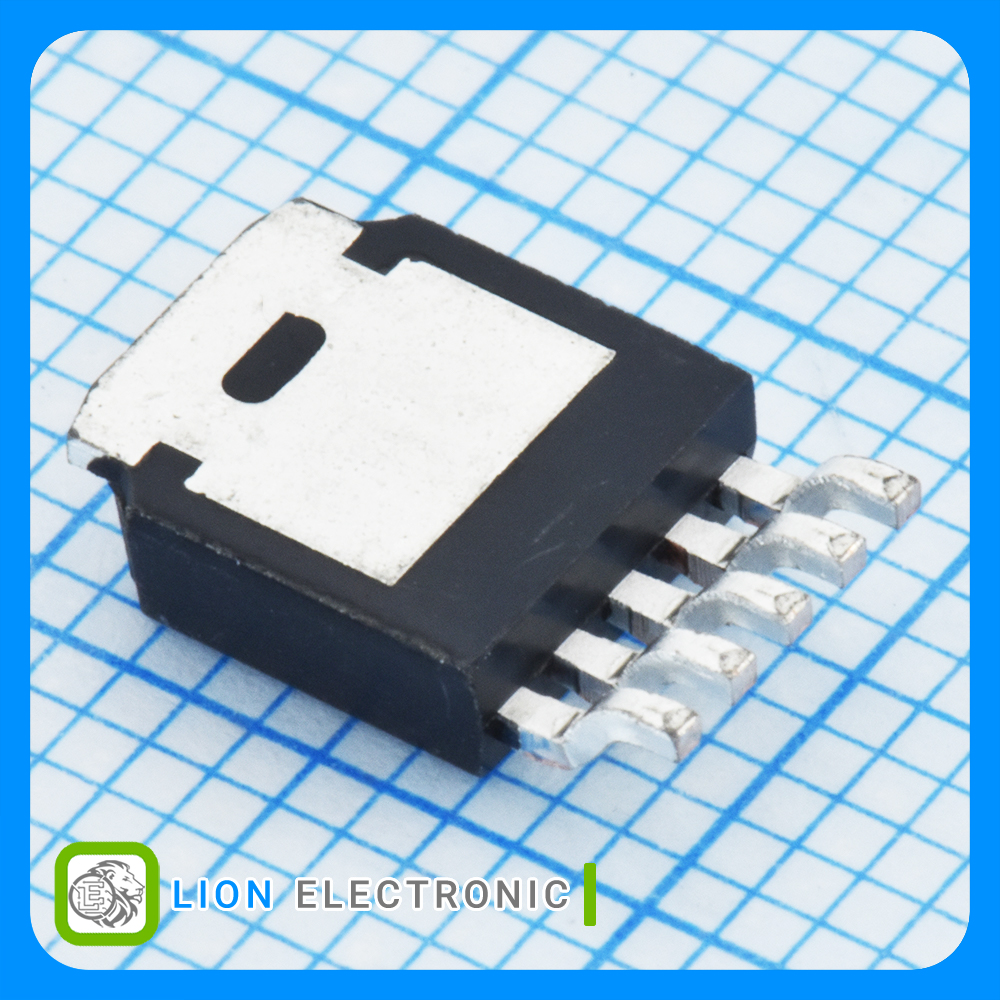

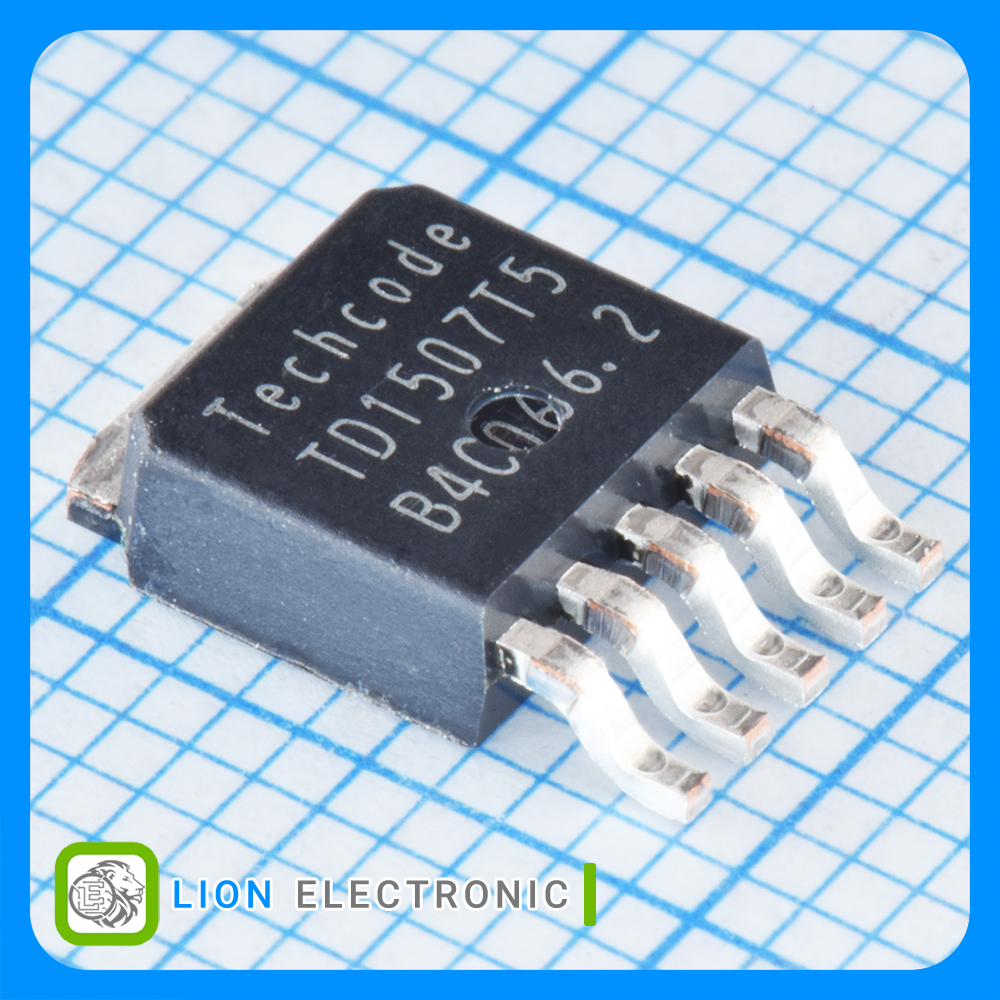

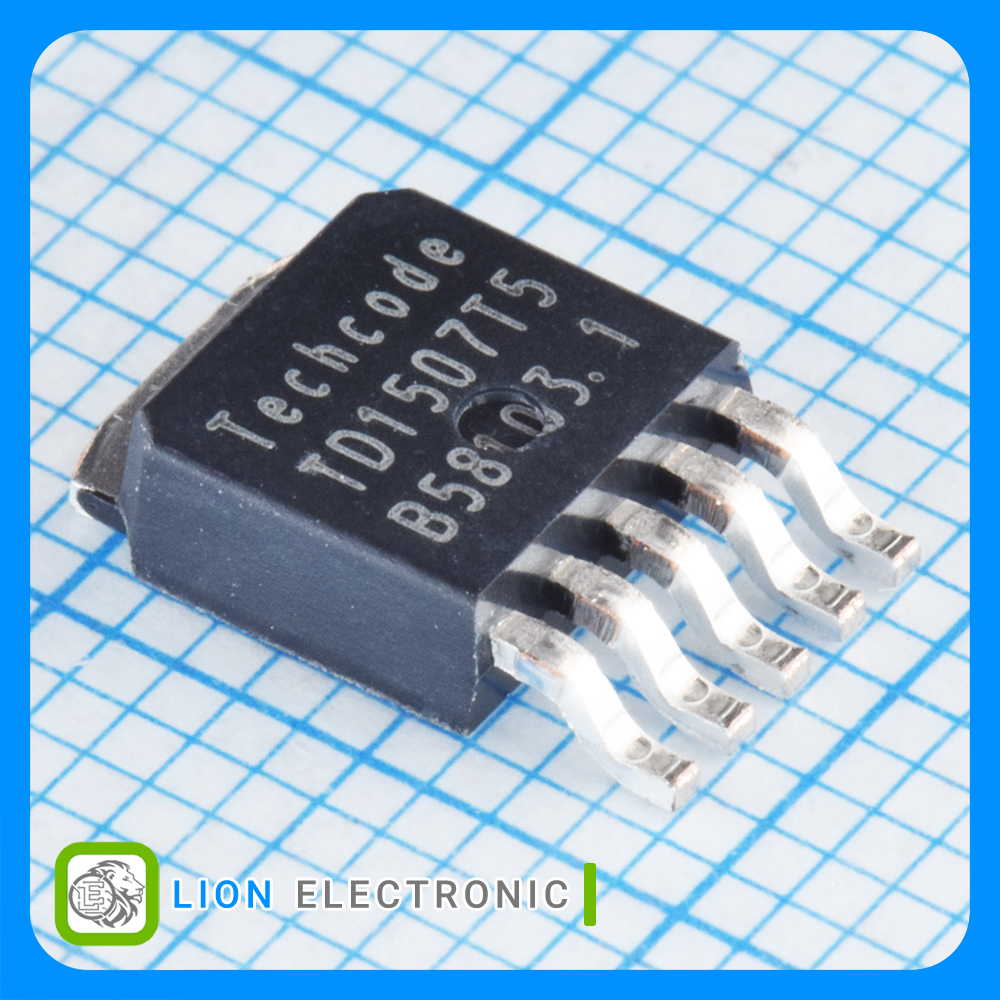

رگولاتور سوئیچینگ TD1507T5
Part Number
No
Synchronous Rectification
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
Buck
Topology
150KHz
Switching Frequency
45V
Input Voltage Max
3.6V
Input Voltage Min
3A
Output Current
DPAK
Package-Case
5V
Output Voltage
