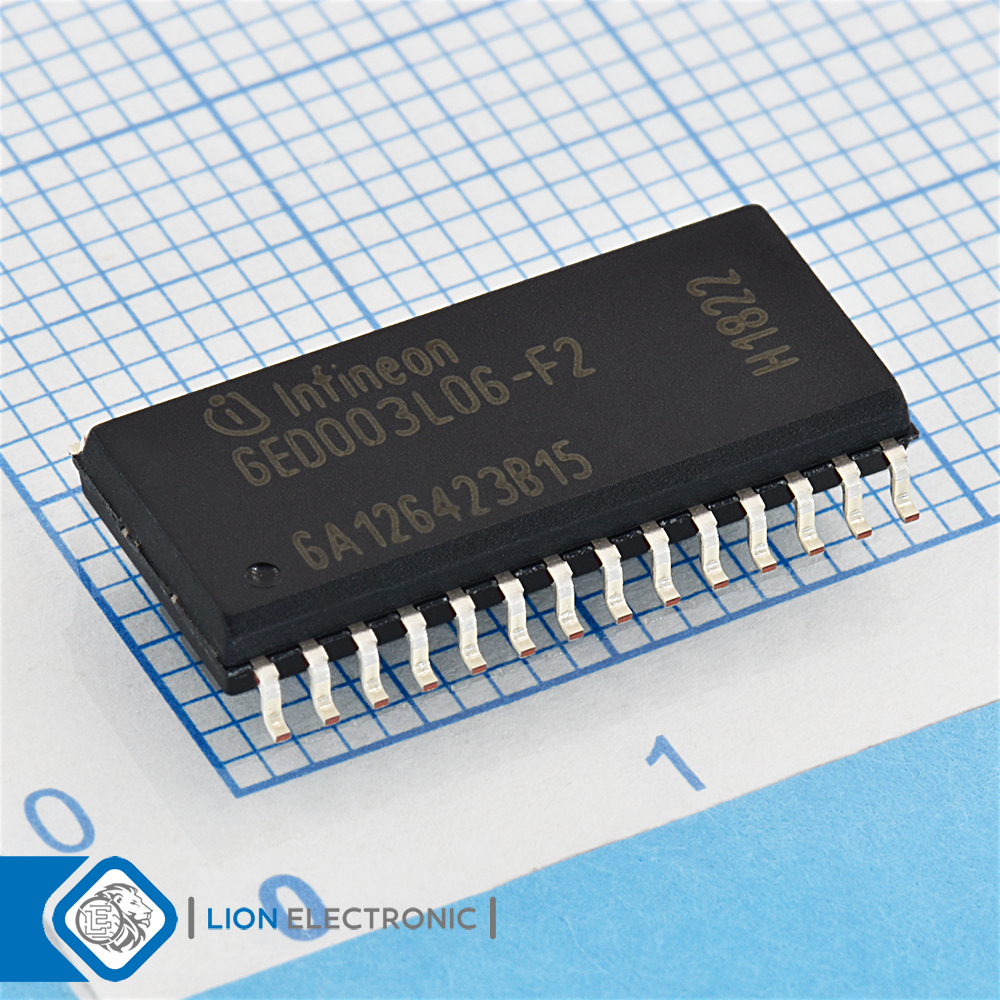

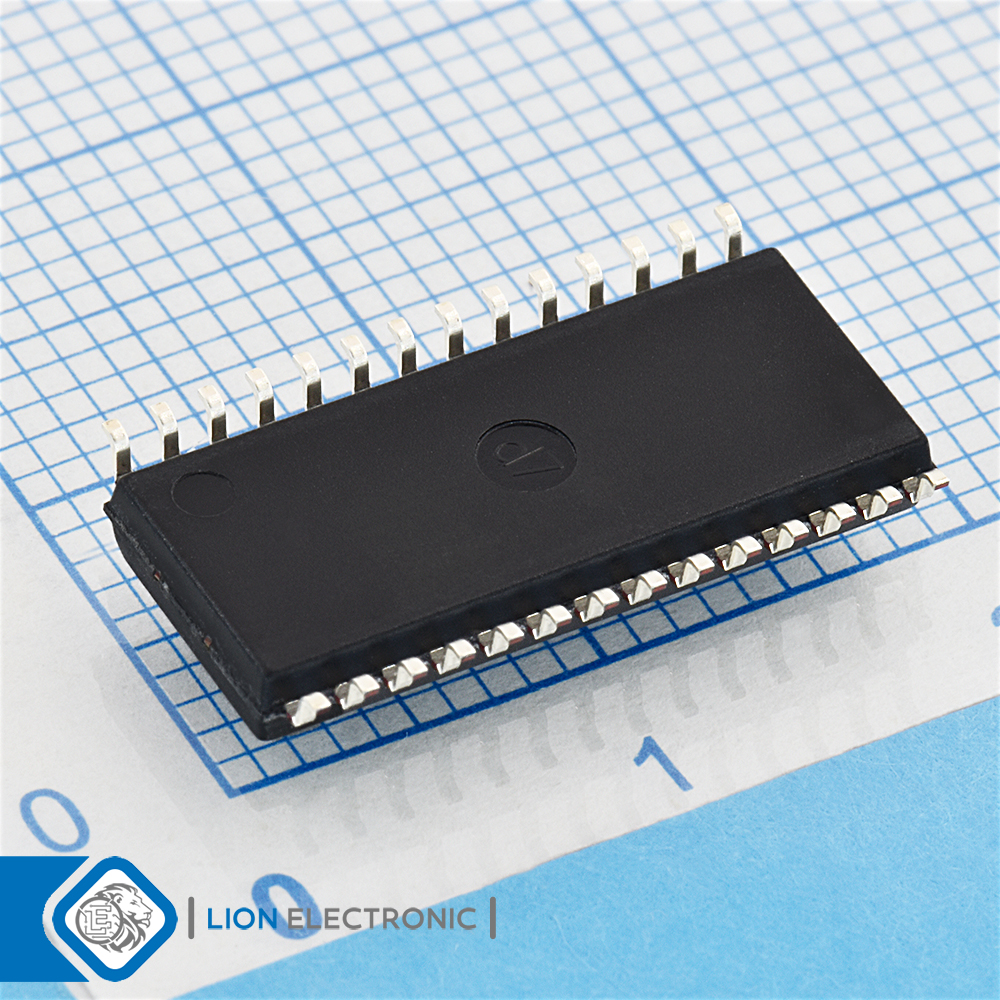

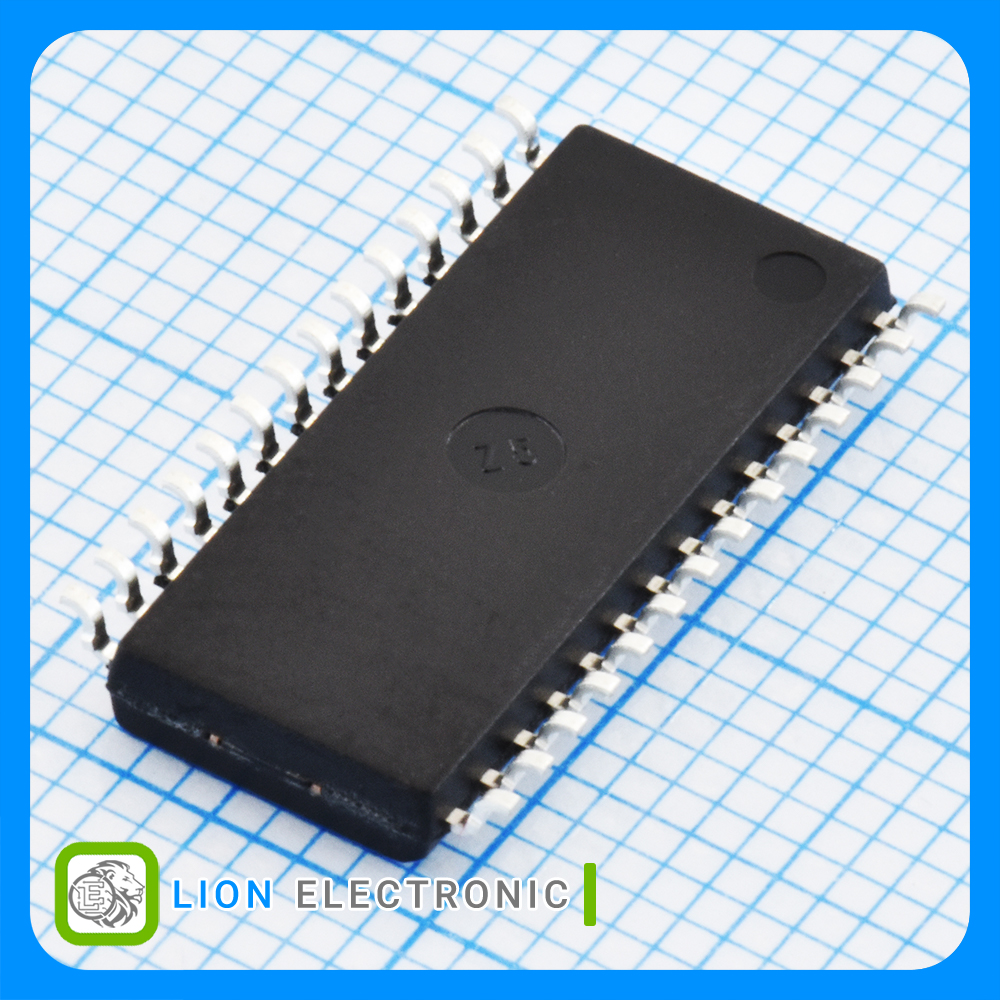

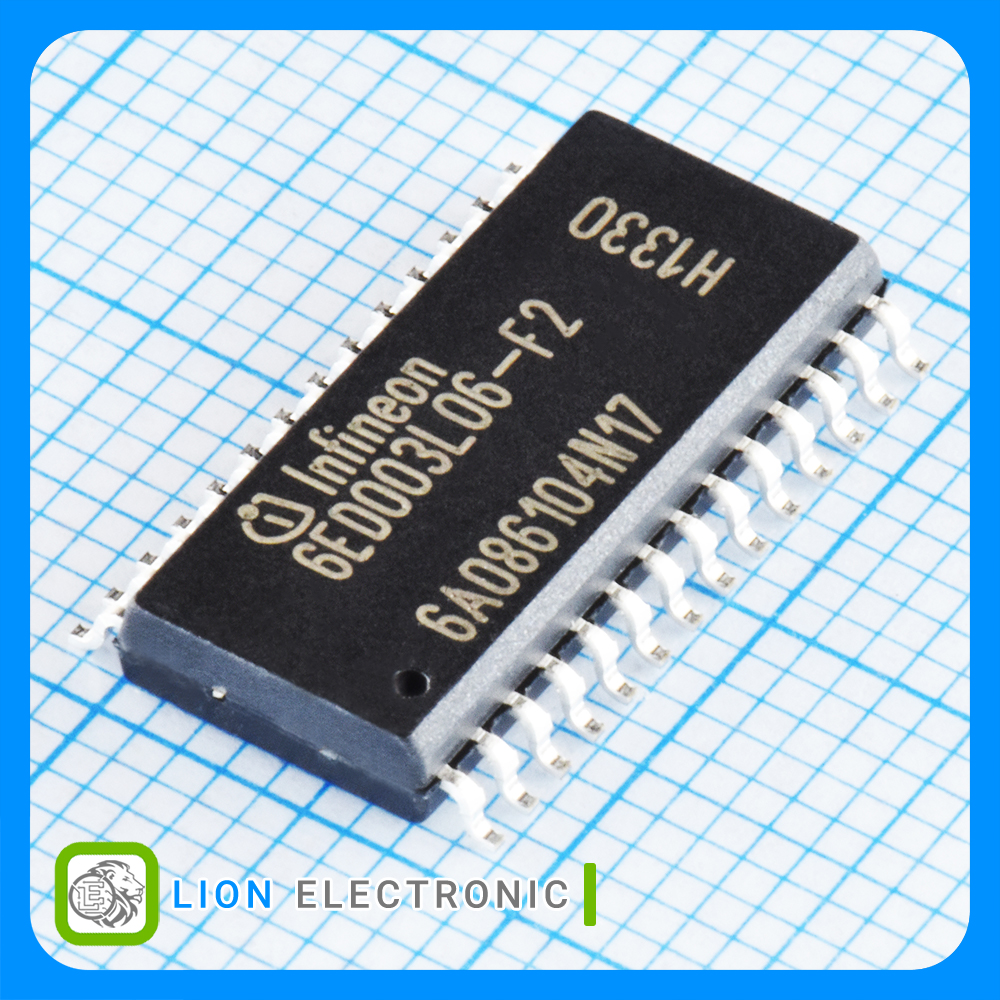

آیسی گیت درایور 6ED003L06-F2
6ED003L06-F2
Part Number
2831
Lion Part
Datasheet
Infineon Technologies Manufacture
گیت درایور 17.5 ولت 165 میلی آمپر با پکیج DSO-28
200V and 600V Three-Phase Gate Driver with Over Current Protection (OCP), Enable (EN) and Fault
مشخصات آیسی گیت درایور 6ED003L06-F2
آیسی گیت درایور 6ED003L06-F2
Part Number
6
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+105C
Maximum Operating Temperature
Inverting
Configuration
26ns
Fall Time
60ns
Rise Time
165mA
Output Current
800ns
Propagation Delay - Max
17.5V
Supply Voltage - Max
High Side,Low Side
Type
IGBT, MOSFET Gate Drivers
Product
1.3W
Pd - Power Dissipation
13V
Supply Voltage - Min
DSO-28
Package-Case
N/A
Operating Supply Current
