Lelon
معرفی
خازن الکترولیت 220 میکروفاراد 16 ولت تلرانس 20% سایز 6.3 میلیمترx7.7 میلیمتر

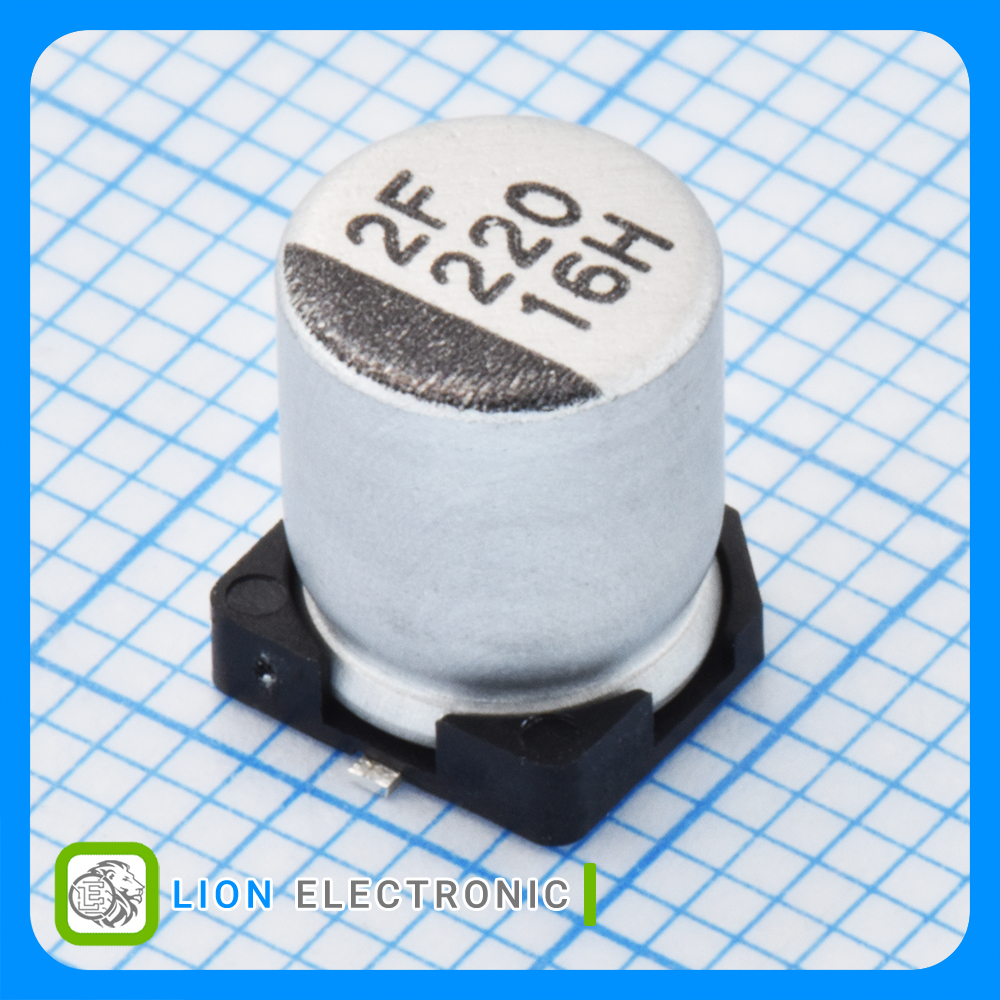

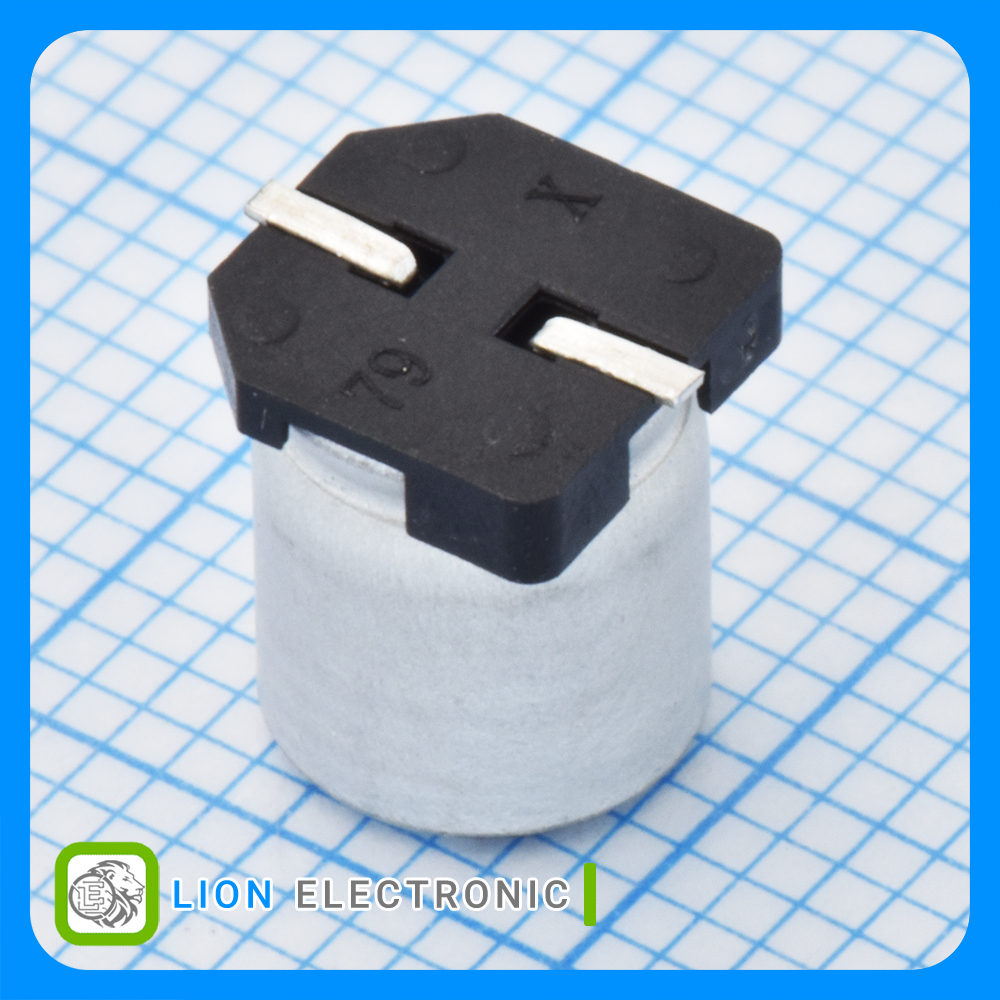

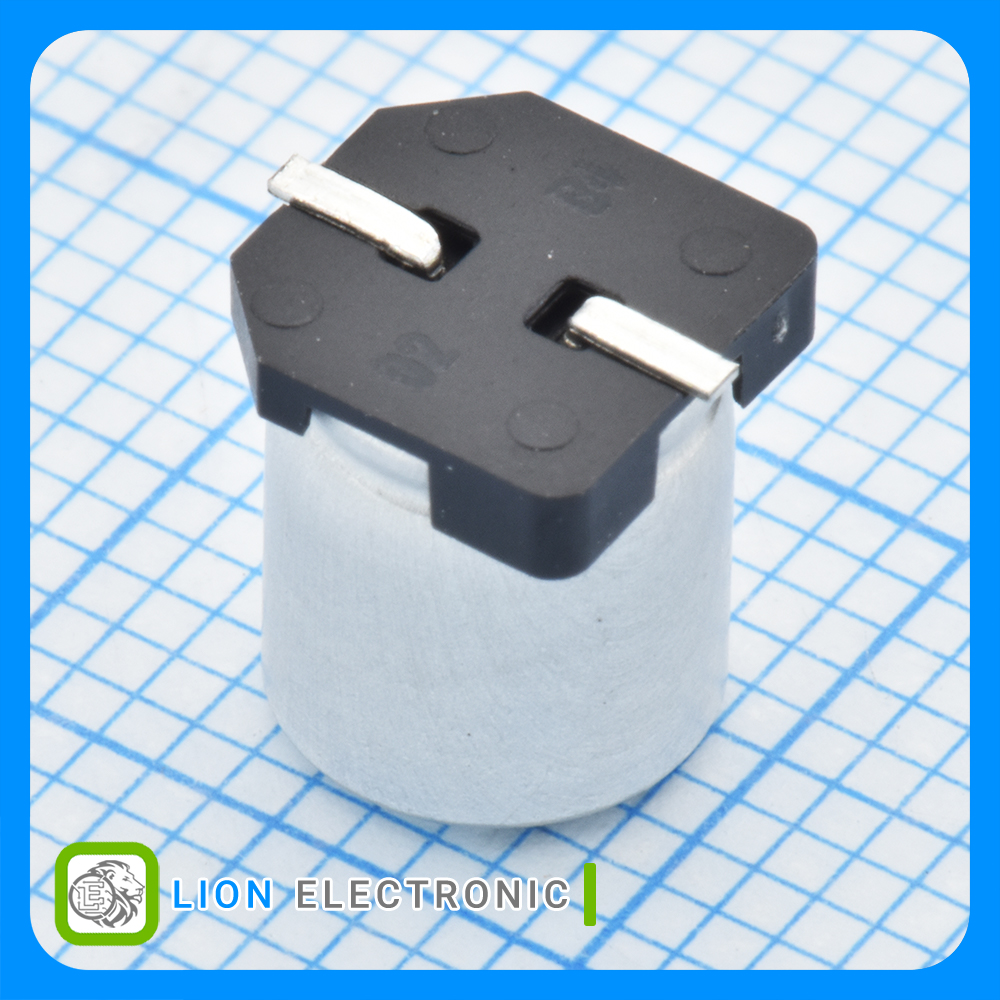

Aluminum Electrolytic Capacitor 220uF, 16V, 20% with 6.3mmx7.7mm Size
Specifications
- Life: 2000~5000 Hour
- Capacitance: 220uF
- Voltage Rating DC: 16VDC
- Ripple Current: 280mA
- ESR: 360mΩ
- Tolerance: 20%
- Diameter: 6.3mm
- Height: 7.7mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات خازن VZH221M1CTR-0607

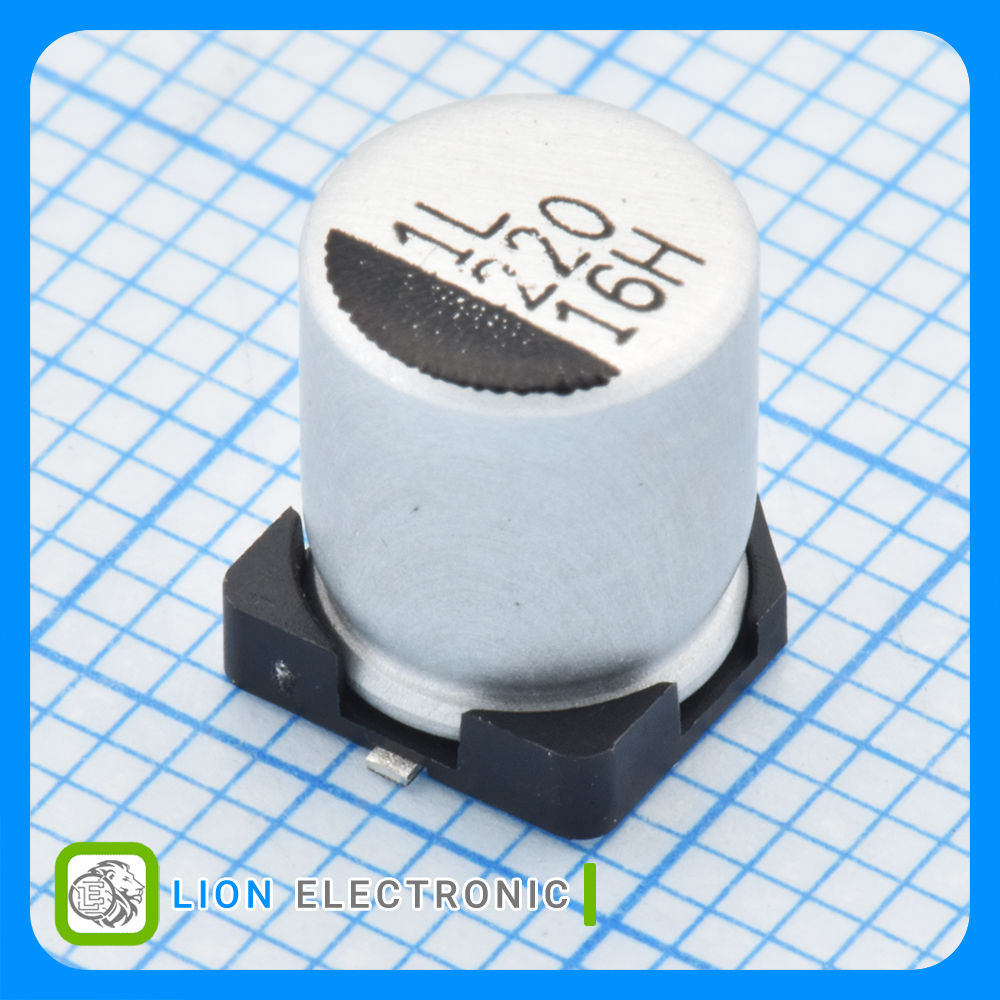

خازن VZH221M1CTR-0607
Part Number
2000~5000 Hour
Life
-55C
Minimum Operating Temperature
Reel
Packaging
16VDC
Voltage Rating DC
6.3mm
Diameter
20%
Tolerance
+105C
Maximum Operating Temperature
280mA
Ripple Current
360mΩ
ESR
7.7mm
Height
220uF
Capacitance
