خازن الکترولیت 22 میکروفاراد 50 ولت تلرانس 20% سایز 6.3 میلیمترx5.7 میلیمتر

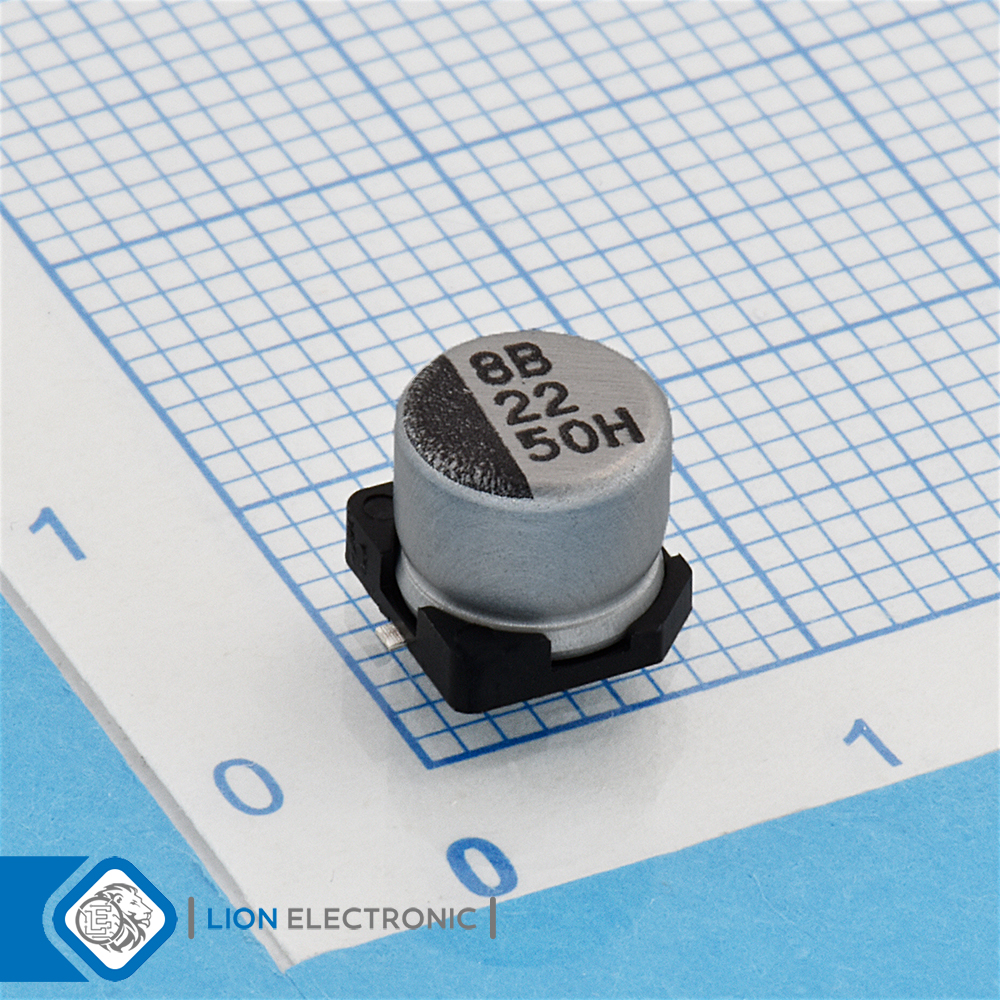

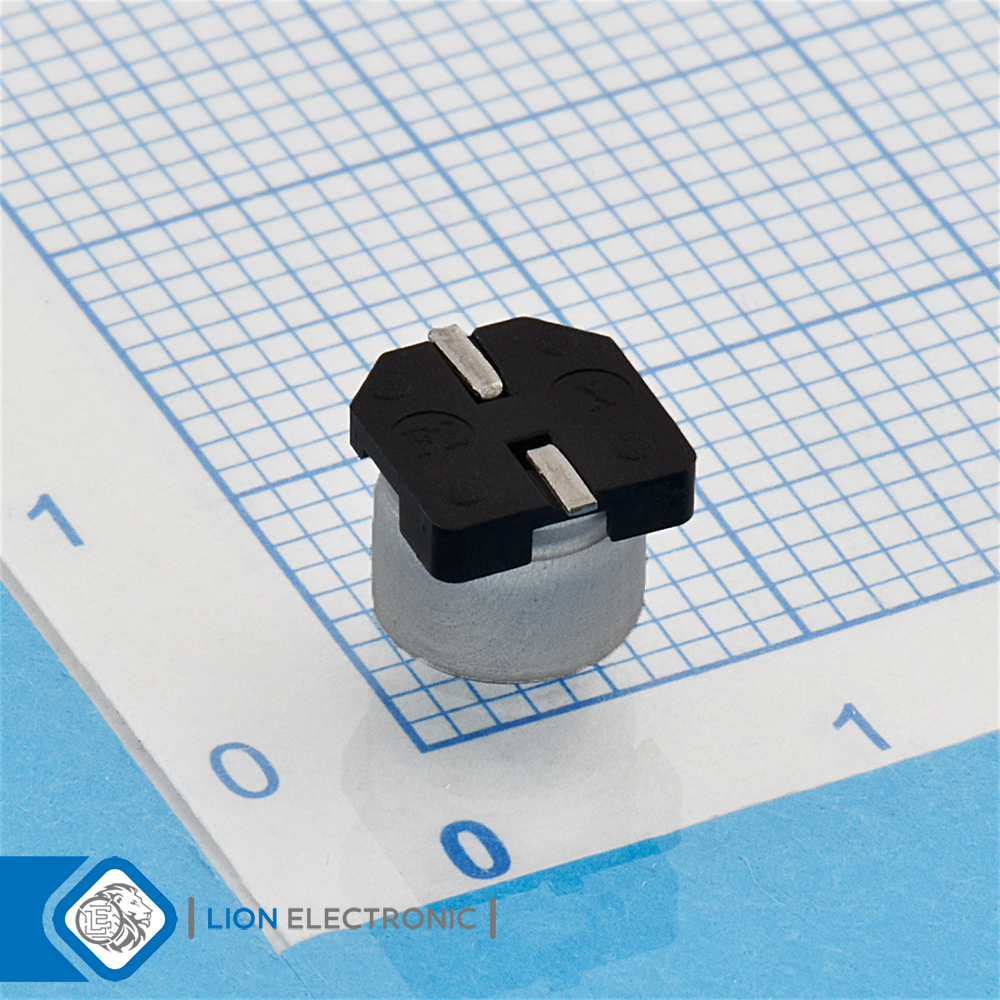

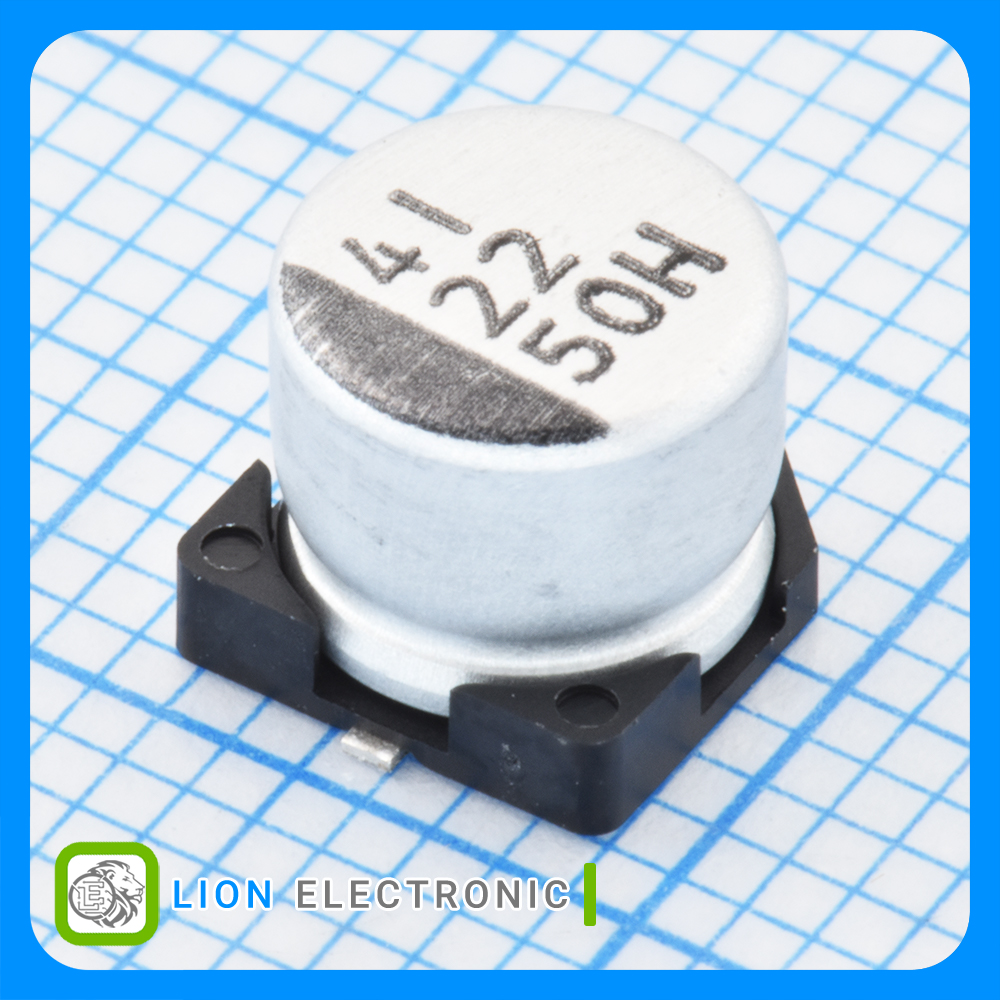

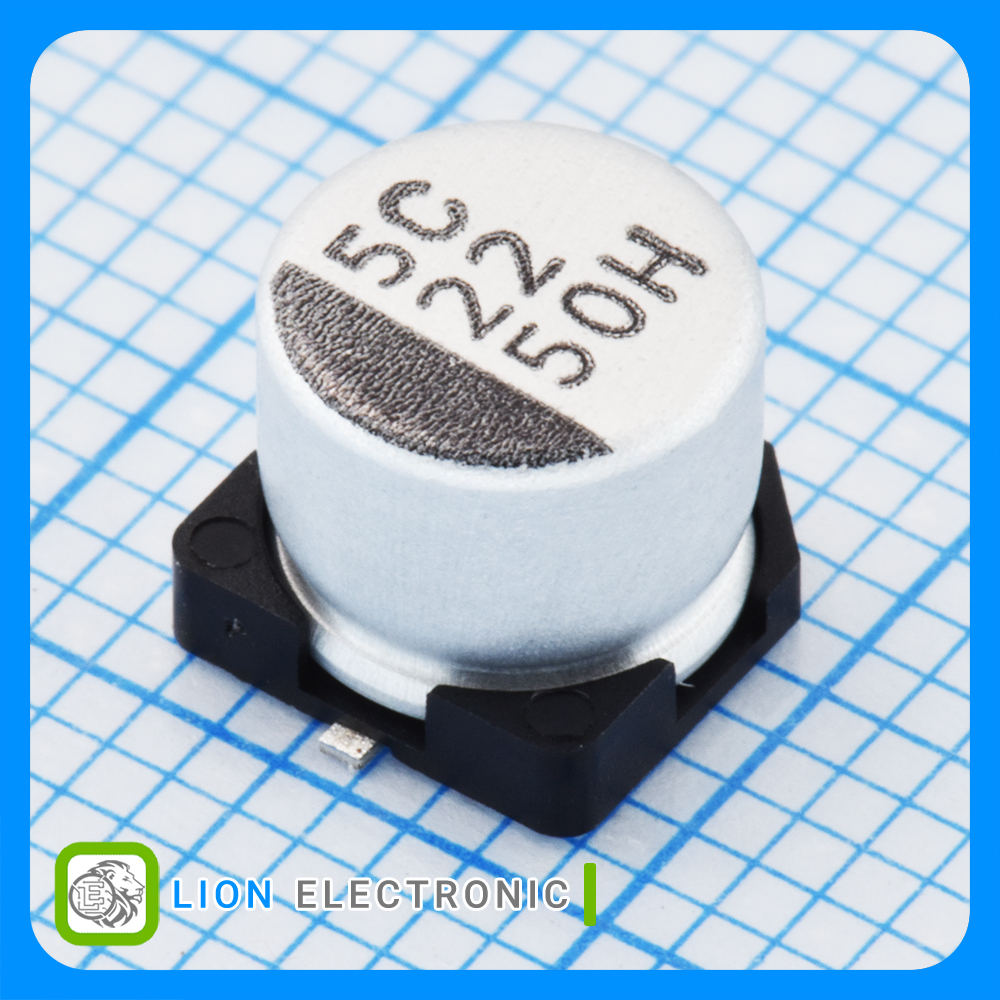

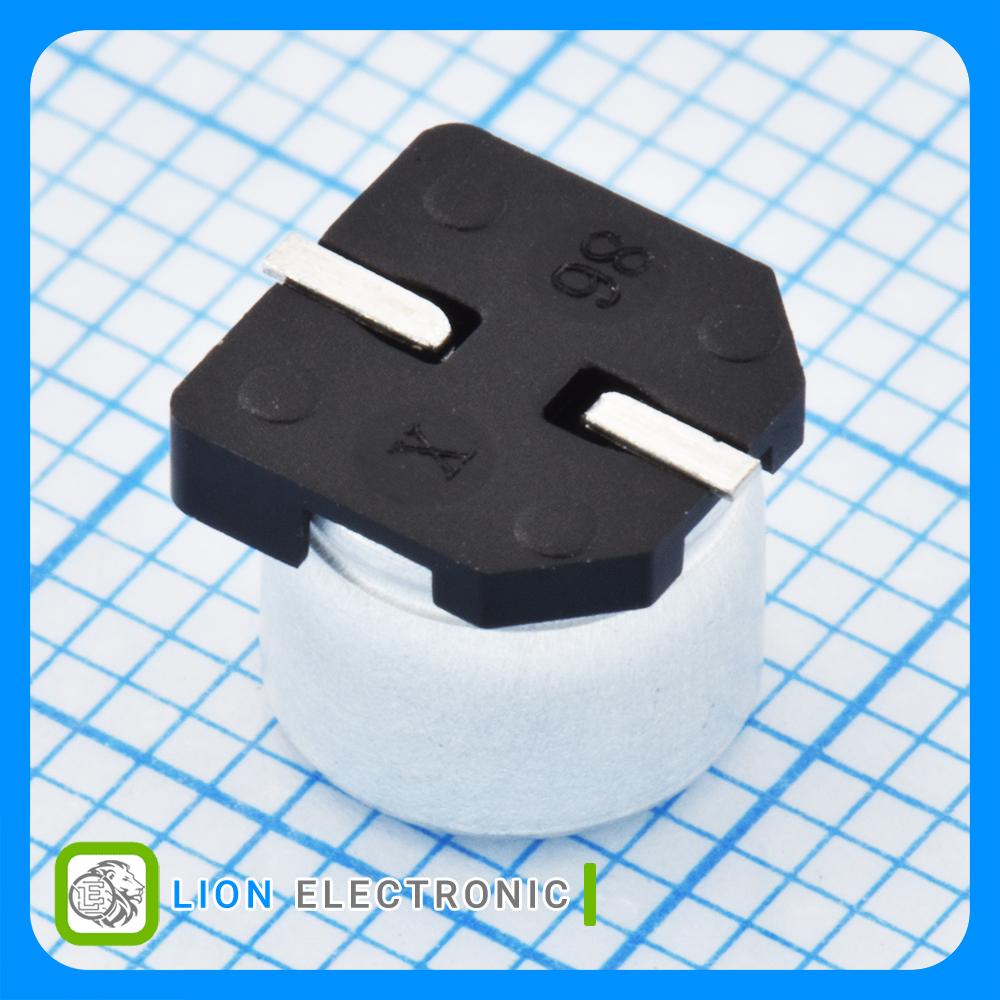

Aluminum Electrolytic Capacitor 22uF, 50V, 20% with 6.3mmx5.7mm Size
Specifications
- Life: 2000~5000 Hour
- Capacitance: 22uF
- Voltage Rating DC: 50VDC
- Ripple Current: 165mA
- ESR: 880mΩ
- Tolerance: 20%
- Diameter: 6.3mm
- Height: 5.7mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات خازن VZH220M1HTR-0606

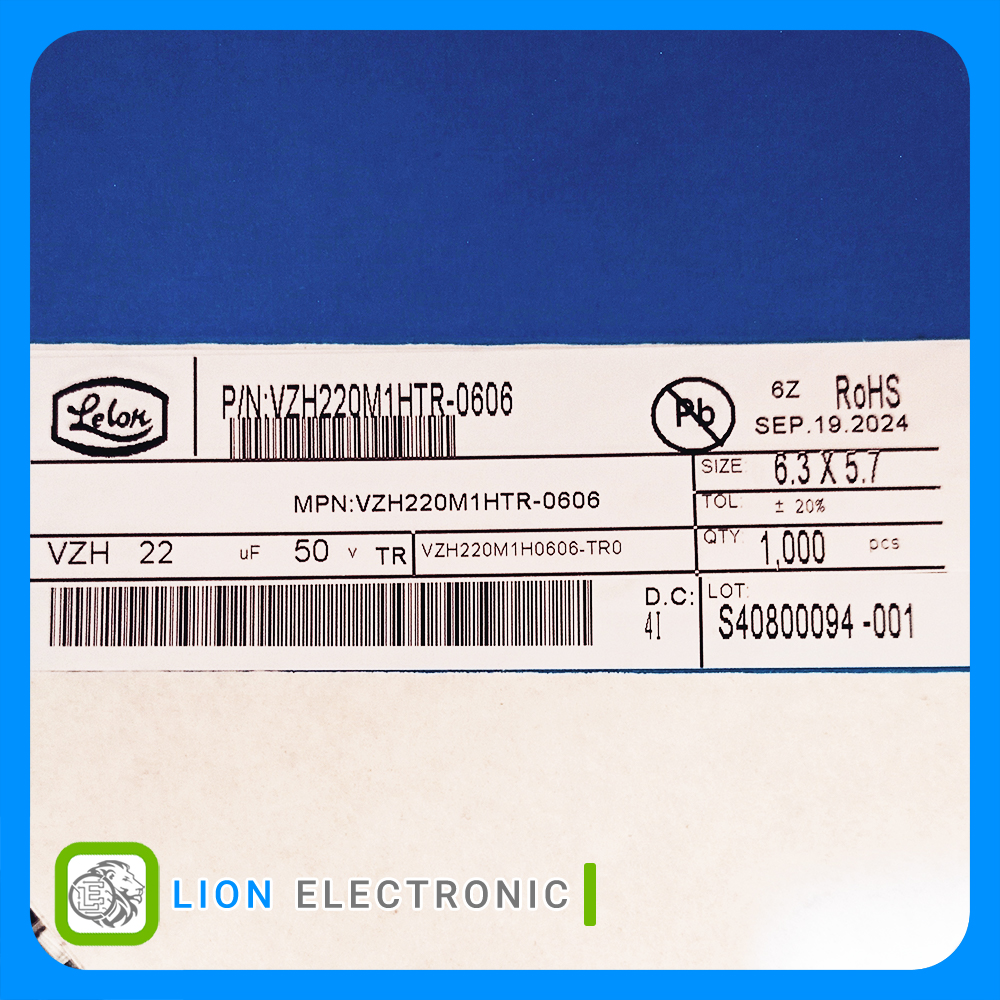

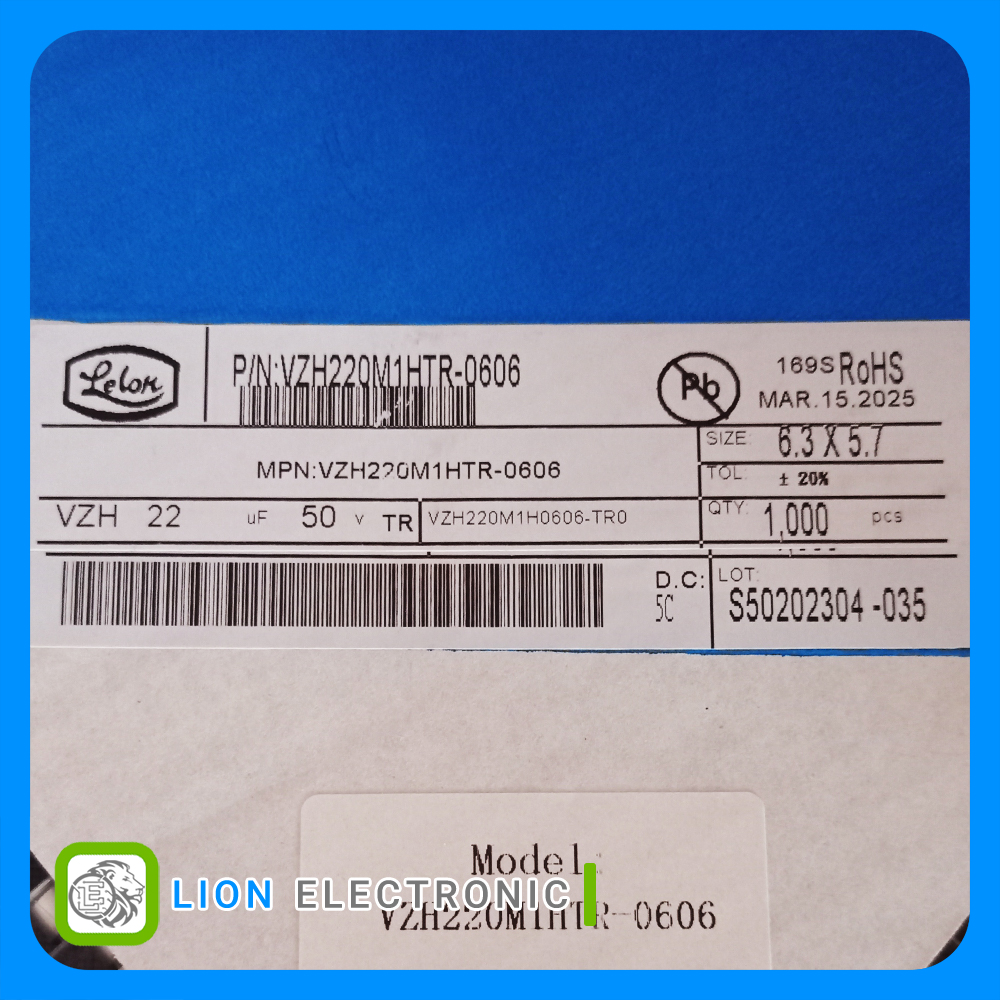

خازن VZH220M1HTR-0606
Part Number
2000~5000 Hour
Life
-55C
Minimum Operating Temperature
Reel
Packaging
6.3mm
Diameter
20%
Tolerance
165mA
Ripple Current
+105C
Maximum Operating Temperature
50VDC
Voltage Rating DC
880mΩ
ESR
5.7mm
Height
22uF
Capacitance
