Lelon
معرفی
خازن الکترولیت 4.7 میکروفاراد 25 ولت تلرانس 20% سایز 4 میلیمترx5.7 میلیمتر

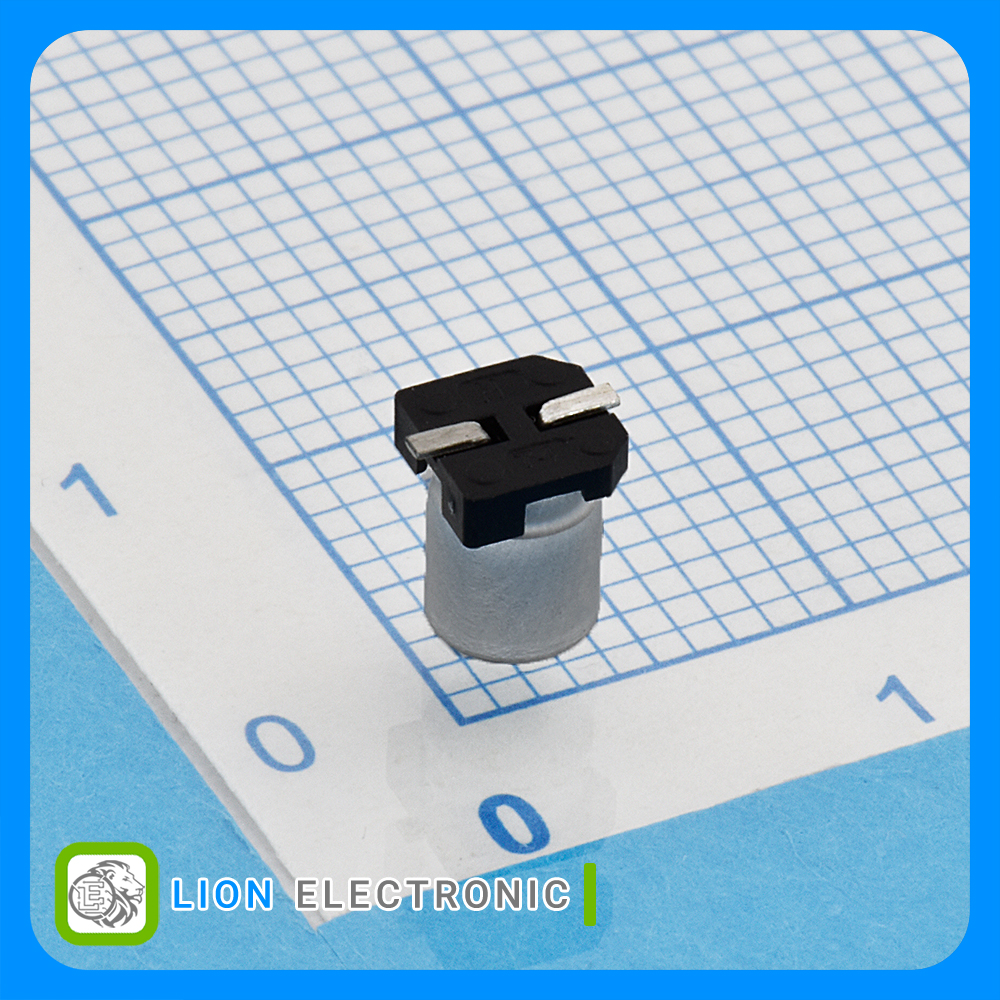

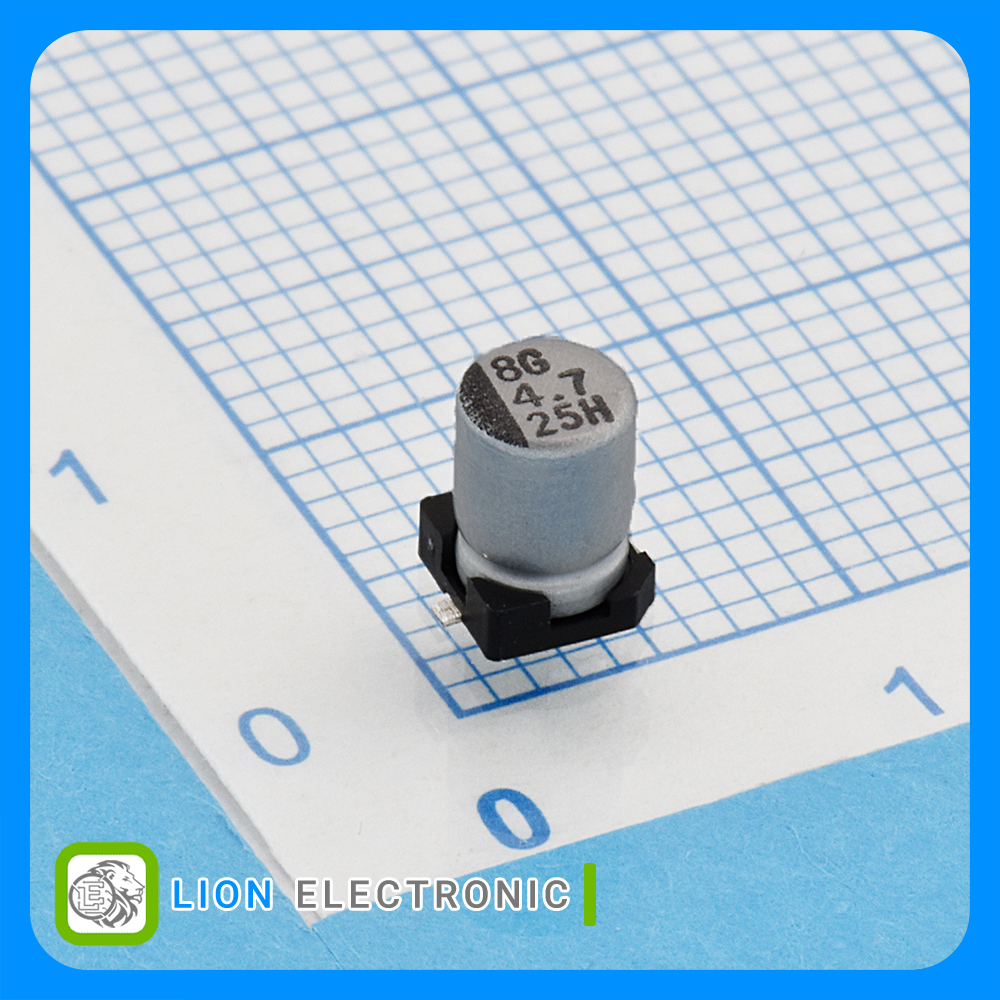

Aluminum Electrolytic Capacitor 4.7uF, 25V, 20% with 4mmx5.7mm Size
Specifications
- Life: 2000 Hour
- Capacitance: 4.7uF
- Voltage Rating DC: 25VDC
- ESR: 1.35Ω
- Tolerance: 20%
- Diameter: 4mm
- Height: 5.7mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات خازن VZH4R7M1ETR-0406
خازن VZH4R7M1ETR-0406
Part Number
2000 Hour
Life
-55C
Minimum Operating Temperature
Reel
Packaging
4mm
Diameter
25VDC
Voltage Rating DC
20%
Tolerance
+105C
Maximum Operating Temperature
5.7mm
Height
1.35Ω
ESR
N/A
Ripple Current
4.7uF
Capacitance
