Lelon
معرفی
خازن الکترولیت 10 میکروفاراد 25 ولت تلرانس 20% سایز 4 میلیمترx5.7 میلیمتر

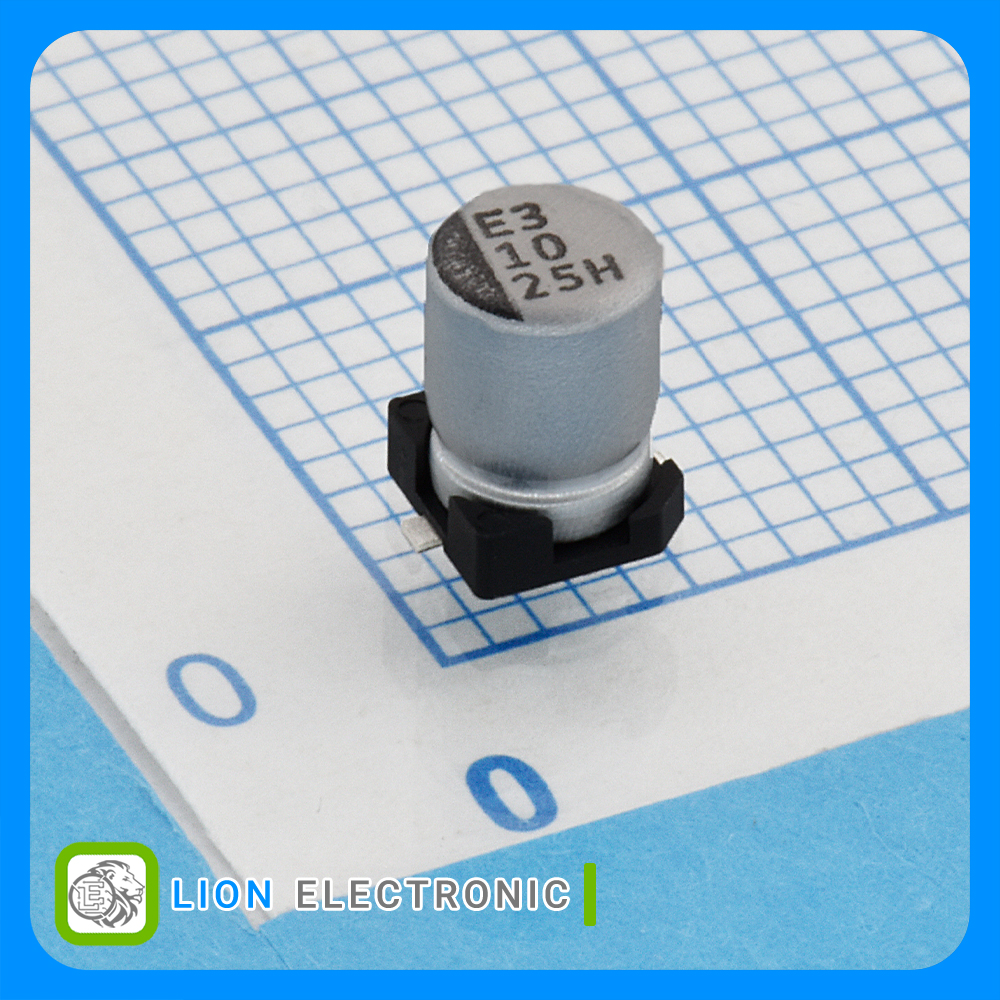

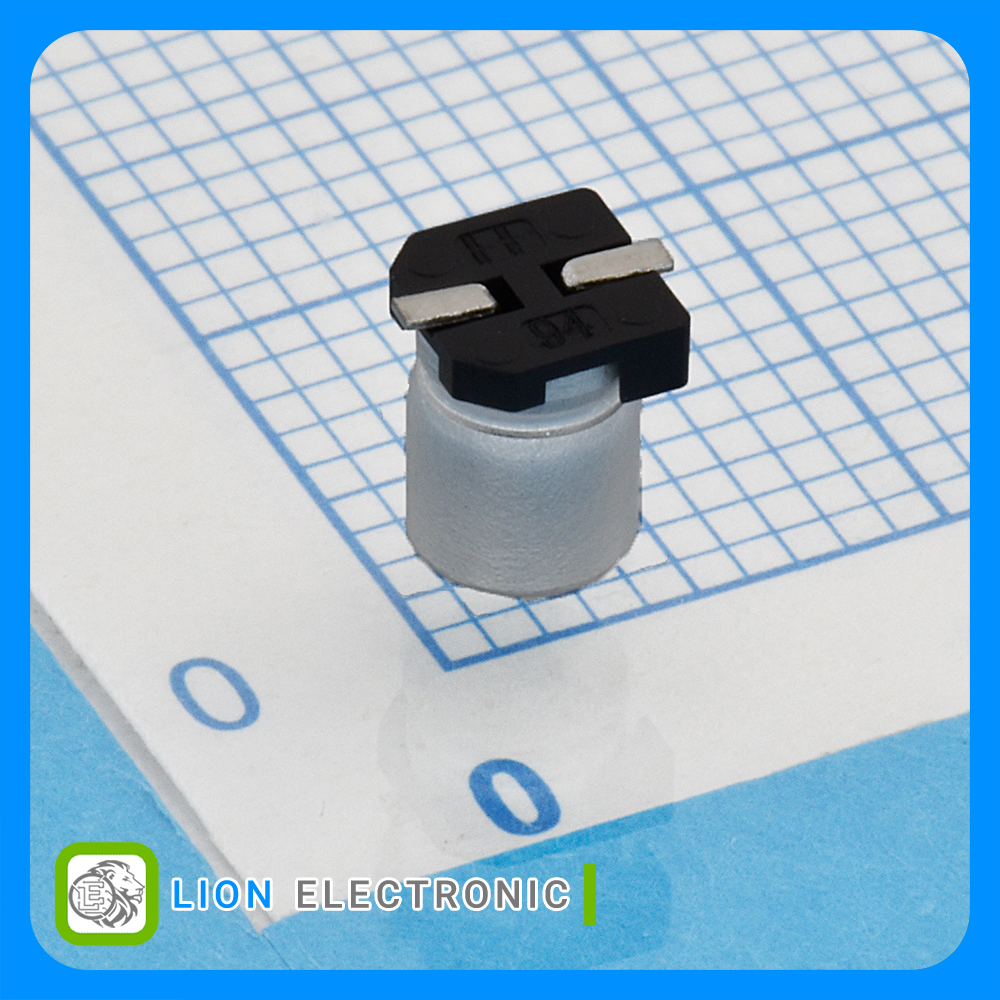

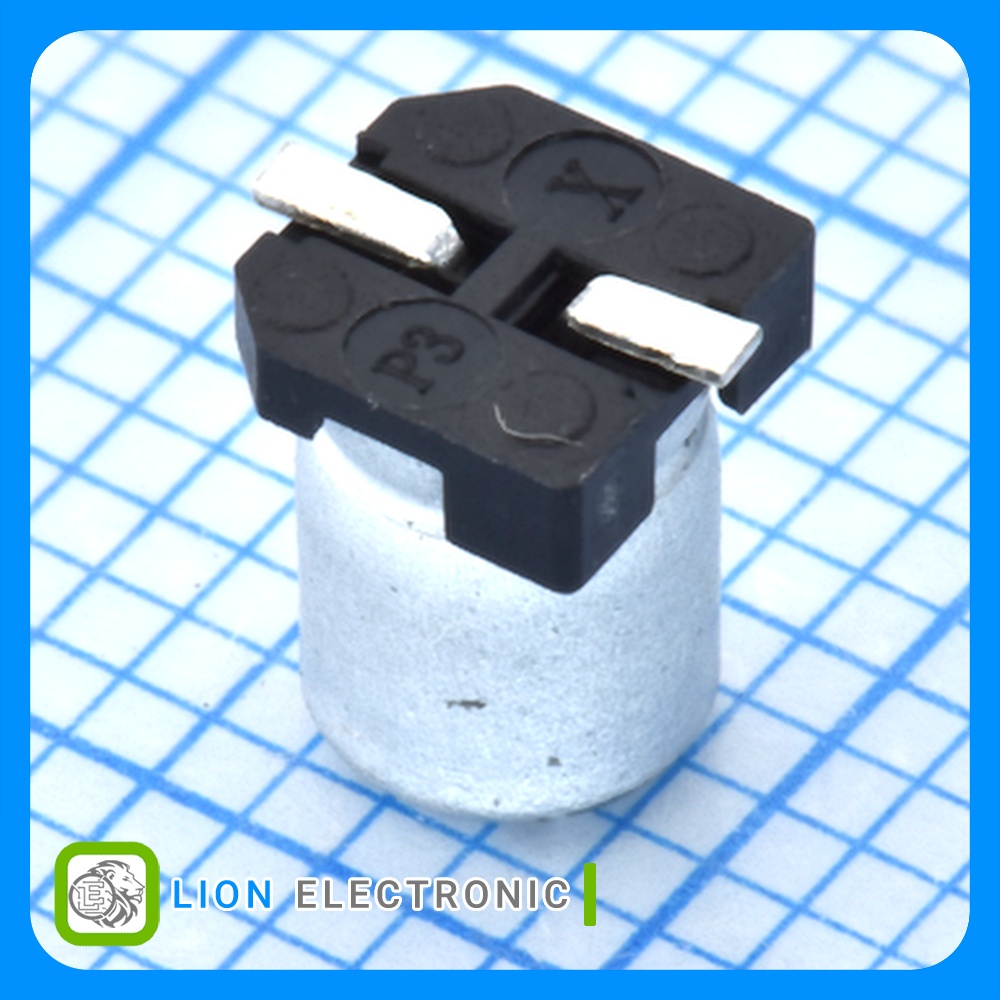

Aluminum Electrolytic Capacitor 10uF, 25V, 20% with 4mmx5.7mm Size
Specifications
- Life: 2000~5000 Hour
- Capacitance: 10uF
- Voltage Rating DC: 25VDC
- Ripple Current: 80mA
- ESR: 1.35Ω
- Tolerance: 20%
- Diameter: 4mm
- Height: 5.7mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات خازن VZH100M1ETR-0406

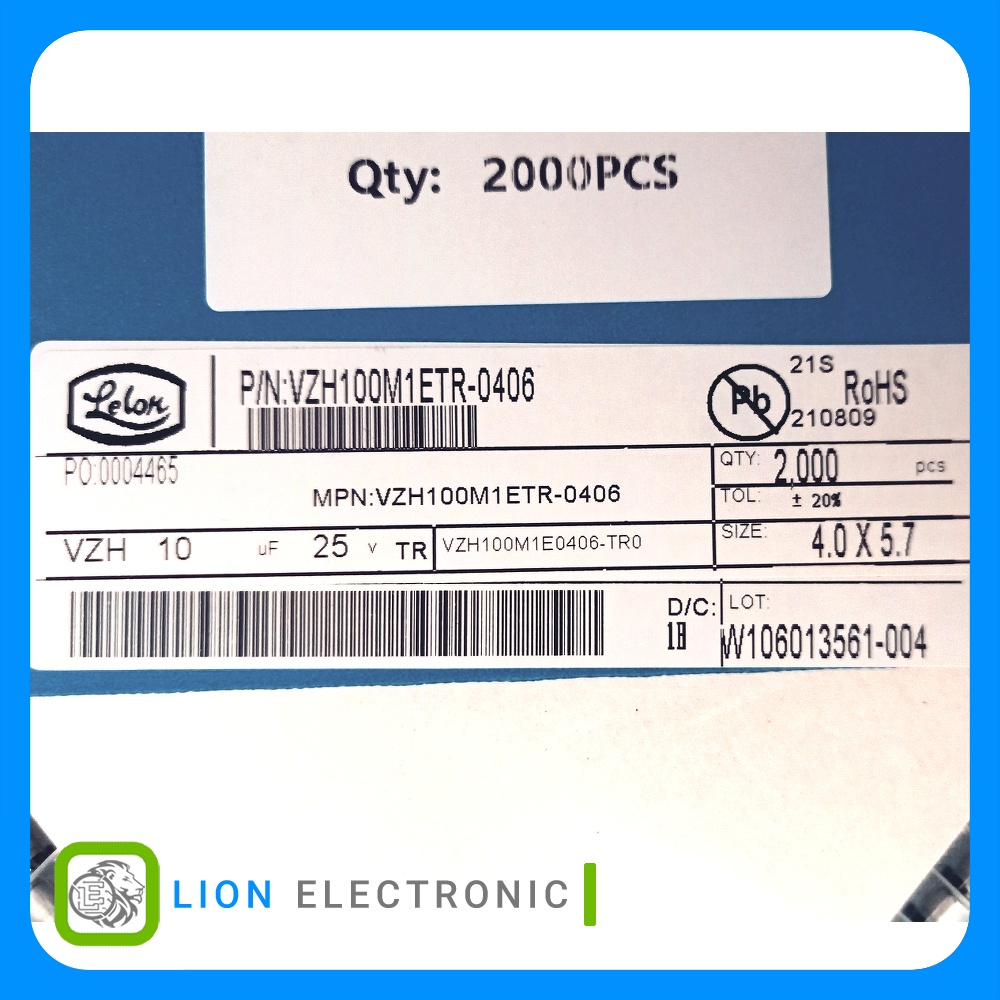

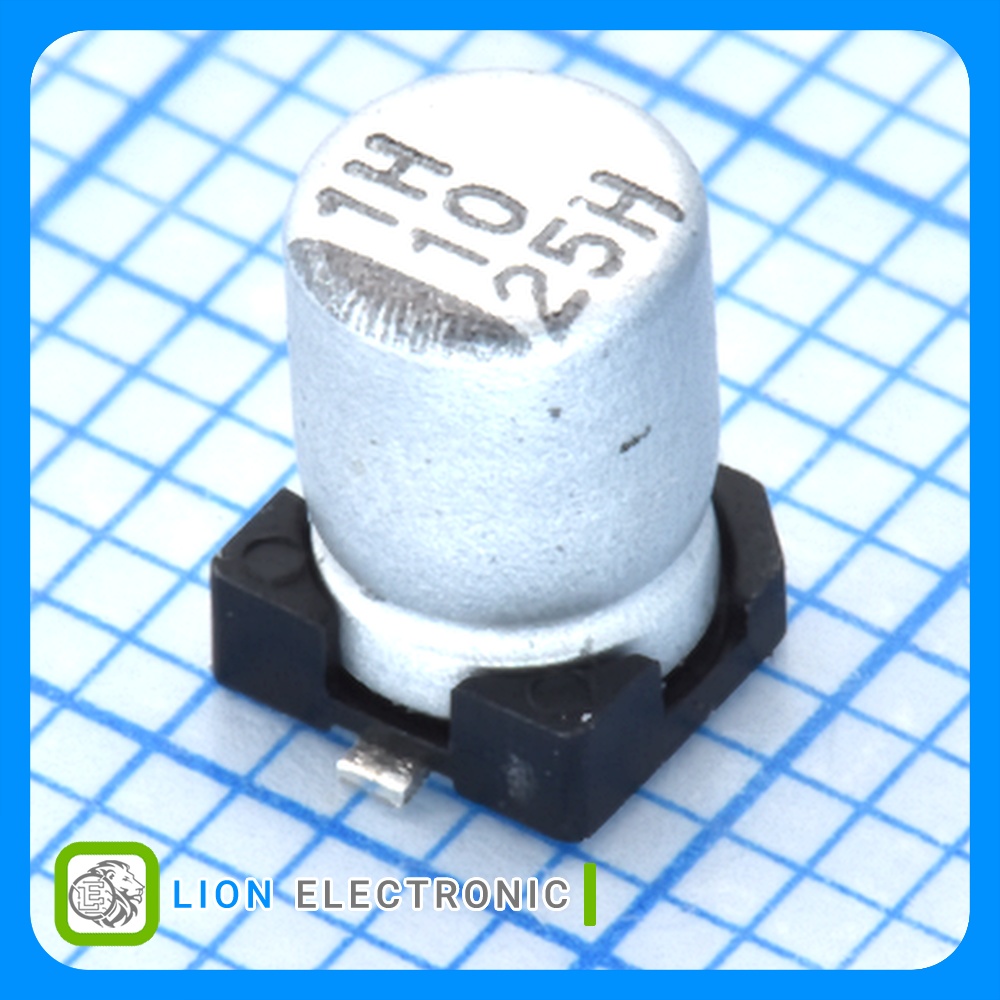

خازن VZH100M1ETR-0406
Part Number
2000~5000 Hour
Life
-55C
Minimum Operating Temperature
Reel
Packaging
4mm
Diameter
80mA
Ripple Current
25VDC
Voltage Rating DC
+105C
Maximum Operating Temperature
20%
Tolerance
5.7mm
Height
1.35Ω
ESR
10uF
Capacitance
