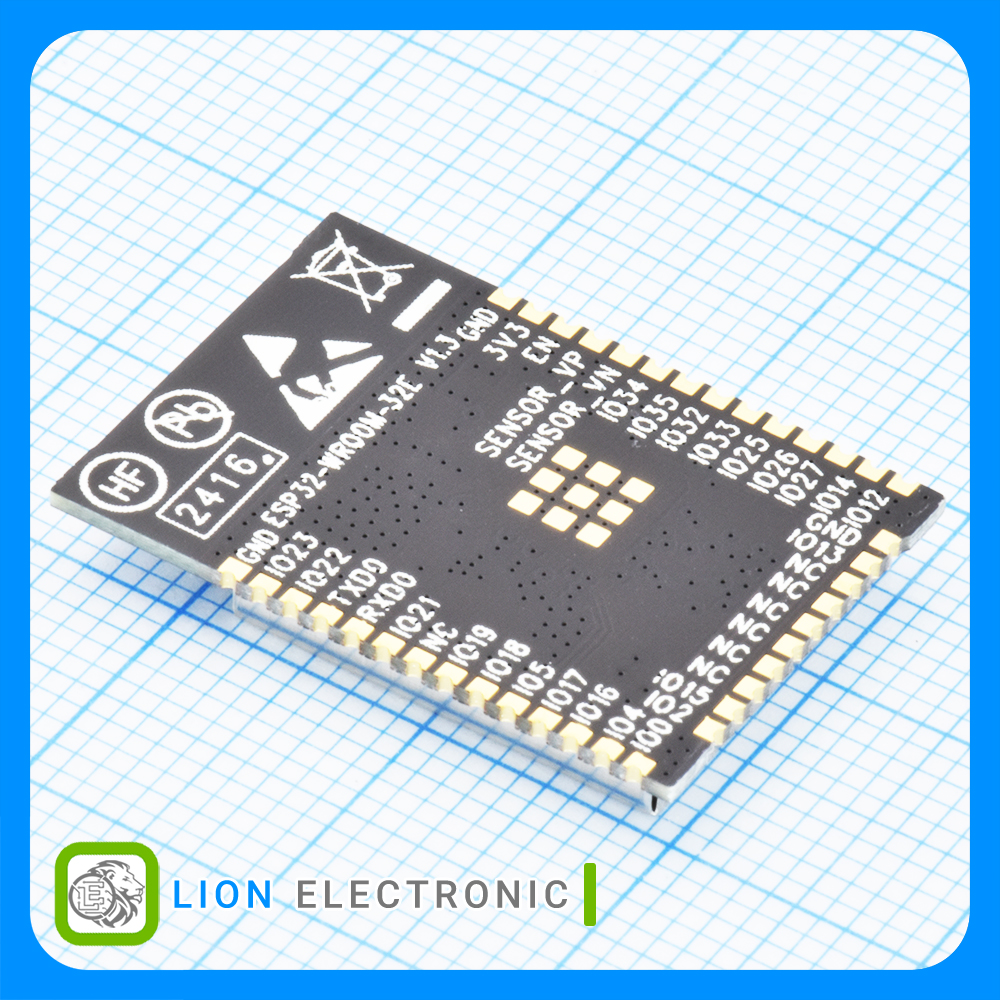

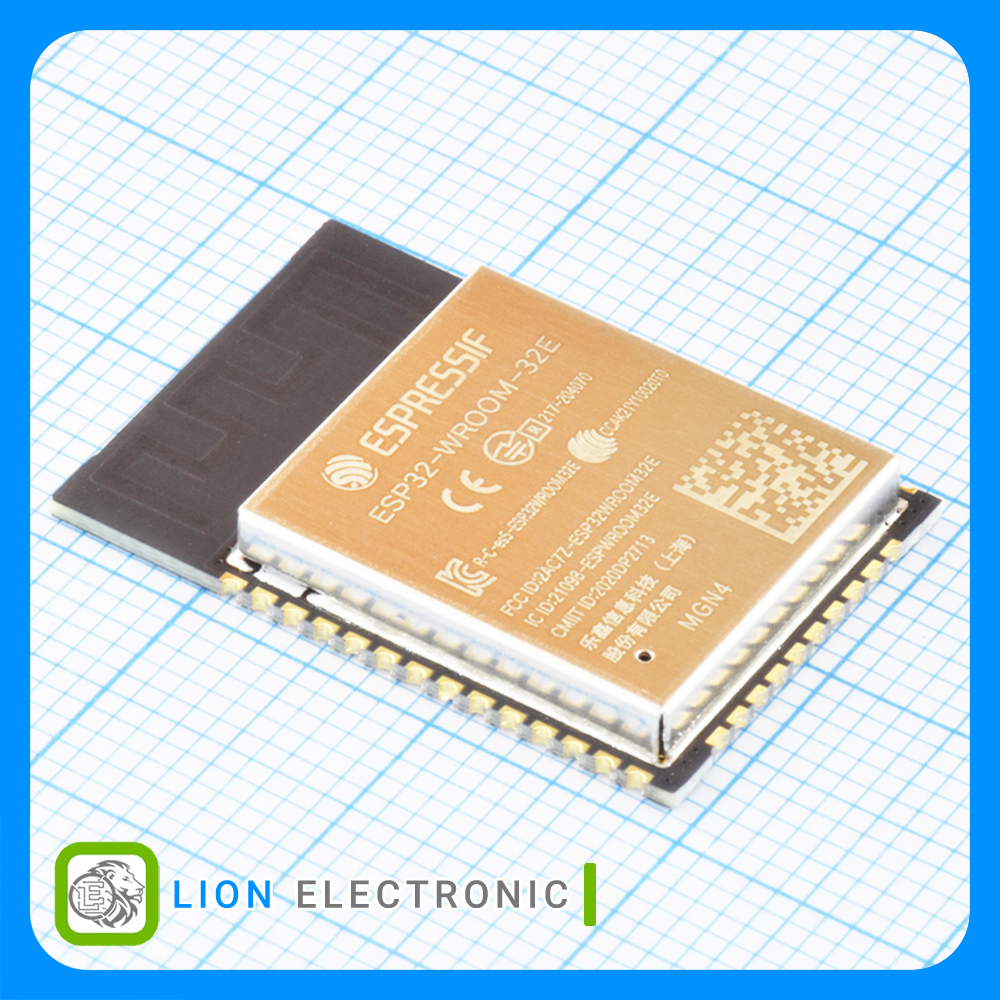

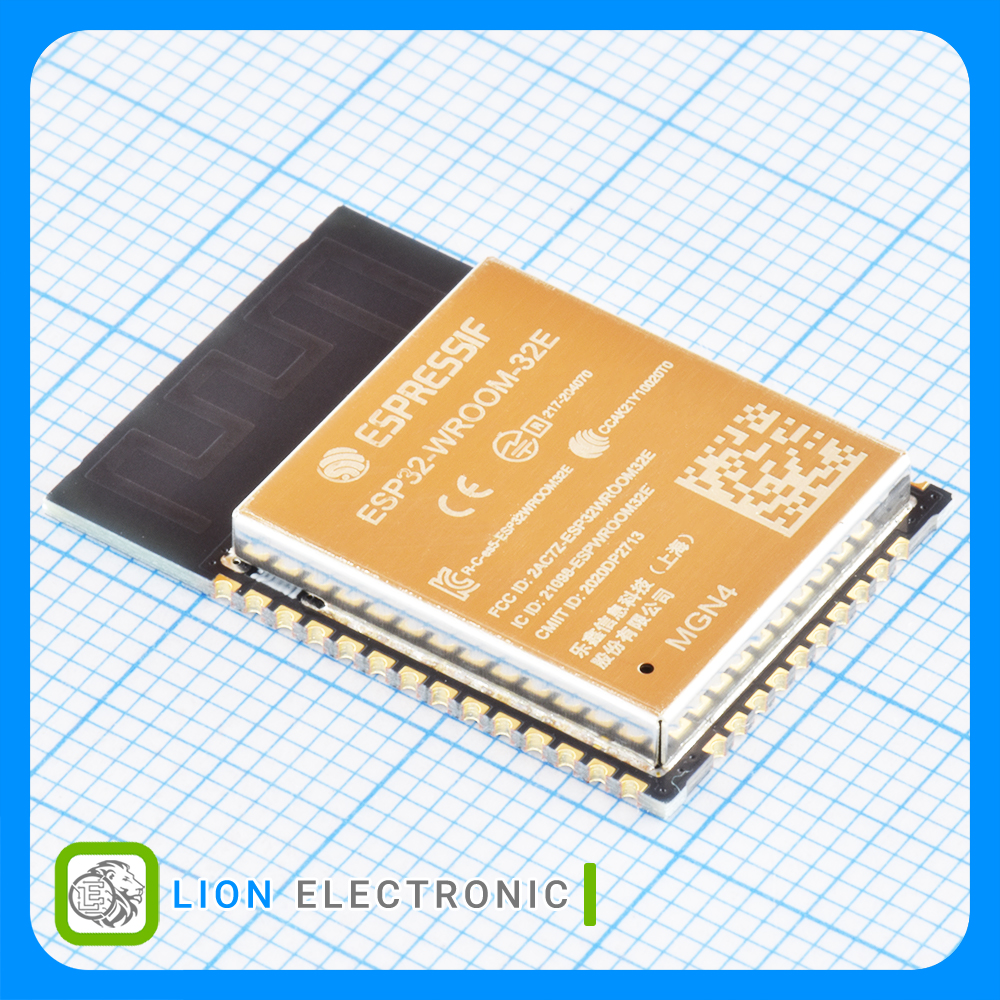

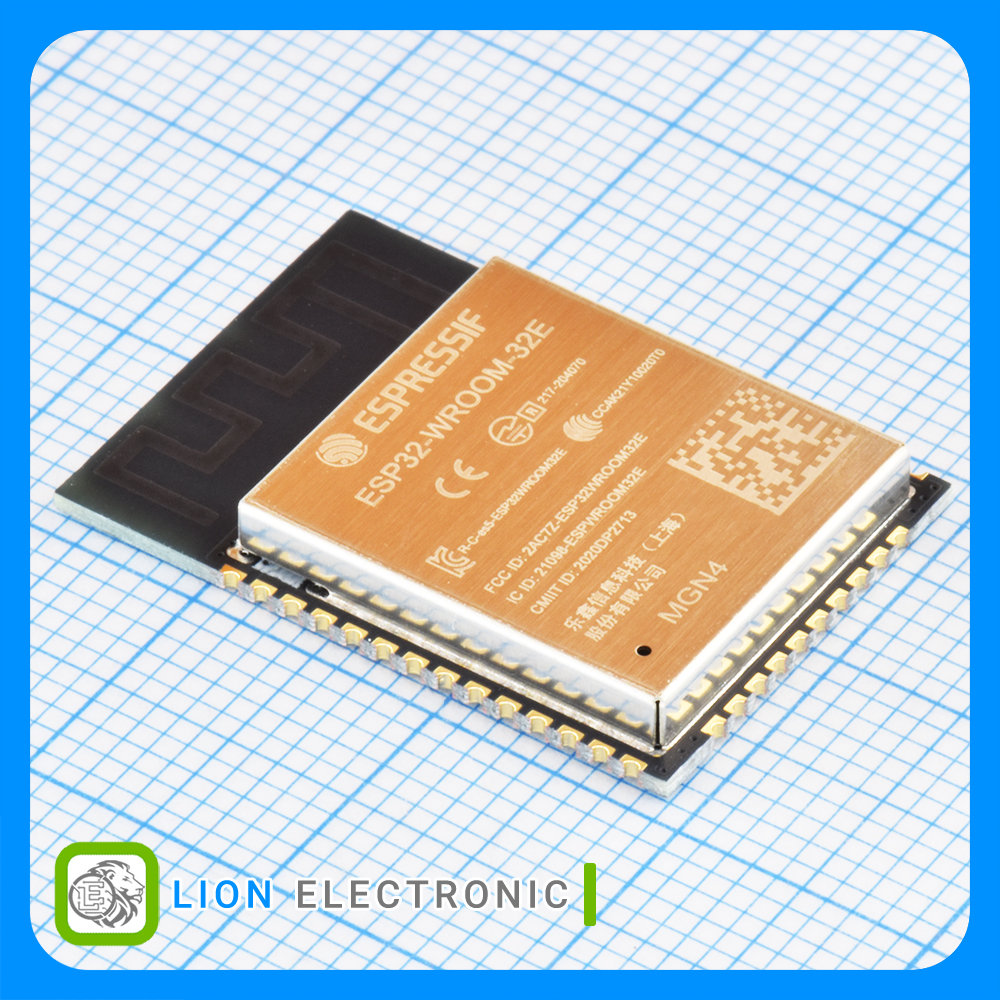

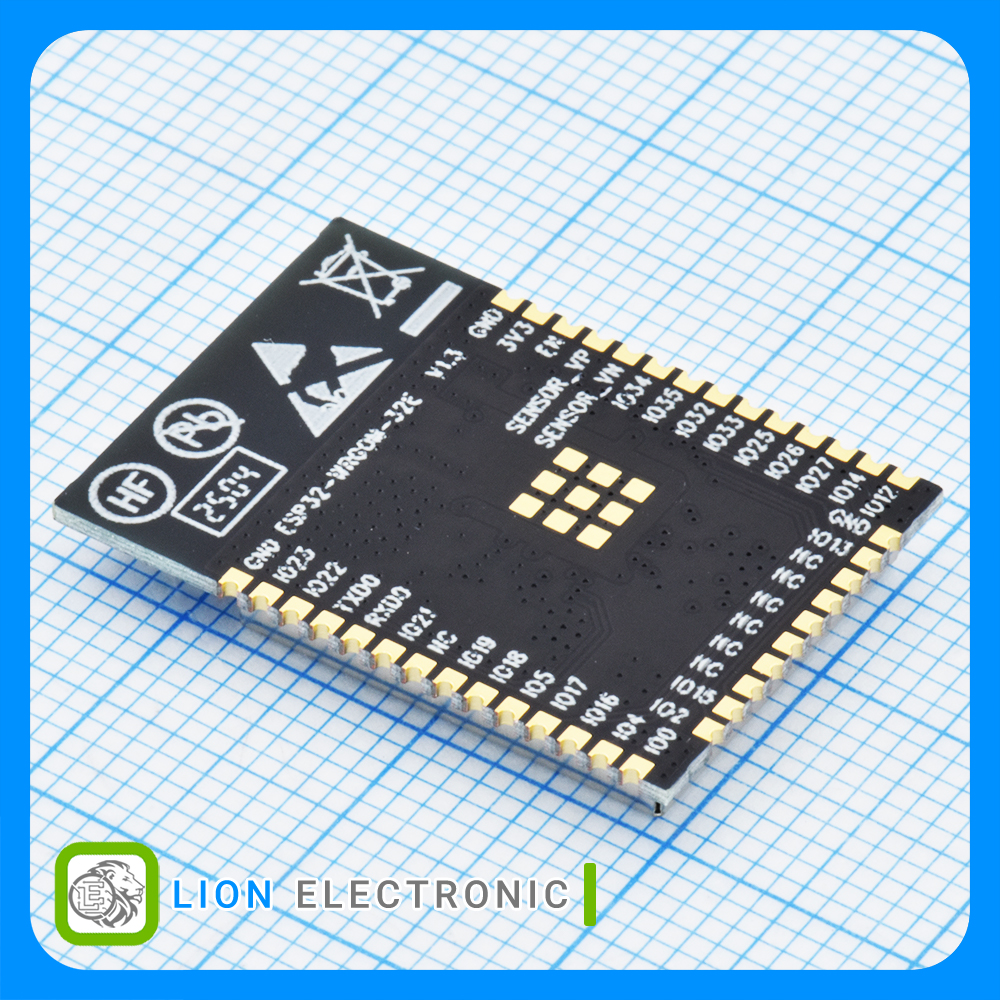

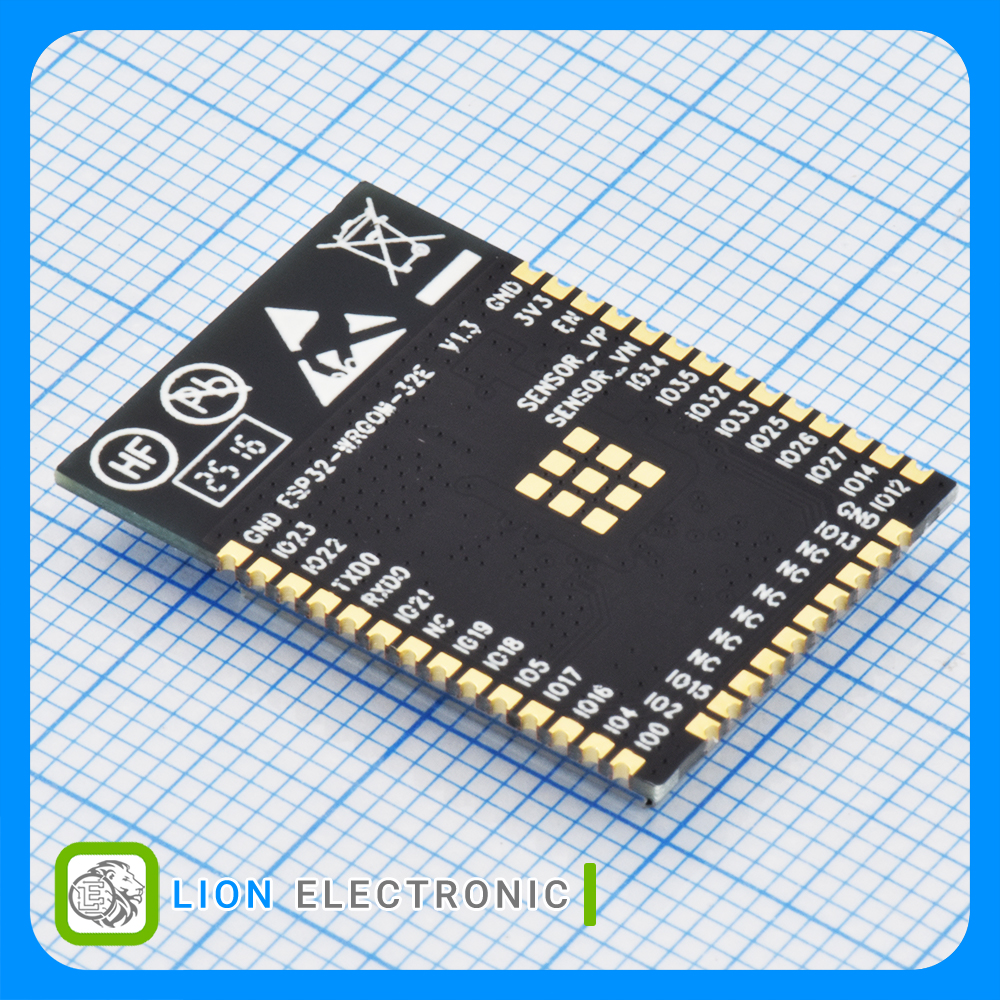

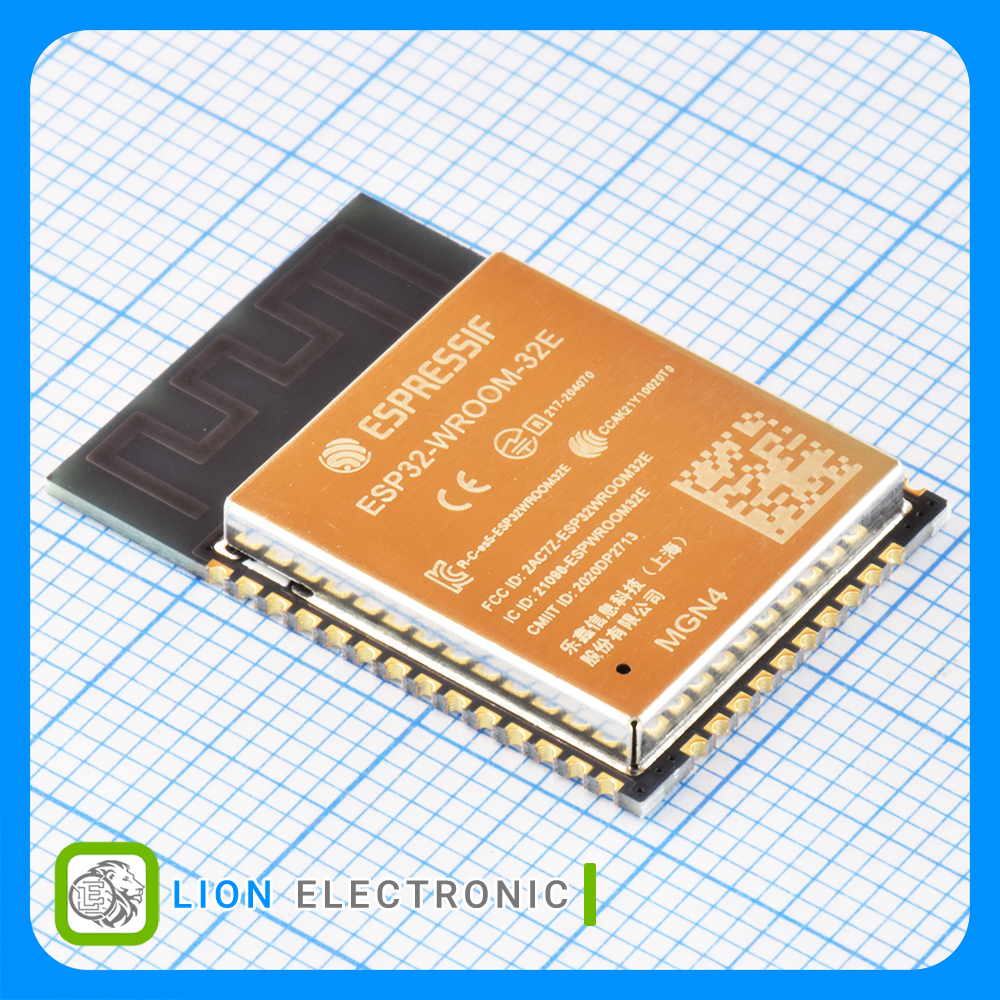

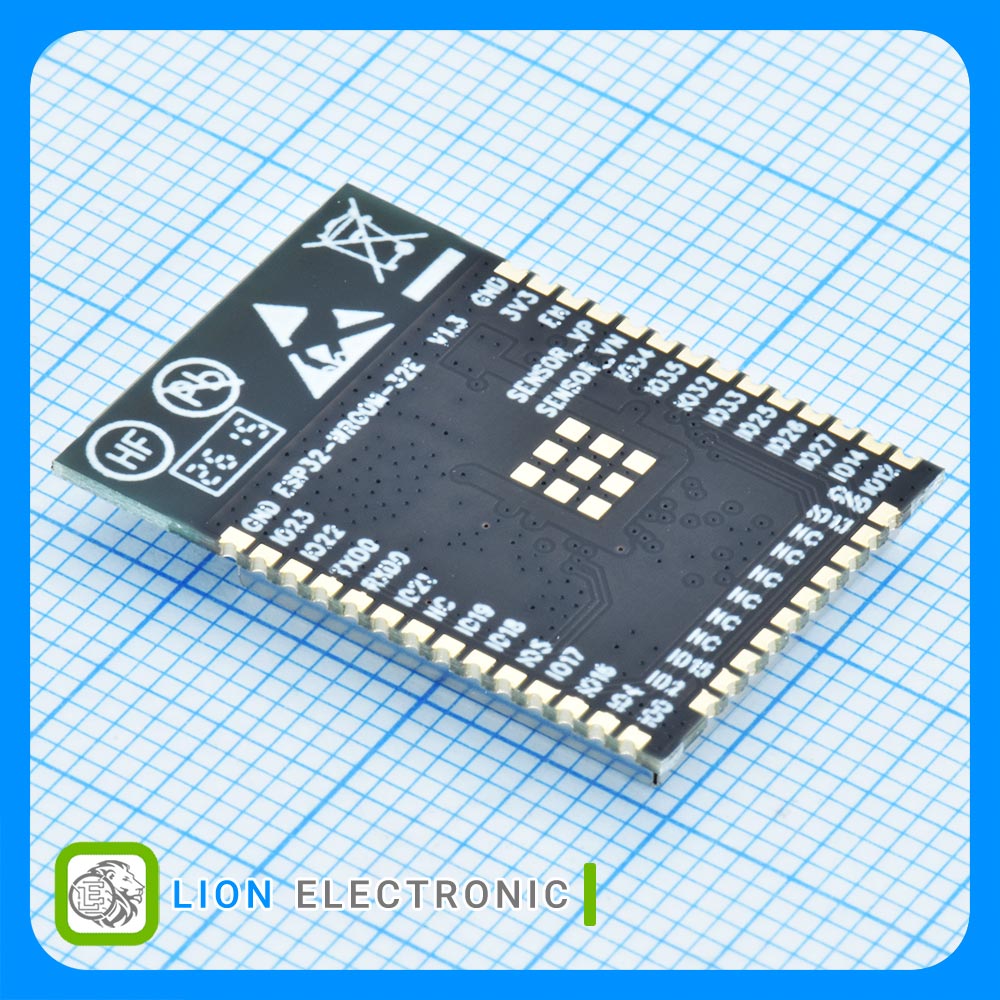

ESP32-WROOM-32E-N4
Espressif ماژول ESP32 سری ESP32 با فرکانس 240 مگاهرتز و 26 پایه GPIO، ولتاژ تغذیه 3 تا 3.6 ولت، 2.4 گیگاهرتز Wi-Fi + بلوتوث + بلوتوث LE با آنتن PCB
ESP32 Module ESP32, 240MHz with 26 GPIOs, 3 - 3.6V, 2.4GHz Wi-Fi + Bluetooth + Bluetooth LE, 4MB Quad SPI Flash with PCB Antenna
CPU and OnChip Memory
• ESP32-D0WD-V3 or ESP32-D0WDR2-V3
embedded, Xtensa dual-core 32bit LX6
microprocessor, up to 240MHz
• 448KB ROM
• 520KB SRAM
• 16KB SRAM in RTC
• ESP32-D0WDR2-V3 also provides 2MB PSRAM
WiFi
• 802.11b/g/n
• Bit rate: 802.11n up to 150Mbps
• A-MPDU and A-MSDU aggregation
• 0.4µs guard interval support
• Center frequency range of operating channel: 2412 ~ 2484MHz
Bluetooth
• Bluetooth V4.2 BR/EDR and Bluetooth LE
specification
• Class-1, class-2 and class-3 transmitter
• AFH
• CVSD and SBC
Peripherals
• SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, TWAI (compatible with ISO 11898-1, i.e. CAN Specification 2.0)
Integrated Components on Module
• 40MHz crystal oscillator
• 4MB SPI flash
Antenna Options
• ESP32-WROOM-32E: On-board PCB antenna
Operating Conditions
• Operating voltage/Power supply: 3.0 ~ 3.6V
• Operating ambient temperature: –40 ~ 85°C
