CPU and OnChip Memory
• ESP32-S2FH4 or ESP32-S2FN4R2 embedded,
Xtensa single-core 32bit LX7 microprocessor,
up to 240MHz
• 128KB ROM
• 320KB SRAM
• 16KB SRAM in RTC
• 4MB embedded flash
• 2MB embedded PSRAM (ESP32-S2FN4R2 only)
WiFi
• 802.11 b/g/n
• Bit rate: 802.11n up to 150Mbps
• A-MPDU and A-MSDU aggregation
• 0.4µs guard interval support
• Operating frequency: 2412 ~ 2484MHz
Peripherals
• GPIO, SPI, LCD, UART, I2C, I2S, Camera
interface, IR, pulse counter, LED PWM, TWAI
(compatible with ISO 11898-1, i.e. CAN
Specification 2.0), full-speed USB OTG, ADC,
DAC, touch sensor, temperature sensor
Integrated Components on Module
• 40MHz crystal oscillator
Antenna Options

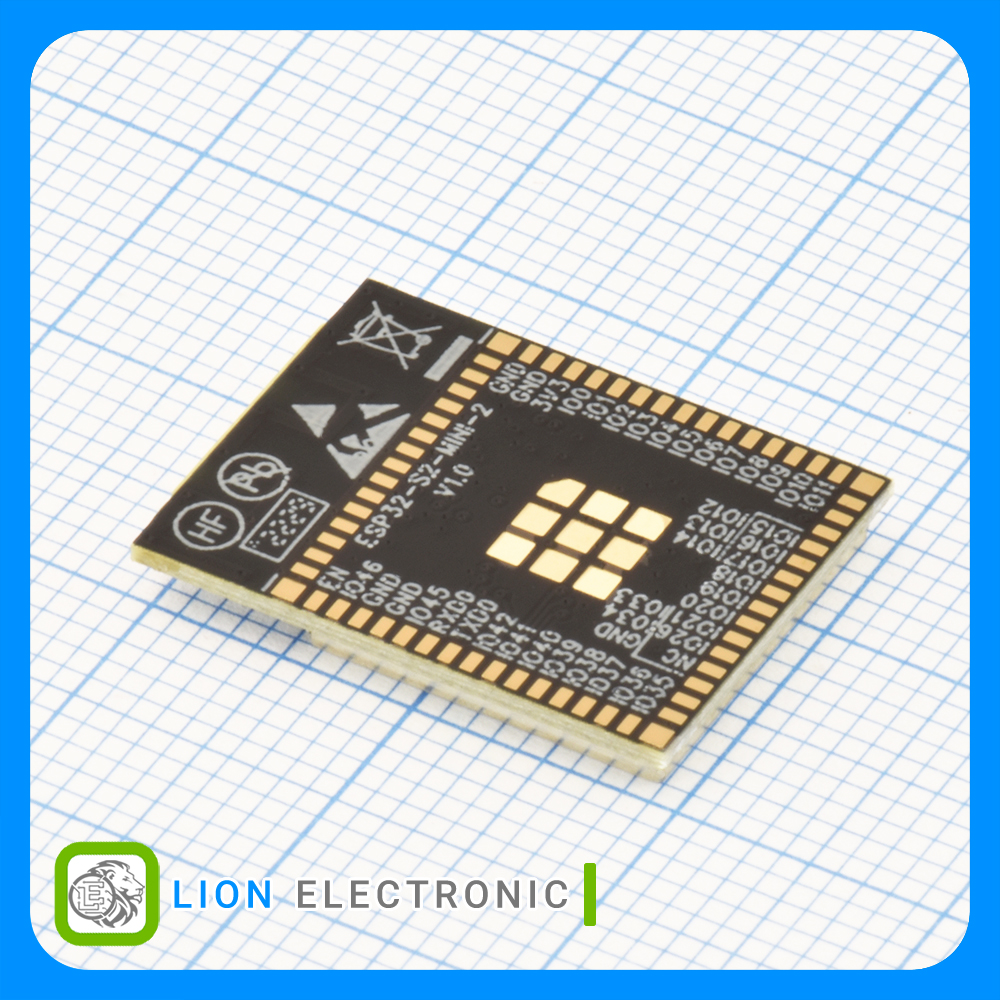

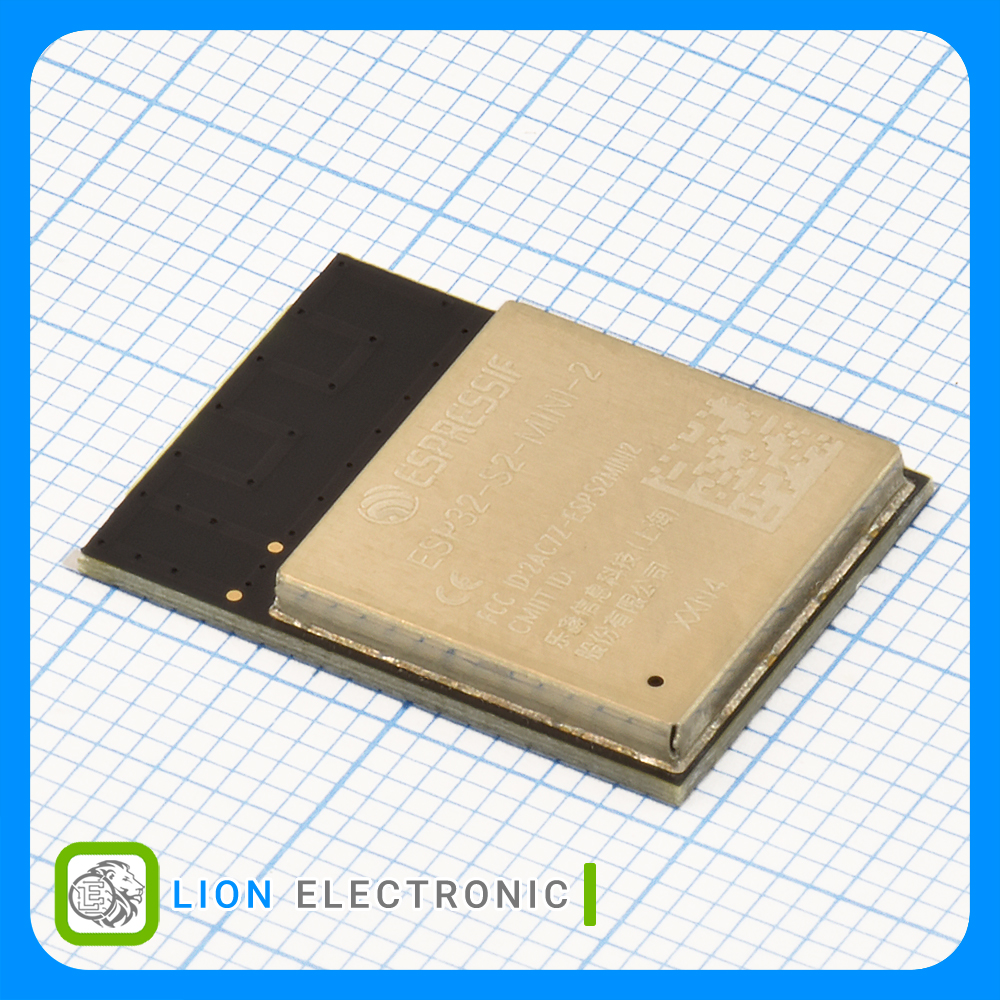

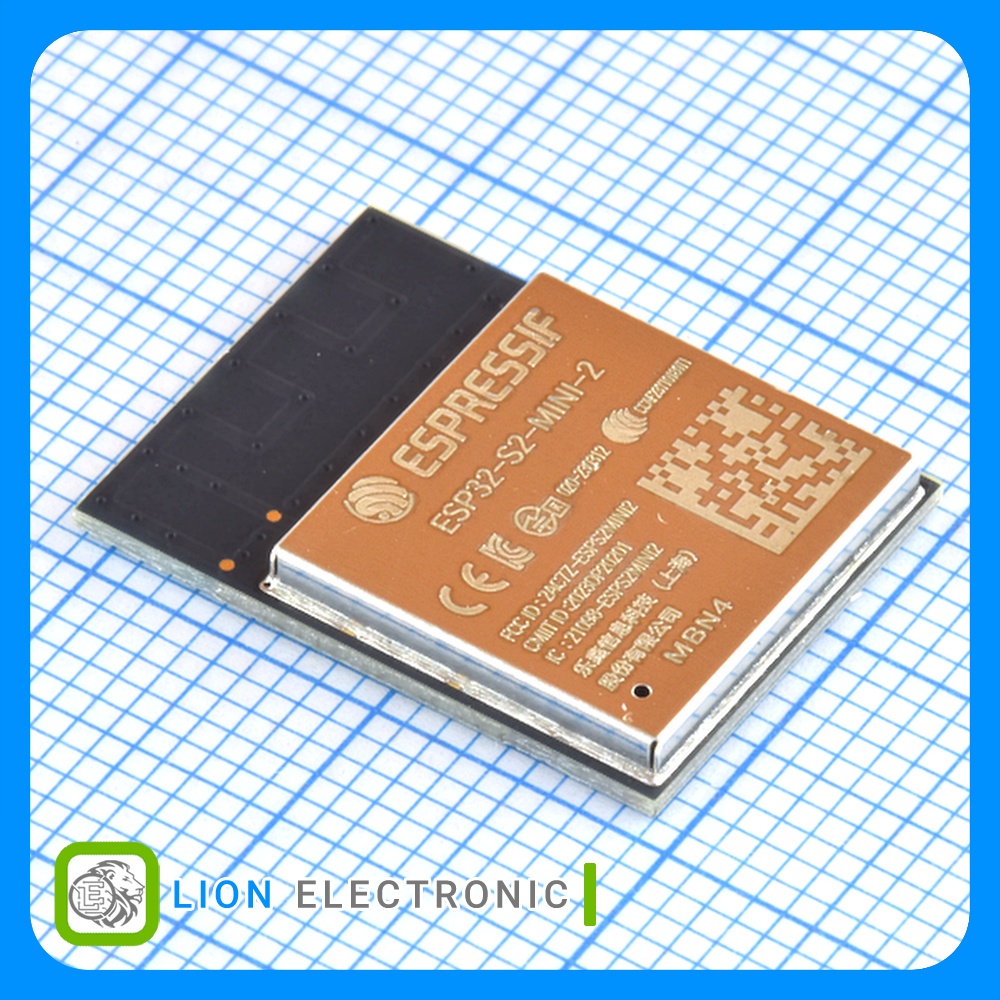

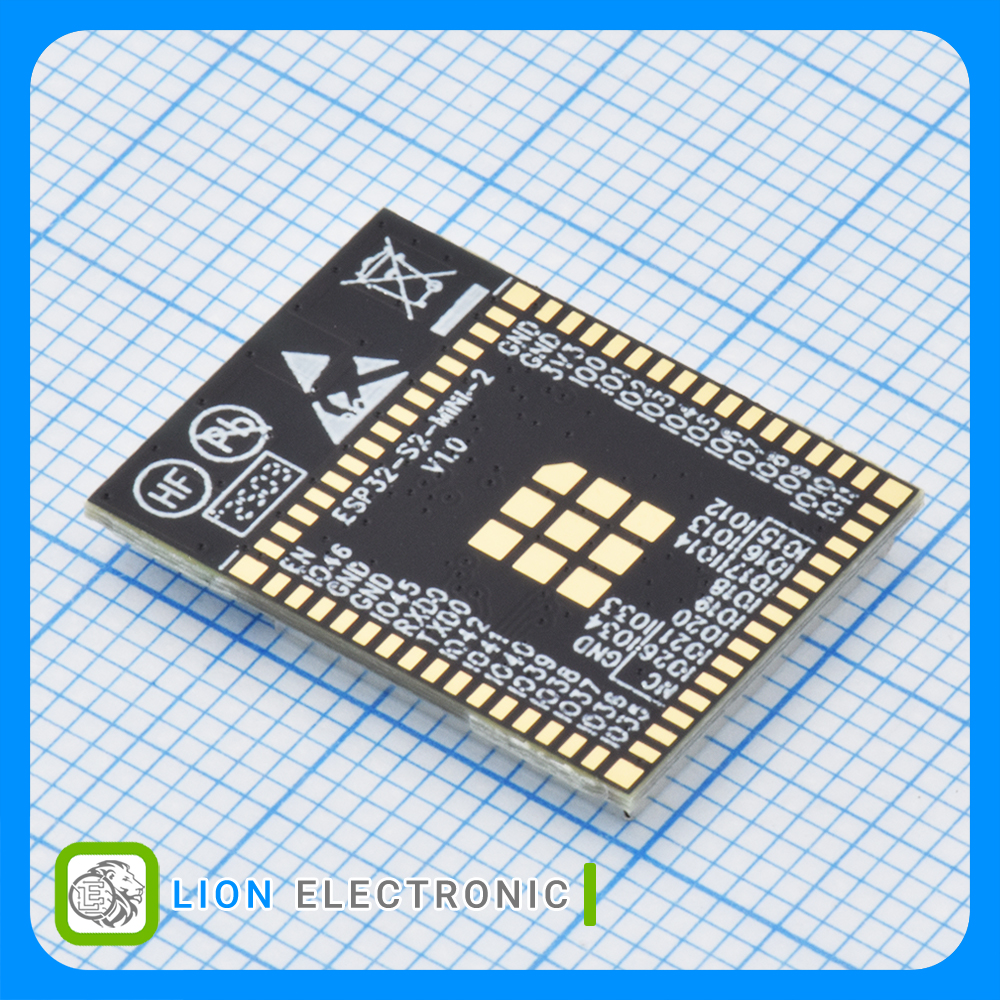

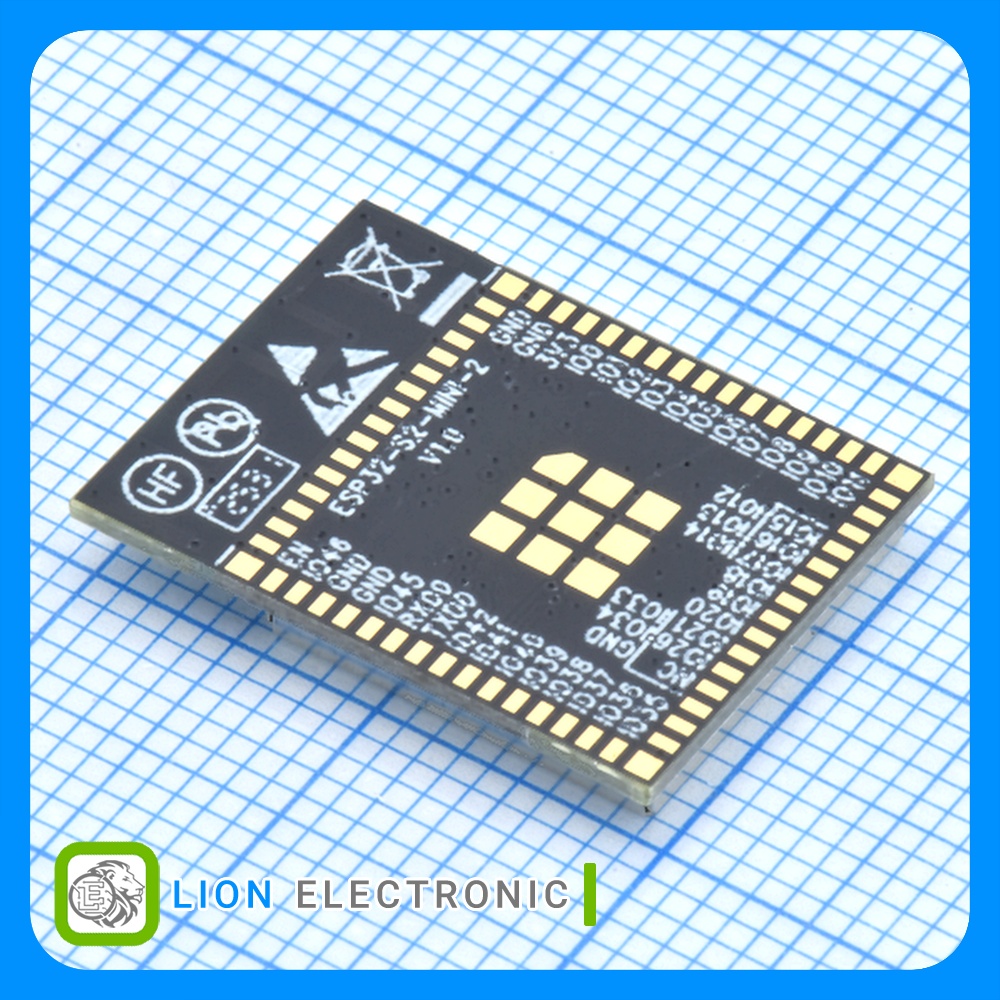

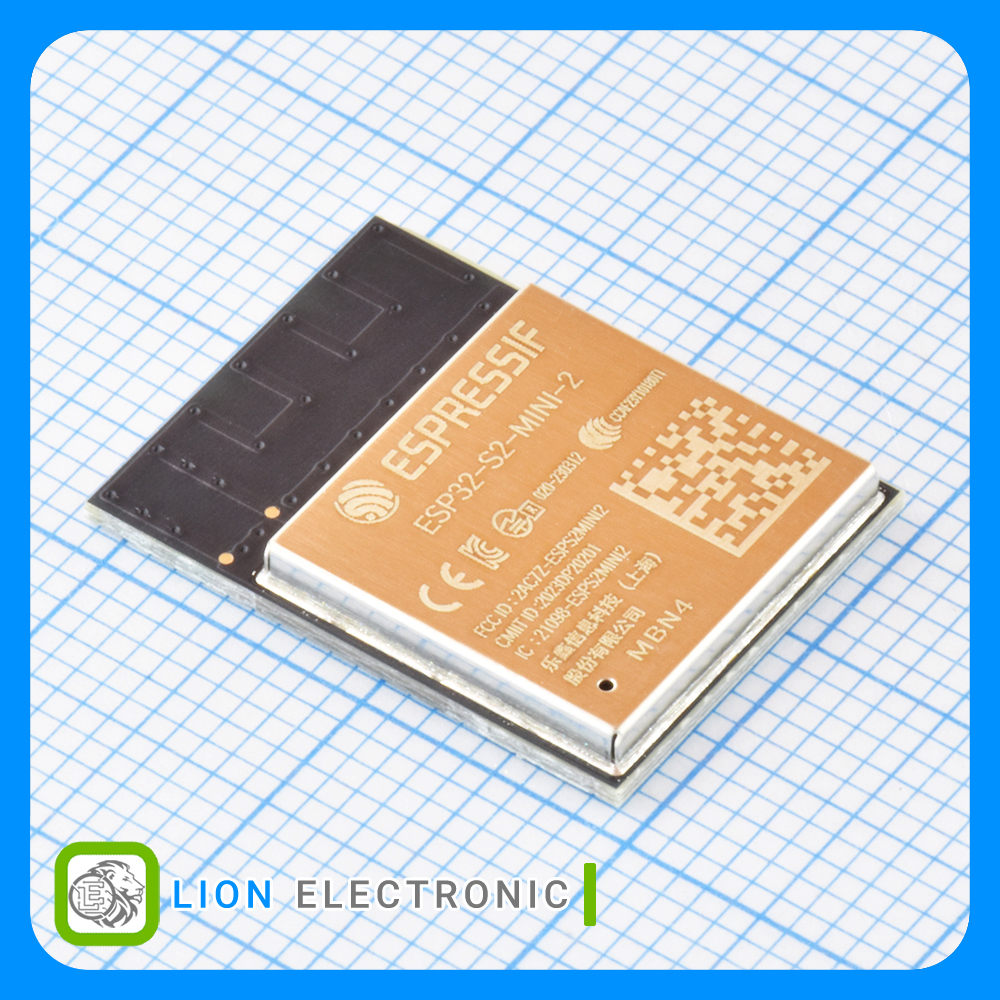

• On-board PCB antenna(ESP32-S2-MINI-2)
Operating Conditions
• Operating voltage/Power supply: 3.0 ~ 3.6V
• Operating ambient temperature: –40 ~ 85°C
