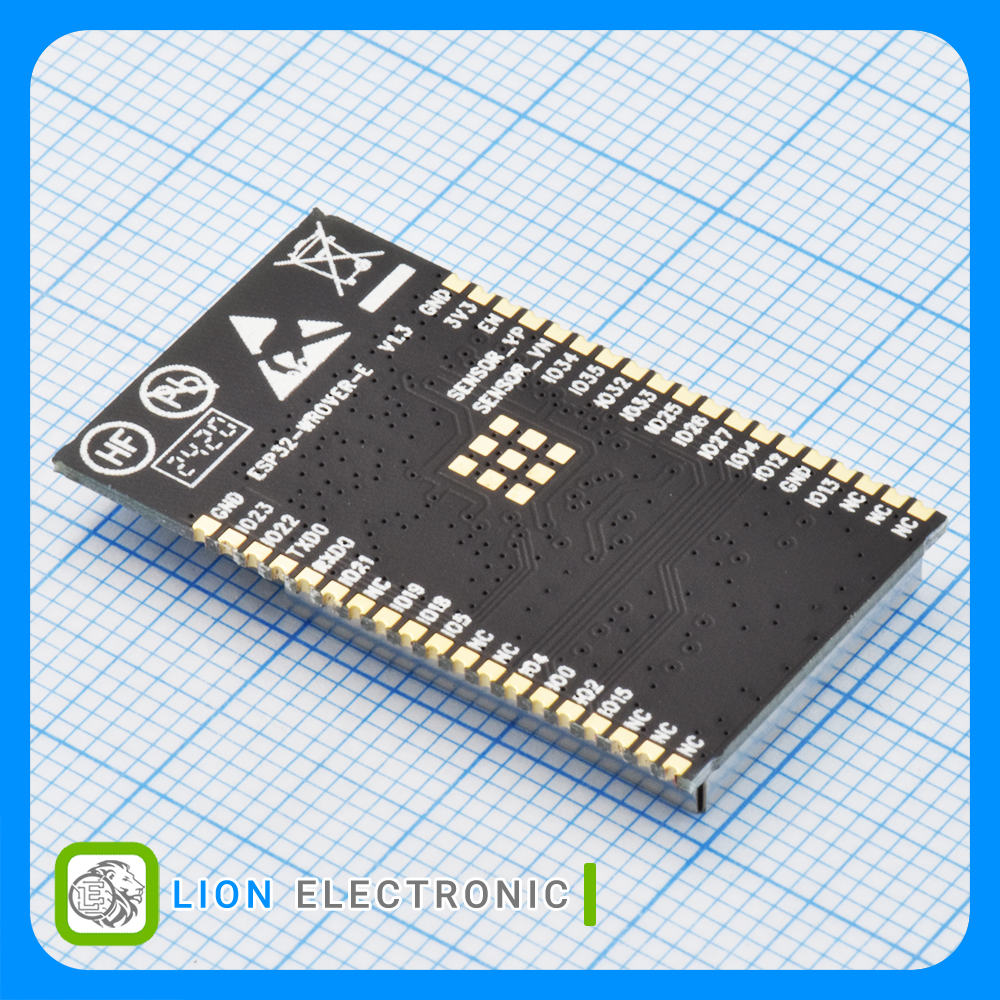

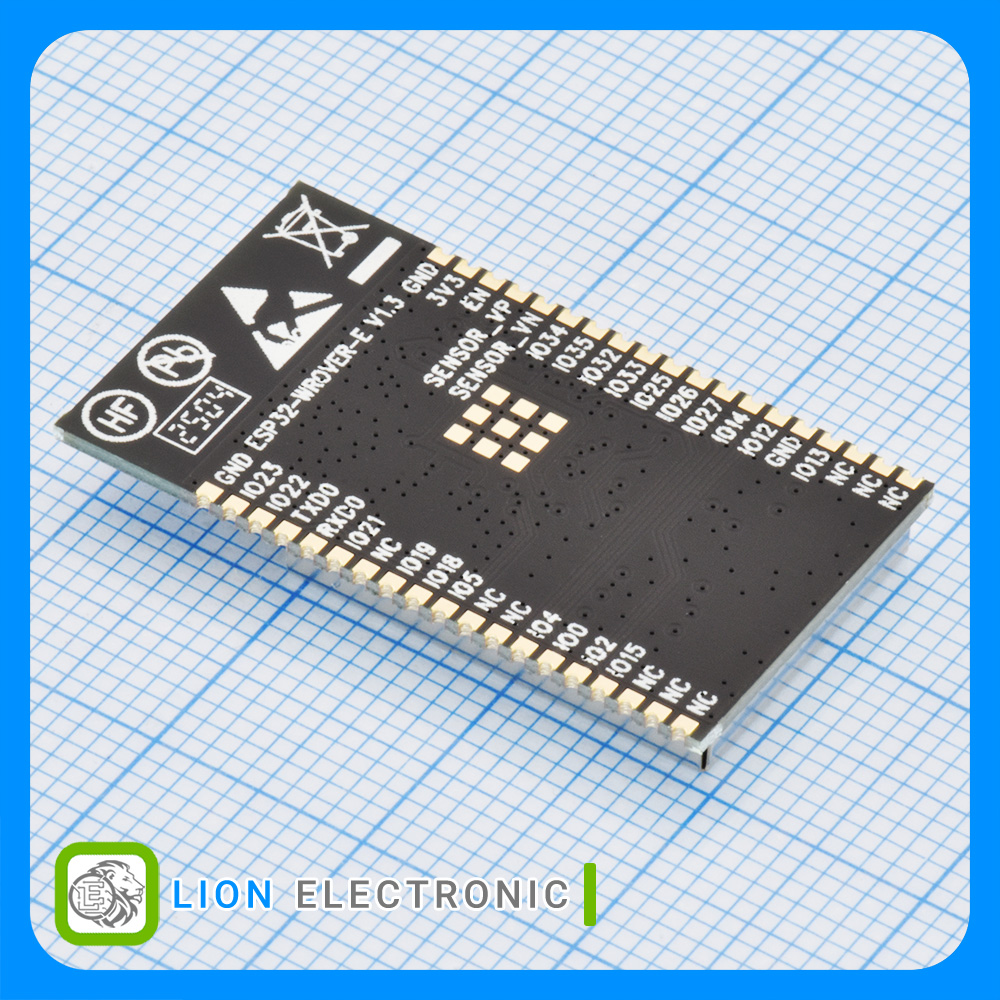

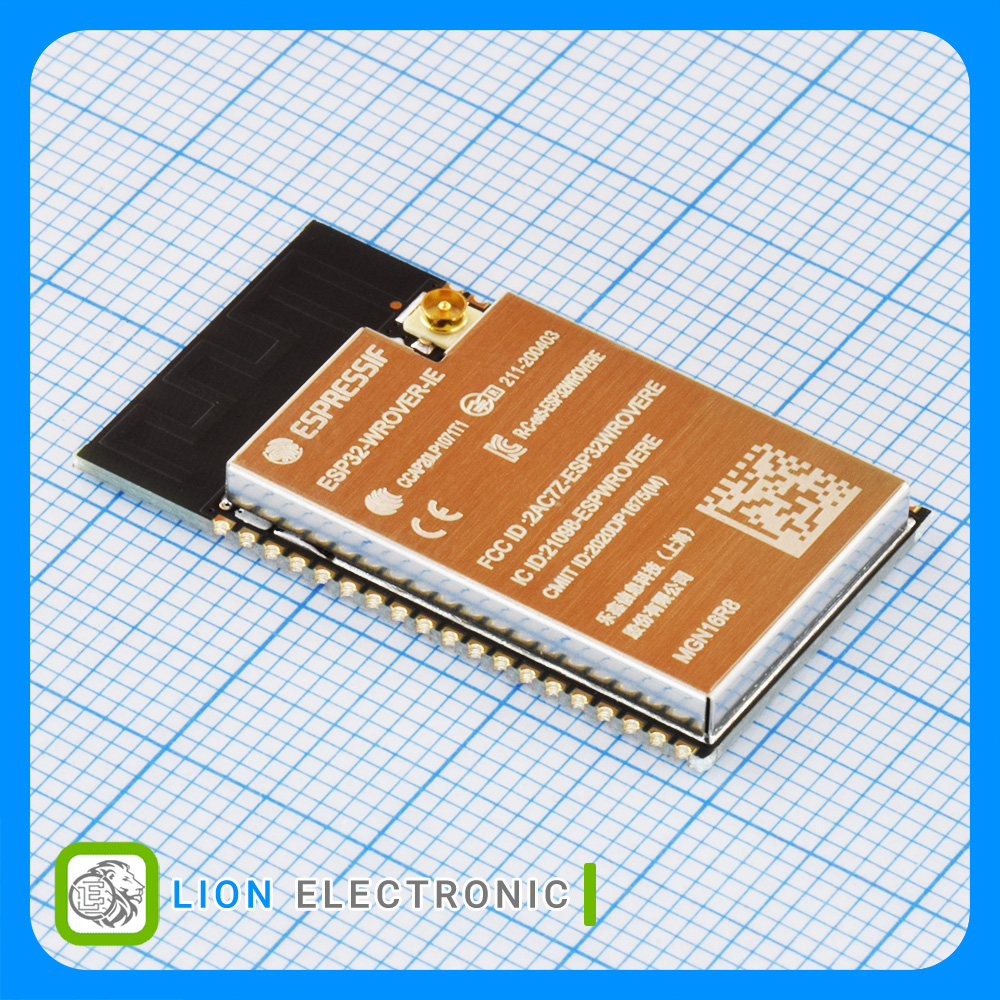

ESP32-WROVER-IE-N16R8
Espressif ماژول ESP32 قدرتمند و همهمنظوره سری ESP32 با فرکانس 240 مگاهرتز و 25 پایه I/O (GPIO)، ولتاژ تغذیه 2.3 تا 3.6 ولت با آنتن IPEX، Wi-Fi + بلوتوث LE با فلش 16MB Quad SPI و PSRAM 8MB
Powerful, Generic ESP32 Module ESP32, 240MHz with 25 I/Os (GPIOs), 2.3 - 3.6V with IPEX Antenna, Wi-Fi + Bluetooth LE, 16MB Quad SPI Flash, 8MB PSRAM, External Antenna Connector
CPU and OnChip Memory
• At the core of the module is the ESP32-D0WD chip. The chip embedded is designed to be scalable and adaptive. There are two CPU cores that can be individually controlled, and the CPU clock frequency is adjustable from 80 MHz to 240 MHz.
• 8 MB (Quad SPI) FLASH
• 8 MB (Quad SPI) PSRAM
WiFi
• 802.11 b/g/n (802.11n up to 150 Mbps)
• A-MPDU and A-MSDU aggregation and 0.4 µs guard in terval support
Bluetooth
• Bluetooth v4.2 BR/EDR and Bluetooth LE specification
• NZIF receiver with –97 dBm sensitivity
• Class-1, class-2 and class-3 transmitter
• AFH
• CVSD and SBC
Peripherals
• SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, Two-Wire Automotive Interface (TWAI®, com patible with ISO11898-1)
Integrated Components on Module
• 40 MHz crystal oscillator
Antenna Options
• External Antenna Connector (ESP32-WROVER-IE-N16R8)
Operating Conditions
• Operating voltage/Power supply: 3.0 ~ 3.6 V
• Operating ambient temperature: –40 ~ 85 °C
