Lelon
معرفی

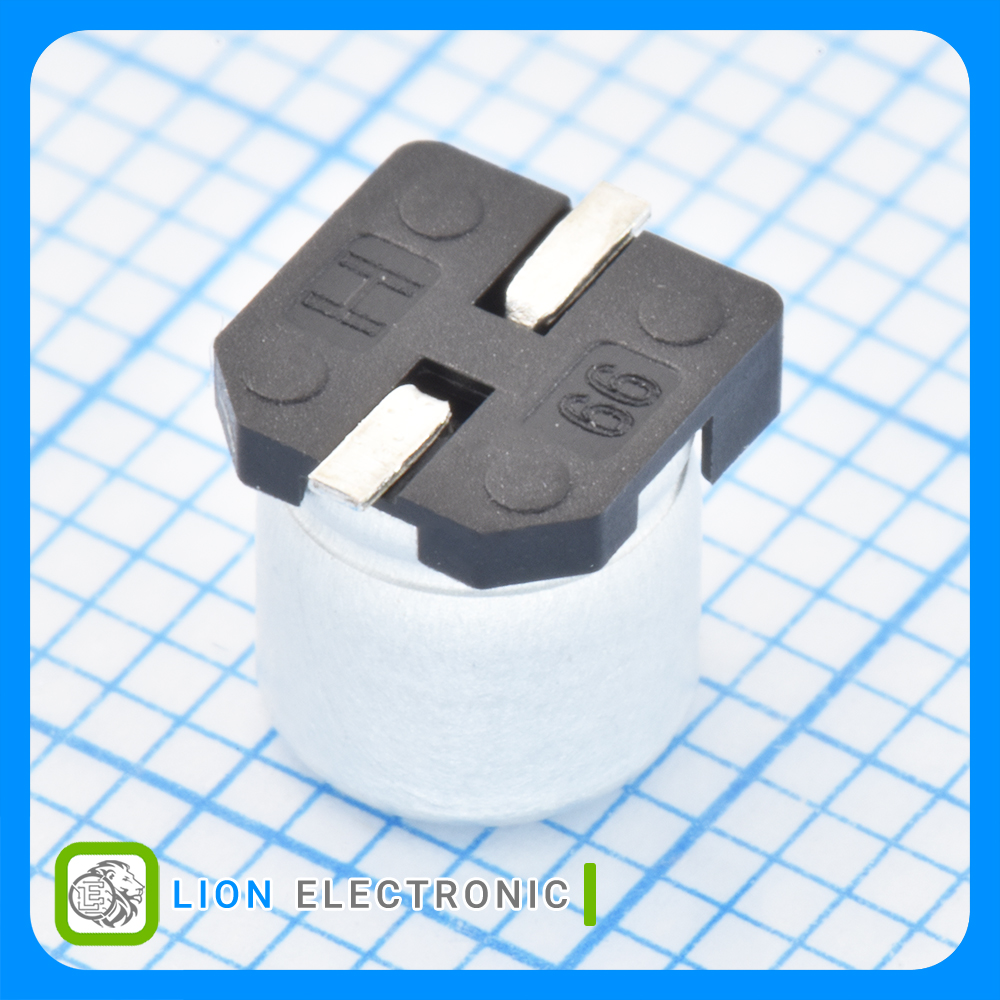

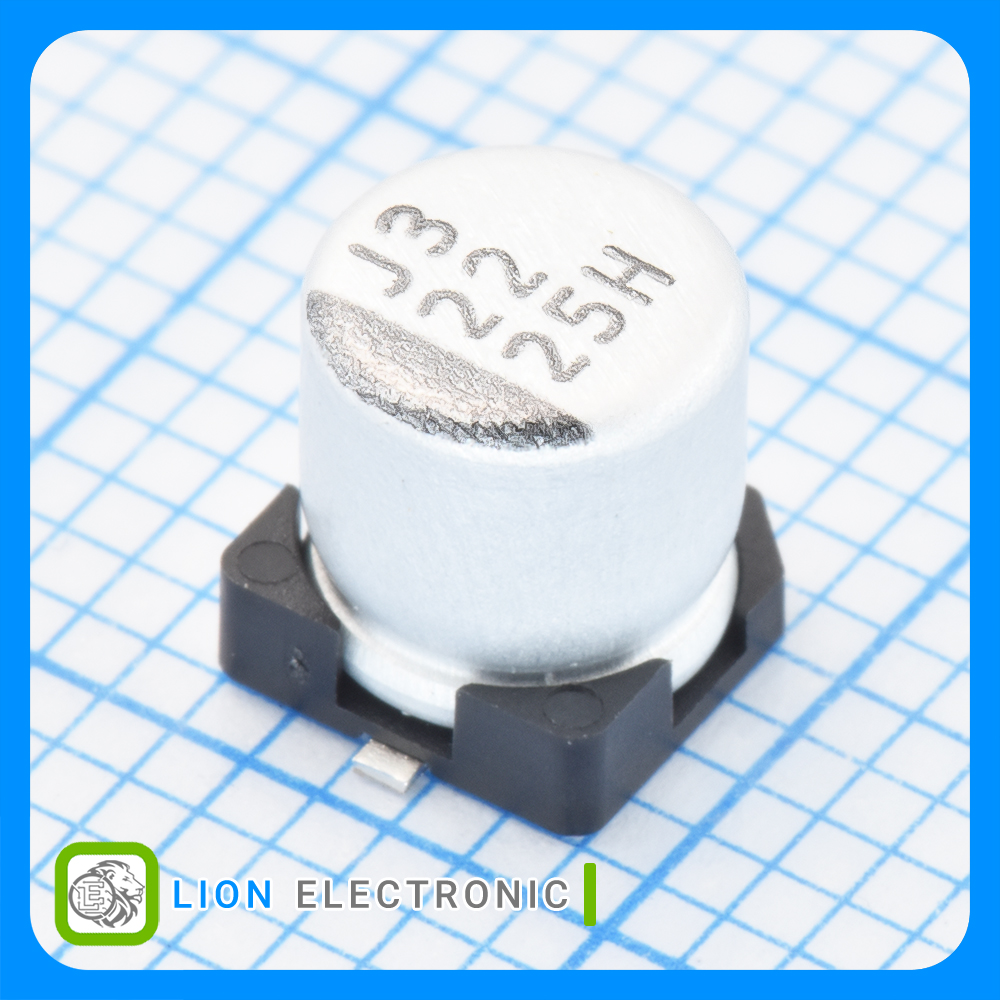

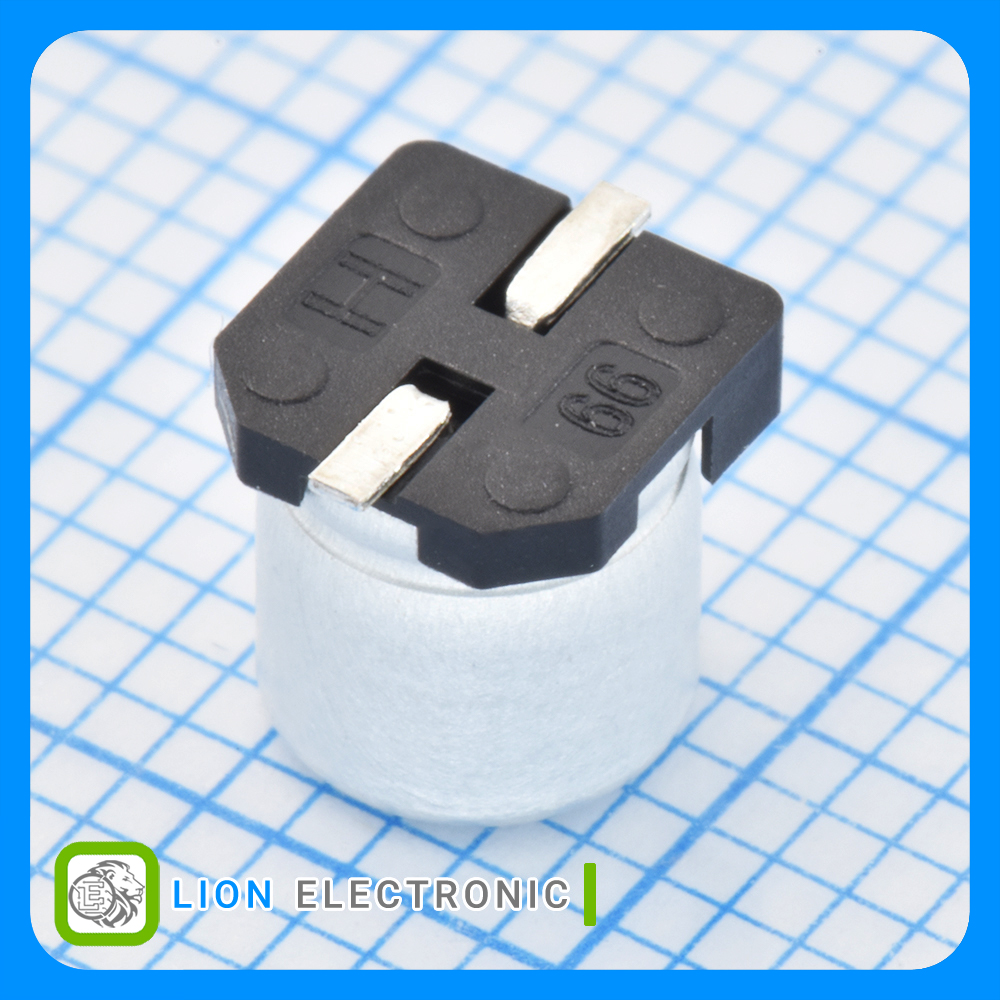

خازن الکترولیت 22 میکروفاراد 25 ولت تلرانس 20% سایز 5 میلیمترx5.7 میلیمتر
Aluminum Electrolytic Capacitor 22uF, 25V, 20% with 5mmx5.7mm Size
Specifications
- Life: 2000~5000 Hour
- Capacitance: 22uF
- Voltage Rating DC: 25VDC
- Ripple Current: 150mA
- ESR: 800mΩ
- Tolerance: 20%
- Diameter: 5mm
- Height: 5.7mm
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Reel

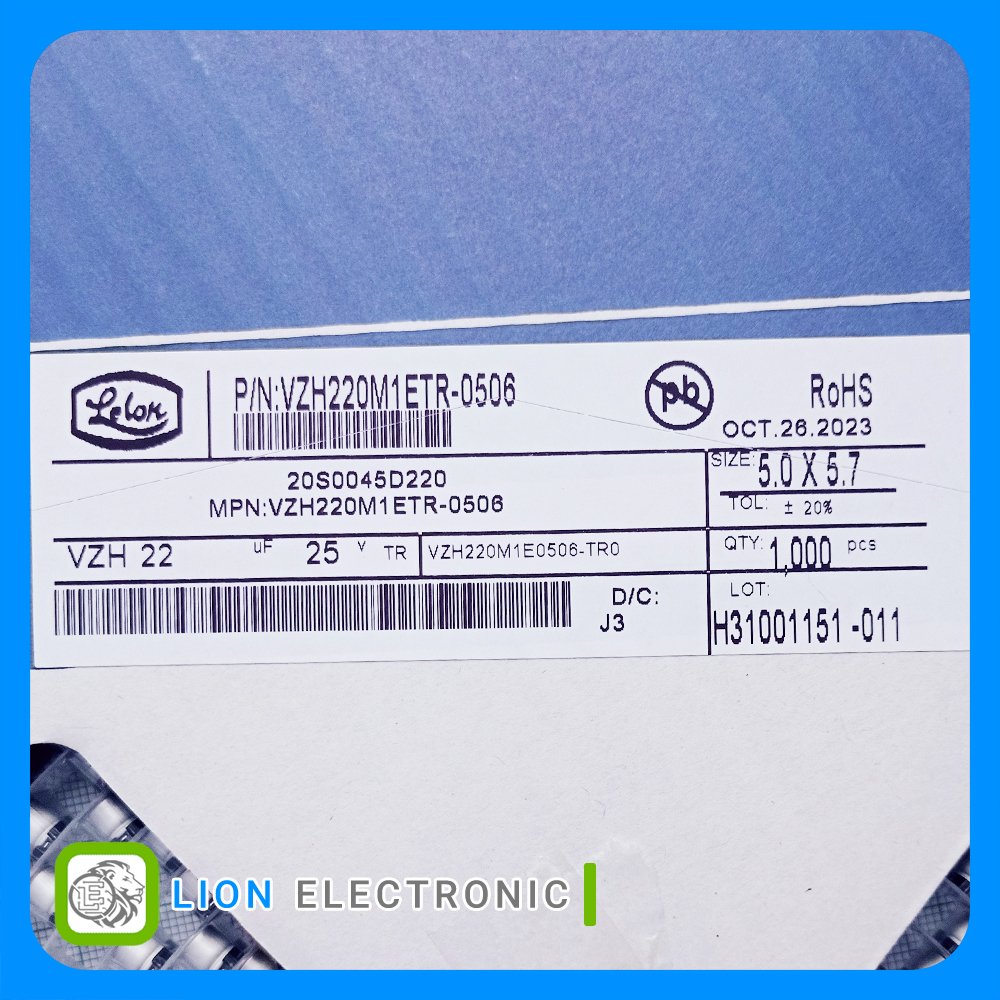

مشخصات خازن VZH220M1ETR-0506

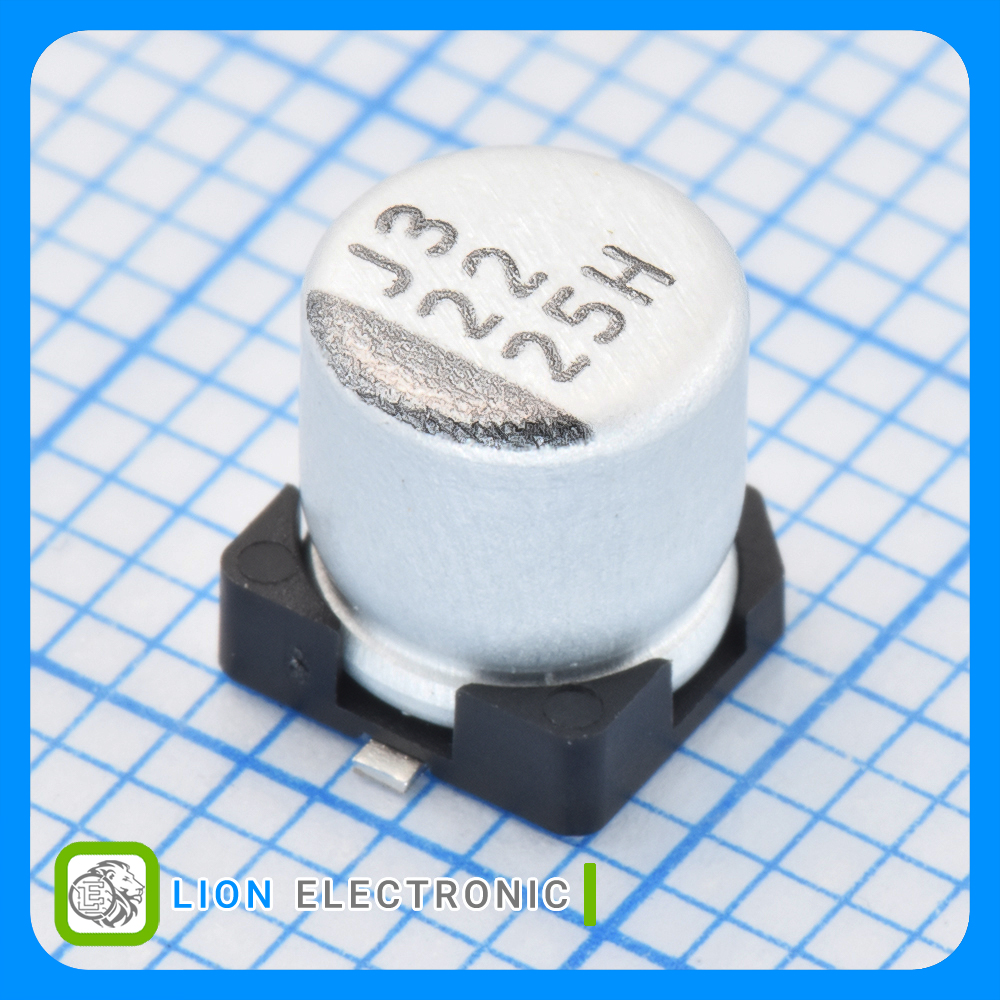

خازن VZH220M1ETR-0506
Part Number
2000~5000 Hour
Life
-55C
Minimum Operating Temperature
Reel
Packaging
5mm
Diameter
25VDC
Voltage Rating DC
150mA
Ripple Current
+105C
Maximum Operating Temperature
20%
Tolerance
800mΩ
ESR
5.7mm
Height
22uF
Capacitance
